Intermediate abstract class for handling cell-set options for the derived fvOptions. More...

#include <cellSetOption.H>

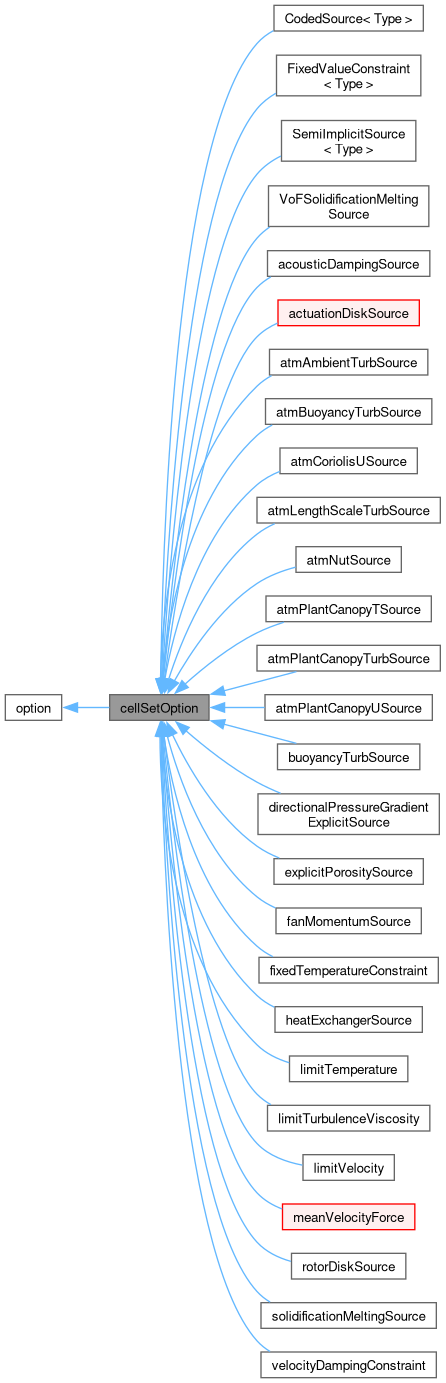

Inheritance diagram for cellSetOption:

[legend]

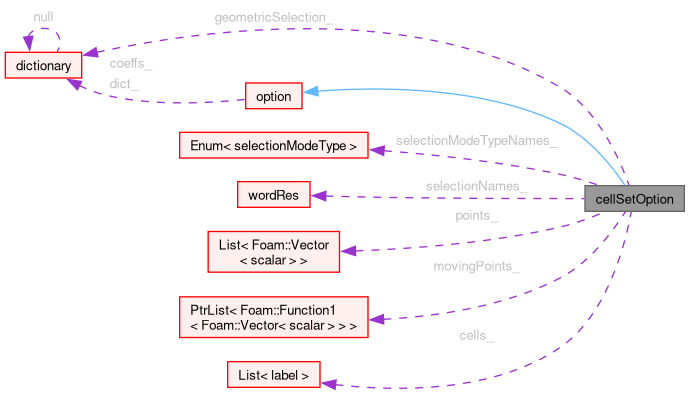

Collaboration diagram for cellSetOption:

[legend]

Public Types
enum	selectionModeType : char { smAll , smCellSet , smCellZone , smPoints , smMovingPoints , smGeometric , smCellType }
	Enumeration for selection mode types. More...

Public Member Functions
	TypeName ("cellSetOption")
	Runtime type information.
	cellSetOption (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
virtual	~cellSetOption ()=default
	Destructor.
scalar	timeStart () const noexcept
	Return const access to the time start.
scalar	duration () const noexcept
	Return const access to the duration.
bool	inTimeLimits (const scalar timeValue) const
	True if within time limits.
bool	useSubMesh () const noexcept
	True if sub-selection should be used.
selectionModeType	selectionMode () const noexcept
	Return the cell selection mode.
const wordRes &	selectionNames () const noexcept
	Return const access to the selection names (set or zone selection).
const wordRe &	zoneName () const
	Return const access to the first set/zone name.
scalar	V () const noexcept
	Return const access to the total cell volume.
const labelList &	cells () const noexcept
	Return const access to the cell selection.
bool	isSelectionUpdated () const noexcept
	Return flag for selection updates.
scalar	timeStart (scalar val) noexcept
	Adjust the time start, return the old value.
scalar	duration (scalar val) noexcept
	Adjust the duration, return the old value.
virtual bool	isActive ()
	Is the source active?
virtual bool	read (const dictionary &dict)
	Read source dictionary.
const word &	cellSetName () const
	The name of the cell set/zone [as a word] for "cellSet" / "cellZone" selection modes).
Public Member Functions inherited from option
	TypeName ("option")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))
	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
autoPtr< option >	clone () const
	Return clone.
virtual	~option ()=default
	Destructor.
const word &	name () const noexcept
	Return const access to the source name.
const fvMesh &	mesh () const noexcept
	Return const access to the mesh database.
const dictionary &	coeffs () const noexcept
	Return dictionary.
bool	active () const noexcept
	True if source is active.
void	setApplied (const label fieldi)
	Set the applied flag to true for field index fieldi.
bool	active (const bool on) noexcept
	Change source active flag, return previous value.
virtual label	applyToField (const word &fieldName) const
	Return index of field name if found in fieldNames list.
virtual void	checkApplied () const
	Check that the source has been applied.
virtual void	addSup (fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< scalar > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< vector > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< tensor > &eqn, const label fieldi)
virtual void	correct (volScalarField &field)
virtual void	correct (volVectorField &field)
virtual void	correct (volSphericalTensorField &field)
virtual void	correct (volSymmTensorField &field)
virtual void	correct (volTensorField &field)
virtual void	correct (surfaceScalarField &field)
virtual void	correct (surfaceVectorField &field)
virtual void	correct (surfaceTensorField &field)
virtual void	postProcessSens (scalarField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessSens (vectorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessSens (tensorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessAuxSens (const volScalarField &primalField, const volScalarField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	postProcessAuxSens (const volVectorField &primalField, const volVectorField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	postProcessAuxSens (const volTensorField &primalField, const volTensorField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	writeHeader (Ostream &) const
	Write the source header information.
virtual void	writeFooter (Ostream &) const
	Write the source footer information.
virtual void	writeData (Ostream &) const
	Write the source properties.

Static Public Attributes
static const Enum< selectionModeType >	selectionModeTypeNames_
	List of selection mode type names.

Protected Member Functions
void	setSelection (const dictionary &dict)
	Set cell selection name or points selection from dictionary input.
void	setCellSelection ()
	Set the cell selection based on user input selection mode.
void	setVol ()
	Recalculate the volume.
Protected Member Functions inherited from option
void	resetApplied ()
	Resize/reset applied flag list for all fieldNames_ entries.

Protected Attributes
selectionModeType	selectionMode_
	Cell selection mode.
bool	updateSelection_
	Flag to enable dictionary-based updates of selections.
scalar	timeStart_
	Start time of fvOption.
scalar	duration_
	Duration of fvOption execution starting from timeStart.
wordRes	selectionNames_
	Face selection names (for set or zone selections).
List< point >	points_
	List of points for "points" selectionMode.
PtrList< Function1< point > >	movingPoints_
	List of points for "movingPoints" selectionMode.
dictionary	geometricSelection_
	Dictionary entries for "geometric" (topoSetCellSource) selection.
labelList	cells_
	Set of cells to apply source to.
scalar	V_
	Sum of cell volumes.
Protected Attributes inherited from option
const word	name_
	Source name.
const word	modelType_
	Model type.
const fvMesh &	mesh_
	Reference to the mesh database.
dictionary	dict_
	Top level source dictionary.
dictionary	coeffs_
	Dictionary containing source coefficients.
wordList	fieldNames_
	Field names to apply source to - populated by derived models.
List< bool >	applied_
	Applied flag list - corresponds to each fieldNames_ entry.
bool	active_
	Source active flag.

Additional Inherited Members
Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh)
	Return a reference to the selected fvOption model.
Public Attributes inherited from option
bool	log
	Switch write log to Info.

Detailed Description

Intermediate abstract class for handling cell-set options for the derived fvOptions.

Usage

Minimal example by using constant/fvOptions:

fvOption1
{
    // Mandatory entries
    selectionMode     <word>;

    // Optional entries
    timeStart         <scalar>;
    updateSelection   <bool>;

    // Conditional entries

        // when timeStart entry is present
        duration          <scalar>;

        // when selectionMode=cellSet
        cellSet           <word>;

        // when selectionMode=cellZone
        cellZone          <word>;

        //OR: cellZones   (<word> ...);

        // when selectionMode=points
        points            (<point1> <point2> ... <pointN>);

        // when selectionMode=movingPoints
        movingPoints
        (
            <word>        <Function1<vector>>;
            // e.g.
            point1        <Function1<vector>>;
            pointN        <Function1<vector>>;
            ...
        );

        // when selectionMode=geometric
        selection
        {
            topoSet1      <dictionary>;

            box1
            {
                action  use;
                source  box;
                min     (-0.1 -0.01 -0.1);
                max     (0.1 0.30 0.1);
            }
            ball
            {
                action  add;
                source  sphere;
                origin  (-0.1 -0.01 -0.1);
                radius  0.25;
            }
            ...
        }

    // Inherited entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`selectionMode`	Mode of cell selection - see below	word	yes	-
`timeStart`	Start time of fvOption	scalar	no	-1
`updateSelection`	Flag to enable selection updates	bool	no	false
`duration`	Duration of fvOption execution starting from timeStart	scalar	choice	0
`cellSet`	Name of operand cellSet	word	choice	-
`cellZone`	Name of operand cellZone	wordRe	choice	-
`cellZones`	Name of operand cellZones	wordRes	choice	-
`points`	Set of points in global coordinate system	vectorList	choice	-
`movingPoints`	Set of moving points in global coordinate system	Function1<vector>	choice	-
`selection`	Dictionary of geometric selections	dict	choice	-

Options for the selectionMode entry:

      all       | Use all cells in the computational domain
      cellZone  | Use specified cellZone
      cellSet   | Use specified cellSet
      points    | Use cells containing a given set of points
      movingPoints | Use cells containing a given set of moving points
      geometric | Select cells based on topoSetCellSource actions
      cellType  | For overset only : use cells of type 'porous

The inherited entries are elaborated in:

Note

Source/sink options are to be added to the right-hand side of equations.
The geometric selection uses topoSetCellSource to select cells. Any searchableSurface selections must describe a closed volume. Ie, its hasVolumeType() method must be true.

See also: Foam::cellBitSet::select

Source files

Definition at line 233 of file cellSetOption.H.

Member Enumeration Documentation

◆ selectionModeType

enum selectionModeType : char

Enumeration for selection mode types.

Enumerator
smAll	"all" cells
smCellSet	"cellSet"
smCellZone	"cellZone"
smPoints	"points"
smMovingPoints	"movingPoints"
smGeometric	"geometric"
smCellType	"overset type cells"

Definition at line 244 of file cellSetOption.H.

Constructor & Destructor Documentation

◆ cellSetOption()

cellSetOption	(	const word &	name,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh )

Construct from components.

Definition at line 346 of file cellSetOption.C.

References option::coeffs_, Foam::decrIndent(), dict, duration_, geometricSelection_, Foam::incrIndent(), Foam::Info, option::mesh(), movingPoints_, option::name(), option::option(), points_, read(), selectionMode_, selectionModeTypeNames_, selectionNames_, setCellSelection(), setSelection(), setVol(), timeStart_, updateSelection_, and V_.

Referenced by acousticDampingSource::acousticDampingSource(), actuationDiskSource::actuationDiskSource(), atmAmbientTurbSource::atmAmbientTurbSource(), atmBuoyancyTurbSource::atmBuoyancyTurbSource(), atmCoriolisUSource::atmCoriolisUSource(), atmLengthScaleTurbSource::atmLengthScaleTurbSource(), atmNutSource::atmNutSource(), atmPlantCanopyTSource::atmPlantCanopyTSource(), atmPlantCanopyTurbSource::atmPlantCanopyTurbSource(), atmPlantCanopyUSource::atmPlantCanopyUSource(), buoyancyTurbSource::buoyancyTurbSource(), CodedSource< Type >::CodedSource(), directionalPressureGradientExplicitSource::directionalPressureGradientExplicitSource(), explicitPorositySource::explicitPorositySource(), fanMomentumSource::fanMomentumSource(), fixedTemperatureConstraint::fixedTemperatureConstraint(), FixedValueConstraint< Type >::FixedValueConstraint(), heatExchangerSource::heatExchangerSource(), limitTemperature::limitTemperature(), limitTurbulenceViscosity::limitTurbulenceViscosity(), limitVelocity::limitVelocity(), meanVelocityForce::meanVelocityForce(), rotorDiskSource::rotorDiskSource(), SemiImplicitSource< Type >::SemiImplicitSource(), solidificationMeltingSource::solidificationMeltingSource(), and velocityDampingConstraint::velocityDampingConstraint().

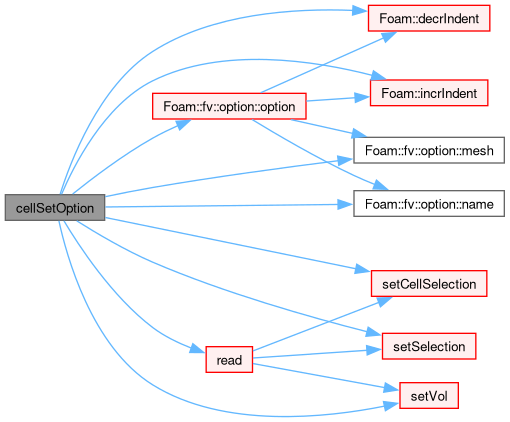

Here is the call graph for this function:

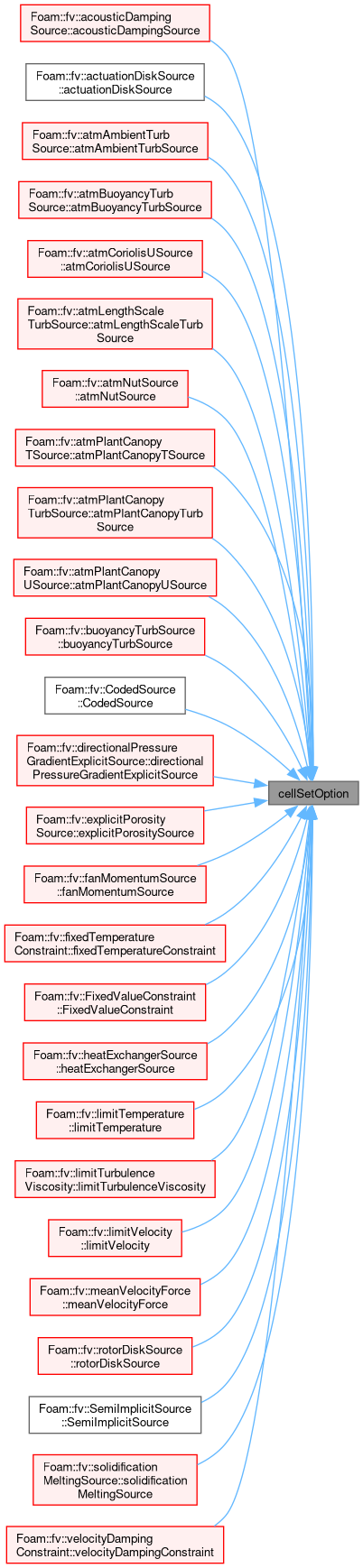

Here is the caller graph for this function:

◆ ~cellSetOption()

virtual ~cellSetOption ( )

virtualdefault

Destructor.

References cells(), duration(), inTimeLimits(), Foam::noexcept, selectionMode(), selectionNames(), useSubMesh(), V(), and zoneName().

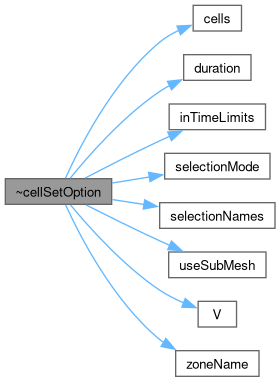

Here is the call graph for this function:

Member Function Documentation

◆ setSelection()

void setSelection ( const dictionary & dict )

protected

Set cell selection name or points selection from dictionary input.

Definition at line 57 of file cellSetOption.C.

References dict, Foam::exit(), Foam::FatalError, FatalErrorInFunction, geometricSelection_, option::mesh_, movingPoints_, points_, selectionMode_, selectionModeTypeNames_, selectionNames_, DLListBase::size(), smAll, smCellSet, smCellType, smCellZone, smGeometric, smMovingPoints, and smPoints.

Referenced by cellSetOption(), and read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setCellSelection()

void setCellSelection ( )

protected

Set the cell selection based on user input selection mode.

Definition at line 166 of file cellSetOption.C.

References cells_, cellTypes, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::flatOutput(), forAll, found, geometricSelection_, Foam::identity(), Foam::indent(), Foam::Info, HashSet< Key, Hash >::insert(), option::mesh_, movingPoints_, UPstream::myProcNo(), MeshObject< fvMesh, MoveableMeshObject, cellCellStencilObject >::New(), Foam::nl, overlap, p, points_, cellCellStencil::POROUS, Foam::reduce(), Foam::returnReduceAnd(), Foam::returnReduceOr(), cellBitSet::select(), selectionMode_, selectionModeTypeNames_, selectionNames_, smAll, smCellSet, smCellType, smCellZone, smGeometric, smMovingPoints, smPoints, bitSet::sortedToc(), HashTable< T, Key, Hash >::sortedToc(), WarningInFunction, zoneIDs, and zoneName().

Referenced by cellSetOption(), isActive(), and read().

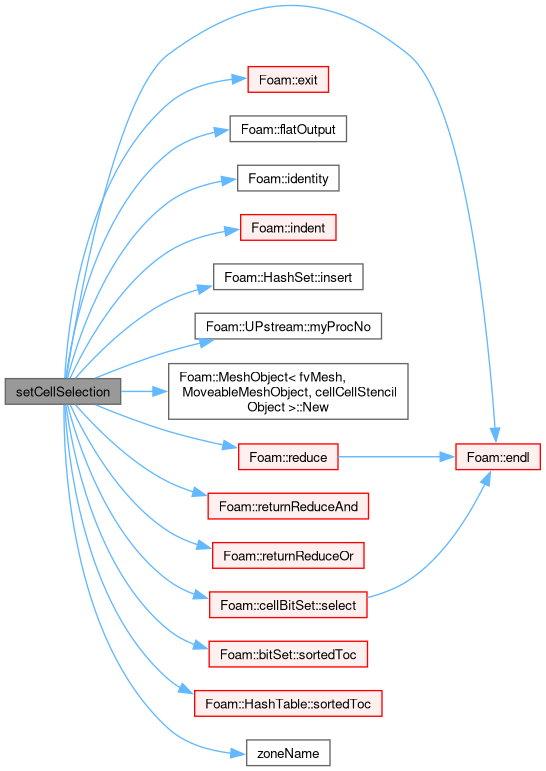

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setVol()

void setVol ( )

protected

Recalculate the volume.

Definition at line 138 of file cellSetOption.C.

References cells_, IOstream::defaultPrecision(), Foam::endl(), Foam::indent(), Foam::Info, option::mesh_, Foam::reduce(), Foam::returnReduce(), Time::timeName(), and V_.

Referenced by cellSetOption(), isActive(), and read().

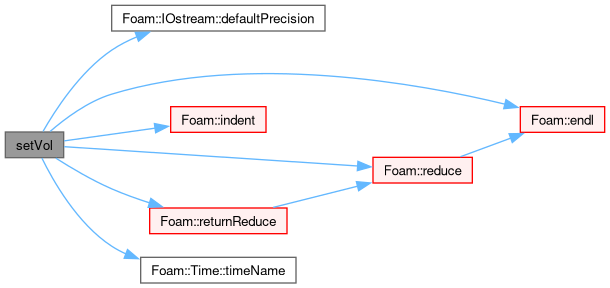

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "cellSetOption" )

Runtime type information.

References dict, option::mesh(), and option::name().

Here is the call graph for this function:

◆ timeStart() [1/2]

Foam::scalar timeStart ( ) const

inlinenoexcept

Return const access to the time start.

Definition at line 24 of file cellSetOptionI.H.

References Foam::noexcept, and timeStart_.

◆ duration() [1/2]

Foam::scalar duration ( ) const

inlinenoexcept

Return const access to the duration.

Definition at line 30 of file cellSetOptionI.H.

References duration_, and Foam::noexcept.

Referenced by ~cellSetOption().

Here is the caller graph for this function:

◆ inTimeLimits()

bool inTimeLimits ( const scalar timeValue ) const

inline

True if within time limits.

Definition at line 36 of file cellSetOptionI.H.

References duration_, option::mesh_, and timeStart_.

Referenced by isActive(), and ~cellSetOption().

Here is the caller graph for this function:

◆ useSubMesh()

bool useSubMesh ( ) const

inlinenoexcept

True if sub-selection should be used.

Definition at line 50 of file cellSetOptionI.H.

References Foam::noexcept, selectionMode_, and smAll.

Referenced by SemiImplicitSource< Type >::addSup(), limitTemperature::correct(), limitTurbulenceViscosity::correct(), limitVelocity::correct(), and ~cellSetOption().

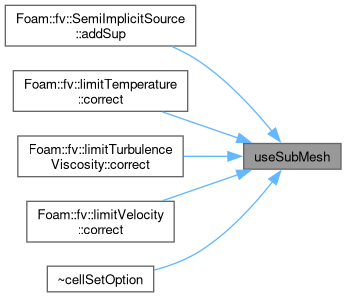

Here is the caller graph for this function:

◆ selectionMode()

Foam::fv::cellSetOption::selectionModeType selectionMode ( ) const

inlinenoexcept

Return the cell selection mode.

Definition at line 57 of file cellSetOptionI.H.

References Foam::noexcept, and selectionMode_.

Referenced by rotorDiskSource::checkData(), and ~cellSetOption().

Here is the caller graph for this function:

◆ selectionNames()

const Foam::wordRes & selectionNames ( ) const

inlinenoexcept

Return const access to the selection names (set or zone selection).

Definition at line 64 of file cellSetOptionI.H.

References Foam::noexcept, and selectionNames_.

Referenced by ~cellSetOption().

Here is the caller graph for this function:

◆ zoneName()

const Foam::wordRe & zoneName ( ) const

inline

Return const access to the first set/zone name.

Definition at line 70 of file cellSetOptionI.H.

References wordRe::null, and selectionNames_.

Referenced by cellSetName(), directionalPressureGradientExplicitSource::correct(), explicitPorositySource::explicitPorositySource(), setCellSelection(), and ~cellSetOption().

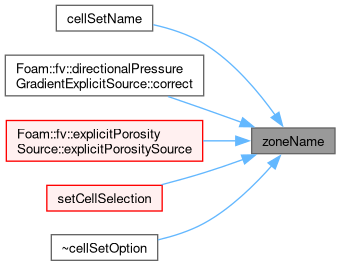

Here is the caller graph for this function:

◆ V()

Foam::scalar V ( ) const

inlinenoexcept

Return const access to the total cell volume.

Definition at line 76 of file cellSetOptionI.H.

References Foam::noexcept, and V_.

Referenced by actuationDiskSource::addSup(), actuationDiskSource::addSup(), actuationDiskSource::addSup(), heatExchangerSource::addSup(), solidificationMeltingSource::addSup(), rotorDiskSource::calculate(), rotorDiskSource::createCoordinateSystem(), and ~cellSetOption().

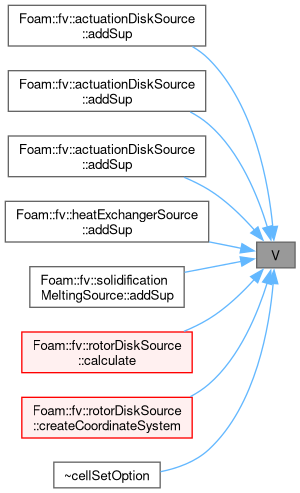

Here is the caller graph for this function:

◆ cells()

const Foam::labelList & cells ( ) const

inlinenoexcept

Return const access to the cell selection.

Definition at line 82 of file cellSetOptionI.H.

References cells_, and Foam::noexcept.

Referenced by ~cellSetOption().

Here is the caller graph for this function:

◆ isSelectionUpdated()

bool isSelectionUpdated ( ) const

inlinenoexcept

Return flag for selection updates.

Definition at line 415 of file cellSetOption.H.

References isSelectionUpdated(), Foam::noexcept, and updateSelection_.

Referenced by isSelectionUpdated().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ timeStart() [2/2]

Foam::scalar timeStart ( scalar val )

inlinenoexcept

Adjust the time start, return the old value.

Definition at line 88 of file cellSetOptionI.H.

References timeStart_.

◆ duration() [2/2]

Foam::scalar duration ( scalar val )

inlinenoexcept

Adjust the duration, return the old value.

Definition at line 96 of file cellSetOptionI.H.

References duration_.

◆ isActive()

bool isActive ( )

virtual

Is the source active?

Reimplemented from option.

Definition at line 376 of file cellSetOption.C.

References inTimeLimits(), option::isActive(), option::mesh_, selectionMode_, setCellSelection(), setVol(), smCellType, smGeometric, smMovingPoints, smPoints, and V_.

Referenced by limitTemperature::limitTemperature(), and limitTurbulenceViscosity::limitTurbulenceViscosity().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read()

bool read ( const dictionary & dict )

virtual

Read source dictionary.

Reimplemented from option.

Reimplemented in acousticDampingSource, actuationDiskSource, atmAmbientTurbSource, atmBuoyancyTurbSource, atmCoriolisUSource, atmLengthScaleTurbSource, atmNutSource, atmPlantCanopyTSource, atmPlantCanopyTurbSource, atmPlantCanopyUSource, buoyancyTurbSource, CodedSource< Type >, directionalPressureGradientExplicitSource, explicitPorositySource, fanMomentumSource, fixedTemperatureConstraint, FixedValueConstraint< Type >, heatExchangerSource, limitTemperature, limitTurbulenceViscosity, limitVelocity, meanVelocityForce, radialActuationDiskSource, rotorDiskSource, SemiImplicitSource< Type >, solidificationMeltingSource, velocityDampingConstraint, and VoFSolidificationMeltingSource.

Definition at line 422 of file cellSetOption.C.

References option::coeffs_, dict, duration_, option::read(), setCellSelection(), setSelection(), setVol(), timeStart_, and updateSelection_.

Referenced by cellSetOption(), acousticDampingSource::read(), actuationDiskSource::read(), atmPlantCanopyTurbSource::read(), atmPlantCanopyUSource::read(), CodedSource< Type >::read(), explicitPorositySource::read(), fixedTemperatureConstraint::read(), FixedValueConstraint< Type >::read(), heatExchangerSource::read(), limitTemperature::read(), limitTurbulenceViscosity::read(), limitVelocity::read(), rotorDiskSource::read(), SemiImplicitSource< Type >::read(), solidificationMeltingSource::read(), and velocityDampingConstraint::read().

Here is the call graph for this function:

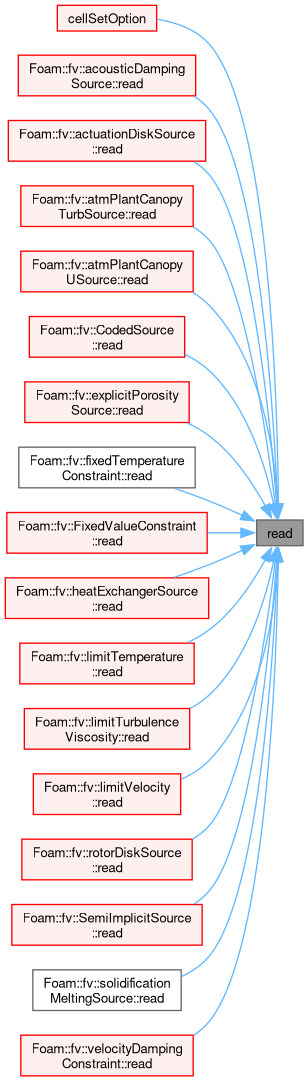

Here is the caller graph for this function:

◆ cellSetName()

const word & cellSetName ( ) const

inline

The name of the cell set/zone [as a word] for "cellSet" / "cellZone" selection modes).

Definition at line 456 of file cellSetOption.H.

References zoneName().

Here is the call graph for this function:

Member Data Documentation

◆ selectionModeTypeNames_

const Foam::Enum< Foam::fv::cellSetOption::selectionModeType > selectionModeTypeNames_

static

List of selection mode type names.

Definition at line 258 of file cellSetOption.H.

Referenced by cellSetOption(), rotorDiskSource::checkData(), setCellSelection(), and setSelection().

◆ selectionMode_

selectionModeType selectionMode_

protected

Cell selection mode.

Definition at line 268 of file cellSetOption.H.

Referenced by cellSetOption(), isActive(), selectionMode(), setCellSelection(), setSelection(), and useSubMesh().

◆ updateSelection_

bool updateSelection_

protected

Flag to enable dictionary-based updates of selections.

Definition at line 273 of file cellSetOption.H.

Referenced by cellSetOption(), isSelectionUpdated(), and read().

◆ timeStart_

scalar timeStart_

protected

Start time of fvOption.

Definition at line 278 of file cellSetOption.H.

Referenced by cellSetOption(), inTimeLimits(), read(), timeStart(), and timeStart().

◆ duration_

scalar duration_

protected

Duration of fvOption execution starting from timeStart.

Definition at line 283 of file cellSetOption.H.

Referenced by cellSetOption(), duration(), duration(), inTimeLimits(), and read().

◆ selectionNames_

wordRes selectionNames_

protected

Face selection names (for set or zone selections).

Definition at line 288 of file cellSetOption.H.

Referenced by cellSetOption(), selectionNames(), setCellSelection(), setSelection(), and zoneName().

◆ points_

List<point> points_

protected

List of points for "points" selectionMode.

Definition at line 293 of file cellSetOption.H.

Referenced by cellSetOption(), setCellSelection(), and setSelection().

◆ movingPoints_

PtrList<Function1<point> > movingPoints_

protected

List of points for "movingPoints" selectionMode.

Definition at line 298 of file cellSetOption.H.

Referenced by cellSetOption(), setCellSelection(), and setSelection().

◆ geometricSelection_

dictionary geometricSelection_

protected

Dictionary entries for "geometric" (topoSetCellSource) selection.

Definition at line 303 of file cellSetOption.H.

Referenced by cellSetOption(), setCellSelection(), and setSelection().

◆ cells_

labelList cells_

protected

Set of cells to apply source to.

Definition at line 308 of file cellSetOption.H.

Referenced by velocityDampingConstraint::addDamping(), directionalPressureGradientExplicitSource::addSup(), fanMomentumSource::addSup(), fanMomentumSource::addSup(), heatExchangerSource::addSup(), meanVelocityForce::addSup(), radialActuationDiskSource::addSup(), radialActuationDiskSource::addSup(), SemiImplicitSource< Type >::addSup(), solidificationMeltingSource::addSup(), rotorDiskSource::calculate(), cells(), fixedTemperatureConstraint::constrain(), FixedValueConstraint< Type >::constrain(), rotorDiskSource::constructGeometry(), directionalPressureGradientExplicitSource::correct(), limitTemperature::correct(), limitTurbulenceViscosity::correct(), limitVelocity::correct(), meanVelocityForce::correct(), rotorDiskSource::createCoordinateSystem(), directionalPressureGradientExplicitSource::directionalPressureGradientExplicitSource(), meanVelocityForce::magUbarAve(), rotorDiskSource::rotorDiskSource(), acousticDampingSource::setBlendingFactor(), setCellSelection(), rotorDiskSource::setFaceArea(), setVol(), solidificationMeltingSource::solidificationMeltingSource(), and rotorDiskSource::writeField().

◆ V_

scalar V_

protected

The documentation for this class was generated from the following files:

src/fvOptions/cellSetOption/cellSetOption.H
src/fvOptions/cellSetOption/cellSetOption.C
src/fvOptions/cellSetOption/cellSetOptionI.H

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ selectionModeType

Constructor & Destructor Documentation

◆ cellSetOption()

◆ ~cellSetOption()

Member Function Documentation

◆ setSelection()

◆ setCellSelection()

◆ setVol()

◆ TypeName()

◆ timeStart() [1/2]

◆ duration() [1/2]

◆ inTimeLimits()

◆ useSubMesh()

◆ selectionMode()

◆ selectionNames()

◆ zoneName()

◆ V()

◆ cells()

◆ isSelectionUpdated()

◆ timeStart() [2/2]

◆ duration() [2/2]

◆ isActive()

◆ read()

◆ cellSetName()

Member Data Documentation

◆ selectionModeTypeNames_

◆ selectionMode_

◆ updateSelection_

◆ timeStart_

◆ duration_

◆ selectionNames_

◆ points_

◆ movingPoints_

◆ geometricSelection_

◆ cells_

◆ V_
