acousticDampingSource Class Reference

Applies sources on velocity (i.e. U) within a specified region to enable acoustic damping. More...

#include <acousticDampingSource.H>

Inheritance diagram for acousticDampingSource:

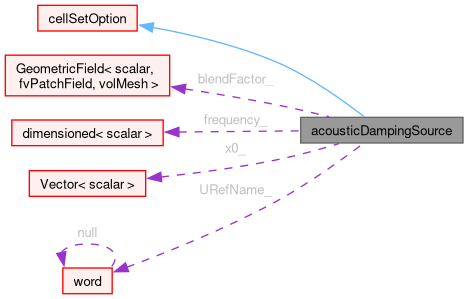

Collaboration diagram for acousticDampingSource:

Public Member Functions
	TypeName ("acousticDampingSource")
	Runtime type information.
	acousticDampingSource (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
	acousticDampingSource (const acousticDampingSource &)=delete
	No copy construct.
void	operator= (const acousticDampingSource &)=delete
	No copy assignment.
virtual	~acousticDampingSource ()=default
	Destructor.
virtual void	addSup (fvMatrix< vector > &eqn, const label fieldI)
	Add implicit contribution to momentum equation.
virtual void	addSup (const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldI)
	Add implicit contribution to compressible momentum equation.
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldI)
	Add implicit contribution to phase momentum equation.
virtual bool	read (const dictionary &dict)
	Read dictionary.
Public Member Functions inherited from cellSetOption
	TypeName ("cellSetOption")
	Runtime type information.
	cellSetOption (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
virtual	~cellSetOption ()=default
	Destructor.
scalar	timeStart () const noexcept
	Return const access to the time start.
scalar	duration () const noexcept
	Return const access to the duration.
bool	inTimeLimits (const scalar timeValue) const
	True if within time limits.
bool	useSubMesh () const noexcept
	True if sub-selection should be used.
selectionModeType	selectionMode () const noexcept
	Return the cell selection mode.
const wordRes &	selectionNames () const noexcept
	Return const access to the selection names (set or zone selection).
const wordRe &	zoneName () const
	Return const access to the first set/zone name.
scalar	V () const noexcept
	Return const access to the total cell volume.
const labelList &	cells () const noexcept
	Return const access to the cell selection.
bool	isSelectionUpdated () const noexcept
	Return flag for selection updates.
scalar	timeStart (scalar val) noexcept
	Adjust the time start, return the old value.
scalar	duration (scalar val) noexcept
	Adjust the duration, return the old value.
virtual bool	isActive ()
	Is the source active?
const word &	cellSetName () const
	The name of the cell set/zone [as a word] for "cellSet" / "cellZone" selection modes).
Public Member Functions inherited from option
	TypeName ("option")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))
	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
autoPtr< option >	clone () const
	Return clone.
virtual	~option ()=default
	Destructor.
const word &	name () const noexcept
	Return const access to the source name.
const fvMesh &	mesh () const noexcept
	Return const access to the mesh database.
const dictionary &	coeffs () const noexcept
	Return dictionary.
bool	active () const noexcept
	True if source is active.
void	setApplied (const label fieldi)
	Set the applied flag to true for field index fieldi.
bool	active (const bool on) noexcept
	Change source active flag, return previous value.
virtual label	applyToField (const word &fieldName) const
	Return index of field name if found in fieldNames list.
virtual void	checkApplied () const
	Check that the source has been applied.
virtual void	addSup (fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< scalar > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< vector > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< tensor > &eqn, const label fieldi)
virtual void	correct (volScalarField &field)
virtual void	correct (volVectorField &field)
virtual void	correct (volSphericalTensorField &field)
virtual void	correct (volSymmTensorField &field)
virtual void	correct (volTensorField &field)
virtual void	correct (surfaceScalarField &field)
virtual void	correct (surfaceVectorField &field)
virtual void	correct (surfaceTensorField &field)
virtual void	postProcessSens (scalarField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessSens (vectorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessSens (tensorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessAuxSens (const volScalarField &primalField, const volScalarField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	postProcessAuxSens (const volVectorField &primalField, const volVectorField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	postProcessAuxSens (const volTensorField &primalField, const volTensorField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	writeHeader (Ostream &) const
	Write the source header information.
virtual void	writeFooter (Ostream &) const
	Write the source footer information.
virtual void	writeData (Ostream &) const
	Write the source properties.

Protected Member Functions
void	setBlendingFactor ()
	Helper function to set the blending factor.
Protected Member Functions inherited from cellSetOption
void	setSelection (const dictionary &dict)
	Set cell selection name or points selection from dictionary input.
void	setCellSelection ()
	Set the cell selection based on user input selection mode.
void	setVol ()
	Recalculate the volume.
Protected Member Functions inherited from option
void	resetApplied ()
	Resize/reset applied flag list for all fieldNames_ entries.

Protected Attributes
volScalarField	blendFactor_
	Blending factor [-].
dimensionedScalar	frequency_
	Frequency [Hz].
point	x0_
scalar	r1_
scalar	r2_
word	URefName_
	Name of reference velocity field.
label	w_
	Stencil width.
Protected Attributes inherited from cellSetOption
selectionModeType	selectionMode_
	Cell selection mode.
bool	updateSelection_
	Flag to enable dictionary-based updates of selections.
scalar	timeStart_
	Start time of fvOption.
scalar	duration_
	Duration of fvOption execution starting from timeStart.
wordRes	selectionNames_
	Face selection names (for set or zone selections).
List< point >	points_
	List of points for "points" selectionMode.
PtrList< Function1< point > >	movingPoints_
	List of points for "movingPoints" selectionMode.
dictionary	geometricSelection_
	Dictionary entries for "geometric" (topoSetCellSource) selection.
labelList	cells_
	Set of cells to apply source to.
scalar	V_
	Sum of cell volumes.
Protected Attributes inherited from option
const word	name_
	Source name.
const word	modelType_
	Model type.
const fvMesh &	mesh_
	Reference to the mesh database.
dictionary	dict_
	Top level source dictionary.
dictionary	coeffs_
	Dictionary containing source coefficients.
wordList	fieldNames_
	Field names to apply source to - populated by derived models.
List< bool >	applied_
	Applied flag list - corresponds to each fieldNames_ entry.
bool	active_
	Source active flag.

Additional Inherited Members
Public Types inherited from cellSetOption
enum	selectionModeType : char {   smAll , smCellSet , smCellZone , smPoints ,   smMovingPoints , smGeometric , smCellType }
	Enumeration for selection mode types. More...
Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh)
	Return a reference to the selected fvOption model.
Public Attributes inherited from option
bool	log
	Switch write log to Info.
Static Public Attributes inherited from cellSetOption
static const Enum< selectionModeType >	selectionModeTypeNames_
	List of selection mode type names.

Detailed Description

Applies sources on velocity (i.e. U) within a specified region to enable acoustic damping.

Sources applied to:

  U         | Velocity                                   [m/s]

Required fields:

  U         | Velocity                                   [m/s]

Usage

Minimal example by using constant/fvOptions:

acousticDampingSource1
{
    // Mandatory entries (unmodifiable)
    type                 acousticDampingSource;

    // Mandatory entries (runtime modifiable)
    frequency        3000;
    URef             UMean;
    origin           (-1.25 0 0);
    radius1          1.2;
    radius2          1.65;

    // Optional entries (runtime modifiable)
    w                20;

    // Conditional optional entries (runtime modifiable)
    // Either of the below

        // Option-1
        UNames           (<UName1> <UName2> ... <UNameN>);

        // Option-2
        U                U;

    // Mandatory/Optional (inherited) entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
type	Type name: acousticDampingSource	word	yes	-
frequency	Frequency value [Hz]	scalar	yes	-
URef	Name of reference velocity field	word	yes	-
origin	Sphere centre location or damping	vector	yes	-
radius1	Inner radius at which to start damping	scalar	yes	-
radius2	Outer radius beyond which damping is applied	scalar	yes	-
w	Stencil width	label	no	20
UNames	Names of operand velocity fields	wordList	cndtnl	-
U	Name of operand velocity field	word	cndtnl	U

The inherited entries are elaborated in:

• fvOption.H
• cellSetOption.H

Source files

• acousticDampingSource.H
• acousticDampingSource.C

Definition at line 176 of file acousticDampingSource.H.

Constructor & Destructor Documentation

acousticDampingSource() [1/2]

acousticDampingSource	(	const word &	name,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh )

Construct from components.

Definition at line 72 of file acousticDampingSource.C.

References blendFactor_, cellSetOption::cellSetOption(), dict, Foam::dimless, Foam::dimTime, frequency_, option::mesh(), option::mesh_, option::name(), option::name_, r1_, r2_, read(), URefName_, w_, x0_, and Foam::Zero.

Referenced by acousticDampingSource(), and operator=().

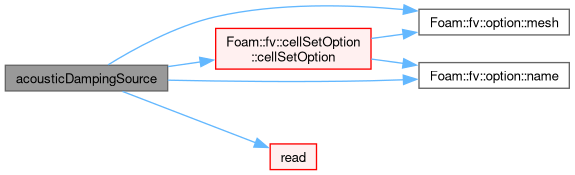

Here is the call graph for this function:

Here is the caller graph for this function:

acousticDampingSource() [2/2]

acousticDampingSource ( const acousticDampingSource & )

delete

No copy construct.

References acousticDampingSource().

Here is the call graph for this function:

~acousticDampingSource()

virtual ~acousticDampingSource ( )

virtualdefault

Destructor.

References alpha, dict, and rho.

Member Function Documentation

setBlendingFactor()

void setBlendingFactor ( )

protected

Helper function to set the blending factor.

Definition at line 43 of file acousticDampingSource.C.

References blendFactor_, cellSetOption::cells_, Foam::cos(), forAll, Foam::mag(), option::mesh_, Foam::constant::mathematical::pi(), pi(), r1_, r2_, and x0_.

Referenced by read().

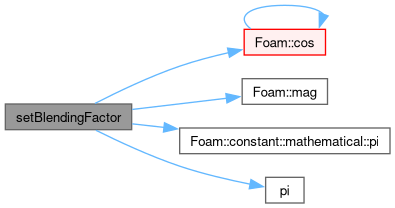

Here is the call graph for this function:

Here is the caller graph for this function:

TypeName()

TypeName

(

"acousticDampingSource"

)

Runtime type information.

References dict, option::mesh(), and option::name().

Here is the call graph for this function:

operator=()

void operator= ( const acousticDampingSource & )

delete

No copy assignment.

References acousticDampingSource().

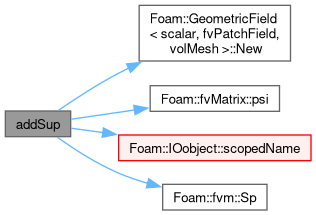

Here is the call graph for this function:

addSup() [1/3]

void addSup ( fvMatrix< vector > & eqn, const label fieldI )

virtual

Add implicit contribution to momentum equation.

Reimplemented from option.

Definition at line 102 of file acousticDampingSource.C.

References blendFactor_, frequency_, mesh, option::name_, GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, fvMatrix< Type >::psi(), IOobject::scopedName(), Foam::fvm::Sp(), U, URefName_, and w_.

Here is the call graph for this function:

addSup() [2/3]

void addSup ( const volScalarField & rho, fvMatrix< vector > & eqn, const label fieldI )

virtual

Add implicit contribution to compressible momentum equation.

Reimplemented from option.

Definition at line 127 of file acousticDampingSource.C.

References blendFactor_, frequency_, mesh, option::name_, GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, fvMatrix< Type >::psi(), rho, IOobject::scopedName(), Foam::fvm::Sp(), U, URefName_, and w_.

Here is the call graph for this function:

addSup() [3/3]

void addSup ( const volScalarField & alpha, const volScalarField & rho, fvMatrix< vector > & eqn, const label fieldI )

virtual

Add implicit contribution to phase momentum equation.

Reimplemented from option.

Definition at line 153 of file acousticDampingSource.C.

References alpha, blendFactor_, frequency_, mesh, option::name_, GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, fvMatrix< Type >::psi(), rho, IOobject::scopedName(), Foam::fvm::Sp(), U, URefName_, and w_.

Here is the call graph for this function:

read()

bool read ( const dictionary & dict )

virtual

Read dictionary.

Reimplemented from cellSetOption.

Definition at line 180 of file acousticDampingSource.C.

References option::coeffs_, dict, Foam::endl(), option::fieldNames_, frequency_, Foam::Info, option::name_, r1_, r2_, cellSetOption::read(), option::resetApplied(), setBlendingFactor(), URefName_, w_, and x0_.

Referenced by acousticDampingSource().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

blendFactor_

volScalarField blendFactor_

protected

Blending factor [-].

Definition at line 187 of file acousticDampingSource.H.

Referenced by acousticDampingSource(), addSup(), addSup(), addSup(), and setBlendingFactor().

frequency_

dimensionedScalar frequency_

protected

Frequency [Hz].

Definition at line 192 of file acousticDampingSource.H.

Referenced by acousticDampingSource(), addSup(), addSup(), addSup(), and read().

x0_

point x0_

protected

Definition at line 195 of file acousticDampingSource.H.

Referenced by acousticDampingSource(), read(), and setBlendingFactor().

r1_

scalar r1_

protected

Definition at line 198 of file acousticDampingSource.H.

Referenced by acousticDampingSource(), read(), and setBlendingFactor().

r2_

scalar r2_

protected

Definition at line 201 of file acousticDampingSource.H.

Referenced by acousticDampingSource(), read(), and setBlendingFactor().

URefName_

word URefName_

protected

Name of reference velocity field.

Definition at line 206 of file acousticDampingSource.H.

Referenced by acousticDampingSource(), addSup(), addSup(), addSup(), and read().

w_

label w_

protected

Stencil width.

Definition at line 211 of file acousticDampingSource.H.

Referenced by acousticDampingSource(), addSup(), addSup(), addSup(), and read().

---

The documentation for this class was generated from the following files:

• src/fvOptions/sources/derived/acousticDampingSource/acousticDampingSource.H
• src/fvOptions/sources/derived/acousticDampingSource/acousticDampingSource.C
