Applies sources on velocity (i.e. U) within a specified region to enable actuator disk models for aero/hydro thrust loading of horizontal axis turbines on surrounding flow field in terms of energy conversion processes. More...

#include <actuationDiskSource.H>

Inheritance diagram for actuationDiskSource:

[legend]

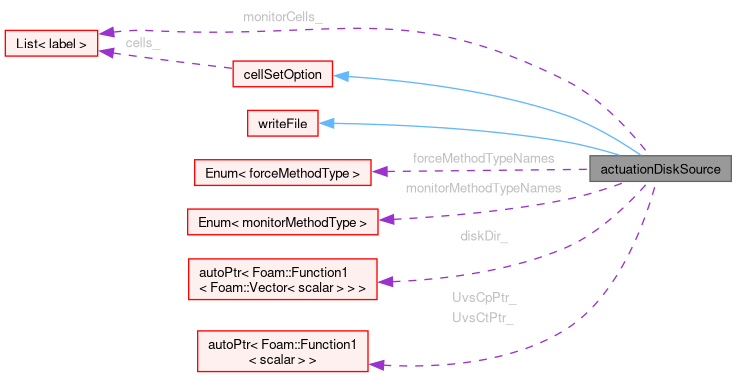

Collaboration diagram for actuationDiskSource:

[legend]

Public Member Functions
	TypeName ("actuationDiskSource")
	Runtime type information.
	actuationDiskSource ()=delete
	No default construct.
	actuationDiskSource (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
	actuationDiskSource (const actuationDiskSource &)=delete
	No copy construct.
void	operator= (const actuationDiskSource &)=delete
	No copy assignment.
virtual	~actuationDiskSource ()=default
	Destructor.
vector	diskDir () const
	Normal disk direction, evaluated at timeOutputValue.
scalar	diskArea () const noexcept
	Disk area.
virtual void	addSup (fvMatrix< vector > &eqn, const label fieldi)
	Source term to momentum equation.
virtual void	addSup (const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)
	Source term to compressible momentum equation.
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)
	Source term to phase-compressible momentum equation.
virtual bool	read (const dictionary &dict)
	Read dictionary.
Public Member Functions inherited from cellSetOption
	TypeName ("cellSetOption")
	Runtime type information.
	cellSetOption (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
virtual	~cellSetOption ()=default
	Destructor.
scalar	timeStart () const noexcept
	Return const access to the time start.
scalar	duration () const noexcept
	Return const access to the duration.
bool	inTimeLimits (const scalar timeValue) const
	True if within time limits.
bool	useSubMesh () const noexcept
	True if sub-selection should be used.
selectionModeType	selectionMode () const noexcept
	Return the cell selection mode.
const wordRes &	selectionNames () const noexcept
	Return const access to the selection names (set or zone selection).
const wordRe &	zoneName () const
	Return const access to the first set/zone name.
scalar	V () const noexcept
	Return const access to the total cell volume.
const labelList &	cells () const noexcept
	Return const access to the cell selection.
bool	isSelectionUpdated () const noexcept
	Return flag for selection updates.
scalar	timeStart (scalar val) noexcept
	Adjust the time start, return the old value.
scalar	duration (scalar val) noexcept
	Adjust the duration, return the old value.
virtual bool	isActive ()
	Is the source active?
const word &	cellSetName () const
	The name of the cell set/zone [as a word] for "cellSet" / "cellZone" selection modes).
Public Member Functions inherited from option
	TypeName ("option")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))
	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
autoPtr< option >	clone () const
	Return clone.
virtual	~option ()=default
	Destructor.
const word &	name () const noexcept
	Return const access to the source name.
const fvMesh &	mesh () const noexcept
	Return const access to the mesh database.
const dictionary &	coeffs () const noexcept
	Return dictionary.
bool	active () const noexcept
	True if source is active.
void	setApplied (const label fieldi)
	Set the applied flag to true for field index fieldi.
bool	active (const bool on) noexcept
	Change source active flag, return previous value.
virtual label	applyToField (const word &fieldName) const
	Return index of field name if found in fieldNames list.
virtual void	checkApplied () const
	Check that the source has been applied.
virtual void	addSup (fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< scalar > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< vector > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< tensor > &eqn, const label fieldi)
virtual void	correct (volScalarField &field)
virtual void	correct (volVectorField &field)
virtual void	correct (volSphericalTensorField &field)
virtual void	correct (volSymmTensorField &field)
virtual void	correct (volTensorField &field)
virtual void	correct (surfaceScalarField &field)
virtual void	correct (surfaceVectorField &field)
virtual void	correct (surfaceTensorField &field)
virtual void	postProcessSens (scalarField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessSens (vectorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessSens (tensorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessAuxSens (const volScalarField &primalField, const volScalarField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	postProcessAuxSens (const volVectorField &primalField, const volVectorField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	postProcessAuxSens (const volTensorField &primalField, const volTensorField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	writeHeader (Ostream &) const
	Write the source header information.
virtual void	writeFooter (Ostream &) const
	Write the source footer information.
virtual void	writeData (Ostream &) const
	Write the source properties.
Public Member Functions inherited from writeFile
	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name="undefined", const bool writeToFile=true, const string &ext=".dat")
	Construct from objectRegistry, prefix, fileName.
	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name, const dictionary &dict, const bool writeToFile=true, const string &ext=".dat")
	Construct from objectRegistry, prefix, fileName and read options from dictionary.
	writeFile (const writeFile &wf)
	Construct copy.
virtual	~writeFile ()=default
	Destructor.
virtual const string &	setExt (const string &ext)
	Set extension.
virtual OFstream &	file ()
	Return access to the file (if only 1).
virtual bool	writeToFile () const
	Flag to allow writing to file.
virtual bool	canWriteToFile () const
	Flag to allow writing to the file.
virtual bool	canResetFile () const
	Flag to allow resetting the file.
virtual bool	canWriteHeader () const
	Flag to allow writing the header.
virtual label	charWidth () const
	Return width of character stream output.
virtual void	writeCommented (Ostream &os, const string &str) const
	Write a commented string to stream.
virtual void	writeTabbed (Ostream &os, const string &str) const
	Write a tabbed string to stream.
virtual void	writeHeader (Ostream &os, const string &str) const
	Write a commented header to stream.
virtual void	writeCurrentTime (Ostream &os) const
	Write the current time to stream.
virtual void	writeBreak (Ostream &os) const
	Write a break marker to the stream.
template<class Type>
void	writeHeaderValue (Ostream &os, const string &property, const Type &value) const
	Write a (commented) header property and value pair.
template<class Type>
void	writeValue (Ostream &os, const Type &val) const
	Write a given value to stream with the space delimiter.

Protected Types
enum	forceMethodType { FROUDE , VARIABLE_SCALING }
	Options for the force computation method types. More...
enum	monitorMethodType { POINTS , CELLSET }
	Options for the incoming velocity monitoring method types. More...

Protected Member Functions
virtual void	writeFileHeader (Ostream &os)
	Output file header information.
Protected Member Functions inherited from cellSetOption
void	setSelection (const dictionary &dict)
	Set cell selection name or points selection from dictionary input.
void	setCellSelection ()
	Set the cell selection based on user input selection mode.
void	setVol ()
	Recalculate the volume.
Protected Member Functions inherited from option
void	resetApplied ()
	Resize/reset applied flag list for all fieldNames_ entries.
Protected Member Functions inherited from writeFile
void	initStream (Ostream &os) const
	Initialise the output stream for writing.
fileName	baseFileDir () const
	Return the base directory for output.
fileName	baseTimeDir () const
	Return the base directory for the current time value.
fileName	filePath (const fileName &fName) const
	Return the full path for the supplied file name.
virtual autoPtr< OFstream >	newFile (const fileName &fName) const
	Return autoPtr to a new file using file name.
virtual autoPtr< OFstream >	newFileAtTime (const word &name, scalar timeValue) const
	Return autoPtr to a new file for a given time.
virtual autoPtr< OFstream >	newFileAtStartTime (const word &name) const
	Return autoPtr to a new file using the simulation start time.
virtual void	resetFile (const word &name)
	Reset internal file pointer to new file with new name.
Omanip< int >	valueWidth (const label offset=0) const
	Return the value width when writing to stream with optional offset.
void	operator= (const writeFile &)=delete
	No copy assignment.
virtual autoPtr< OFstream >	createFile (const word &name, scalar timeValue) const
	Deprecated(2022-09) Return autoPtr to a new file for a given time.
virtual autoPtr< OFstream >	createFile (const word &name) const
	Deprecated(2022-09) Return autoPtr to a new file using the simulation start time.

Protected Attributes
enum forceMethodType	forceMethod_
	The type of the force computation method.
enum monitorMethodType	monitorMethod_
	The type of incoming velocity monitoring method.
label	sink_
	Flag for body forces to act as a source (false) or a sink (true).
scalar	writeFileStart_
	Start time for file output.
scalar	writeFileEnd_
	End time for file output.
scalar	diskArea_
	Actuator disk planar surface area [m2].
autoPtr< Function1< vector > >	diskDir_
	Surface-normal vector of the actuator disk pointing downstream as a function of time.
autoPtr< Function1< scalar > >	UvsCpPtr_
	Velocity vs power coefficients.
autoPtr< Function1< scalar > >	UvsCtPtr_
	Velocity vs thrust coefficients.
labelList	monitorCells_
	Set of cells whereat the incoming velocity is monitored.
Protected Attributes inherited from cellSetOption
selectionModeType	selectionMode_
	Cell selection mode.
bool	updateSelection_
	Flag to enable dictionary-based updates of selections.
scalar	timeStart_
	Start time of fvOption.
scalar	duration_
	Duration of fvOption execution starting from timeStart.
wordRes	selectionNames_
	Face selection names (for set or zone selections).
List< point >	points_
	List of points for "points" selectionMode.
PtrList< Function1< point > >	movingPoints_
	List of points for "movingPoints" selectionMode.
dictionary	geometricSelection_
	Dictionary entries for "geometric" (topoSetCellSource) selection.
labelList	cells_
	Set of cells to apply source to.
scalar	V_
	Sum of cell volumes.
Protected Attributes inherited from option
const word	name_
	Source name.
const word	modelType_
	Model type.
const fvMesh &	mesh_
	Reference to the mesh database.
dictionary	dict_
	Top level source dictionary.
dictionary	coeffs_
	Dictionary containing source coefficients.
wordList	fieldNames_
	Field names to apply source to - populated by derived models.
List< bool >	applied_
	Applied flag list - corresponds to each fieldNames_ entry.
bool	active_
	Source active flag.
Protected Attributes inherited from writeFile
const objectRegistry &	fileObr_
	Reference to the region objectRegistry.
const fileName	prefix_
	Prefix.
word	fileName_
	Name of file.
autoPtr< OFstream >	filePtr_
	File pointer.
label	writePrecision_
	Write precision.
bool	writeToFile_
	Flag to enable/disable writing to file.
bool	updateHeader_
	Flag to update the header, e.g. on mesh changes. Default is true.
bool	writtenHeader_
	Flag to identify whether the header has been written.
bool	useUserTime_
	Flag to use the specified user time, e.g. CA deg instead of seconds. Default = true.
scalar	startTime_
	Start time value.
string	ext_
	File extension; default = .dat.

Static Protected Attributes
static const Enum< forceMethodType >	forceMethodTypeNames
	Names for forceMethodType.
static const Enum< monitorMethodType >	monitorMethodTypeNames
	Names for monitorMethodType.

Additional Inherited Members
Public Types inherited from cellSetOption
enum	selectionModeType : char { smAll , smCellSet , smCellZone , smPoints , smMovingPoints , smGeometric , smCellType }
	Enumeration for selection mode types. More...
Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh)
	Return a reference to the selected fvOption model.
Public Attributes inherited from option
bool	log
	Switch write log to Info.
Static Public Attributes inherited from cellSetOption
static const Enum< selectionModeType >	selectionModeTypeNames_
	List of selection mode type names.
Static Public Attributes inherited from writeFile
static label	addChars = 8
	Additional characters for writing.

Detailed Description

Applies sources on velocity (i.e. U) within a specified region to enable actuator disk models for aero/hydro thrust loading of horizontal axis turbines on surrounding flow field in terms of energy conversion processes.

Available options for force computations:

  Froude          | Froude's one-dimensional ideal actuator disk method
  variableScaling | Variable-scaling actuator disk method

The expressions for Froude method:

$\‍[ T = 2 \rho A | \vec{U_o} \cdot \vec{n} |^2 a (1-a) \‍]$

with

$\‍[ a = 1 - \frac{C_p}{C_T} \‍]$

where

	=	Thrust magnitude
$\rho$	=	Monitored incoming fluid density
	=	Actuator disk planar surface area
$\vec{U_o}$	=	Incoming velocity spatial-averaged on monitored region
$\vec{n}$	=	Surface-normal vector of the actuator disk pointing downstream
	=	Axial induction factor
	=	Power coefficient
	=	Thrust coefficient

The expressions for variableScaling method:

$\‍[ T = 0.5 \rho A | \vec{U_m} \cdot \vec{n} |^2 C_T^* \‍]$

with

$\‍[ C_T^* = C_T \left( \frac{ |\vec{U_{ref}}| }{ |\vec{U_m}| } \right)^2 \‍]$

where

	=	Thrust magnitude
$\rho$	=	Monitored incoming fluid density
	=	Actuator disk planar surface area
$\vec{U_m}$	=	Incoming velocity spatial-averaged on actuator disk
$\vec{n}$	=	Surface-normal vector of the actuator disk pointing downstream
$\vec{U_{ref}}$	=	Incoming velocity spatial-averaged on monitored region
	=	Thrust coefficient
	=	Calibrated thrust coefficient

Reference

        Froude's one-dimensional ideal actuator disk (tags:F,BJSB):
            Froude, R. E. (1889).
            On the part played in propulsion by differences of fluid pressure.
            Trans. Inst. Naval Architects, 30, 390.

            Burton, T., Jenkins, N., Sharpe, D., & Bossanyi, E. (2011).
            Wind energy handbook, 2nd edition.
            Chichester, the United Kingdom. John Wiley & Sons.
            Print ISBN:978-0-470-69975-1
            DOI:10.1002/9781119992714

        Variable-scaling method (tags:LSRMKT,LS):
            van der Laan, M. P., Sørensen, N. N., Réthoré, P. E.,
            Mann, J., Kelly, M. C., & Troldborg, N. (2015).
            The k‐ε‐fP model applied to double wind turbine
            wakes using different actuator disk force methods.
            Wind Energy, 18(12), 2223-2240.
            DOI:10.1002/we.1816

            van der Laan, M. P., Sørensen, N. N., Réthoré, P. E., Mann, J.,
            Kelly, M. C., Troldborg, N., Hansen, K. S., & Murcia, J. P. (2015).
            The k‐ε‐fP model applied to wind farms.
            Wind Energy, 18(12), 2065-2084.
            DOI:10.1002/we.1804

Sources applied to:

      U         | Velocity    [m/s]

Required fields:

      U         | Velocity    [m/s]

Usage

Minimal example by using constant/fvOptions:

actuationDiskSource1
{
    // Mandatory entries (unmodifiable)
    type            actuationDiskSource;

    // Mandatory entries (runtime modifiable)
    diskArea        40.0;
    diskDir         (1 0 0);
    Cp              <Function1>;
    Ct              <Function1>;

    // Conditional optional entries (unmodifiable)
    monitorMethod   <points|cellSet>;
    monitorCoeffs
    {
        // Option-1
        points
        (
            (p1x p1y p1z)
            (p2x p2y p2z)
            ...
        );

        // Option-2
        cellSet     <monitorCellSet>;
    }

    // Optional entries (unmodifiable)
    variant         <forceMethod>;

    // Optional entries (runtime modifiable)
    sink            true;
    writeFileStart  0;
    writeFileEnd    100;

    // Mandatory/Optional (inherited) entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
`type`	Type name: actuationDiskSource	word	yes	-
`diskArea`	Actuator disk planar surface area	scalar	yes	-
`diskDir`	Surface-normal vector of the actuator disk pointing downstream	Function1	yes	-
`Cp`	Power coefficient	Function1	yes	-
`Ct`	Thrust coefficient	Function1	yes	-
`monitorMethod`	Type of incoming velocity monitoring method - see below	word	no	points
`variant`	Type of the force computation method - see below	word	no	Froude
`sink`	Flag for body forces to act as a source (false) or a sink (true)	bool	no	true
`writeFileStart`	Start time for file output	scalar	no	0
`writeFileEnd`	End time for file output	scalar	no	VGREAT

The inherited entries are elaborated in:

Options for the monitorMethod entry:

      points  | Monitor incoming velocity field at a given set of points
      cellSet | Monitor incoming velocity field at a given cellSet

Options for the variant entry:

      Froude          | Froude's one-dimensional ideal actuator disk method
      variableScaling | Variable-scaling actuator disk method

Source files

Definition at line 361 of file actuationDiskSource.H.

Member Enumeration Documentation

◆ forceMethodType

enum forceMethodType

protected

Options for the force computation method types.

Enumerator
FROUDE	"Froude's ideal actuator disk method"
VARIABLE_SCALING	"Variable-scaling actuator disk method"

Definition at line 373 of file actuationDiskSource.H.

◆ monitorMethodType

enum monitorMethodType

protected

Options for the incoming velocity monitoring method types.

Enumerator
POINTS	"A set of points"
CELLSET	"A cellSet"

Definition at line 387 of file actuationDiskSource.H.

Constructor & Destructor Documentation

◆ actuationDiskSource() [1/3]

actuationDiskSource ( )

delete

No default construct.

References dict, option::mesh(), and option::name().

Referenced by actuationDiskSource(), operator=(), and radialActuationDiskSource::radialActuationDiskSource().

Here is the call graph for this function:

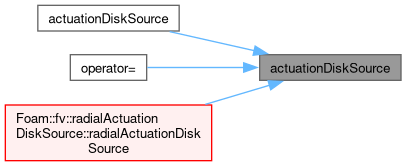

Here is the caller graph for this function:

◆ actuationDiskSource() [2/3]

actuationDiskSource	(	const word &	name,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh )

Construct from components.

Definition at line 162 of file actuationDiskSource.C.

References cellSetOption::cellSetOption(), option::coeffs_, dict, diskArea_, diskDir_, Foam::endl(), option::fieldNames_, writeFile::file(), forceMethod_, forceMethodTypeNames, FROUDE, Foam::Info, option::mesh(), monitorCells_, monitorMethod_, monitorMethodTypeNames, option::name(), option::New(), POINTS, option::resetApplied(), sink_, UvsCpPtr_, UvsCtPtr_, writeFile::writeFile(), writeFileEnd_, writeFileHeader(), and writeFileStart_.

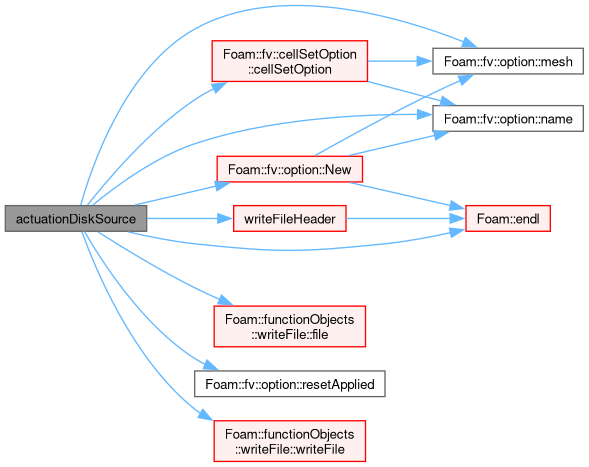

Here is the call graph for this function:

◆ actuationDiskSource() [3/3]

actuationDiskSource ( const actuationDiskSource & )

delete

No copy construct.

References actuationDiskSource().

Here is the call graph for this function:

◆ ~actuationDiskSource()

virtual ~actuationDiskSource ( )

virtualdefault

Destructor.

Member Function Documentation

◆ writeFileHeader()

void writeFileHeader ( Ostream & os )

protectedvirtual

Output file header information.

Definition at line 64 of file actuationDiskSource.C.

References Foam::endl(), forceMethod_, FROUDE, os(), and VARIABLE_SCALING.

Referenced by actuationDiskSource().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "actuationDiskSource" )

Runtime type information.

◆ operator=()

void operator= ( const actuationDiskSource & )

delete

No copy assignment.

References actuationDiskSource().

Here is the call graph for this function:

◆ diskDir()

Foam::vector diskDir ( ) const

Normal disk direction, evaluated at timeOutputValue.

Definition at line 228 of file actuationDiskSource.C.

References diskDir_, Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::mag(), and option::mesh_.

Here is the call graph for this function:

◆ diskArea()

scalar diskArea ( ) const

inlinenoexcept

Disk area.

Definition at line 559 of file actuationDiskSource.H.

References diskArea_, and Foam::noexcept.

◆ addSup() [1/3]

void addSup	(	fvMatrix< vector > &	eqn,
		const label	fieldi )

virtual

Source term to momentum equation.

Reimplemented from option.

Reimplemented in radialActuationDiskSource.

Definition at line 247 of file actuationDiskSource.C.

References cellSetOption::V().

Here is the call graph for this function:

◆ addSup() [2/3]

void addSup	(	const volScalarField &	rho,
		fvMatrix< vector > &	eqn,
		const label	fieldi )

virtual

Source term to compressible momentum equation.

Reimplemented from option.

Reimplemented in radialActuationDiskSource.

Definition at line 260 of file actuationDiskSource.C.

References rho, and cellSetOption::V().

Here is the call graph for this function:

◆ addSup() [3/3]

void addSup	(	const volScalarField &	alpha,
		const volScalarField &	rho,
		fvMatrix< vector > &	eqn,
		const label	fieldi )

virtual

Source term to phase-compressible momentum equation.

Reimplemented from option.

Definition at line 274 of file actuationDiskSource.C.

References alpha, rho, and cellSetOption::V().

Here is the call graph for this function:

◆ read()

bool read ( const dictionary & dict )

virtual

Read dictionary.

Reimplemented from cellSetOption.

Reimplemented in radialActuationDiskSource.

Definition at line 289 of file actuationDiskSource.C.

References dict, diskArea_, Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, cellSetOption::read(), sink_, writeFileEnd_, and writeFileStart_.

Referenced by radialActuationDiskSource::read().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ forceMethodTypeNames

const Foam::Enum< Foam::fv::actuationDiskSource::forceMethodType > forceMethodTypeNames

staticprotected

Names for forceMethodType.

Definition at line 382 of file actuationDiskSource.H.

Referenced by actuationDiskSource().

◆ monitorMethodTypeNames

const Foam::Enum< Foam::fv::actuationDiskSource::monitorMethodType > monitorMethodTypeNames

staticprotected

Names for monitorMethodType.

Definition at line 396 of file actuationDiskSource.H.

Referenced by actuationDiskSource().

◆ forceMethod_

enum forceMethodType forceMethod_

protected

The type of the force computation method.

Definition at line 404 of file actuationDiskSource.H.

Referenced by actuationDiskSource(), and writeFileHeader().

◆ monitorMethod_

enum monitorMethodType monitorMethod_

protected

The type of incoming velocity monitoring method.

Definition at line 409 of file actuationDiskSource.H.

Referenced by actuationDiskSource().

◆ sink_

label sink_

protected

Flag for body forces to act as a source (false) or a sink (true).

Definition at line 414 of file actuationDiskSource.H.

Referenced by actuationDiskSource(), and read().

◆ writeFileStart_

scalar writeFileStart_

protected

Start time for file output.

Definition at line 419 of file actuationDiskSource.H.

Referenced by actuationDiskSource(), and read().

◆ writeFileEnd_

scalar writeFileEnd_

protected

End time for file output.

Definition at line 424 of file actuationDiskSource.H.

Referenced by actuationDiskSource(), and read().

◆ diskArea_

scalar diskArea_

protected

Actuator disk planar surface area [m2].

Definition at line 429 of file actuationDiskSource.H.

Referenced by actuationDiskSource(), diskArea(), and read().

◆ diskDir_

autoPtr<Function1<vector> > diskDir_

protected

Surface-normal vector of the actuator disk pointing downstream as a function of time.

Definition at line 435 of file actuationDiskSource.H.

Referenced by actuationDiskSource(), and diskDir().

◆ UvsCpPtr_

autoPtr<Function1<scalar> > UvsCpPtr_

protected

Velocity vs power coefficients.

Definition at line 440 of file actuationDiskSource.H.

Referenced by actuationDiskSource().

◆ UvsCtPtr_

autoPtr<Function1<scalar> > UvsCtPtr_

protected

Velocity vs thrust coefficients.

Definition at line 445 of file actuationDiskSource.H.

Referenced by actuationDiskSource().

◆ monitorCells_

labelList monitorCells_

protected

Set of cells whereat the incoming velocity is monitored.

Definition at line 450 of file actuationDiskSource.H.

Referenced by actuationDiskSource().

The documentation for this class was generated from the following files:

src/fvOptions/sources/derived/actuationDiskSource/actuationDiskSource.H
src/fvOptions/sources/derived/actuationDiskSource/actuationDiskSource.C
src/fvOptions/sources/derived/actuationDiskSource/actuationDiskSourceTemplates.C

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ forceMethodType

◆ monitorMethodType

Constructor & Destructor Documentation

◆ actuationDiskSource() [1/3]

◆ actuationDiskSource() [2/3]

◆ actuationDiskSource() [3/3]

◆ ~actuationDiskSource()

Member Function Documentation

◆ writeFileHeader()

◆ TypeName()

◆ operator=()

◆ diskDir()

◆ diskArea()

◆ addSup() [1/3]

◆ addSup() [2/3]

◆ addSup() [3/3]

◆ read()

Member Data Documentation

◆ forceMethodTypeNames

◆ monitorMethodTypeNames

◆ forceMethod_

◆ monitorMethod_

◆ sink_

◆ writeFileStart_

◆ writeFileEnd_

◆ diskArea_

◆ diskDir_

◆ UvsCpPtr_

◆ UvsCtPtr_

◆ monitorCells_
