Intermediate class for handling inter-region heat exchanges. More...

#include <interRegionHeatTransferModel.H>

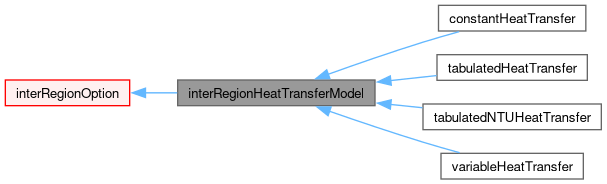

Inheritance diagram for interRegionHeatTransferModel:

[legend]

Collaboration diagram for interRegionHeatTransferModel:

[legend]

Public Member Functions
	TypeName ("interRegionHeatTransferModel")
	Runtime type information.
	interRegionHeatTransferModel (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from dictionary.
virtual	~interRegionHeatTransferModel ()=default
	Destructor.
const word &	nbrRegionName () const
	Return const access to the neighbour region name.
const meshToMesh &	meshInterp () const
	Return const access to the mapToMap pointer.
const volScalarField &	htc () const
	Return the heat transfer coefficient.
const interRegionHeatTransferModel &	nbrModel () const
	Return const access to the neighbour model.
interRegionHeatTransferModel &	nbrModel ()
	Return access to the neighbour model.
virtual void	addSup (fvMatrix< scalar > &eqn, const label fieldi)
	Source term to energy equation.
virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)
	Source term to compressible energy equation.
virtual void	calculateHtc ()=0
	Calculate heat transfer coefficient.
virtual bool	read (const dictionary &dict)
	Read source dictionary.
template<class Type>
Foam::tmp< Foam::Field< Type > >	interpolate (const interRegionHeatTransferModel &nbrModel, const Field< Type > &field) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	interpolate (const Field< Type > &field) const
Public Member Functions inherited from interRegionOption
	TypeName ("interRegionOption")
	Runtime type information.
	interRegionOption (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from dictionary.
	interRegionOption (const interRegionOption &)=delete
	No copy construct.
void	operator= (const interRegionOption &)=delete
	No copy assignment.
virtual	~interRegionOption ()=default
	Destructor.
const word &	nbrRegionName () const
	Return const access to the neighbour region name.
const meshToMesh &	meshInterp () const
	Return const access to the mapToMap pointer.
Public Member Functions inherited from option
	TypeName ("option")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))
	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
autoPtr< option >	clone () const
	Return clone.
virtual	~option ()=default
	Destructor.
const word &	name () const noexcept
	Return const access to the source name.
const fvMesh &	mesh () const noexcept
	Return const access to the mesh database.
const dictionary &	coeffs () const noexcept
	Return dictionary.
bool	active () const noexcept
	True if source is active.
void	setApplied (const label fieldi)
	Set the applied flag to true for field index fieldi.
bool	active (const bool on) noexcept
	Change source active flag, return previous value.
virtual bool	isActive ()
	Is the source active?
virtual label	applyToField (const word &fieldName) const
	Return index of field name if found in fieldNames list.
virtual void	checkApplied () const
	Check that the source has been applied.
virtual void	addSup (fvMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< scalar > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< vector > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< tensor > &eqn, const label fieldi)
virtual void	correct (volScalarField &field)
virtual void	correct (volVectorField &field)
virtual void	correct (volSphericalTensorField &field)
virtual void	correct (volSymmTensorField &field)
virtual void	correct (volTensorField &field)
virtual void	correct (surfaceScalarField &field)
virtual void	correct (surfaceVectorField &field)
virtual void	correct (surfaceTensorField &field)
virtual void	postProcessSens (scalarField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessSens (vectorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessSens (tensorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessAuxSens (const volScalarField &primalField, const volScalarField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	postProcessAuxSens (const volVectorField &primalField, const volVectorField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	postProcessAuxSens (const volTensorField &primalField, const volTensorField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	writeHeader (Ostream &) const
	Write the source header information.
virtual void	writeFooter (Ostream &) const
	Write the source footer information.
virtual void	writeData (Ostream &) const
	Write the source properties.

Protected Member Functions
void	setNbrModel ()
	Set the neighbour interRegionHeatTransferModel.
void	correct ()
	Correct to calculate the inter-region heat transfer coefficient.
template<class Type>
tmp< Field< Type > >	interpolate (const interRegionHeatTransferModel &nbrModel, const Field< Type > &field) const
	Interpolate field with nbrModel specified.
template<class Type>
tmp< Field< Type > >	interpolate (const Field< Type > &field) const
	Interpolate field without nbrModel specified.
template<class Type>
void	interpolate (const interRegionHeatTransferModel &nbrModel, const Field< Type > &field, Field< Type > &result) const
	Interpolate field with nbrModel specified.
template<class Type>
void	interpolate (const Field< Type > &field, Field< Type > &result) const
	Interpolate field without nbrModel specified.
Protected Member Functions inherited from interRegionOption
void	setMapper ()
	Set the mesh to mesh interpolation object.
Protected Member Functions inherited from option
void	resetApplied ()
	Resize/reset applied flag list for all fieldNames_ entries.

Protected Attributes
word	nbrModelName_
	Name of the model in the neighbour mesh.
interRegionHeatTransferModel *	nbrModel_
	Pointer to neighbour interRegionHeatTransferModel.
bool	firstIter_
	Flag to determine the first iteration.
bool	semiImplicit_
	Flag to activate semi-implicit coupling.
label	timeIndex_
	Time index - used for updating htc.
volScalarField	htc_
	Heat transfer coefficient [W/m2/k] times area/volume [1/m].
word	TName_
	Name of operand temperature field.
word	TNbrName_
	Name of operand neighbour temperature field.
Protected Attributes inherited from interRegionOption
bool	master_
	Master or slave region.
word	nbrRegionName_
	Name of the neighbour region to map.
autoPtr< meshToMesh >	meshInterpPtr_
	Mesh to mesh interpolation object.
Protected Attributes inherited from option
const word	name_
	Source name.
const word	modelType_
	Model type.
const fvMesh &	mesh_
	Reference to the mesh database.
dictionary	dict_
	Top level source dictionary.
dictionary	coeffs_
	Dictionary containing source coefficients.
wordList	fieldNames_
	Field names to apply source to - populated by derived models.
List< bool >	applied_
	Applied flag list - corresponds to each fieldNames_ entry.
bool	active_
	Source active flag.

Additional Inherited Members
Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh)
	Return a reference to the selected fvOption model.
Public Attributes inherited from option
bool	log
	Switch write log to Info.

Detailed Description

Intermediate class for handling inter-region heat exchanges.

The derived classes must provide the heat transfer coefficients (htc) which is used as follows in the energy equation.

$\‍[ -htc*Tmapped + Sp(htc, T) \‍]$

Usage

Minimal example by using constant/fvOptions:

<userDefinedName1>
{
    // Mandatory/Optional (inherited) entries
    ...

    // Mandatory entries (unmodifiable)
    fields          (<field1> <field2> ... <fieldN>);
    nbrModel        <nbrModelName>;
    semiImplicit    true;

    // Optional entries (unmodifiable)
    T               <Tname>;
    Tnbr            <TnbrName>;

    // Mandatory/Optional (derived) entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
`nbrModel`	Name of the model in the neighbour mesh	word	yes	-
`fields`	Names of operand fields	wordList	yes	-
`semiImplicit`	Flag to activate semi-implicit coupling	bool	yes	-
`T`	Name of operand temperature field	word	no	T
`Tnbr`	Name of operand neighbour temperature field	word	no	T

The inherited entries are elaborated in:

interRegionOption.H

See also

Source files

Definition at line 138 of file interRegionHeatTransferModel.H.

Constructor & Destructor Documentation

◆ interRegionHeatTransferModel()

interRegionHeatTransferModel	(	const word &	name,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh )

Construct from dictionary.

Definition at line 103 of file interRegionHeatTransferModel.C.

References option::active(), option::coeffs_, dict, Foam::dimEnergy, Foam::dimTemperature, Foam::dimTime, Foam::dimVolume, option::fieldNames_, firstIter_, htc_, interRegionOption::interRegionOption(), option::mesh(), option::name(), nbrModel_, nbrModelName_, option::resetApplied(), semiImplicit_, timeIndex_, timeName, TName_, TNbrName_, and Foam::Zero.

Referenced by constantHeatTransfer::constantHeatTransfer(), interpolate(), interpolate(), interpolate(), setNbrModel(), tabulatedHeatTransfer::tabulatedHeatTransfer(), tabulatedNTUHeatTransfer::tabulatedNTUHeatTransfer(), variableHeatTransfer::variableHeatTransfer(), and ~interRegionHeatTransferModel().

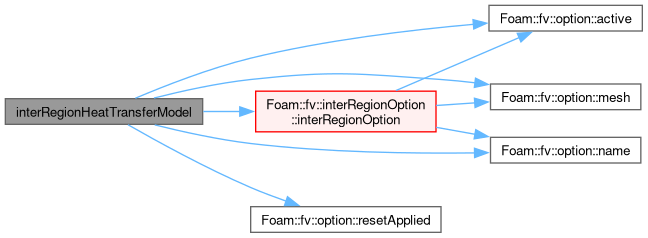

Here is the call graph for this function:

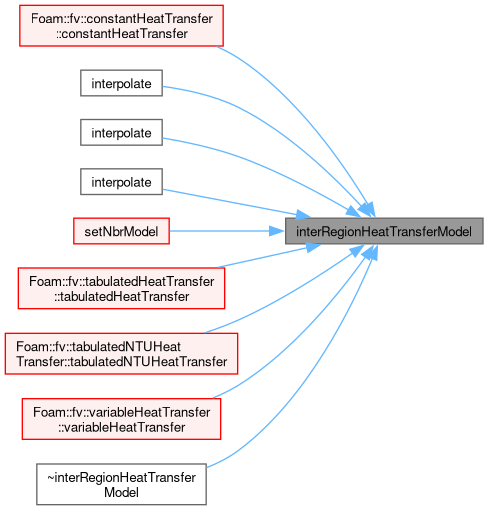

Here is the caller graph for this function:

◆ ~interRegionHeatTransferModel()

virtual ~interRegionHeatTransferModel ( )

virtualdefault

Destructor.

References interRegionHeatTransferModel(), and rho.

Here is the call graph for this function:

Member Function Documentation

◆ setNbrModel()

void setNbrModel ( )

protected

Set the neighbour interRegionHeatTransferModel.

Definition at line 42 of file interRegionHeatTransferModel.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, firstIter_, forAll, fvOptions, interRegionHeatTransferModel(), option::mesh_, option::name(), nbrModel_, nbrModelName_, interRegionOption::nbrRegionName_, Foam::nl, and Foam::refCast().

Referenced by addSup().

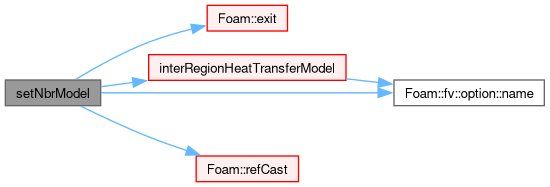

Here is the call graph for this function:

Here is the caller graph for this function:

◆ correct()

void correct ( )

protected

Correct to calculate the inter-region heat transfer coefficient.

Definition at line 83 of file interRegionHeatTransferModel.C.

References calculateHtc(), htc(), htc_, Foam::interpolate(), interRegionOption::master_, option::mesh_, nbrModel(), and timeIndex_.

Here is the call graph for this function:

◆ interpolate() [1/6]

template<class Type>

tmp< Field< Type > > interpolate	(	const interRegionHeatTransferModel &	nbrModel,
		const Field< Type > &	field ) const

protected

Interpolate field with nbrModel specified.

References field(), interRegionHeatTransferModel(), and nbrModel().

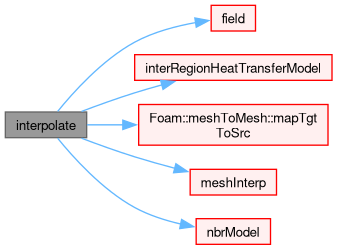

Here is the call graph for this function:

◆ interpolate() [2/6]

template<class Type>

tmp< Field< Type > > interpolate ( const Field< Type > & field ) const

protected

Interpolate field without nbrModel specified.

References field(), interRegionHeatTransferModel(), and nbrModel().

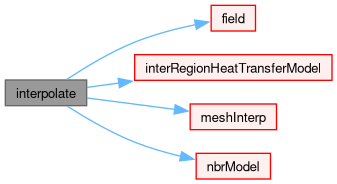

Here is the call graph for this function:

◆ interpolate() [3/6]

template<class Type>

void interpolate	(	const interRegionHeatTransferModel &	nbrModel,
		const Field< Type > &	field,
		Field< Type > &	result ) const

protected

Interpolate field with nbrModel specified.

Definition at line 52 of file interRegionHeatTransferModelTemplates.C.

References field(), interRegionHeatTransferModel(), interRegionOption::master_, meshInterp(), and nbrModel().

Here is the call graph for this function:

◆ interpolate() [4/6]

template<class Type>

void interpolate	(	const Field< Type > &	field,
		Field< Type > &	result ) const

protected

Interpolate field without nbrModel specified.

Definition at line 71 of file interRegionHeatTransferModelTemplates.C.

References field(), Foam::interpolate(), and nbrModel().

Here is the call graph for this function:

◆ TypeName()

TypeName ( "interRegionHeatTransferModel" )

Runtime type information.

References dict, option::mesh(), and option::name().

Here is the call graph for this function:

◆ nbrRegionName()

const Foam::word & nbrRegionName ( ) const

inline

Return const access to the neighbour region name.

Definition at line 25 of file interRegionHeatTransferModelI.H.

References interRegionOption::nbrRegionName_.

Referenced by tabulatedHeatTransfer::calculateHtc(), tabulatedNTUHeatTransfer::calculateHtc(), and variableHeatTransfer::calculateHtc().

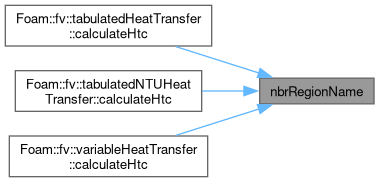

Here is the caller graph for this function:

◆ meshInterp()

const Foam::meshToMesh & meshInterp ( ) const

inline

Return const access to the mapToMap pointer.

Definition at line 32 of file interRegionHeatTransferModelI.H.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and interRegionOption::meshInterpPtr_.

Referenced by interpolate(), and interpolate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ htc()

const Foam::volScalarField & htc ( ) const

inline

Return the heat transfer coefficient.

Definition at line 46 of file interRegionHeatTransferModelI.H.

References htc_.

Referenced by correct().

Here is the caller graph for this function:

◆ nbrModel() [1/2]

const Foam::fv::interRegionHeatTransferModel & nbrModel ( ) const

inline

Return const access to the neighbour model.

Definition at line 53 of file interRegionHeatTransferModelI.H.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and nbrModel_.

Referenced by correct(), interpolate(), interpolate(), interpolate(), and interpolate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nbrModel() [2/2]

Foam::fv::interRegionHeatTransferModel & nbrModel ( )

inline

Return access to the neighbour model.

Definition at line 67 of file interRegionHeatTransferModelI.H.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and nbrModel_.

Here is the call graph for this function:

◆ addSup() [1/2]

void addSup	(	fvMatrix< scalar > &	eqn,
		const label	fieldi )

virtual

Source term to energy equation.

Reimplemented from option.

Definition at line 151 of file interRegionHeatTransferModel.C.

References correct(), basicThermo::dictName, Foam::dimEnergy, Foam::dimMass, Foam::dimTemperature, Foam::fvc::domainIntegrate(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, he, htc_, Foam::Info, Foam::interpolate(), objectRegistry::lookupObject(), option::mesh_, interRegionOption::nbrRegionName_, GeometricField< scalar, fvPatchField, volMesh >::New(), fvMatrix< Type >::psi(), GeometricField< Type, PatchField, GeoMesh >::ref(), IOobject::scopedName(), semiImplicit_, setNbrModel(), Foam::fvm::Sp(), Foam::T(), TName_, TNbrName_, Foam::type(), and dimensioned< Type >::value().

Referenced by addSup().

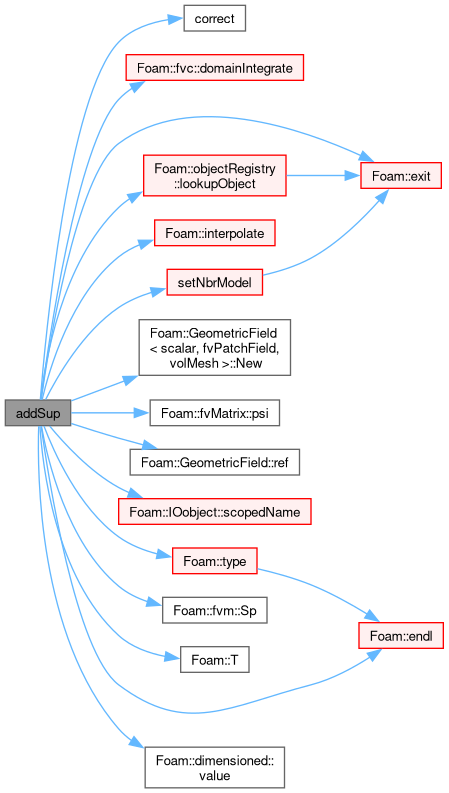

Here is the call graph for this function:

Here is the caller graph for this function:

◆ addSup() [2/2]

void addSup	(	const volScalarField &	rho,
		fvMatrix< scalar > &	eqn,
		const label	fieldi )

virtual

Source term to compressible energy equation.

Reimplemented from option.

Definition at line 238 of file interRegionHeatTransferModel.C.

References addSup(), and rho.

Here is the call graph for this function:

◆ calculateHtc()

virtual void calculateHtc ( )

pure virtual

Calculate heat transfer coefficient.

Implemented in constantHeatTransfer, tabulatedHeatTransfer, tabulatedNTUHeatTransfer, and variableHeatTransfer.

References dict.

Referenced by correct().

Here is the caller graph for this function:

◆ read()

bool read ( const dictionary & dict )

virtual

Read source dictionary.

Reimplemented from interRegionOption.

Reimplemented in constantHeatTransfer, tabulatedHeatTransfer, tabulatedNTUHeatTransfer, and variableHeatTransfer.

Definition at line 249 of file interRegionHeatTransferModel.C.

References dict, and interRegionOption::read().

Referenced by constantHeatTransfer::read(), tabulatedHeatTransfer::read(), and variableHeatTransfer::read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ interpolate() [5/6]

template<class Type>

Foam::tmp< Foam::Field< Type > > interpolate	(	const interRegionHeatTransferModel &	nbrModel,
		const Field< Type > &	field ) const

Definition at line 23 of file interRegionHeatTransferModelTemplates.C.

References field(), interRegionHeatTransferModel(), meshToMesh::mapTgtToSrc(), interRegionOption::master_, meshInterp(), and nbrModel().

Here is the call graph for this function:

◆ interpolate() [6/6]

template<class Type>

Foam::tmp< Foam::Field< Type > > interpolate ( const Field< Type > & field ) const

Definition at line 42 of file interRegionHeatTransferModelTemplates.C.

References field(), Foam::interpolate(), and nbrModel().

Here is the call graph for this function:

Member Data Documentation

◆ nbrModelName_

word nbrModelName_

protected

Name of the model in the neighbour mesh.

Definition at line 149 of file interRegionHeatTransferModel.H.

Referenced by interRegionHeatTransferModel(), and setNbrModel().

◆ nbrModel_

interRegionHeatTransferModel* nbrModel_

protected

Pointer to neighbour interRegionHeatTransferModel.

Definition at line 154 of file interRegionHeatTransferModel.H.

Referenced by interRegionHeatTransferModel(), nbrModel(), nbrModel(), and setNbrModel().

◆ firstIter_

bool firstIter_

protected

Flag to determine the first iteration.

Definition at line 159 of file interRegionHeatTransferModel.H.

Referenced by interRegionHeatTransferModel(), and setNbrModel().

◆ semiImplicit_

bool semiImplicit_

protected

Flag to activate semi-implicit coupling.

Definition at line 164 of file interRegionHeatTransferModel.H.

Referenced by addSup(), and interRegionHeatTransferModel().

◆ timeIndex_

label timeIndex_

protected

Time index - used for updating htc.

Definition at line 169 of file interRegionHeatTransferModel.H.

Referenced by correct(), and interRegionHeatTransferModel().

◆ htc_

volScalarField htc_

protected

Heat transfer coefficient [W/m2/k] times area/volume [1/m].

Definition at line 174 of file interRegionHeatTransferModel.H.

Referenced by addSup(), tabulatedHeatTransfer::calculateHtc(), tabulatedNTUHeatTransfer::calculateHtc(), variableHeatTransfer::calculateHtc(), constantHeatTransfer::constantHeatTransfer(), correct(), htc(), and interRegionHeatTransferModel().

◆ TName_

word TName_

protected

Name of operand temperature field.

Definition at line 179 of file interRegionHeatTransferModel.H.

Referenced by addSup(), and interRegionHeatTransferModel().

◆ TNbrName_

word TNbrName_

protected

Name of operand neighbour temperature field.

Definition at line 184 of file interRegionHeatTransferModel.H.

Referenced by addSup(), and interRegionHeatTransferModel().

The documentation for this class was generated from the following files:

src/fvOptions/sources/interRegion/interRegionHeatTransfer/interRegionHeatTransferModel/interRegionHeatTransferModel.H
src/fvOptions/sources/interRegion/interRegionHeatTransfer/interRegionHeatTransferModel/interRegionHeatTransferModel.C
src/fvOptions/sources/interRegion/interRegionHeatTransfer/interRegionHeatTransferModel/interRegionHeatTransferModelI.H
src/fvOptions/sources/interRegion/interRegionHeatTransfer/interRegionHeatTransferModel/interRegionHeatTransferModelTemplates.C

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ interRegionHeatTransferModel()

◆ ~interRegionHeatTransferModel()

Member Function Documentation

◆ setNbrModel()

◆ correct()

◆ interpolate() [1/6]

◆ interpolate() [2/6]

◆ interpolate() [3/6]

◆ interpolate() [4/6]

◆ TypeName()

◆ nbrRegionName()

◆ meshInterp()

◆ htc()

◆ nbrModel() [1/2]

◆ nbrModel() [2/2]

◆ addSup() [1/2]

◆ addSup() [2/2]

◆ calculateHtc()

◆ read()

◆ interpolate() [5/6]

◆ interpolate() [6/6]

Member Data Documentation

◆ nbrModelName_

◆ nbrModel_

◆ firstIter_

◆ semiImplicit_

◆ timeIndex_

◆ htc_

◆ TName_

◆ TNbrName_
