Applies a tabulated heat transfer model for inter-region heat exchanges. The heat flux is calculated based on the Number of Thermal Units (NTU). More...

#include <tabulatedNTUHeatTransfer.H>

Inheritance diagram for tabulatedNTUHeatTransfer:

[legend]

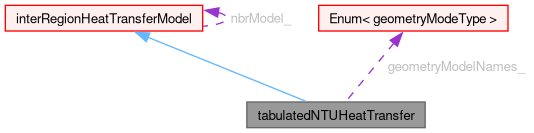

Collaboration diagram for tabulatedNTUHeatTransfer:

[legend]

Public Types
enum	geometryModeType { gmCalculated , gmUser }
	Options for the geometry mode type. More...

Public Member Functions
	TypeName ("tabulatedNTUHeatTransfer")
	Runtime type information.

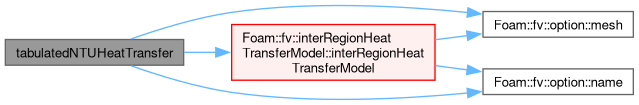

	tabulatedNTUHeatTransfer (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
	tabulatedNTUHeatTransfer (const tabulatedNTUHeatTransfer &)=delete
	No copy construct.
void	operator= (const tabulatedNTUHeatTransfer &)=delete
	No copy assignment.
virtual	~tabulatedNTUHeatTransfer ()=default
	Destructor.

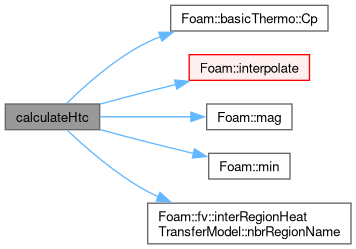

virtual void	calculateHtc ()
	Calculate the heat transfer coefficient.
virtual bool	read (const dictionary &dict)
	Read dictionary.
Public Member Functions inherited from interRegionHeatTransferModel
	TypeName ("interRegionHeatTransferModel")
	Runtime type information.
	interRegionHeatTransferModel (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from dictionary.
virtual	~interRegionHeatTransferModel ()=default
	Destructor.
const word &	nbrRegionName () const
	Return const access to the neighbour region name.
const meshToMesh &	meshInterp () const
	Return const access to the mapToMap pointer.
const volScalarField &	htc () const
	Return the heat transfer coefficient.
const interRegionHeatTransferModel &	nbrModel () const
	Return const access to the neighbour model.
interRegionHeatTransferModel &	nbrModel ()
	Return access to the neighbour model.
virtual void	addSup (fvMatrix< scalar > &eqn, const label fieldi)
	Source term to energy equation.
virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)
	Source term to compressible energy equation.
template<class Type>
Foam::tmp< Foam::Field< Type > >	interpolate (const interRegionHeatTransferModel &nbrModel, const Field< Type > &field) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	interpolate (const Field< Type > &field) const
Public Member Functions inherited from interRegionOption
	TypeName ("interRegionOption")
	Runtime type information.
	interRegionOption (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from dictionary.
	interRegionOption (const interRegionOption &)=delete
	No copy construct.
void	operator= (const interRegionOption &)=delete
	No copy assignment.
virtual	~interRegionOption ()=default
	Destructor.
const word &	nbrRegionName () const
	Return const access to the neighbour region name.
const meshToMesh &	meshInterp () const
	Return const access to the mapToMap pointer.
Public Member Functions inherited from option
	TypeName ("option")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))
	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
autoPtr< option >	clone () const
	Return clone.
virtual	~option ()=default
	Destructor.
const word &	name () const noexcept
	Return const access to the source name.
const fvMesh &	mesh () const noexcept
	Return const access to the mesh database.
const dictionary &	coeffs () const noexcept
	Return dictionary.
bool	active () const noexcept
	True if source is active.
void	setApplied (const label fieldi)
	Set the applied flag to true for field index fieldi.
bool	active (const bool on) noexcept
	Change source active flag, return previous value.
virtual bool	isActive ()
	Is the source active?
virtual label	applyToField (const word &fieldName) const
	Return index of field name if found in fieldNames list.
virtual void	checkApplied () const
	Check that the source has been applied.
virtual void	addSup (fvMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< scalar > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< vector > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< tensor > &eqn, const label fieldi)
virtual void	correct (volScalarField &field)
virtual void	correct (volVectorField &field)
virtual void	correct (volSphericalTensorField &field)
virtual void	correct (volSymmTensorField &field)
virtual void	correct (volTensorField &field)
virtual void	correct (surfaceScalarField &field)
virtual void	correct (surfaceVectorField &field)
virtual void	correct (surfaceTensorField &field)
virtual void	postProcessSens (scalarField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessSens (vectorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessSens (tensorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessAuxSens (const volScalarField &primalField, const volScalarField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	postProcessAuxSens (const volVectorField &primalField, const volVectorField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	postProcessAuxSens (const volTensorField &primalField, const volTensorField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	writeHeader (Ostream &) const
	Write the source header information.
virtual void	writeFooter (Ostream &) const
	Write the source footer information.
virtual void	writeData (Ostream &) const
	Write the source properties.

Static Public Attributes
static const Enum< geometryModeType >	geometryModelNames_
	Names for geometryModeType.

Additional Inherited Members
Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh)
	Return a reference to the selected fvOption model.
Public Attributes inherited from option
bool	log
	Switch write log to Info.
Protected Member Functions inherited from interRegionHeatTransferModel
void	setNbrModel ()
	Set the neighbour interRegionHeatTransferModel.
void	correct ()
	Correct to calculate the inter-region heat transfer coefficient.
template<class Type>
tmp< Field< Type > >	interpolate (const interRegionHeatTransferModel &nbrModel, const Field< Type > &field) const
	Interpolate field with nbrModel specified.
template<class Type>
tmp< Field< Type > >	interpolate (const Field< Type > &field) const
	Interpolate field without nbrModel specified.
template<class Type>
void	interpolate (const interRegionHeatTransferModel &nbrModel, const Field< Type > &field, Field< Type > &result) const
	Interpolate field with nbrModel specified.
template<class Type>
void	interpolate (const Field< Type > &field, Field< Type > &result) const
	Interpolate field without nbrModel specified.
Protected Member Functions inherited from interRegionOption
void	setMapper ()
	Set the mesh to mesh interpolation object.
Protected Member Functions inherited from option
void	resetApplied ()
	Resize/reset applied flag list for all fieldNames_ entries.
Protected Attributes inherited from interRegionHeatTransferModel
word	nbrModelName_
	Name of the model in the neighbour mesh.
interRegionHeatTransferModel *	nbrModel_
	Pointer to neighbour interRegionHeatTransferModel.
bool	firstIter_
	Flag to determine the first iteration.
bool	semiImplicit_
	Flag to activate semi-implicit coupling.
label	timeIndex_
	Time index - used for updating htc.
volScalarField	htc_
	Heat transfer coefficient [W/m2/k] times area/volume [1/m].
word	TName_
	Name of operand temperature field.
word	TNbrName_
	Name of operand neighbour temperature field.
Protected Attributes inherited from interRegionOption
bool	master_
	Master or slave region.
word	nbrRegionName_
	Name of the neighbour region to map.
autoPtr< meshToMesh >	meshInterpPtr_
	Mesh to mesh interpolation object.
Protected Attributes inherited from option
const word	name_
	Source name.
const word	modelType_
	Model type.
const fvMesh &	mesh_
	Reference to the mesh database.
dictionary	dict_
	Top level source dictionary.
dictionary	coeffs_
	Dictionary containing source coefficients.
wordList	fieldNames_
	Field names to apply source to - populated by derived models.
List< bool >	applied_
	Applied flag list - corresponds to each fieldNames_ entry.
bool	active_
	Source active flag.

Detailed Description

Applies a tabulated heat transfer model for inter-region heat exchanges. The heat flux is calculated based on the Number of Thermal Units (NTU).

A 2-D table of NTU as functions of the primary and secondary mass flow rates is required.

The exchanger geometry can be specified using either:

calculated:
- inlet area of each region and core volume determined by interrogating mesh patches, and mesh-to-mesh interpolation volume
- calculated core volume can be partially blocked by specifying a coreBlockageRatio [0-1] entry
user:
- inlet area of each region provided by the user
- core volume automatically calculated by the mesh-to-mesh interpolation volume if not provided by user

Heat transfer coefficient calculated by:

$\‍[ htc = C_{min} \frac{NTU}{V_{core}} \‍]$

Where $C_{min}$ is given by:

$\‍[ C_{min} = min \left(Cp_1 \dot{m}_1, Cp_2 \dot{m}_2 \right) \‍]$

Usage

Minimal example by using constant/fvOptions:

tabulatedNTUHeatTransfer1
{
    // Mandatory entries (unmodifiable)
    type            tabulatedNTUHeatTransfer;

    // Mandatory entries (runtime modifiable)
    geometryMode    <geometryMode>;
    outOfBounds     clamp;
    file            "ntuTable";

    // Optional entries (runtime modifiable)
    U               <Uname>;
    Unbr            <UnbrName>;
    rho             <rhoName>;
    rhoNbr          <rhoNbrName>;

    // Conditional mandatory entries (runtime modifiable)

        // when geometryMode=user
        Ain             0.01728;
        AinNbr          0.3456;

        // when geometryMode=calculated
        inletPatch      inlet_HWK;
        inletPatchNbr   inlet_air;
        inletBlockageRatio 0.10;
        inletBlockageRatioNbr 0.04;
        coreBlockageRatio 0;

    // Conditional optional entries (runtime modifiable)

        // when geometryMode=user
        Vcore           0.01244;

    // Mandatory/Optional (inherited) entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
`type`	Type name: tabulatedNTUHeatTransfer	word	yes	-
`geometryMode`	Geometry mode type	word	yes	-
`file`	Heat transfer coefficient table	interpolate2DTable	yes	-
`U`	Name of operand velocity field	word	no	U
`Unbr`	Name of operand neighbour velocity field	word	no	U
`Ain`	Inlet area [m2]	scalar	cndtnl	-
`AinNbr`	Neighbour region inlet area [m2]	scalar	cndtnl	-
`Vcore`	Heat exchanger core volume	scalar	cndtnl	-
`inletPatch`	Name of inlet patch	word	cndtnl	-
`inletNbrPatch`	Name of inlet patch neighbour	word	cndtnl	-
`inletBlockageRatio`	Inlet patch blockage ratio [0, 1]	scalar	cndtnl	-
`inletBlockageRatioNbr`	Inlet neighbour patch blockage ratio [0, 1]	scalar	cndtnl	-
`coreBlockageRatio`	Core volume blockage ratio [0, 1]	scalar	cndtnl	-

The inherited entries are elaborated in:

Options for the geometryMode entry:

      calculated    | Use settings computed internally
      user          | Use settings provided by the user

Example usage:

    coolerToAir
    {
        type            tabulatedNTUHeatTransfer;
        active          yes;

        tabulatedNTUHeatTransferCoeffs
        {
            interpolationMethod cellVolumeWeight;
            nbrRegion       air;
            master          true;

            fields          (h);
            outOfBounds     clamp;
            file            "ntuTable";
            nbrModel        airToCooler;
            semiImplicit    no;


            geometryMode    user;
            Ain             0.01728;
            AinNbr          0.3456;
            Vcore           0.01244;  // Optional

            // geometryMode    calculated;
            // inletPatch      inlet_HWK;
            // inletPatchNbr   inlet_air;
            // inletBlockageRatio 0.10;
            // inletBlockageRatioNbr 0.04;
            // coreBlockageRatio 0;
        }
    }

See also

Source files

Definition at line 286 of file tabulatedNTUHeatTransfer.H.

Member Enumeration Documentation

◆ geometryModeType

enum geometryModeType

Options for the geometry mode type.

Enumerator
gmCalculated
gmUser

Definition at line 297 of file tabulatedNTUHeatTransfer.H.

Constructor & Destructor Documentation

◆ tabulatedNTUHeatTransfer() [1/2]

tabulatedNTUHeatTransfer	(	const word &	name,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh )

Construct from components.

Definition at line 183 of file tabulatedNTUHeatTransfer.C.

References option::coeffs_, dict, gmCalculated, interRegionHeatTransferModel::interRegionHeatTransferModel(), option::mesh(), and option::name().

Referenced by operator=(), and tabulatedNTUHeatTransfer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ tabulatedNTUHeatTransfer() [2/2]

tabulatedNTUHeatTransfer ( const tabulatedNTUHeatTransfer & )

delete

No copy construct.

References tabulatedNTUHeatTransfer().

Here is the call graph for this function:

◆ ~tabulatedNTUHeatTransfer()

virtual ~tabulatedNTUHeatTransfer ( )

virtualdefault

Destructor.

References dict.

Member Function Documentation

◆ TypeName()

TypeName ( "tabulatedNTUHeatTransfer" )

Runtime type information.

References dict, option::mesh(), and option::name().

Here is the call graph for this function:

◆ operator=()

void operator= ( const tabulatedNTUHeatTransfer & )

delete

No copy assignment.

References tabulatedNTUHeatTransfer().

Here is the call graph for this function:

◆ calculateHtc()

void calculateHtc ( )

virtual

Calculate the heat transfer coefficient.

Implements interRegionHeatTransferModel.

Definition at line 206 of file tabulatedNTUHeatTransfer.C.

References Cp, basicThermo::Cp(), forAll, interRegionHeatTransferModel::htc_, Foam::interpolate(), Foam::mag(), option::mesh_, Foam::min(), interRegionHeatTransferModel::nbrRegionName(), rho, thermo, and U.

Here is the call graph for this function:

◆ read()

bool read ( const dictionary & dict )

virtual

Read dictionary.

Reimplemented from interRegionHeatTransferModel.

Definition at line 248 of file tabulatedNTUHeatTransfer.C.

References option::coeffs_, dict, and option::read().

Here is the call graph for this function:

Member Data Documentation

◆ geometryModelNames_

const Foam::Enum< Foam::fv::tabulatedNTUHeatTransfer::geometryModeType > geometryModelNames_

static

Names for geometryModeType.

Definition at line 306 of file tabulatedNTUHeatTransfer.H.

The documentation for this class was generated from the following files:

src/fvOptions/sources/interRegion/interRegionHeatTransfer/tabulatedNTUHeatTransfer/tabulatedNTUHeatTransfer.H
src/fvOptions/sources/interRegion/interRegionHeatTransfer/tabulatedNTUHeatTransfer/tabulatedNTUHeatTransfer.C

Public Types

Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ geometryModeType

Constructor & Destructor Documentation

◆ tabulatedNTUHeatTransfer() [1/2]

◆ tabulatedNTUHeatTransfer() [2/2]

◆ ~tabulatedNTUHeatTransfer()

Member Function Documentation

◆ TypeName()

◆ operator=()

◆ calculateHtc()

◆ read()

Member Data Documentation

◆ geometryModelNames_
