Implements Brinkman penalisation terms for topology optimisation. Looks up the indicator field (beta) from the registry, through topOVariablesBase. More...

#include <topOSource.H>

Inheritance diagram for topOSource:

[legend]

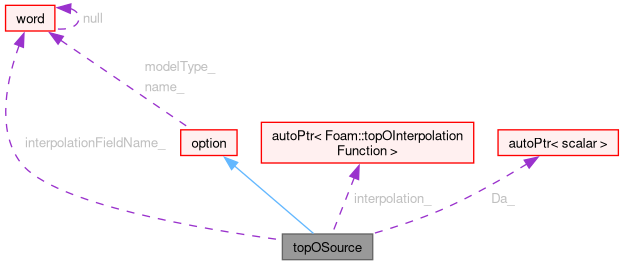

Collaboration diagram for topOSource:

[legend]

Public Member Functions
	TypeName ("topOSource")
	Runtime type information.
	topOSource (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
virtual	~topOSource ()=default
	Destructor.
virtual void	addSup (fvMatrix< vector > &eqn, const label fieldi)
	Add implicit contribution to momentum equation.
virtual void	addSup (fvMatrix< scalar > &eqn, const label fieldi)
	Add implicit contribution to scalar equations (e.g. turbulence model).
virtual void	addSup (const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)
	Add implicit contribution to compressible momentum equation.
virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)
	Add implicit contribution to compressible scalar equation.
virtual void	postProcessSens (scalarField &sensField, const word &fieldName=word::null, const word &designValue=word::null)
	Multiply sensitivities with the derivative of the interpolation function.
virtual bool	read (const dictionary &dict)
	Read source dictionary.
Public Member Functions inherited from option
	TypeName ("option")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))
	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
autoPtr< option >	clone () const
	Return clone.
virtual	~option ()=default
	Destructor.
const word &	name () const noexcept
	Return const access to the source name.
const fvMesh &	mesh () const noexcept
	Return const access to the mesh database.
const dictionary &	coeffs () const noexcept
	Return dictionary.
bool	active () const noexcept
	True if source is active.
void	setApplied (const label fieldi)
	Set the applied flag to true for field index fieldi.
bool	active (const bool on) noexcept
	Change source active flag, return previous value.
virtual bool	isActive ()
	Is the source active?
virtual label	applyToField (const word &fieldName) const
	Return index of field name if found in fieldNames list.
virtual void	checkApplied () const
	Check that the source has been applied.
virtual void	addSup (fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< scalar > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< vector > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< tensor > &eqn, const label fieldi)
virtual void	correct (volScalarField &field)
virtual void	correct (volVectorField &field)
virtual void	correct (volSphericalTensorField &field)
virtual void	correct (volSymmTensorField &field)
virtual void	correct (volTensorField &field)
virtual void	correct (surfaceScalarField &field)
virtual void	correct (surfaceVectorField &field)
virtual void	correct (surfaceTensorField &field)
virtual void	postProcessSens (vectorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessSens (tensorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessAuxSens (const volScalarField &primalField, const volScalarField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	postProcessAuxSens (const volVectorField &primalField, const volVectorField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	postProcessAuxSens (const volTensorField &primalField, const volTensorField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	writeHeader (Ostream &) const
	Write the source header information.
virtual void	writeFooter (Ostream &) const
	Write the source footer information.
virtual void	writeData (Ostream &) const
	Write the source properties.

Protected Member Functions
virtual tmp< DimensionedField< scalar, volMesh > >	getSource ()
	Compute the source term based on the indicator field.
Protected Member Functions inherited from option
void	resetApplied ()
	Resize/reset applied flag list for all fieldNames_ entries.

Protected Attributes
autoPtr< topOInterpolationFunction >	interpolation_
	Interpolation function.
word	interpolationFieldName_
	Interpolation field name.
scalar	betaMax_
	Optional betaMax.
bool	darcyFlow_
	Does this option apply to a Darcy flow model.
autoPtr< scalar >	Da_
	Dimensionless Darcy number.
Protected Attributes inherited from option
const word	name_
	Source name.
const word	modelType_
	Model type.
const fvMesh &	mesh_
	Reference to the mesh database.
dictionary	dict_
	Top level source dictionary.
dictionary	coeffs_
	Dictionary containing source coefficients.
wordList	fieldNames_
	Field names to apply source to - populated by derived models.
List< bool >	applied_
	Applied flag list - corresponds to each fieldNames_ entry.
bool	active_
	Source active flag.

Additional Inherited Members
Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh)
	Return a reference to the selected fvOption model.
Public Attributes inherited from option
bool	log
	Switch write log to Info.

Detailed Description

Implements Brinkman penalisation terms for topology optimisation. Looks up the indicator field (beta) from the registry, through topOVariablesBase.

Source files

Definition at line 57 of file topOSource.H.

Constructor & Destructor Documentation

◆ topOSource()

topOSource	(	const word &	name,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh )

Construct from components.

Definition at line 88 of file topOSource.C.

References betaMax_, Da_, darcyFlow_, dict, interpolation_, interpolationFieldName_, option::mesh(), option::name(), option::New(), option::option(), and read().

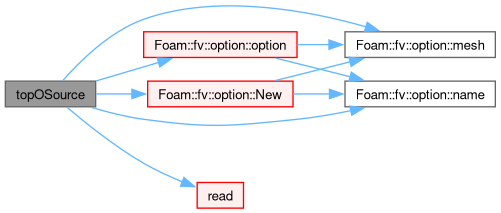

Here is the call graph for this function:

◆ ~topOSource()

virtual ~topOSource ( )

virtualdefault

Destructor.

References dict, word::null, and rho.

Member Function Documentation

◆ getSource()

Foam::tmp< Foam::DimensionedField< Foam::scalar, Foam::volMesh > > getSource ( )

protectedvirtual

Compute the source term based on the indicator field.

Definition at line 48 of file topOSource.C.

References betaMax_, Da_, darcyFlow_, Foam::dimless, Foam::dimTime, DimensionedField< Type, GeoMesh >::field(), interpolation_, interpolationFieldName_, option::mesh_, option::New(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, topOVariablesBase::sourceTerm(), and Foam::Zero.

Referenced by addSup(), addSup(), addSup(), and addSup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "topOSource" )

Runtime type information.

References dict, option::mesh(), and option::name().

Here is the call graph for this function:

◆ addSup() [1/4]

void addSup	(	fvMatrix< vector > &	eqn,
		const label	fieldi )

virtual

Add implicit contribution to momentum equation.

Reimplemented from option.

Definition at line 109 of file topOSource.C.

References DebugInfo, Foam::endl(), getSource(), IOobject::name(), fvMatrix< Type >::psi(), and Foam::fvm::Sp().

Here is the call graph for this function:

◆ addSup() [2/4]

void addSup	(	fvMatrix< scalar > &	eqn,
		const label	fieldi )

virtual

Add implicit contribution to scalar equations (e.g. turbulence model).

Reimplemented from option.

Definition at line 122 of file topOSource.C.

References DebugInfo, Foam::endl(), getSource(), IOobject::name(), fvMatrix< Type >::psi(), and Foam::fvm::Sp().

Here is the call graph for this function:

◆ addSup() [3/4]

void addSup	(	const volScalarField &	rho,
		fvMatrix< vector > &	eqn,
		const label	fieldi )

virtual

Add implicit contribution to compressible momentum equation.

Reimplemented from option.

Definition at line 135 of file topOSource.C.

References DebugInfo, Foam::endl(), getSource(), IOobject::name(), fvMatrix< Type >::psi(), rho, and Foam::fvm::Sp().

Here is the call graph for this function:

◆ addSup() [4/4]

void addSup	(	const volScalarField &	rho,
		fvMatrix< scalar > &	eqn,
		const label	fieldi )

virtual

Add implicit contribution to compressible scalar equation.

Reimplemented from option.

Definition at line 149 of file topOSource.C.

References DebugInfo, Foam::endl(), getSource(), IOobject::name(), fvMatrix< Type >::psi(), rho, and Foam::fvm::Sp().

Here is the call graph for this function:

◆ postProcessSens()

void postProcessSens	(	scalarField &	sensField,
		const word &	fieldName = word::null,
		const word &	designValue = word::null )

virtual

Multiply sensitivities with the derivative of the interpolation function.

Reimplemented from option.

Definition at line 163 of file topOSource.C.

References option::applyToField(), betaMax_, DebugInfo, Foam::endl(), interpolation_, interpolationFieldName_, option::mesh_, and topOVariablesBase::sourceTermSensitivities().

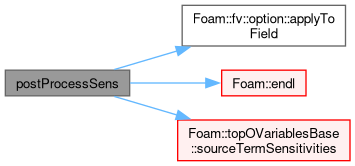

Here is the call graph for this function:

◆ read()

bool read ( const dictionary & dict )

virtual

Read source dictionary.

Reimplemented from option.

Definition at line 194 of file topOSource.C.

References option::applied_, betaMax_, option::coeffs_, Da_, darcyFlow_, dict, option::fieldNames_, topOVariablesBase::getBetaMax(), interpolationFieldName_, option::mesh_, and option::read().

Referenced by topOSource().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ interpolation_

autoPtr<topOInterpolationFunction> interpolation_

protected

Interpolation function.

Definition at line 69 of file topOSource.H.

Referenced by getSource(), postProcessSens(), and topOSource().

◆ interpolationFieldName_

word interpolationFieldName_

protected

Interpolation field name.

Definition at line 74 of file topOSource.H.

Referenced by getSource(), postProcessSens(), read(), and topOSource().

◆ betaMax_

scalar betaMax_

protected

Optional betaMax.

If not found, the one known by topOVariablesBase will be used.

Definition at line 81 of file topOSource.H.

Referenced by getSource(), postProcessSens(), read(), and topOSource().

◆ darcyFlow_

bool darcyFlow_

protected

Does this option apply to a Darcy flow model.

Definition at line 86 of file topOSource.H.

Referenced by getSource(), read(), and topOSource().

◆ Da_

autoPtr<scalar> Da_

protected

Dimensionless Darcy number.

Definition at line 91 of file topOSource.H.

Referenced by getSource(), read(), and topOSource().

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/fvOptions/sources/TopO/topOSource/topOSource.H
src/optimisation/adjointOptimisation/adjoint/fvOptions/sources/TopO/topOSource/topOSource.C
