DimensionedField< Type, GeoMesh > Class Template Reference

Field with dimensions and associated with geometry type GeoMesh which is used to size the field and a reference to it is maintained. More...

#include <DimensionedField.H>

Inherits regIOobject, and DynamicField< Type >.

Inherited by GeometricField< scalar, faPatchField, areaMesh >, GeometricField< vector, faPatchField, areaMesh >, GeometricField< sphericalTensor, faPatchField, areaMesh >, GeometricField< symmTensor, faPatchField, areaMesh >, GeometricField< tensor, faPatchField, areaMesh >, GeometricField< scalar, faePatchField, edgeMesh >, GeometricField< vector, faePatchField, edgeMesh >, GeometricField< sphericalTensor, faePatchField, edgeMesh >, GeometricField< symmTensor, faePatchField, edgeMesh >, GeometricField< tensor, faePatchField, edgeMesh >, GeometricField< value_type, fvPatchField, volMesh >, GeometricField< scalar, fvsPatchField, surfaceMesh >, GeometricField< vector, fvsPatchField, surfaceMesh >, GeometricField< sphericalTensor, fvsPatchField, surfaceMesh >, GeometricField< symmTensor, fvsPatchField, surfaceMesh >, GeometricField< tensor, fvsPatchField, surfaceMesh >, GeometricField< scalar, fvPatchField, volMesh >, GeometricField< vector, fvPatchField, volMesh >, GeometricField< sphericalTensor, fvPatchField, volMesh >, GeometricField< symmTensor, fvPatchField, volMesh >, GeometricField< tensor, fvPatchField, volMesh >, GeometricField< scalar, pointPatchField, pointMesh >, GeometricField< sphericalTensor, pointPatchField, pointMesh >, GeometricField< symmTensor, pointPatchField, pointMesh >, GeometricField< tensor, pointPatchField, pointMesh >, GeometricField< Type, PatchField, GeoMesh >, and SlicedDimensionedField< Type, GeoMesh >.

Collaboration diagram for DimensionedField< Type, GeoMesh >:

Public Types
typedef DimensionedField< Type, GeoMesh >	this_type
	The template instance used for this DimensionedField type.
typedef GeoMesh::Mesh	Mesh
	The mesh type for the DimensionedField.
typedef DimensionedField< Type, GeoMesh >	Internal
	The DimensionedField is usually synonymous with an internal field.
typedef DynamicField< Type >	FieldType
	Type of the field from which this DimensionedField is derived.
typedef Field< Type >::cmptType	cmptType
	Component type of the field elements.
Public Types inherited from IOobject
enum	objectState : char { GOOD , BAD }
	Enumeration defining the valid states of an IOobject. More...
enum	fileCheckTypes : char { timeStamp = 1 , timeStampMaster = 3 , inotify = 4 , inotifyMaster = 6 }
	Enumeration defining the file checking options (time-stamp | inotify) | (all | masterOnly). More...
Public Types inherited from IOobjectOption
enum	readOption : unsigned char {   NO_READ = 0 , MUST_READ = 0x1 , READ_MODIFIED = 0x3 , MUST_READ_IF_MODIFIED = 0x3 ,   LAZY_READ = 0x4 , READ_IF_PRESENT = 0x4 }
	Enumeration defining read preferences. More...
enum	writeOption : unsigned char { NO_WRITE = 0 , AUTO_WRITE = 0x10 }
	Enumeration defining write preferences. More...
enum	registerOption : unsigned char { NO_REGISTER = 0 , REGISTER = 1 , LEGACY_REGISTER = 2 }
	Enumeration for use with registerObject(). Values map to bool (false/true). More...
enum class	Layout : unsigned char { regular , global }
	The layout of the case structure. More...
Public Types inherited from Field< Type >
typedef pTraits< Type >::cmptType	cmptType
	Component type.
typedef SubField< Type >	subField
	Declare type of subField.
Public Types inherited from List< Type >
typedef SubList< Type >	subList
	Declare type of subList.
Public Types inherited from UList< Type >
typedef Type	value_type
	The value type the list contains.
typedef Type *	pointer
	The pointer type for non-const access to value_type items.
typedef const Type *	const_pointer
	The pointer type for const access to value_type items.
typedef Type &	reference
	The type used for storing into value_type objects.
typedef const Type &	const_reference
	The type used for reading from constant value_type objects.
typedef Type *	iterator
	Random access iterator for traversing a UList.
typedef const Type *	const_iterator
	Random access iterator for traversing a UList.
typedef label	size_type
	The type to represent the size of a UList.
typedef label	difference_type
	The difference between iterator objects.
typedef std::reverse_iterator< iterator >	reverse_iterator
	Reverse iterator (non-const access).
typedef std::reverse_iterator< const_iterator >	const_reverse_iterator
	Reverse iterator (const access).
using	is_List
	Have unique tag.

Public Member Functions
	TypeName ("DimensionedField")
	Runtime type information.

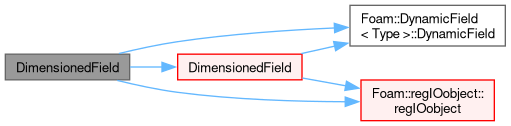

	DimensionedField (const IOobject &io, const Mesh &mesh, const dimensionSet &dims, const Field< Type > &field)
	Construct from components, copy initial field content.
	DimensionedField (const IOobject &io, const Mesh &mesh, const dimensionSet &dims, Field< Type > &&field)
	Construct from components, transferring initial field content.
	DimensionedField (const IOobject &io, const Mesh &mesh, const dimensionSet &dims, List< Type > &&field)
	Construct from components, transferring initial field content.
	DimensionedField (const IOobject &io, const Mesh &mesh, const dimensionSet &dims, const tmp< Field< Type > > &tfield)
	Construct from components, copy or transfer tmp content.

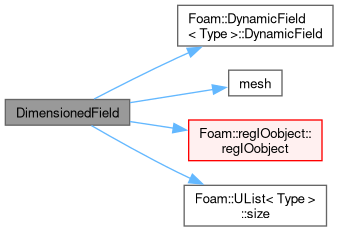

	DimensionedField (const IOobject &io, const Mesh &mesh, const dimensionSet &dims, const bool checkIOFlags=true, const bool extraCapacity=false)
	Construct from components, setting initial size and dimensions, but not initialising any field values.
	DimensionedField (const IOobject &io, const Mesh &mesh, const Type &value, const dimensionSet &dims, const bool checkIOFlags=true, const bool extraCapacity=false)
	Construct from components, setting dimensions and initial uniform field value.
	DimensionedField (const IOobject &io, const Mesh &mesh, const dimensioned< Type > &dt, const bool checkIOFlags=true, const bool extraCapacity=false)
	Construct from components, setting dimensions and initial uniform field value.
	DimensionedField (const IOobject &io, const Mesh &mesh, const word &fieldDictEntry="value", const bool extraCapacity=false)
	Construct from Istream (uses an intermediate dictionary).
	DimensionedField (const IOobject &io, const Mesh &mesh, const dictionary &fieldDict, const word &fieldDictEntry="value", const bool extraCapacity=false)
	Construct from dictionary.
	DimensionedField (const DimensionedField< Type, GeoMesh > &df)
	Copy construct.
	DimensionedField (DimensionedField< Type, GeoMesh > &&df)
	Move construct.
	DimensionedField (DimensionedField< Type, GeoMesh > &df, bool reuse)
	Copy construct or reuse (move) as specified.
	DimensionedField (const tmp< DimensionedField< Type, GeoMesh > > &tdf)
	Construct from tmp<DimensionedField> deleting argument.
	DimensionedField (const IOobject &io, const DimensionedField< Type, GeoMesh > &df)
	Copy construct, resetting IO parameters.
	DimensionedField (const IOobject &io, DimensionedField< Type, GeoMesh > &&df)
	Move construct, resetting IO parameters.
	DimensionedField (const IOobject &io, DimensionedField< Type, GeoMesh > &df, bool reuse)
	Copy or move construct, resetting IO parameters.
	DimensionedField (const IOobject &io, const tmp< DimensionedField< Type, GeoMesh > > &tdf)
	Construct from tmp<DimensionedField> deleting argument, resetting IO parameters.
	DimensionedField (const word &newName, const DimensionedField< Type, GeoMesh > &df)
	Copy construct with a new name.
	DimensionedField (const word &newName, DimensionedField< Type, GeoMesh > &&df)
	Move construct with a new name.
	DimensionedField (const word &newName, DimensionedField< Type, GeoMesh > &df, bool reuse)
	Copy or move construct, resetting name.
	DimensionedField (const word &newName, const tmp< DimensionedField< Type, GeoMesh > > &tdf)
	Construct with a new name from tmp<DimensionedField>.
tmp< DimensionedField< Type, GeoMesh > >	clone () const
	Clone.
virtual	~DimensionedField ()
	Destructor.
void	readField (const dictionary &fieldDict, const word &fieldDictEntry="value")
	Resize to the mesh size and read the field from the dictionary. Internal implementation checks field vs mesh size.
this_type &	constCast () const noexcept
	Return non-const reference to this field.
const Mesh &	mesh () const noexcept
	Return const reference to mesh.
const dimensionSet &	dimensions () const noexcept
	Return dimensions.
dimensionSet &	dimensions () noexcept
	Return non-const access to dimensions.

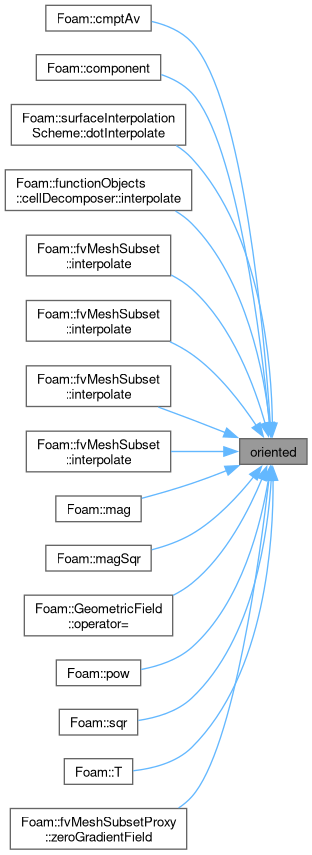

orientedType	oriented () const noexcept
	Return oriented type.
orientedType &	oriented () noexcept
	Return non-const access to the oriented type.
bool	is_oriented () const noexcept
	True if field is ORIENTED.

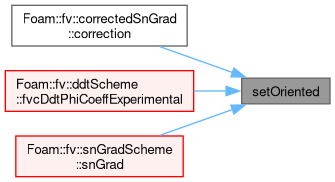

void	setOriented (bool on=true) noexcept
	Set the oriented flag: on/off.

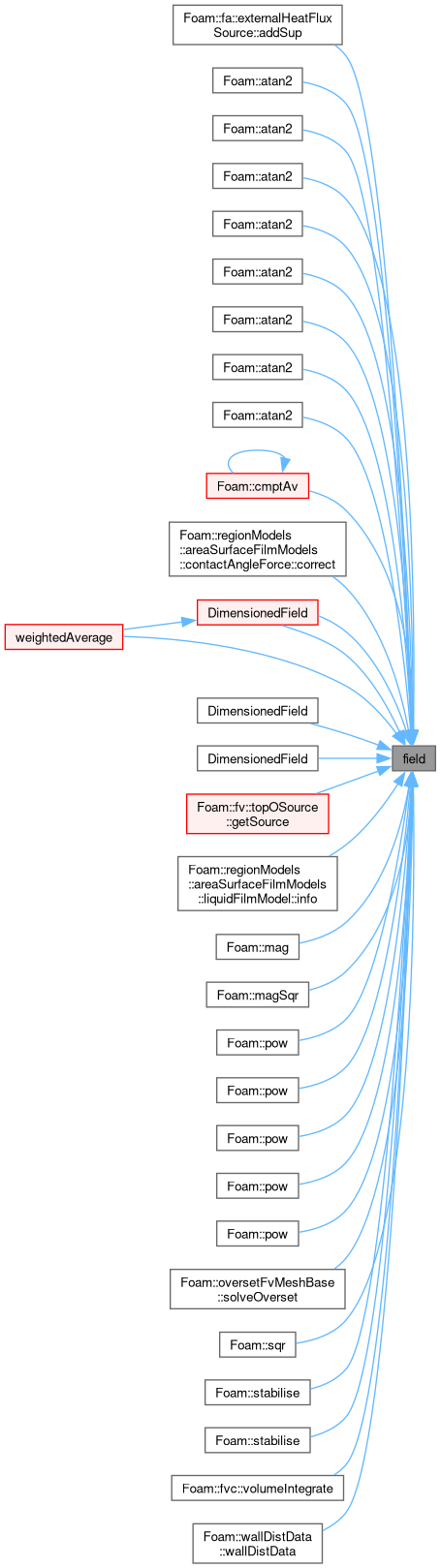

const DynamicField< Type > &	field () const noexcept
	Return const-reference to the primitive field values.
DynamicField< Type > &	field () noexcept
	Return reference to the primitive field values.
tmp< DimensionedField< cmptType, GeoMesh > >	component (const direction d) const
	Return a component field of the field.
void	replace (const direction d, const DimensionedField< cmptType, GeoMesh > &df)
	Replace a component field of the field.
void	replace (const direction d, const tmp< DimensionedField< cmptType, GeoMesh > > &tdf)
	Replace a component field of the field.
tmp< DimensionedField< Type, GeoMesh > >	T () const
	Return the field transpose (only defined for second rank tensors).
dimensioned< Type >	average (const label comm=UPstream::worldComm) const
	Return the global arithmetic average.

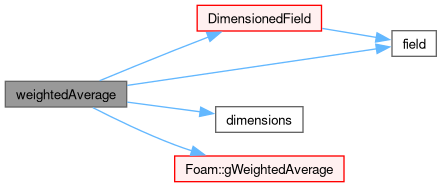

dimensioned< Type >	weightedAverage (const DimensionedField< scalar, GeoMesh > &weights, const label comm=UPstream::worldComm) const
	Return the global weighted average.
dimensioned< Type >	weightedAverage (const tmp< DimensionedField< scalar, GeoMesh > > &tweights, const label comm=UPstream::worldComm) const
	Return the global weighted average.
bool	writeData (Ostream &os, const word &fieldDictEntry) const
	Write dimensions, oriented flag (if valid) and the field data as a dictionary entry with the specified name.
bool	writeData (Ostream &os) const
	The writeData function (required by regIOobject), calls writeData with dictionary entry name = "value".
void	operator= (const DimensionedField< Type, GeoMesh > &df)
void	operator= (const tmp< DimensionedField< Type, GeoMesh > > &tdf)
void	operator= (const dimensioned< Type > &dt)
	Assign value (with dimension check).
void	operator= (Foam::zero)
	Assign value zero (no dimension checks).
void	operator+= (const DimensionedField< Type, GeoMesh > &df)
void	operator+= (const tmp< DimensionedField< Type, GeoMesh > > &tdf)
void	operator-= (const DimensionedField< Type, GeoMesh > &df)
void	operator-= (const tmp< DimensionedField< Type, GeoMesh > > &tdf)
void	operator*= (const DimensionedField< scalar, GeoMesh > &df)
void	operator*= (const tmp< DimensionedField< scalar, GeoMesh > > &tdf)
void	operator/= (const DimensionedField< scalar, GeoMesh > &df)
void	operator/= (const tmp< DimensionedField< scalar, GeoMesh > > &tdf)
void	operator+= (const dimensioned< Type > &dt)
void	operator-= (const dimensioned< Type > &dt)
void	operator*= (const dimensioned< scalar > &dt)
void	operator/= (const dimensioned< scalar > &dt)
template<class... Args>
Foam::tmp< Foam::DimensionedField< Type, GeoMesh > >	New_impl (IOobjectOption::registerOption regOpt, const word &name, const Mesh &mesh, Args &&... args)
template<class AnyType>

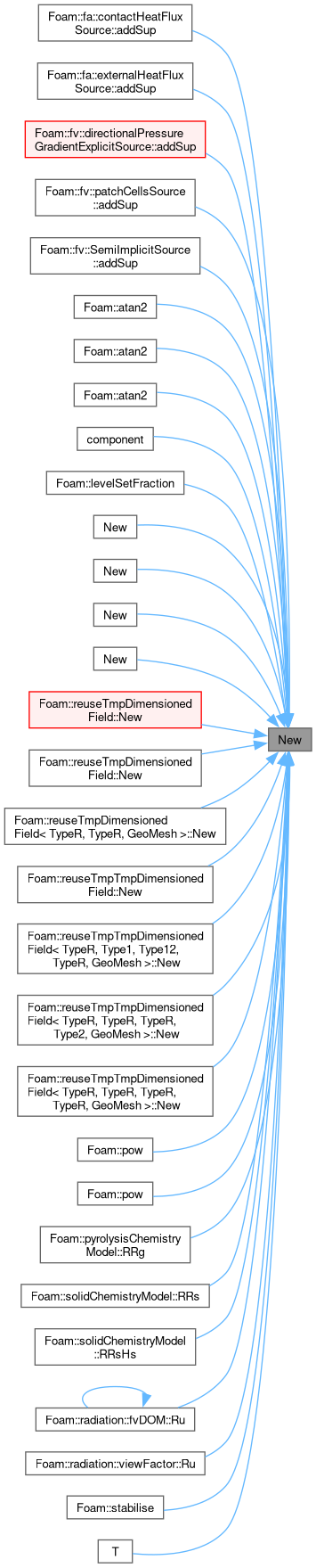

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > >	New (const DimensionedField< AnyType, GeoMesh > &fld, const word &name, const dimensionSet &dims)
template<class AnyType>
Foam::tmp< Foam::DimensionedField< Type, GeoMesh > >	New (const DimensionedField< AnyType, GeoMesh > &fld, const word &name, const dimensioned< Type > &dt)
Public Member Functions inherited from regIOobject
void	operator= (const regIOobject &)=delete
	No copy assignment.
	TypeName ("regIOobject")
	Runtime type information.
	regIOobject (const IOobject &io, const bool isTimeObject=false)
	Construct from IOobject. The optional flag adds special handling if the object is the top-level regIOobject (eg, Time).
	regIOobject (const regIOobject &rio)
	Copy construct.
	regIOobject (const regIOobject &rio, bool registerCopy)
	Copy construct, transferring registry registration to the copy if registerCopy is true.
	regIOobject (const word &newName, const regIOobject &, bool registerCopy)
	Copy construct with new name, transferring registry registration to the copy if registerCopy is true.
	regIOobject (const IOobject &io, const regIOobject &rio)
	Copy construct with new IO parameters.
virtual	~regIOobject ()
	Destructor.
bool	checkIn ()
	Add object to registry, if not already registered.
bool	checkOut ()
	Remove object from registry, and remove all file watches.
virtual void	addWatch ()
	Add file watch on object (if registered and READ_IF_MODIFIED).
bool	registered () const noexcept
	Query the registered state (ie, has been checked in). This is not necessarily the same as registerObject(), which is just a stated preference.
bool	ownedByRegistry () const noexcept
	Is this object owned by the registry?
bool	store ()
	Register object with its registry and transfer ownership to the registry.
void	release (const bool unregister=false) noexcept
	Set object as not ownedByRegistry.
label	eventNo () const noexcept
	Event number at last update.
label &	eventNo () noexcept
	Event number at last update.
bool	upToDate (const regIOobject &) const
	Return true if up-to-date with respect to given object.
bool	upToDate (const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects.
bool	upToDate (const regIOobject &, const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects.
bool	upToDate (const regIOobject &, const regIOobject &, const regIOobject &, const regIOobject &) const
	Return true if up-to-date with respect to given objects.
void	setUpToDate ()
	Set as up-to-date.
virtual void	rename (const word &newName)
	Rename.
const dictionary *	findMetaData () const noexcept
	Return pointer to meta-data or nullptr.
dictionary &	getMetaData () noexcept
	Get or create meta-data.
void	removeMetaData ()
	Remove meta-data.
virtual void	updateMetaData ()
	Update internal meta-data (eg, prior to writing).
virtual fileName	filePath () const
	Return complete path + object name if the file exists.
bool	headerOk ()
	Read and check header info. Does not check the headerClassName.
Istream &	readStream (const word &, const bool readOnProc=true)
	Return Istream and check object type against that given.
void	close ()
	Close Istream.
virtual bool	readData (Istream &)
	Virtual readData function.
virtual bool	read ()
	Read object.
virtual label	addWatch (const fileName &)
	Add file watch for fileName on object if not yet watched.
const labelList &	watchIndices () const noexcept
	Read access to file-monitoring handles.
labelList &	watchIndices () noexcept
	Write access to file-monitoring handles.
virtual bool	modified () const
	Return true if the object's file (or files for objectRegistry) have been modified. (modified state is cached by Time).
virtual bool	readIfModified ()
	Read object if modified (as set by call to modified).
virtual bool	writeObject (IOstreamOption streamOpt, const bool writeOnProc) const
	Write using stream options.
virtual bool	write (const bool writeOnProc=true) const
	Write using setting from DB.
virtual bool	global () const
	Is object global.
void	operator= (const IOobject &io)
	Copy assignment.
virtual bool	writeObject (IOstreamOption::streamFormat fmt, IOstreamOption::versionNumber ver, IOstreamOption::compressionType cmp, const bool writeOnProc) const
	Write using given format, version and compression.
Public Member Functions inherited from IOobject
	TypeName ("IOobject")
	Declare type-name, virtual type (with debug switch).
	IOobject (const IOobject &)=default
	Copy construct.
virtual	~IOobject ()=default
	Destructor.
	IOobject (const word &name, const fileName &instance, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from name, instance, registry, io options.
	IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from name, instance, local, registry, io options.
	IOobject (const fileName &path, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from path, registry, io options.
	IOobject (const word &name, const fileName &instance, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from name, instance, registry, io options.
	IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from name, instance, local, registry, io options.
	IOobject (const fileName &path, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from path, registry, io options.
	IOobject (const IOobject &io, const objectRegistry &registry)
	Copy construct, resetting registry.
	IOobject (const IOobject &io, const word &name)
	Copy construct, resetting name.
	IOobject (const IOobject &io, const word &name, const fileName &local)
	Copy construct, resetting name and local component.
	IOobject (const IOobject &io, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt)
	Copy construct, resetting read/write options.
	IOobject (const IOobject &io, IOobjectOption::registerOption regOpt)
	Copy construct, resetting register option.
autoPtr< IOobject >	clone () const
	Clone.
autoPtr< IOobject >	clone (const objectRegistry &registry) const
	Clone resetting registry.
const objectRegistry &	db () const noexcept
	Return the local objectRegistry.
const Time &	time () const noexcept
	Return Time associated with the objectRegistry.
const word &	name () const noexcept
	Return the object name.
const word &	headerClassName () const noexcept
	Return name of the class name read from header.
word &	headerClassName () noexcept
	Modifiable access to the class name read from header.
const string &	note () const noexcept
	Return the optional note.
string &	note () noexcept
	Modifiable access to the optional note.
unsigned	labelByteSize () const noexcept
	The sizeof (label) in bytes, possibly read from the header.
unsigned	scalarByteSize () const noexcept
	The sizeof (scalar) in bytes, possibly read from the header.
void	resetHeader (const word &newName=word::null)
	Clear various bits (headerClassName, note, sizeof...) that would be obtained when reading from a file.
bool	hasHeaderClass () const noexcept
	True if headerClassName() is non-empty (after reading).
bool	isHeaderClass (const word &expectedType) const
	Check if headerClassName() equals the expected type. Always true if the expected type is empty.
template<class Type>
bool	isHeaderClass () const
	Check if headerClassName() equals Type::typeName Always true for a void type.
word	group () const
	Return group (extension part of name).
word	member () const
	Return member (name without the extension).
const fileName &	rootPath () const noexcept
	Return the Time::rootPath().
const fileName &	caseName () const noexcept
	Return the Time::caseName().
const fileName &	globalCaseName () const noexcept
	Return the Time::globalCaseName().
const fileName &	caseName (IOobjectOption::Layout) const noexcept
	Return the Time::caseName() - normal or global.
const fileName &	instance () const noexcept
	Read access to instance path component.
fileName &	instance () noexcept
	Modifiable access to instance path component.
scalar	instanceValue () const
	Return the scalar value of the instance component (or 0), which often corresponds to a time index/value.
const fileName &	local () const noexcept
	Read access to local path component.
fileName &	local () noexcept
	Modifiable access to the local path component.
fileName	path () const
	The complete path for the object (with instance, local,...).
fileName	globalPath () const
	The complete global path for the object (with instance, local,...).
fileName	path (IOobjectOption::Layout) const
	The complete path (normal or global) for the object.
fileName	path (const word &instance, const fileName &local=fileName::null) const
	The complete path with alternative instance and local.
fileName	globalPath (const word &instance, const fileName &local=fileName::null) const
	The complete global path with alternative instance and local.
fileName	path (IOobjectOption::Layout, const word &instance, const fileName &local=fileName::null) const
	The complete path (normal or global) with alternative instance and local.
fileName	objectPath () const
	The complete path + object name.
fileName	globalObjectPath () const
	The complete global path + object name.
fileName	objectPath (IOobjectOption::Layout) const
	The complete path (normal or global) + object name.
fileName	objectPath (IOobjectOption::Layout, const word &instance) const
	The complete path (normal or global) + object name with alternative instance.
fileName	objectPath (const word &instance) const
	The complete path + object name with alternative instance.
fileName	globalObjectPath (const word &instance) const
	The complete global path + object name with alternative instance.
fileName	objectRelPath () const
	The object path relative to the case.
fileName	localFilePath (const word &typeName, const bool search=true) const
	Redirect to fileHandler filePath, searching locally.
fileName	globalFilePath (const word &typeName, const bool search=true) const
	Redirect to fileHandler filePath, searching up if in parallel.
IOstreamOption	parseHeader (const dictionary &headerDict)
	Parse 'FoamFile' header contents and set the IOobject characteristics and return the stream characteristics.
bool	readHeader (Istream &is)
	Read header ('FoamFile' dictionary) and set the IOobject and stream characteristics.
bool	readHeader (dictionary &headerDict, Istream &is)
	Read header (the 'FoamFile' dictionary) and set the IOobject and stream characteristics.
template<class Type>
bool	typeHeaderOk (const bool checkType=true, const bool search=true, const bool verbose=true)
	Read header (respects is_globalIOobject trait) and check its info. A void type suppresses trait and type-name checks.
template<class Type, bool Searching>
bool	typeHeaderOk (const bool checkType=true, const bool verbose=true)
	Forwards to single-parameter version with the specified search type. A void type suppresses trait and type-name checks.
template<class Type>
fileName	typeFilePath (const bool search=true) const
	Call localFilePath or globalFilePath for given type depending on its is_globalIOobject trait.
template<class Type>
void	warnNoRereading () const
	Helper: warn that type does not support re-reading.
bool	writeHeader (Ostream &os) const
	Write header with current type().
bool	writeHeader (Ostream &os, const word &objectType) const
	Write header with override of type.
void	writeHeader (dictionary &dict, IOstreamOption streamOpt) const
	Write header into a dictionary with current type() and given output format.
void	writeHeader (dictionary &dict, const word &objectType, IOstreamOption streamOpt) const
	Write header into a dictionary with override of type and given output format.
bool	good () const noexcept
	Did last readHeader() succeed?
bool	bad () const noexcept
	Did last readHeader() fail?
InfoProxy< IOobject >	info () const noexcept
	Return info proxy, for printing information to a stream.
void	operator= (const IOobject &io)
	Copy assignment, copies all values (except the registry).
template<class Type>
bool	isHeaderClassName () const
	Same as isHeaderClass().
template<class StringType>
Foam::word	groupName (StringType base, const word &group)
template<class Type>
Foam::fileName	typeFilePath (const bool search) const
Public Member Functions inherited from IOobjectOption
constexpr	IOobjectOption (readOption rOpt=readOption::NO_READ, writeOption wOpt=writeOption::NO_WRITE, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Default construct (NO_READ, NO_WRITE, REGISTER, non-global) or construct with specified options.
constexpr	IOobjectOption (readOption rOpt, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Construct NO_WRITE with specified read/register options.
constexpr	IOobjectOption (writeOption wOpt, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Construct NO_READ with specified write/register options.
constexpr	IOobjectOption (registerOption registerObject, bool globalObject=false) noexcept
	Construct (NO_READ, NO_WRITE) with specified register option.
constexpr	IOobjectOption (readOption rOpt, writeOption wOpt, bool registerObject, bool globalObject=false) noexcept
	Construct from components with specified register option as bool.
constexpr	IOobjectOption (bool registerObject, bool globalObject=false) noexcept
	Construct (NO_READ, NO_WRITE) with specified register option as bool.
readOption	readOpt () const noexcept
	Get the read option.
readOption	readOpt (readOption opt) noexcept
	Set the read option.
writeOption	writeOpt () const noexcept
	Get the write option.
writeOption	writeOpt (writeOption opt) noexcept
	Set the write option.
bool	registerObject () const noexcept
	Should objects created with this IOobject be registered?
bool	registerObject (bool on) noexcept
	Change registration preference.
bool	globalObject () const noexcept
	True if object is treated the same for all processors.
bool	globalObject (bool on) noexcept
	Change global-object status.
bool	isAnyRead () const noexcept
	True if any reading may be required (ie, != NO_READ).
bool	isReadRequired () const noexcept
	True if (MUST_READ | READ_MODIFIED) bits are set.
bool	isReadOptional () const noexcept
	True if (LAZY_READ) bits are set [same as READ_IF_PRESENT].
readOption &	readOpt () noexcept
	Access to the read option.
writeOption &	writeOpt () noexcept
	Access to the write option.
bool &	registerObject () noexcept
	Access to the register object option.
bool &	globalObject () noexcept
	Access to the global object option.
Public Member Functions inherited from DynamicField< Type >
constexpr	DynamicField () noexcept
	Default construct, an empty field without allocation.
	DynamicField (const label initialCapacity)
	Construct empty field with given initial capacity.
	DynamicField (std::pair< label, label > sizing)
	Construct with given size and capacity.
	DynamicField (const label len, const Type &val)
	Construct given size and initial value.
	DynamicField (const label len, Foam::zero)
	Construct given size and initial value of zero.
	DynamicField (const DynamicField< Type, 64 > &list)
	Copy construct.
	DynamicField (const DynamicField< Type, AnySizeMin > &list)
	Copy construct with different sizing parameters.
	DynamicField (const UList< Type > &list)
	Copy construct from UList. Size set to UList size.
	DynamicField (const IndirectListBase< Type, Addr > &list)
	Copy construct from IndirectList.
	DynamicField (List< Type > &&content) noexcept
	Move construct from List contents.
	DynamicField (DynamicField< Type, 64 > &&content) noexcept
	Move construct from dynamic Field contents.
	DynamicField (DynamicField< Type, AnySizeMin > &&content) noexcept
	Move construct with different sizing parameters.
	DynamicField (DynamicList< Type, AnySizeMin > &&content) noexcept
	Move construct from DynamicList.
	DynamicField (DynamicField< Type, AnySizeMin > &content, bool reuse)
	Copy or move construct from DynamicField.
	DynamicField (DynamicList< Type, AnySizeMin > &content, bool reuse)
	Copy or move construct from DynamicList.
	DynamicField (List< Type > &content, bool reuse)
	Copy or move construct from List.
	DynamicField (const UList< Type > &mapF, const labelUList &mapAddressing)
	Construct by 1 to 1 mapping from the given field.
	DynamicField (const UList< Type > &mapF, const labelListList &mapAddressing, const scalarListList &weights)
	Construct by interpolative mapping from the given field.
	DynamicField (const UList< Type > &mapF, const FieldMapper &map)
	Construct by mapping from the given field.
	DynamicField (Istream &is)
	Construct from Istream. Size set to size of list read.
tmp< DynamicField< Type, 64 > >	clone () const
	Clone.
	~DynamicField ()
	Destructor, sync allocated size before list destruction.
label	capacity () const noexcept
	Size of the underlying storage.
std::streamsize	capacity_bytes () const noexcept
	Number of contiguous bytes of the underlying storage.
void	setCapacity (const label len)
	Alter the size of the underlying storage.
void	setCapacity_nocopy (const label len)
	Alter the size of the underlying storage, without retaining old content.
void	setCapacity_unsafe (label len) noexcept
	Change the value for the list capacity directly (ADVANCED, UNSAFE) Does not perform any memory management or resizing.
void	reserve (const label len)
	Reserve allocation space for at least this size, allocating new space if required and retaining old content.
void	reserve_nocopy (const label len)
	Reserve allocation space for at least this size, allocating new space if required without retaining old content.
void	reserve_exact (const label len)
	Reserve allocation space for at least this size, allocating new space if required and retaining old content. If allocation is required, uses the specified size without any other resizing logic.
void	resize (const label len)
	Alter addressable list size, allocating new space if required while recovering old content.
void	resize (const label len, const Type &val)
	Alter addressable size and fill new entries with constant value.
void	resize_copy (label count, const label len)
	Alter addressable size, retaining the first count contents.
void	resize_fill (const label len, const Type &val)
	Alter addressable size and set val for all addressed entries.
void	resize_nocopy (const label len)
	Alter addressable list size, allocating new space if required without necessarily recovering old content.
void	clear () noexcept
	Clear the addressed list, i.e. set the size to zero.
void	clearStorage ()
	Clear the list and delete storage.
void	shrink_to_fit ()
	Shrink the allocated space to the number of elements used.
void	swap (List< Type > &other)
	Swap with plain List content. Implies shrink_to_fit().
void	swap (DynamicField< Type, AnySizeMin > &other) noexcept
	Swap content, independent of sizing parameter.
void	swap (DynamicList< Type, AnySizeMin > &other) noexcept
	Swap content with DynamicList, independent of sizing parameter.
void	transfer (List< Type > &list)
	Transfer the parameter contents into this.
void	transfer (DynamicList< Type, AnySizeMin > &list)
	Transfer the parameter contents into this.
void	transfer (DynamicField< Type, AnySizeMin > &list)
	Transfer the parameter contents into this.
Type &	emplace_back (Args &&... args)
	Construct an element at the end of the list, return reference to the new list element.
void	push_back (const Type &val)
	Copy append an element to the end of the list.
void	push_back (Type &&val)
	Move append an element.
void	push_back (const UList< Type > &list)
	Copy append another list to the end of this list.
void	push_back (List< Type > &&list)
	Move append another list to the end of this list.
void	pop_back (label n=1)
	Reduce size by 1 or more elements. Can be called on an empty list.
Istream &	readList (Istream &is)
	Read from Istream, discarding existing contents.
void	operator= (const Type &val)
	Assign addressed entries to the given value.
void	operator= (Foam::zero)
	Assign addressed entries to zero.
void	operator= (const UList< Type > &list)
	Copy assignment.
void	operator= (const DynamicField< Type, 64 > &list)
	Copy assignment.
void	operator= (const IndirectListBase< Type, Addr > &rhs)
	Copy assign from IndirectList.
void	operator= (List< Type > &&list)
	Move assignment.
void	operator= (DynamicList< Type, AnySizeMin > &&list)
	Move assignment.
void	operator= (DynamicField< Type, 64 > &&list)
	Move assignment.
void	operator= (DynamicField< Type, AnySizeMin > &&list)
	Move assignment.
Type &	operator() (const label i)
	Return non-const access to an element, resizing list if needed.
void	setSize (const label n)
	Alias for resize().
void	setSize (const label n, const Type &val)
	Alias for resize().
DynamicField< Type, 64 > &	shrink ()
	Calls shrink_to_fit() and returns a reference to the DynamicField.
void	append (const Type &val)
	Append an element at the end of the list.
void	append (Type &&val)
	Move append an element.
void	append (const UList< Type > &list)
	Append a List at the end of this list.
Public Member Functions inherited from Field< Type >
constexpr	Field () noexcept
	Default construct.
	Field (const label len)
	Construct given size.
	Field (const label len, const Type &val)
	Construct given size and initial value.
	Field (const label len, Foam::zero)
	Construct given size and initial values of zero.
	Field (Foam::one, const Type &val)
	Construct with length=1, copying the value as the only content.
	Field (Foam::one, Type &&val)
	Construct with length=1, moving the value as the only content.
	Field (Foam::one, Foam::zero)
	Construct with length=1, initializing content to zero.
	Field (const Field< Type > &fld)
	Copy construct.
	Field (const UList< Type > &list)
	Copy construct from UList<Type>.
template<class Addr>
	Field (const IndirectListBase< Type, Addr > &list)
	Copy construct from IndirectList.
	Field (Field< Type > &&fld) noexcept
	Move construct from Field.
	Field (List< Type > &&list) noexcept
	Move construct from List.
template<int SizeMin>
	Field (DynamicList< Type, SizeMin > &&list)
	Move construct from DynamicList.
	Field (const UList< Type > &mapF, const labelUList &mapAddressing)
	Construct by 1 to 1 mapping from the given field.
	Field (const tmp< Field< Type > > &tmapF, const labelUList &mapAddressing)
	Construct by 1 to 1 mapping from the given tmp field.
	Field (const UList< Type > &mapF, const labelListList &mapAddressing, const scalarListList &weights)
	Construct by interpolative mapping from the given field.
	Field (const tmp< Field< Type > > &tmapF, const labelListList &mapAddressing, const scalarListList &weights)
	Construct by interpolative mapping from the given tmp field.
	Field (const UList< Type > &mapF, const FieldMapper &map, const bool applyFlip=true)
	Construct by mapping from the given field.
	Field (const UList< Type > &mapF, const FieldMapper &map, const Type &defaultValue, const bool applyFlip=true)
	Construct by mapping from the given field.
	Field (const UList< Type > &mapF, const FieldMapper &map, const UList< Type > &defaultValues, const bool applyFlip=true)
	Construct by mapping from the given field.
	Field (const tmp< Field< Type > > &tmapF, const FieldMapper &map, const bool applyFlip=true)
	Construct by mapping from the given tmp field.
	Field (const tmp< Field< Type > > &tmapF, const FieldMapper &map, const Type &defaultValue, const bool applyFlip=true)
	Construct by mapping from the given tmp field. Uses supplied uniform value for unmapped items.
	Field (const tmp< Field< Type > > &tmapF, const FieldMapper &map, const UList< Type > &defaultValues, const bool applyFlip=true)
	Construct by mapping from the given tmp field. Uses supplied values for unmapped items.
	Field (Field< Type > &fld, bool reuse)
	Copy construct or re-use as specified.
	Field (const tmp< Field< Type > > &tfld)
	Copy or move construct from tmp.
	Field (Istream &is)
	Construct from Istream.
	Field (const entry &e, const label len)
	Construct from a dictionary (primitive) entry.
	Field (const word &key, const dictionary &dict, const label len, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ)
	Lookup of a primitive dictionary entry by (literal) name and assign its contents to this. The behaviour largely as described in assign():
tmp< Field< Type > >	clone () const
	Clone.
void	assign (const entry &e, const label len)
	Assign from a primitive dictionary entry with the following behaviour:
bool	assign (const word &key, const dictionary &dict, const label len, IOobjectOption::readOption readOpt=IOobjectOption::MUST_READ)
	Lookup a primitive dictionary entry by (literal) name and assign its contents to this (behaviour as described above).
void	map (const UList< Type > &mapF, const labelUList &mapAddressing)
	1 to 1 map from the given field
void	map (const tmp< Field< Type > > &tmapF, const labelUList &mapAddressing)
	1 to 1 map from the given tmp field
void	map (const UList< Type > &mapF, const labelListList &mapAddressing, const scalarListList &weights)
	Interpolative map from the given field.
void	map (const tmp< Field< Type > > &tmapF, const labelListList &mapAddressing, const scalarListList &weights)
	Interpolative map from the given tmp field.
void	map (const UList< Type > &mapF, const FieldMapper &map, const bool applyFlip=true)
	Map from the given field.
void	map (const tmp< Field< Type > > &tmapF, const FieldMapper &map, const bool applyFlip=true)
	Map from the given tmp field.
void	autoMap (const FieldMapper &map, const bool applyFlip=true)
	Map from self.
void	rmap (const UList< Type > &mapF, const labelUList &mapAddressing)
	1 to 1 reverse-map from the given field
void	rmap (const tmp< Field< Type > > &tmapF, const labelUList &mapAddressing)
	1 to 1 reverse-map from the given tmp field
void	rmap (const UList< Type > &mapF, const labelUList &mapAddressing, const UList< scalar > &weights)
	Interpolative reverse map from the given field.
void	rmap (const tmp< Field< Type > > &tmapF, const labelUList &mapAddressing, const UList< scalar > &weights)
	Interpolative reverse map from the given tmp field.
void	negate ()
	Inplace negate this field (negative).
void	normalise ()
	Inplace normalise this field. Generally a no-op except for vector fields.
tmp< Field< cmptType > >	component (const direction) const
	Return a component field of the field.
void	replace (const direction, const UList< cmptType > &)
	Replace a component field of the field.
void	replace (const direction, const tmp< Field< cmptType > > &)
	Replace a component field of the field.
void	replace (const direction, const cmptType &)
	Replace a component field of the field.
void	clamp_min (const Type &lower)
	Impose lower (floor) clamp on the field values (in-place).
void	clamp_min (const UList< Type > &lower)
	Impose lower (floor) clamp on the field values (in-place).
void	clamp_max (const Type &upper)
	Impose upper (ceiling) clamp on the field values (in-place).
void	clamp_max (const UList< Type > &upper)
	Impose upper (ceiling) clamp on the field values (in-place).
void	clamp_range (const Type &lower, const Type &upper)
	Clamp field values (in-place) to the specified range.
void	clamp_range (const MinMax< Type > &range)
	Clamp field values (in-place) to the specified range.
template<class VSForm>
VSForm	block (const label start) const
tmp< Field< Type > >	T () const
	Return the field transpose (only defined for second rank tensors).
void	writeEntry (const word &keyword, Ostream &os) const
	Write the field as a dictionary entry.
SubField< Type >	slice (const label pos, label len=-1)
	Return SubField slice (non-const access) - no range checking.
const SubField< Type >	slice (const label pos, label len=-1) const
	Return SubField slice (const access) - no range checking.
SubField< Type >	slice (const labelRange &range)
	Return SubField slice (non-const access) - with range checking.
const SubField< Type >	slice (const labelRange &range) const
	Return SubField slice (const access) - with range checking.
void	operator= (const Field< Type > &)
	Copy assignment.
void	operator= (const tmp< Field< Type > > &)
void	operator= (const UList< Type > &rhs)
void	operator= (const SubField< Type > &rhs)
template<class Addr>
void	operator= (const IndirectListBase< Type, Addr > &rhs)
	Copy assign from IndirectList.
void	operator= (Field< Type > &&rhs)
	Move assignment.
void	operator= (List< Type > &&rhs)
template<int SizeMin>
void	operator= (DynamicList< Type, SizeMin > &&rhs)
void	operator= (const Type &val)
	Assign entries to the given value.
void	operator= (Foam::zero)
	Assign entries to zero.
template<class Form, class Cmpt, direction nCmpt>
void	operator= (const VectorSpace< Form, Cmpt, nCmpt > &)
void	operator+= (const UList< Type > &)
void	operator+= (const tmp< Field< Type > > &)
void	operator-= (const UList< Type > &)
void	operator-= (const tmp< Field< Type > > &)
void	operator*= (const UList< scalar > &)
void	operator*= (const tmp< Field< scalar > > &)
void	operator/= (const UList< scalar > &)
void	operator/= (const tmp< Field< scalar > > &)
void	operator+= (const Type &)
void	operator-= (const Type &)
void	operator*= (const scalar &)
void	operator/= (const scalar &)
template<typename E>
	Field (const Expression::ListExpression< E > &expr)
	Construct from value expression.
template<typename E>
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.
template<class Type>
void	operator= (const tmp< Field > &rhs)
void	normalise ()
void	normalise ()
void	normalise ()
	Inplace normalise (float) vector field.
void	normalise ()
	Inplace normalise (double) vector field.
Public Member Functions inherited from FieldBase
constexpr	FieldBase () noexcept
	Default construct.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.
Public Member Functions inherited from List< Type >
constexpr	List () noexcept
	Default construct.
	List (const label len)
	Construct with given size.
	List (const label len, const Type &val)
	Construct with given size and value for all elements.
	List (const label len, Foam::zero)
	Construct with given size initializing all elements to zero.
	List (Foam::one, const Type &val)
	Construct with length=1, copying the value as the only content.
	List (Foam::one, Type &&val)
	Construct with length=1, moving the value as the only content.
	List (Foam::one, Foam::zero)
	Construct with length=1, initializing content to zero.
	List (const List< Type > &list)
	Copy construct from list.
	List (const UList< Type > &list)
	Copy construct contents from list.
	List (List< Type > &list, bool reuse)
	Construct as copy or re-use as specified.
	List (const UList< Type > &list, const labelUList &indices)
	Copy construct subset of list.
	List (const UList< Type > &list, const FixedList< label, N > &indices)
	Copy construct subset of list.
	List (const FixedList< Type, N > &list)
	Construct as copy of FixedList<T, N>.
	List (const UPtrList< Type > &list)
	Construct as copy of UPtrList<T> content.
	List (const IndirectListBase< Type, Addr > &list)
	Construct as copy of IndirectList contents.
	List (std::initializer_list< Type > list)
	Construct from an initializer list.
	List (List< Type > &&list) noexcept
	Move construct from List.
	List (DynamicList< Type, SizeMin > &&list)
	Move construct from DynamicList.
	List (Istream &is)
	Construct from Istream.
autoPtr< List< Type > >	clone () const
	Clone.
	~List ()
	Destructor.
void	clear ()
	Clear the list, i.e. set size to zero.
void	resize (const label len)
	Adjust allocated size of list.
void	resize (const label len, const Type &val)
	Adjust allocated size of list and set val for new elements.
void	resize_copy (label count, const label len)
	Change allocated size of list, retaining the first count elements.
void	resize_fill (const label len, const Type &val)
	Adjust allocated size of list and set val for all elements.
void	resize_nocopy (const label len)
	Adjust allocated size of list without necessarily.
void	transfer (List< Type > &list)
	Transfer the contents of the argument List into this list and annul the argument list.
void	transfer (DynamicList< Type, SizeMin > &list)
	Transfer the contents of the argument List into this list and annul the argument list.
Type &	newElmt (const label i)
	Return subscript-checked element of UList and resizing the list if required.
Type &	emplace_back (Args &&... args)
	Construct an element at the end of the list, return reference to the new list element.
void	push_back (const Type &val)
	Append an element at the end of the list.
void	push_back (Type &&val)
	Move append an element at the end of the list.
void	push_back (const UList< Type > &list)
	Append a List to the end of this list.
void	push_back (const IndirectListBase< Type, Addr > &list)
	Append IndirectList contents at the end of this list.
label	push_uniq (const Type &val)
	Append an element if not already in the list.
void	pop_back (label n=1)
	Reduce size by 1 or more elements. Can be called on an empty list.
void	operator= (const UList< Type > &list)
	Assignment to UList operator. Takes linear time.
void	operator= (const List< Type > &list)
	Assignment operator. Takes linear time.
void	operator= (const IndirectListBase< Type, Addr > &list)
	Assignment from IndirectList. Takes linear time.
void	operator= (const FixedList< Type, N > &list)
	Copy assignment from FixedList.
void	operator= (std::initializer_list< Type > list)
	Assignment to an initializer list.
void	operator= (const Type &val)
	Assignment of all entries to the given value.
void	operator= (Foam::zero)
	Assignment of all entries to zero.
void	operator= (List< Type > &&list)
	Move assignment. Takes constant time.
void	operator= (DynamicList< Type, SizeMin > &&list)
	Move assignment. Takes constant time.
Istream &	readList (Istream &is)
	Read List from Istream, discarding contents of existing List.
void	shallowCopy (const UList< Type > &)=delete
	No shallowCopy permitted.
bool	set (const label i, bool val=true)
	A bitSet::set() method for a list of bool.
void	append (const Type &val)
	Append an element at the end of the list.
void	append (Type &&val)
	Move append an element at the end of the list.
void	append (const UList< Type > &list)
	Append a List to the end of this list.
void	append (const IndirectListBase< Type, Addr > &list)
	Append IndirectList contents at the end of this list.
label	appendUniq (const Type &val)
	Same as push_uniq().
void	setSize (label n)
	Alias for resize().
void	setSize (label n, const Type &val)
	Alias for resize().
	List (const Expression::ListExpression< E > &expr)
	Construct from value expression.
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.
void	resize (const label len)
Public Member Functions inherited from UList< Type >
	UList (const UList< Type > &) noexcept=default
	Copy construct, shallow copy.
UList< Type > &	operator= (const UList< Type > &)=delete
	No copy assignment (default: shallow copy).
label	fcIndex (const label i) const noexcept
	The forward circular index. The next index in the list which returns to the first at the end of the list.
label	rcIndex (const label i) const noexcept
	The reverse circular index. The previous index in the list which returns to the last at the beginning of the list.
const Type &	fcValue (const label i) const
	Return forward circular value (ie, next value in the list).
const Type &	rcValue (const label i) const
	Return reverse circular value (ie, previous value in the list).
const Type *	cdata () const noexcept
	Return pointer to the underlying array serving as data storage.
Type *	data () noexcept
	Return pointer to the underlying array serving as data storage.
const char *	cdata_bytes () const noexcept
	Return pointer to the underlying array serving as data storage,.
char *	data_bytes () noexcept
	Return pointer to the underlying array serving as data storage,.
Type &	front ()
	Access first element of the list, position [0].
Type &	back ()
	Access last element of the list, position [size()-1].
std::streamsize	size_bytes () const noexcept
	Number of contiguous bytes for the List data.
std::streamsize	byteSize () const
	Number of contiguous bytes for the List data, runtime FatalError if type is not contiguous.
void	checkStart (const label start) const
	Check start is within valid range [0,size).
void	checkSize (const label size) const
	Check size is within valid range [0,size].
void	checkRange (const label start, const label len) const
	Check that start and length define a valid range.
void	checkIndex (const label i) const
	Check index is within valid range [0,size).
bool	uniform () const
	True if all entries have identical values, and list is non-empty.
bool	contains (const Type &val) const
	True if the value is contained in the list.
label	find (const Type &val) const
	Find index of the first occurrence of the value.
label	rfind (const Type &val, label pos=-1) const
	Find index of the last occurrence of the value.
void	moveFirst (const label i)
	Move element to the first position.
void	moveLast (const label i)
	Move element to the last position.
void	swapFirst (const label i)
	Swap element with the first element. Fatal on an empty list.
void	swapLast (const label i)
	Swap element with the last element. Fatal on an empty list.
void	shallowCopy (Type *__restrict__ ptr, const label len) noexcept
	Copy the pointer and size.
void	deepCopy (const UList< Type > &list)
	Copy elements of the given UList. Sizes must match!
SubList< Type >	slice (const label pos, label len=-1)
	Return SubList slice (non-const access) - no range checking.
Type &	operator[] (const label i)
	Return element of UList.
	operator const Foam::List< Type > & () const
	Allow cast to a const List<T>&.
iterator	begin () noexcept
	Return an iterator to begin traversing the UList.
iterator	end () noexcept
	Return an iterator to end traversing the UList.
const_iterator	cbegin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	cend () const noexcept
	Return const_iterator to end traversing the constant UList.
reverse_iterator	rbegin ()
	Return reverse_iterator to begin reverse traversing the UList.
reverse_iterator	rend ()
	Return reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	crbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	crend () const
	Return const_reverse_iterator to end reverse traversing the UList.
bool	empty () const noexcept
	True if List is empty (ie, size() is zero).
label	capacity () const noexcept
	Size of the underlying storage.
void	swap (UList< Type > &list) noexcept
	Swap content with another UList of the same type in constant time.
bool	operator== (const UList< Type > &list) const
	Equality operation on ULists of the same type.
bool	operator!= (const UList< Type > &list) const
	The opposite of the equality operation. Takes linear time.
bool	operator< (const UList< Type > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator> (const UList< Type > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator<= (const UList< Type > &list) const
	Return true if !(a > b). Takes linear time.
bool	operator>= (const UList< Type > &list) const
	Return true if !(a < b). Takes linear time.
Istream &	readList (Istream &is)
	Read List contents from Istream.
Ostream &	writeList (Ostream &os, const label shortLen=0) const
	Write List, with line-breaks in ASCII when length exceeds shortLen.
bool	all () const
	True if all entries are 'true' or if the list is empty.
bool	any () const
	True if any entries are 'true'.
bool	none () const
	True if no entries are 'true'.
bool	test (const label i) const
	Test bool value at specified position, always false for out-of-range access.
bool	get (const label i) const
	Return bool value at specified position, always false for out-of-range access.
bool	unset (const label i)
	Unset the bool entry at specified position, always false for out-of-range access.
std::string_view	view () const
	Return a string_view of the charList. Content is non-modifiable.
Type &	first ()
	Access first element of the list, position [0].
Type &	last ()
	Access last element of the list, position [size()-1].
bool	found (const Type &val, label pos=0) const
	Same as contains().
auto	expr () const
	Wrap value as expression.

Static Public Member Functions
static const this_type &	null () noexcept
	Return a null DimensionedField (reference to a nullObject).
static tmp< DimensionedField< Type, GeoMesh > >	New (const word &name, IOobjectOption::registerOption regOpt, const Mesh &mesh, const dimensionSet &dims, const Field< Type > &iField)
	Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensions, copy of internal field. [Takes current timeName from the mesh registry].
static tmp< DimensionedField< Type, GeoMesh > >	New (const word &name, const Mesh &mesh, const dimensionSet &dims, const Field< Type > &iField)
	Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensions, copy of internal field. [Takes current timeName from the mesh registry].
static tmp< DimensionedField< Type, GeoMesh > >	New (const word &name, IOobjectOption::registerOption regOpt, const Mesh &mesh, const dimensionSet &dims, Field< Type > &&iField)
	Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensions, move internal field contents. [Takes current timeName from the mesh registry].
static tmp< DimensionedField< Type, GeoMesh > >	New (const word &name, const Mesh &mesh, const dimensionSet &dims, Field< Type > &&iField)
	Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensions, move internal field contents. [Takes current timeName from the mesh registry].
static tmp< DimensionedField< Type, GeoMesh > >	New (const word &name, IOobjectOption::registerOption regOpt, const Mesh &mesh, const dimensionSet &dims, const tmp< Field< Type > > &tfield)
	Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensions, primitive field (tmp). [Takes current timeName from the mesh registry].
static tmp< DimensionedField< Type, GeoMesh > >	New (const word &name, const Mesh &mesh, const dimensionSet &dims, const tmp< Field< Type > > &tfield)
	Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensions, primitive field (tmp). [Takes current timeName from the mesh registry].
static tmp< DimensionedField< Type, GeoMesh > >	New (const word &name, IOobjectOption::registerOption regOpt, const Mesh &mesh, const dimensionSet &dims)
	Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensions. [Takes current timeName from the mesh registry].
static tmp< DimensionedField< Type, GeoMesh > >	New (const word &name, const Mesh &mesh, const dimensionSet &dims)
	Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensions. [Takes current timeName from the mesh registry].
static tmp< DimensionedField< Type, GeoMesh > >	New (const word &name, IOobjectOption::registerOption regOpt, const Mesh &mesh, const Type &value, const dimensionSet &dims)
	Return tmp field (NO_READ, NO_WRITE) from name, mesh, value, dimensions. [Takes current timeName from the mesh registry].
static tmp< DimensionedField< Type, GeoMesh > >	New (const word &name, const Mesh &mesh, const Type &value, const dimensionSet &dims)
	Return tmp field (NO_READ, NO_WRITE) from name, mesh, value, dimensions. [Takes current timeName from the mesh registry].
static tmp< DimensionedField< Type, GeoMesh > >	New (const word &name, IOobjectOption::registerOption regOpt, const Mesh &mesh, const dimensioned< Type > &dt)
	Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensioned-type. [Takes current timeName from the mesh registry].
static tmp< DimensionedField< Type, GeoMesh > >	New (const word &name, const Mesh &mesh, const dimensioned< Type > &dt)
	Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensioned-type. [Takes current timeName from the mesh registry].
static tmp< DimensionedField< Type, GeoMesh > >	New (const word &newName, IOobjectOption::registerOption regOpt, const tmp< DimensionedField< Type, GeoMesh > > &tfld)
	Return renamed tmp field (NO_READ, NO_WRITE) retaining its instance/local.
static tmp< DimensionedField< Type, GeoMesh > >	New (const word &newName, const tmp< DimensionedField< Type, GeoMesh > > &tfld)
	Return renamed tmp field (NO_READ, NO_WRITE) retaining its instance/local.
template<class AnyType>
static tmp< DimensionedField< Type, GeoMesh > >	New (const DimensionedField< AnyType, GeoMesh > &fld, const word &name, const dimensionSet &dims)
	Construct tmp field (NO_READ, NO_WRITE) based on mesh/registry information from an existing field. [Takes instance from the field].
template<class AnyType>
static tmp< DimensionedField< Type, GeoMesh > >	New (const DimensionedField< AnyType, GeoMesh > &fld, const word &name, const dimensioned< Type > &dt)
	Construct tmp field (NO_READ, NO_WRITE) based on mesh/registry information from an existing field and initialise with value.
Static Public Member Functions inherited from regIOobject
template<class Type>
static Type &	store (Type *p)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (std::unique_ptr< Type > &&ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (autoPtr< Type > &ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (autoPtr< Type > &&ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (refPtr< Type > &ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (refPtr< Type > &&ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (tmp< Type > &ptr)
	Transfer pointer ownership to its registry.
template<class Type>
static Type &	store (tmp< Type > &&ptr)
	Transfer pointer ownership to its registry.
Static Public Member Functions inherited from IOobject
static bool	bannerEnabled () noexcept
	Status of output file banner.
static bool	bannerEnabled (bool on) noexcept
	Enable/disable output file banner.
static bool	fileModificationChecking_masterOnly () noexcept
	Test fileModificationChecking for master-only.
static bool	fileNameComponents (const fileName &path, fileName &instance, fileName &local, word &name)
	Split path into instance, local, name components.
template<class StringType>
static word	groupName (StringType base, const word &group)
	Create dot-delimited name.group string.
static word	group (const word &name)
	Return group (extension part of name).
static word	member (const word &name)
	Return member (name without the extension).
static word	scopedName (const std::string &scope, const word &name)
	Create scope:name or scope_name string.
static word	scopedName (const std::string &scope, const word &name1, const word &name2)
	Create scope:name1:name2 or scope_name1_name2 string.
static IOobject	selectIO (const IOobject &io, const fileName &altFile, const word &ioName="")
	Return the IOobject, but also consider an alternative file name.
static Ostream &	writeBanner (Ostream &os, const bool noSyntaxHint=false)
	Write the standard OpenFOAM file/dictionary banner.
static Ostream &	writeDivider (Ostream &os)
	Write the standard file section divider.
static Ostream &	writeEndDivider (Ostream &os)
	Write the standard end file divider.
Static Public Member Functions inherited from IOobjectOption
static bool	isAnyRead (readOption opt) noexcept
	True if any reading may be required (ie, != NO_READ).
static bool	isReadRequired (readOption opt) noexcept
	True if (MUST_READ | READ_MODIFIED) bits are set.
static bool	isReadOptional (readOption opt) noexcept
	True if (LAZY_READ) bits are set [same as READ_IF_PRESENT].
static readOption	lazierRead (readOption opt) noexcept
	Downgrade readOption optional (LAZY_READ), leaves NO_READ intact.
Static Public Member Functions inherited from DynamicField< Type >
static constexpr label	min_size () noexcept
	Normal lower capacity limit - the SizeMin template parameter.
Static Public Member Functions inherited from Field< Type >
static const Field< Type > &	null () noexcept
	Return a null Field (reference to a nullObject). Behaves like an empty Field.
static autoPtr< Field< Type > >	New (Istream &is)
	Return a pointer to a new Field created on freestore.
template<class Type2>
static tmp< Field< Type > >	NewCalculatedType (const Field< Type2 > &f)
	Return a pointer to a new calculatedFvPatchFieldField created on freestore without setting patchField values.
Static Public Member Functions inherited from FieldBase
static void	warnLocalBoundaryConsistencyCompat (const dictionary &)
	Warn about keyword changes for local boundary consistency checks.
static int	localBoundaryConsistency () noexcept
	Get flag for local boundary consistency checks.
static int	localBoundaryConsistency (int val) noexcept
	Set flag for local boundary consistency checks.
Static Public Member Functions inherited from List< Type >
static const List< Type > &	null () noexcept
	Return a null List (reference to a nullObject). Behaves like an empty List.
Static Public Member Functions inherited from UList< Type >
static const UList< Type > &	null () noexcept
	Return a null UList (reference to a nullObject). Behaves like an empty UList.
static constexpr label	max_size () noexcept
	The size of the largest possible UList.

Friends
Ostream &	operator (Ostream &os, const DimensionedField< Type, GeoMesh > &df)
	Calls DimensionedField::writeData().
Ostream &	operator (Ostream &os, const tmp< DimensionedField< Type, GeoMesh > > &tdf)
	Calls DimensionedField::writeData().

Additional Inherited Members
Static Public Attributes inherited from IOobject
static const Enum< fileCheckTypes >	fileCheckTypesNames
	Names for the fileCheckTypes.
static char	scopeSeparator
	Character for scoping object names (':' or '_').
static fileCheckTypes	fileModificationChecking
	Type of file modification checking.
static float	fileModificationSkew
	Time skew (seconds) for file modification checks.
static int	maxFileModificationPolls
	Max number of times to poll for file modification changes.
Static Public Attributes inherited from FieldBase
static const char *const	typeName
	Typename for Field.
static bool	allowConstructFromLargerSize = false
	Permit read construct from a larger size.
static bool	unifiedGeometricField
	GeometricField with extra capacity for flattened boundary fields. Uses opt-switch "unifiedGeometricField".
static int	localBoundaryConsistency_
	Local boundary field consistency checks. Uses opt-switch "localBoundaryConsistency".
static scalar	localBoundaryTolerance_
	Tolerance for local boundary field consistency checks. Uses opt-switch "localBoundaryConsistency::tolerance".
Protected Member Functions inherited from regIOobject
bool	readHeaderOk (const IOstreamOption::streamFormat fmt, const word &typeName)
	Helper: check readOpt flags and read if necessary.
Protected Member Functions inherited from IOobject
void	setBad (const string &s)
	Set the object state to bad.
Protected Member Functions inherited from UList< Type >
void	setAddressableSize (const label n) noexcept
	Set addressed size to be inconsistent with allocated storage.
void	size (const label n)
	Older name for setAddressableSize.
void	writeEntry (Ostream &os) const
	Write the UList with its compound type.
labelRange	validateRange (const labelRange &requestedRange) const
	Return a validated (start,size) subset range, which means that it always addresses a valid section of the list.
void	fill_uniform (const Type &val)
	Assign all entries to the given value.
Static Protected Member Functions inherited from IOobject
static void	writeHeaderContent (Ostream &os, const IOobject &io, const word &objectType, const dictionary *metaDataDict=nullptr)
	Helper: write content for FoamFile IOobject header with optional meta information.
static void	writeHeaderContent (dictionary &dict, const IOobject &io, const word &objectType, IOstreamOption streamOpt, const dictionary *metaDataDict=nullptr)
	Helper: write dictionary content for FoamFile header with optional meta information.
Static Protected Attributes inherited from regIOobject
static bool	masterOnlyReading = false
	To flag master-only reading of objects.

Detailed Description

template<class Type, class GeoMesh>
class Foam::DimensionedField< Type, GeoMesh >

Field with dimensions and associated with geometry type GeoMesh which is used to size the field and a reference to it is maintained.

Source files

• DimensionedField.H
• DimensionedFieldI.H
• DimensionedField.C
• DimensionedFieldIO.C

Definition at line 72 of file DimensionedField.H.

Member Typedef Documentation

this_type

template<class Type, class GeoMesh>

typedef DimensionedField<Type, GeoMesh> this_type

The template instance used for this DimensionedField type.

Definition at line 84 of file DimensionedField.H.

Mesh

template<class Type, class GeoMesh>

typedef GeoMesh::Mesh Mesh

The mesh type for the DimensionedField.

Definition at line 89 of file DimensionedField.H.

Internal

template<class Type, class GeoMesh>

typedef DimensionedField<Type, GeoMesh> Internal

The DimensionedField is usually synonymous with an internal field.

Definition at line 94 of file DimensionedField.H.

FieldType

template<class Type, class GeoMesh>

typedef DynamicField<Type> FieldType

Type of the field from which this DimensionedField is derived.

Definition at line 99 of file DimensionedField.H.

cmptType

template<class Type, class GeoMesh>

typedef Field<Type>::cmptType cmptType

Component type of the field elements.

Definition at line 104 of file DimensionedField.H.

Constructor & Destructor Documentation

DimensionedField() [1/21]

template<class Type, class GeoMesh>

DimensionedField	(	const IOobject &	io,
		const Mesh &	mesh,
		const dimensionSet &	dims,
		const Field< Type > &	field )

Construct from components, copy initial field content.

Definition at line 64 of file DimensionedField.C.

References DynamicField< Type >::DynamicField(), field(), io, mesh(), and regIOobject::regIOobject().

Referenced by DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField(), New(), New(), operator=(), SlicedDimensionedField< Type, GeoMesh >::SlicedDimensionedField(), weightedAverage(), and weightedAverage().

Here is the call graph for this function:

Here is the caller graph for this function:

DimensionedField() [2/21]

template<class Type, class GeoMesh>

DimensionedField	(	const IOobject &	io,
		const Mesh &	mesh,
		const dimensionSet &	dims,
		Field< Type > &&	field )

Construct from components, transferring initial field content.

Definition at line 82 of file DimensionedField.C.

References DynamicField< Type >::DynamicField(), field(), io, mesh(), and regIOobject::regIOobject().

Here is the call graph for this function:

DimensionedField() [3/21]

template<class Type, class GeoMesh>

DimensionedField	(	const IOobject &	io,
		const Mesh &	mesh,
		const dimensionSet &	dims,
		List< Type > &&	field )

Construct from components, transferring initial field content.

Definition at line 100 of file DimensionedField.C.

References DynamicField< Type >::DynamicField(), field(), io, mesh(), and regIOobject::regIOobject().

Here is the call graph for this function:

DimensionedField() [4/21]

template<class Type, class GeoMesh>

DimensionedField	(	const IOobject &	io,
		const Mesh &	mesh,
		const dimensionSet &	dims,
		const tmp< Field< Type > > &	tfield )

Construct from components, copy or transfer tmp content.

Definition at line 118 of file DimensionedField.C.

References constCast(), DynamicField< Type >::DynamicField(), io, mesh(), and regIOobject::regIOobject().

Here is the call graph for this function:

DimensionedField() [5/21]

template<class Type, class GeoMesh>

DimensionedField	(	const IOobject &	io,
		const Mesh &	mesh,
		const dimensionSet &	dims,
		const bool	checkIOFlags = true,
		const bool	extraCapacity = false )

Construct from components, setting initial size and dimensions, but not initialising any field values.

Used for temporary fields which are initialised after construction

Parameters

checkIOFlags	Handle mandatory/optional reading?
extraCapacity	Additional space for geometric boundary size?

Definition at line 137 of file DimensionedField.C.

References DynamicField< Type >::DynamicField(), io, mesh(), regIOobject::regIOobject(), and UList< Type >::size().

Here is the call graph for this function:

DimensionedField() [6/21]

template<class Type, class GeoMesh>

DimensionedField	(	const IOobject &	io,
		const Mesh &	mesh,
		const Type &	value,
		const dimensionSet &	dims,
		const bool	checkIOFlags = true,
		const bool	extraCapacity = false )

Construct from components, setting dimensions and initial uniform field value.

Parameters

checkIOFlags	Handle mandatory/optional reading?
extraCapacity	Additional space for geometric boundary size?

Definition at line 168 of file DimensionedField.C.

References DynamicField< Type >::DynamicField(), io, mesh(), and regIOobject::regIOobject().

Here is the call graph for this function:

DimensionedField() [7/21]

template<class Type, class GeoMesh>

DimensionedField	(	const IOobject &	io,
		const Mesh &	mesh,
		const dimensioned< Type > &	dt,
		const bool	checkIOFlags = true,
		const bool	extraCapacity = false )

Construct from components, setting dimensions and initial uniform field value.

The name of the dimensioned<Type> has no influence.

Parameters

checkIOFlags	Handle mandatory/optional reading?
extraCapacity	Additional space for geometric boundary size?

Definition at line 201 of file DimensionedField.C.

References DimensionedField(), dimensions(), io, and mesh().

Here is the call graph for this function:

DimensionedField() [8/21]

template<class Type, class GeoMesh>

DimensionedField	(	const IOobject &	io,
		const Mesh &	mesh,
		const word &	fieldDictEntry = "value",
		const bool	extraCapacity = false )

Construct from Istream (uses an intermediate dictionary).

Parameters

extraCapacity

Additional space for geometric boundary size?

Definition at line 115 of file DimensionedFieldIO.C.

References io, mesh(), regIOobject::regIOobject(), and DynamicField< T, SizeMin >::reserve_exact().

Here is the call graph for this function:

DimensionedField() [9/21]

template<class Type, class GeoMesh>

DimensionedField	(	const IOobject &	io,
		const Mesh &	mesh,
		const dictionary &	fieldDict,
		const word &	fieldDictEntry = "value",
		const bool	extraCapacity = false )

Construct from dictionary.

Parameters

extraCapacity

Additional space for geometric boundary size?

Definition at line 138 of file DimensionedFieldIO.C.

References io, mesh(), regIOobject::regIOobject(), and DynamicField< T, SizeMin >::reserve_exact().

Here is the call graph for this function:

DimensionedField() [10/21]

template<class Type, class GeoMesh>

DimensionedField

(

const DimensionedField< Type, GeoMesh > &

df

)

Copy construct.

Definition at line 223 of file DimensionedField.C.

References DimensionedField(), DynamicField< Type >::DynamicField(), and regIOobject::regIOobject().

Here is the call graph for this function:

DimensionedField() [11/21]

template<class Type, class GeoMesh>

DimensionedField

(

DimensionedField< Type, GeoMesh > &&

df

)

Move construct.

Definition at line 237 of file DimensionedField.C.

References DimensionedField().

Here is the call graph for this function:

DimensionedField() [12/21]

template<class Type, class GeoMesh>

DimensionedField	(	DimensionedField< Type, GeoMesh > &	df,
		bool	reuse )

Copy construct or reuse (move) as specified.

Definition at line 247 of file DimensionedField.C.

References DimensionedField(), DynamicField< Type >::DynamicField(), and regIOobject::regIOobject().

Here is the call graph for this function:

DimensionedField() [13/21]

template<class Type, class GeoMesh>

DimensionedField

(

const tmp< DimensionedField< Type, GeoMesh > > &

tdf

)

Construct from tmp<DimensionedField> deleting argument.

Definition at line 262 of file DimensionedField.C.

References constCast(), and DimensionedField().

Here is the call graph for this function:

DimensionedField() [14/21]

template<class Type, class GeoMesh>

DimensionedField	(	const IOobject &	io,
		const DimensionedField< Type, GeoMesh > &	df )

Copy construct, resetting IO parameters.

Definition at line 274 of file DimensionedField.C.

References DimensionedField(), DynamicField< Type >::DynamicField(), io, and regIOobject::regIOobject().

Here is the call graph for this function:

DimensionedField() [15/21]

template<class Type, class GeoMesh>

DimensionedField	(	const IOobject &	io,
		DimensionedField< Type, GeoMesh > &&	df )

Move construct, resetting IO parameters.

Definition at line 289 of file DimensionedField.C.

References DimensionedField(), and io.

Here is the call graph for this function:

DimensionedField() [16/21]

template<class Type, class GeoMesh>

DimensionedField	(	const IOobject &	io,
		DimensionedField< Type, GeoMesh > &	df,
		bool	reuse )

Copy or move construct, resetting IO parameters.

Definition at line 300 of file DimensionedField.C.

References DimensionedField(), DynamicField< Type >::DynamicField(), io, and regIOobject::regIOobject().

Here is the call graph for this function:

DimensionedField() [17/21]

template<class Type, class GeoMesh>

DimensionedField	(	const IOobject &	io,
		const tmp< DimensionedField< Type, GeoMesh > > &	tdf )

Construct from tmp<DimensionedField> deleting argument, resetting IO parameters.

Definition at line 316 of file DimensionedField.C.

References constCast(), DimensionedField(), and io.

Here is the call graph for this function:

DimensionedField() [18/21]

template<class Type, class GeoMesh>

DimensionedField	(	const word &	newName,
		const DimensionedField< Type, GeoMesh > &	df )

Copy construct with a new name.

Definition at line 329 of file DimensionedField.C.

References DimensionedField(), DynamicField< Type >::DynamicField(), IOobject::name(), and regIOobject::regIOobject().

Here is the call graph for this function:

DimensionedField() [19/21]

template<class Type, class GeoMesh>

DimensionedField	(	const word &	newName,
		DimensionedField< Type, GeoMesh > &&	df )

Move construct with a new name.

Definition at line 344 of file DimensionedField.C.

References DimensionedField().

Here is the call graph for this function:

DimensionedField() [20/21]

template<class Type, class GeoMesh>

DimensionedField	(	const word &	newName,
		DimensionedField< Type, GeoMesh > &	df,
		bool	reuse )

Copy or move construct, resetting name.

Definition at line 355 of file DimensionedField.C.

References DimensionedField(), DynamicField< Type >::DynamicField(), and regIOobject::regIOobject().

Here is the call graph for this function:

DimensionedField() [21/21]

template<class Type, class GeoMesh>

DimensionedField	(	const word &	newName,
		const tmp< DimensionedField< Type, GeoMesh > > &	tdf )

Construct with a new name from tmp<DimensionedField>.

Definition at line 371 of file DimensionedField.C.

References constCast(), and DimensionedField().

Here is the call graph for this function:

~DimensionedField()

template<class Type, class GeoMesh>

~DimensionedField ( )

virtual

Destructor.

Definition at line 394 of file DimensionedField.C.

Member Function Documentation

TypeName()

template<class Type, class GeoMesh>

TypeName

(

"DimensionedField< Type, GeoMesh >"

)

Runtime type information.

null()

template<class Type, class GeoMesh>

const this_type & null ( )

inlinestaticnoexcept

Return a null DimensionedField (reference to a nullObject).

Definition at line 172 of file DimensionedField.H.

Referenced by GeometricBoundaryField< Type, PatchField, GeoMesh >::boundaryInternalField(), Foam::createZeroBoundaryPtr(), faePatchField< Type >::NewCalculatedType(), faPatchField< Type >::NewCalculatedType(), fvPatchField< Type >::NewCalculatedType(), fvsPatchField< Type >::NewCalculatedType(), and pointPatchField< Type >::NewCalculatedType().

Here is the caller graph for this function:

clone()

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > clone

(

)

const

Clone.

Definition at line 385 of file DimensionedField.C.

References Foam::New().

Here is the call graph for this function:

New() [1/18]

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New ( const word & name, IOobjectOption::registerOption regOpt, const Mesh & mesh, const dimensionSet & dims, const Field< Type > & iField )

static

Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensions, copy of internal field. [Takes current timeName from the mesh registry].

For LEGACY_REGISTER, registration is determined by objectRegistry::is_cacheTemporaryObject().

Definition at line 75 of file DimensionedFieldNew.C.

References mesh(), and IOobject::name().

Referenced by contactHeatFluxSource::addSup(), externalHeatFluxSource::addSup(), directionalPressureGradientExplicitSource::addSup(), patchCellsSource::addSup(), SemiImplicitSource< Type >::addSup(), Foam::atan2(), Foam::atan2(), Foam::atan2(), component(), Foam::levelSetFraction(), New(), New(), New(), New(), reuseTmpDimensionedField< TypeR, Type1, GeoMesh >::New(), reuseTmpDimensionedField< TypeR, Type1, GeoMesh >::New(), reuseTmpDimensionedField< TypeR, TypeR, GeoMesh >::New(), reuseTmpTmpDimensionedField< TypeR, Type1, Type12, Type2, GeoMesh >::New(), reuseTmpTmpDimensionedField< TypeR, Type1, Type12, TypeR, GeoMesh >::New(), reuseTmpTmpDimensionedField< TypeR, TypeR, TypeR, Type2, GeoMesh >::New(), reuseTmpTmpDimensionedField< TypeR, TypeR, TypeR, TypeR, GeoMesh >::New(), Foam::pow(), Foam::pow(), pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::RRg(), solidChemistryModel< CompType, SolidThermo >::RRs(), solidChemistryModel< CompType, SolidThermo >::RRsHs(), fvDOM::Ru(), viewFactor::Ru(), Foam::stabilise(), and T().

Here is the call graph for this function:

Here is the caller graph for this function:

New() [2/18]

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New ( const word & name, const Mesh & mesh, const dimensionSet & dims, const Field< Type > & iField )

static

Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensions, copy of internal field. [Takes current timeName from the mesh registry].

Registration/persistence determined by objectRegistry::is_cacheTemporaryObject().

Definition at line 97 of file DimensionedFieldNew.C.

References IOobjectOption::LEGACY_REGISTER, mesh(), and IOobject::name().

Here is the call graph for this function:

New() [3/18]

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New ( const word & name, IOobjectOption::registerOption regOpt, const Mesh & mesh, const dimensionSet & dims, Field< Type > && iField )

static

Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensions, move internal field contents. [Takes current timeName from the mesh registry].

For LEGACY_REGISTER, registration is determined by objectRegistry::is_cacheTemporaryObject().

Definition at line 118 of file DimensionedFieldNew.C.

References mesh(), and IOobject::name().

Here is the call graph for this function:

New() [4/18]

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New ( const word & name, const Mesh & mesh, const dimensionSet & dims, Field< Type > && iField )

static

Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensions, move internal field contents. [Takes current timeName from the mesh registry].

Registration/persistence determined by objectRegistry::is_cacheTemporaryObject().

Definition at line 140 of file DimensionedFieldNew.C.

References IOobjectOption::LEGACY_REGISTER, mesh(), and IOobject::name().

Here is the call graph for this function:

New() [5/18]

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New ( const word & name, IOobjectOption::registerOption regOpt, const Mesh & mesh, const dimensionSet & dims, const tmp< Field< Type > > & tfield )

static

Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensions, primitive field (tmp). [Takes current timeName from the mesh registry].

For LEGACY_REGISTER, registration is determined by objectRegistry::is_cacheTemporaryObject().

Definition at line 161 of file DimensionedFieldNew.C.

References mesh(), and IOobject::name().

Here is the call graph for this function:

New() [6/18]

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New ( const word & name, const Mesh & mesh, const dimensionSet & dims, const tmp< Field< Type > > & tfield )

static

Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensions, primitive field (tmp). [Takes current timeName from the mesh registry].

Registration/persistence determined by objectRegistry::is_cacheTemporaryObject().

Definition at line 183 of file DimensionedFieldNew.C.

References IOobjectOption::LEGACY_REGISTER, mesh(), and IOobject::name().

Here is the call graph for this function:

New() [7/18]

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New ( const word & name, IOobjectOption::registerOption regOpt, const Mesh & mesh, const dimensionSet & dims )

static

Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensions. [Takes current timeName from the mesh registry].

For LEGACY_REGISTER, registration is determined by objectRegistry::is_cacheTemporaryObject().

Definition at line 204 of file DimensionedFieldNew.C.

References mesh(), and IOobject::name().

Here is the call graph for this function:

New() [8/18]

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New ( const word & name, const Mesh & mesh, const dimensionSet & dims )

static

Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensions. [Takes current timeName from the mesh registry].

Registration/persistence determined by objectRegistry::is_cacheTemporaryObject().

Definition at line 225 of file DimensionedFieldNew.C.

References IOobjectOption::LEGACY_REGISTER, mesh(), and IOobject::name().

Here is the call graph for this function:

New() [9/18]

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New ( const word & name, IOobjectOption::registerOption regOpt, const Mesh & mesh, const Type & value, const dimensionSet & dims )

static

Return tmp field (NO_READ, NO_WRITE) from name, mesh, value, dimensions. [Takes current timeName from the mesh registry].

For LEGACY_REGISTER, registration is determined by objectRegistry::is_cacheTemporaryObject().

Definition at line 245 of file DimensionedFieldNew.C.

References mesh(), and IOobject::name().

Here is the call graph for this function:

New() [10/18]

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New ( const word & name, const Mesh & mesh, const Type & value, const dimensionSet & dims )

static

Return tmp field (NO_READ, NO_WRITE) from name, mesh, value, dimensions. [Takes current timeName from the mesh registry].

Registration/persistence determined by objectRegistry::is_cacheTemporaryObject().

Definition at line 268 of file DimensionedFieldNew.C.

References IOobjectOption::LEGACY_REGISTER, mesh(), and IOobject::name().

Here is the call graph for this function:

New() [11/18]

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New ( const word & name, IOobjectOption::registerOption regOpt, const Mesh & mesh, const dimensioned< Type > & dt )

static

Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensioned-type. [Takes current timeName from the mesh registry].

For LEGACY_REGISTER, registration is determined by objectRegistry::is_cacheTemporaryObject().

Definition at line 290 of file DimensionedFieldNew.C.

References dimensioned< Type >::dimensions(), mesh(), IOobject::name(), New(), and dimensioned< Type >::value().

Here is the call graph for this function:

New() [12/18]

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New ( const word & name, const Mesh & mesh, const dimensioned< Type > & dt )

static

Return tmp field (NO_READ, NO_WRITE) from name, mesh, dimensioned-type. [Takes current timeName from the mesh registry].

Registration/persistence determined by objectRegistry::is_cacheTemporaryObject().

Definition at line 311 of file DimensionedFieldNew.C.

References dimensioned< Type >::dimensions(), mesh(), IOobject::name(), New(), and dimensioned< Type >::value().

Here is the call graph for this function:

New() [13/18]

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New ( const word & newName, IOobjectOption::registerOption regOpt, const tmp< DimensionedField< Type, GeoMesh > > & tfld )

static

Return renamed tmp field (NO_READ, NO_WRITE) retaining its instance/local.

For LEGACY_REGISTER, registration is determined by objectRegistry::is_cacheTemporaryObject().

Definition at line 330 of file DimensionedFieldNew.C.

References IOobject::db(), DimensionedField(), IOobject::instance(), IOobjectOption::LEGACY_REGISTER, local, IOobject::name(), New(), IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, and IOobjectOption::REGISTER.

Here is the call graph for this function:

New() [14/18]

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New ( const word & newName, const tmp< DimensionedField< Type, GeoMesh > > & tfld )

static

Return renamed tmp field (NO_READ, NO_WRITE) retaining its instance/local.

Registration/persistence determined by objectRegistry::is_cacheTemporaryObject().

Definition at line 375 of file DimensionedFieldNew.C.

References DimensionedField(), IOobjectOption::LEGACY_REGISTER, IOobject::name(), and New().

Here is the call graph for this function:

New() [15/18]

template<class Type, class GeoMesh>

template<class AnyType>

tmp< DimensionedField< Type, GeoMesh > > New ( const DimensionedField< AnyType, GeoMesh > & fld, const word & name, const dimensionSet & dims )

static

Construct tmp field (NO_READ, NO_WRITE) based on mesh/registry information from an existing field. [Takes instance from the field].

Registration/persistence determined by objectRegistry::is_cacheTemporaryObject().

New() [16/18]

template<class Type, class GeoMesh>

template<class AnyType>

tmp< DimensionedField< Type, GeoMesh > > New ( const DimensionedField< AnyType, GeoMesh > & fld, const word & name, const dimensioned< Type > & dt )

static

Construct tmp field (NO_READ, NO_WRITE) based on mesh/registry information from an existing field and initialise with value.

Registration/persistence determined by objectRegistry::is_cacheTemporaryObject().

readField()

template<class Type, class GeoMesh>

void readField	(	const dictionary &	fieldDict,
		const word &	fieldDictEntry = "value" )

Resize to the mesh size and read the field from the dictionary. Internal implementation checks field vs mesh size.

Definition at line 29 of file DimensionedFieldIO.C.

References DynamicField< Type >::DynamicField(), fld(), and orientedType::ORIENTED.

Here is the call graph for this function:

constCast()

template<class Type, class GeoMesh>

this_type & constCast ( ) const

inlinenoexcept

Return non-const reference to this field.

Definition at line 680 of file DimensionedField.H.

Referenced by DimensionedField(), DimensionedField(), DimensionedField(), and DimensionedField().

Here is the caller graph for this function:

mesh()

template<class Type, class GeoMesh>

const Mesh & mesh ( ) const

inlinenoexcept

Return const reference to mesh.

Definition at line 688 of file DimensionedField.H.

Referenced by alphatWallBoilingWallFunctionFvPatchScalarField::alphatWallBoilingWallFunctionFvPatchScalarField(), alphatWallBoilingWallFunctionFvPatchScalarField::alphatWallBoilingWallFunctionFvPatchScalarField(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::fac::average(), Foam::fvc::average(), zoneBlended< Type >::blendingFactor(), Foam::byDt(), Foam::byDt(), gaussGrad< Type >::calcGrad(), leastSquaresFaGrad< Type >::calcGrad(), cellLimitedGrad< Type, Limiter >::calcGrad(), cellLimitedGrad< Type, Limiter >::calcGrad(), cellMDLimitedGrad< Type >::calcGrad(), faceLimitedGrad< Type >::calcGrad(), faceMDLimitedGrad< Type >::calcGrad(), fourthGrad< Type >::calcGrad(), fourthGrad< Type >::calcGrad(), fourthGrad< Type >::calcGrad(), fusedGaussGrad< Type >::calcGrad(), fusedGaussGrad< Type >::calcGrad(), fusedLeastSquaresGrad< Type >::calcGrad(), gaussGrad< Type >::calcGrad(), iterativeGaussGrad< Type >::calcGrad(), LeastSquaresGrad< Type, Stencil >::calcGrad(), LeastSquaresGrad< Type, Stencil >::calcGrad(), leastSquaresGrad< Type >::calcGrad(), pointConstraints::constrainDisplacement(), gaussGrad< Type >::correctBoundaryConditions(), fusedGaussGrad< Type >::correctBoundaryConditions(), gaussGrad< Type >::correctBoundaryConditions(), motionSmootherAlgo::correctBoundaryConditions(), ThermalPhaseChangePhaseSystem< BasePhaseSystem >::correctInterfaceThermo(), limitedSnGrad< Type >::correction(), relaxedSnGrad< Type >::correction(), zoneBlended< Type >::correction(), fvMatrix< Type >::createOrUpdateLduPrimitiveAssembly(), Foam::fac::d2dt2(), Foam::fac::d2dt2(), Foam::fac::d2dt2(), Foam::fam::d2dt2(), Foam::fam::d2dt2(), Foam::fam::d2dt2(), Foam::fvc::d2dt2(), Foam::fvc::d2dt2(), Foam::fvm::d2dt2(), Foam::fvm::d2dt2(), Foam::fvm::d2dt2(), Foam::fac::ddt(), Foam::fac::ddt(), Foam::fac::ddt(), Foam::fam::ddt(), Foam::fam::ddt(), Foam::fam::ddt(), Foam::fvc::ddt(), Foam::fvc::ddt(), Foam::fvc::ddt(), Foam::fvc::ddt(), Foam::fvc::ddt(), Foam::fvm::ddt(), Foam::fvm::ddt(), Foam::fvm::ddt(), Foam::fvm::ddt(), DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField(), Foam::fac::div(), Foam::fac::div(), Foam::fac::div(), Foam::fam::div(), Foam::fam::div(), Foam::fvc::div(), Foam::fvc::div(), Foam::fvm::div(), surfaceInterpolationScheme< scalar >::dotInterpolate(), surfactantProperties::dSigma(), Foam::fac::edgeIntegrate(), Foam::fac::edgeSum(), edgeInterpolationScheme< Type >::euclidianInterpolate(), gaussLaplacianScheme< Type >::facLaplacian(), gaussLaplacianScheme< Type >::facLaplacian(), volPointInterpolation::flatBoundaryField(), volPointInterpolationAdjoint::flatBoundaryField(), Foam::fvc::flux(), Foam::fvc::flux(), fusedGaussConvectionScheme< Type >::fvcDiv(), fusedGaussDivScheme< Type >::fvcDiv(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), relaxedNonOrthoGaussLaplacianScheme< Type, GType >::fvmLaplacian(), Foam::fvc::GaussOp(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), zoneDistribute::getPosition(), Foam::fac::grad(), Foam::fvc::grad(), gaussGrad< Type >::gradf(), fusedGaussGrad< Type >::gradf(), gaussGrad< Type >::gradf(), phaseModel::iNew::iNew(), edgeInterpolationScheme< Type >::interpolate(), cellDecomposer::interpolate(), Foam::fvc::interpolate(), Foam::fvc::interpolate(), fvMeshSubset::interpolate(), fvMeshSubset::interpolate(), fvMeshSubset::interpolate(), harmonic::interpolate(), leastSquaresEdgeInterpolation< Type >::interpolate(), localMax< Type >::interpolate(), localMin< Type >::interpolate(), pointMVCWeight::interpolate(), pointVolInterpolation::interpolate(), volPointInterpolation::interpolate(), volPointInterpolation::interpolate(), volPointInterpolation::interpolate(), weightedFlux< Type >::interpolate(), volPointInterpolation::interpolateBoundaryField(), volPointInterpolationAdjoint::interpolateBoundaryField(), volPointInterpolation::interpolateDimensionedInternalField(), volPointInterpolation::interpolateDisplacement(), meshToMesh0::interpolateInternalField(), volPointInterpolation::interpolateInternalField(), Foam::interpolatePointToCell(), interface::K(), Foam::fac::laplacian(), Foam::fac::laplacian(), Foam::fam::laplacian(), Foam::fam::laplacian(), Foam::fam::laplacian(), Foam::fam::laplacian(), Foam::fam::laplacian(), Foam::fvc::laplacian(), Foam::fvc::laplacian(), Foam::fvc::laplacian(), Foam::fvc::laplacian(), Foam::fvc::laplacian(), Foam::fvm::laplacian(), Foam::fvm::laplacian(), Foam::fvm::laplacian(), Foam::fvm::laplacian(), Foam::fvm::laplacian(), Foam::fvm::laplacian(), Foam::linearEdgeInterpolate(), Foam::linearInterpolate(), lnGradScheme< Type >::lnGrad(), Foam::fac::lnGrad(), cyclicACMIFvPatchField< Type >::manipulateMatrix(), cyclicAMIFvPatchField< Type >::manipulateMatrix(), fvMatrix< Type >::mapContributions(), Foam::fvc::meshPhi(), Foam::fvc::meshPhi(), Foam::fvc::meshPhi(), Foam::fac::ndiv(), Foam::fac::ndiv(), Foam::fac::ndiv(), Foam::fam::ndiv(), New(), New(), New(), New(), New(), New(), New(), New(), New(), New(), New(), New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), reuseTmpDimensionedField< TypeR, Type1, GeoMesh >::New(), reuseTmpGeometricField< TypeR, Type1, PatchField, GeoMesh >::New(), Foam::fac::ngrad(), Foam::fac::ngrad(), JohnsonJacksonSchaeffer::nu(), Schaeffer::nu(), strainRateFunction::nu(), faMatrix< Type >::operator+=(), fvMatrix< Type >::operator+=(), faMatrix< Type >::operator-=(), fvMatrix< Type >::operator-=(), phaseModel::phaseModel(), phaseModel::phaseModel(), phaseModel::phaseModel(), phaseModel::phaseModel(), sampledSurface::pointAverage(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), phaseChange::R(), Foam::fvc::reconstruct(), reconstructedDistanceFunction::reconstructedDistanceFunction(), Foam::fvc::reconstructMag(), variablesSet::renameTurbulenceField(), motionSmootherAlgo::setDisplacement(), motionSmootherAlgo::setDisplacementPatchFields(), lumpedPointDisplacementPointPatchVectorField::setPatchControls(), regularisationPDE::setValues(), sizeGroup::sizeGroup(), SlicedDimensionedField< Type, GeoMesh >::SlicedDimensionedField(), SlicedGeometricField< Type, PatchField, SlicedPatchField, GeoMesh >::SlicedGeometricField(), SlicedGeometricField< Type, PatchField, SlicedPatchField, GeoMesh >::SlicedGeometricField(), SlicedGeometricField< Type, PatchField, SlicedPatchField, GeoMesh >::SlicedGeometricField(), SlicedGeometricField< Type, PatchField, SlicedPatchField, GeoMesh >::SlicedGeometricField(), snGradScheme< Type >::sndGrad(), snGradScheme< Type >::snGrad(), Foam::fvc::snGrad(), Helmholtz::solveEqn(), Foam::Expression::Sp(), Foam::stabilise(), Foam::stabilise(), Foam::Expression::Su(), Foam::fvc::surfaceIntegrate(), Foam::fvc::surfaceIntegrate(), Foam::fvc::surfaceOp(), Foam::fvc::surfaceSnSum(), Foam::fvc::surfaceSnSum(), Foam::fvc::surfaceSnSum(), Foam::fvc::surfaceSnSum(), Foam::fvc::surfaceSnSum(), Foam::fvc::surfaceSum(), Foam::fvc::surfaceSum(), Foam::fvc::surfaceSum(), Foam::fvc::surfaceSum(), Foam::Expression::SuSp(), angularOscillatingDisplacementPointPatchVectorField::updateCoeffs(), angularOscillatingVelocityPointPatchVectorField::updateCoeffs(), oscillatingDisplacementPointPatchVectorField::updateCoeffs(), oscillatingVelocityPointPatchVectorField::updateCoeffs(), sixDoFRigidBodyDisplacementPointPatchVectorField::updateCoeffs(), uncoupledSixDoFRigidBodyDisplacementPointPatchVectorField::updateCoeffs(), uniformInterpolatedDisplacementPointPatchVectorField::updateCoeffs(), waveSurfacePressureFvPatchScalarField::updateCoeffs(), reconstructedDistanceFunction::updateContactAngle(), Foam::fvc::volumeIntegrate(), Foam::fvc::volumeIntegrate(), zoneBlended< Type >::weights(), Foam::writeCellGraph(), Foam::writePatchGraph(), and fvMeshSubsetProxy::zeroGradientField().

dimensions() [1/2]

template<class Type, class GeoMesh>

const dimensionSet & dimensions ( ) const

inlinenoexcept

Return dimensions.

Definition at line 693 of file DimensionedField.H.

Referenced by Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), average(), Foam::fac::average(), Foam::fvc::average(), leastSquaresFaGrad< Type >::calcGrad(), cellLimitedGrad< Type, Limiter >::calcGrad(), fourthGrad< Type >::calcGrad(), fusedGaussGrad< Type >::calcGrad(), fusedGaussGrad< Type >::calcGrad(), fusedLeastSquaresGrad< Type >::calcGrad(), gaussGrad< Type >::calcGrad(), iterativeGaussGrad< Type >::calcGrad(), LeastSquaresGrad< Type, Stencil >::calcGrad(), LeastSquaresGrad< Type, Stencil >::calcGrad(), leastSquaresGrad< Type >::calcGrad(), wallShearStress::calcShearStress(), dynamicKEqn< BasicTurbulenceModel >::Ck(), Foam::clamp(), Foam::clamp(), Foam::cmptAv(), Foam::cmptAv(), thixotropicViscosity::correct(), InterfaceCompositionPhaseChangePhaseSystem< BasePhaseSystem >::correctInterfaceThermo(), correctedLnGrad< Type >::correction(), fourthLnGrad< Type >::correction(), limitedLnGrad< Type >::correction(), correctedSnGrad< Type >::correction(), faceCorrectedSnGrad< Type >::correction(), limitedSnGrad< Type >::correction(), skewCorrectedSnGrad< Type >::correction(), linearUpwind< Type >::correction(), linearUpwind< Type >::correction(), linearUpwindNormal< Type >::correction(), linearUpwindV< Type >::correction(), zoneBlended< Type >::correction(), waxSolventEvaporation::correctModel(), DimensionedField(), Foam::fvc::domainIntegrate(), Foam::fvc::domainIntegrate(), surfaceInterpolationScheme< scalar >::dotInterpolate(), Foam::fac::edgeIntegrate(), Foam::fac::edgeSum(), edgeInterpolationScheme< Type >::euclidianInterpolate(), EulerFaD2dt2Scheme< Type >::facD2dt2(), EulerFaD2dt2Scheme< Type >::facD2dt2(), EulerFaD2dt2Scheme< Type >::facD2dt2(), backwardFaDdtScheme< Type >::facDdt(), backwardFaDdtScheme< Type >::facDdt(), backwardFaDdtScheme< Type >::facDdt(), boundedBackwardFaDdtScheme::facDdt(), boundedBackwardFaDdtScheme::facDdt(), boundedBackwardFaDdtScheme::facDdt(), EulerFaDdtScheme< Type >::facDdt(), EulerFaDdtScheme< Type >::facDdt(), EulerFaDdtScheme< Type >::facDdt(), steadyStateFaDdtScheme< Type >::facDdt(), steadyStateFaDdtScheme< Type >::facDdt(), steadyStateFaDdtScheme< Type >::facDdt(), backwardFaDdtScheme< Type >::facDdt0(), backwardFaDdtScheme< Type >::facDdt0(), backwardFaDdtScheme< Type >::facDdt0(), boundedBackwardFaDdtScheme::facDdt0(), boundedBackwardFaDdtScheme::facDdt0(), boundedBackwardFaDdtScheme::facDdt0(), EulerFaDdtScheme< Type >::facDdt0(), EulerFaDdtScheme< Type >::facDdt0(), EulerFaDdtScheme< Type >::facDdt0(), steadyStateFaDdtScheme< Type >::facDdt0(), steadyStateFaDdtScheme< Type >::facDdt0(), steadyStateFaDdtScheme< Type >::facDdt0(), EulerFaD2dt2Scheme< Type >::famD2dt2(), EulerFaD2dt2Scheme< Type >::famD2dt2(), EulerFaD2dt2Scheme< Type >::famD2dt2(), backwardFaDdtScheme< Type >::famDdt(), backwardFaDdtScheme< Type >::famDdt(), backwardFaDdtScheme< Type >::famDdt(), boundedBackwardFaDdtScheme::famDdt(), boundedBackwardFaDdtScheme::famDdt(), boundedBackwardFaDdtScheme::famDdt(), EulerFaDdtScheme< Type >::famDdt(), EulerFaDdtScheme< Type >::famDdt(), EulerFaDdtScheme< Type >::famDdt(), steadyStateFaDdtScheme< Type >::famDdt(), steadyStateFaDdtScheme< Type >::famDdt(), steadyStateFaDdtScheme< Type >::famDdt(), gaussConvectionScheme< Type >::famDiv(), gaussLaplacianScheme< Type >::famLaplacian(), adjointSpalartAllmaras::FISensitivityTerm(), faceCorrectedSnGrad< Type >::fullGradCorrection(), skewCorrectedSnGrad< Type >::fullGradCorrection(), EulerD2dt2Scheme< Type >::fvcD2dt2(), EulerD2dt2Scheme< Type >::fvcD2dt2(), steadyStateD2dt2Scheme< Type >::fvcD2dt2(), steadyStateD2dt2Scheme< Type >::fvcD2dt2(), backwardDdtScheme< Type >::fvcDdt(), backwardDdtScheme< Type >::fvcDdt(), backwardDdtScheme< Type >::fvcDdt(), backwardDdtScheme< Type >::fvcDdt(), CoEulerDdtScheme< Type >::fvcDdt(), CoEulerDdtScheme< Type >::fvcDdt(), CoEulerDdtScheme< Type >::fvcDdt(), CoEulerDdtScheme< Type >::fvcDdt(), CrankNicolsonDdtScheme< Type >::fvcDdt(), CrankNicolsonDdtScheme< Type >::fvcDdt(), CrankNicolsonDdtScheme< Type >::fvcDdt(), CrankNicolsonDdtScheme< Type >::fvcDdt(), SLTSDdtScheme< Type >::fvcDdt(), SLTSDdtScheme< Type >::fvcDdt(), SLTSDdtScheme< Type >::fvcDdt(), SLTSDdtScheme< Type >::fvcDdt(), steadyStateDdtScheme< Type >::fvcDdt(), steadyStateDdtScheme< Type >::fvcDdt(), steadyStateDdtScheme< Type >::fvcDdt(), steadyStateDdtScheme< Type >::fvcDdt(), fusedGaussConvectionScheme< Type >::fvcDiv(), fusedGaussDivScheme< Type >::fvcDiv(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), EulerD2dt2Scheme< Type >::fvmD2dt2(), EulerD2dt2Scheme< Type >::fvmD2dt2(), EulerD2dt2Scheme< Type >::fvmD2dt2(), steadyStateD2dt2Scheme< Type >::fvmD2dt2(), steadyStateD2dt2Scheme< Type >::fvmD2dt2(), steadyStateD2dt2Scheme< Type >::fvmD2dt2(), backwardDdtScheme< Type >::fvmDdt(), backwardDdtScheme< Type >::fvmDdt(), backwardDdtScheme< Type >::fvmDdt(), backwardDdtScheme< Type >::fvmDdt(), CoEulerDdtScheme< Type >::fvmDdt(), CoEulerDdtScheme< Type >::fvmDdt(), CoEulerDdtScheme< Type >::fvmDdt(), CoEulerDdtScheme< Type >::fvmDdt(), CrankNicolsonDdtScheme< Type >::fvmDdt(), CrankNicolsonDdtScheme< Type >::fvmDdt(), CrankNicolsonDdtScheme< Type >::fvmDdt(), CrankNicolsonDdtScheme< Type >::fvmDdt(), EulerDdtScheme< Type >::fvmDdt(), EulerDdtScheme< Type >::fvmDdt(), EulerDdtScheme< Type >::fvmDdt(), EulerDdtScheme< Type >::fvmDdt(), localEulerDdtScheme< Type >::fvmDdt(), localEulerDdtScheme< Type >::fvmDdt(), localEulerDdtScheme< Type >::fvmDdt(), localEulerDdtScheme< Type >::fvmDdt(), SLTSDdtScheme< Type >::fvmDdt(), SLTSDdtScheme< Type >::fvmDdt(), SLTSDdtScheme< Type >::fvmDdt(), SLTSDdtScheme< Type >::fvmDdt(), steadyStateDdtScheme< Type >::fvmDdt(), steadyStateDdtScheme< Type >::fvmDdt(), steadyStateDdtScheme< Type >::fvmDdt(), steadyStateDdtScheme< Type >::fvmDdt(), fusedGaussConvectionScheme< Type >::fvmDiv(), gaussConvectionScheme< Type >::fvmDiv(), fusedGaussLaplacianScheme< Type, GType >::fvmLaplacianUncorrected(), gaussLaplacianScheme< Type, GType >::fvmLaplacianUncorrected(), relaxedNonOrthoGaussLaplacianScheme< Type, GType >::fvmLaplacianUncorrected(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), fusedGaussGrad< Type >::gradf(), gaussGrad< Type >::gradf(), edgeInterpolationScheme< Type >::interpolate(), cellDecomposer::interpolate(), fvMeshSubset::interpolate(), fvMeshSubset::interpolate(), fvMeshSubset::interpolate(), fvMeshSubset::interpolate(), leastSquaresEdgeInterpolation< Type >::interpolate(), localMax< Type >::interpolate(), localMin< Type >::interpolate(), meshToMesh0::interpolate(), pointVolInterpolation::interpolate(), singleCellFvMesh::interpolate(), volPointInterpolation::interpolate(), volPointInterpolation::interpolate(), volPointInterpolation::interpolate(), weightedFlux< Type >::interpolate(), lnGradScheme< Type >::lnGrad(), Foam::mag(), Foam::mag(), Foam::magSqr(), Foam::magSqr(), zoneSubSet::mapToZone(), GeometricField< Type, PatchField, GeoMesh >::operator=(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), dummy::R(), turbulentBreakUp::R(), wallBoiling::R(), kOmegaSSTDES< BasicTurbulenceModel >::r(), Foam::fvc::reconstructMag(), parseDriver::setResult(), parseDriver::setResult(), parseDriver::setResult(), skewCorrected< Type >::skewCorrection(), skewCorrectedEdgeInterpolation< Type >::skewCorrection(), SlicedGeometricField< Type, PatchField, SlicedPatchField, GeoMesh >::SlicedGeometricField(), SlicedGeometricField< Type, PatchField, SlicedPatchField, GeoMesh >::SlicedGeometricField(), snGradScheme< Type >::snGrad(), Foam::fvc::spreadSource(), Foam::sqr(), Foam::sqr(), Foam::stabilise(), Foam::stabilise(), Foam::stabilise(), Foam::stabilise(), Foam::fvc::surfaceIntegrate(), Foam::fvc::surfaceSum(), KinematicCloud< Foam::DSMCCloud< dsmcParcel > >::U(), mappedFlowRateFvPatchVectorField::updateCoeffs(), adjointSpalartAllmaras::updatePrimalRelatedFields(), weightedAverage(), writeData(), and fvMeshSubsetProxy::zeroGradientField().

dimensions() [2/2]

template<class Type, class GeoMesh>

dimensionSet & dimensions ( )

inlinenoexcept

Return non-const access to dimensions.

Definition at line 698 of file DimensionedField.H.

oriented() [1/2]

template<class Type, class GeoMesh>

orientedType oriented ( ) const

inlinenoexcept

Return oriented type.

Definition at line 703 of file DimensionedField.H.

Referenced by Foam::cmptAv(), Foam::component(), surfaceInterpolationScheme< Type >::dotInterpolate(), cellDecomposer::interpolate(), fvMeshSubset::interpolate(), fvMeshSubset::interpolate(), fvMeshSubset::interpolate(), fvMeshSubset::interpolate(), Foam::mag(), Foam::magSqr(), GeometricField< Type, PatchField, GeoMesh >::operator=(), Foam::pow(), Foam::sqr(), Foam::T(), and fvMeshSubsetProxy::zeroGradientField().

Here is the caller graph for this function:

oriented() [2/2]

template<class Type, class GeoMesh>

orientedType & oriented ( )

inlinenoexcept

Return non-const access to the oriented type.

Definition at line 708 of file DimensionedField.H.

is_oriented()

template<class Type, class GeoMesh>

bool is_oriented ( ) const

inlinenoexcept

True if field is ORIENTED.

Definition at line 25 of file DimensionedFieldI.H.

References Foam::noexcept.

Referenced by fvMeshSubset::interpolate().

Here is the caller graph for this function:

setOriented()

template<class Type, class GeoMesh>

void setOriented ( bool on = true )

inlinenoexcept

Set the oriented flag: on/off.

Definition at line 32 of file DimensionedFieldI.H.

Referenced by correctedSnGrad< Type >::correction(), ddtScheme< Type >::fvcDdtPhiCoeffExperimental(), and snGradScheme< Type >::snGrad().

Here is the caller graph for this function:

field() [1/2]

template<class Type, class GeoMesh>

const DynamicField< Type > & field ( ) const

inlinenoexcept

Return const-reference to the primitive field values.

Definition at line 723 of file DimensionedField.H.

Referenced by externalHeatFluxSource::addSup(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::cmptAv(), contactAngleForce::correct(), DimensionedField(), DimensionedField(), DimensionedField(), DimensionedField< scalar, Foam::volMesh >::DimensionedField(), topOSource::getSource(), liquidFilmModel::info(), Foam::mag(), Foam::magSqr(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), oversetFvMeshBase::solveOverset(), Foam::sqr(), Foam::stabilise(), Foam::stabilise(), Foam::fvc::volumeIntegrate(), wallDistData< TransferType >::wallDistData(), and weightedAverage().

Here is the caller graph for this function:

field() [2/2]

template<class Type, class GeoMesh>

DynamicField< Type > & field ( )

inlinenoexcept

Return reference to the primitive field values.

Definition at line 728 of file DimensionedField.H.

component()

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< typename Foam::DimensionedField< Type, GeoMesh >::cmptType, GeoMesh > > component

(

const direction

d

)

const

Return a component field of the field.

Definition at line 411 of file DimensionedField.C.

References Foam::component(), Foam::name(), name, and New().

Here is the call graph for this function:

replace() [1/2]

template<class Type, class GeoMesh>

void replace	(	const direction	d,
		const DimensionedField< cmptType, GeoMesh > &	df )

Replace a component field of the field.

replace() [2/2]

template<class Type, class GeoMesh>

void replace	(	const direction	d,
		const tmp< DimensionedField< cmptType, GeoMesh > > &	tdf )

Replace a component field of the field.

T()

template<class Type, class GeoMesh>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > T

(

)

const

Return the field transpose (only defined for second rank tensors).

Definition at line 463 of file DimensionedField.C.

References name, New(), and Foam::T().

Here is the call graph for this function:

average()

template<class Type, class GeoMesh>

Foam::dimensioned< Type > average

(

const label

comm = UPstream::worldComm

)

const

Return the global arithmetic average.

Definition at line 479 of file DimensionedField.C.

References dimensions(), field(), Foam::gAverage(), and name.

Here is the call graph for this function:

weightedAverage() [1/2]

template<class Type, class GeoMesh>

Foam::dimensioned< Type > weightedAverage	(	const DimensionedField< scalar, GeoMesh > &	weights,
		const label	comm = UPstream::worldComm ) const

Return the global weighted average.

Definition at line 495 of file DimensionedField.C.

References DimensionedField(), dimensions(), field(), Foam::gWeightedAverage(), and name.

Referenced by populationBalanceModel::solve(), and multiphaseSystem::solveAlphas().

Here is the call graph for this function:

Here is the caller graph for this function:

weightedAverage() [2/2]

template<class Type, class GeoMesh>

Foam::dimensioned< Type > weightedAverage	(	const tmp< DimensionedField< scalar, GeoMesh > > &	tweights,
		const label	comm = UPstream::worldComm ) const

Return the global weighted average.

Definition at line 512 of file DimensionedField.C.

References DimensionedField(), and Foam::weightedAverage().

Here is the call graph for this function:

writeData() [1/2]

template<class Type, class GeoMesh>

bool writeData	(	Ostream &	os,
		const word &	fieldDictEntry ) const

Write dimensions, oriented flag (if valid) and the field data as a dictionary entry with the specified name.

Definition at line 164 of file DimensionedFieldIO.C.

References dimensions(), FUNCTION_NAME, Foam::nl, os(), and UList< T >::writeEntry().

Here is the call graph for this function:

writeData() [2/2]

template<class Type, class GeoMesh>

bool writeData ( Ostream & os ) const

inlinevirtual

The writeData function (required by regIOobject), calls writeData with dictionary entry name = "value".

Implements regIOobject.

Reimplemented in GeometricField< Type, PatchField, GeoMesh >, GeometricField< scalar, faePatchField, edgeMesh >, GeometricField< scalar, faPatchField, areaMesh >, GeometricField< scalar, fvPatchField, volMesh >, GeometricField< scalar, fvsPatchField, surfaceMesh >, GeometricField< scalar, pointPatchField, pointMesh >, GeometricField< sphericalTensor, faePatchField, edgeMesh >, GeometricField< sphericalTensor, faPatchField, areaMesh >, GeometricField< sphericalTensor, fvPatchField, volMesh >, GeometricField< sphericalTensor, fvsPatchField, surfaceMesh >, GeometricField< sphericalTensor, pointPatchField, pointMesh >, GeometricField< symmTensor, faePatchField, edgeMesh >, GeometricField< symmTensor, faPatchField, areaMesh >, GeometricField< symmTensor, fvPatchField, volMesh >, GeometricField< symmTensor, fvsPatchField, surfaceMesh >, GeometricField< symmTensor, pointPatchField, pointMesh >, GeometricField< tensor, faePatchField, edgeMesh >, GeometricField< tensor, faPatchField, areaMesh >, GeometricField< tensor, fvPatchField, volMesh >, GeometricField< tensor, fvsPatchField, surfaceMesh >, GeometricField< tensor, pointPatchField, pointMesh >, GeometricField< Type, faePatchField, edgeMesh >, GeometricField< Type, faPatchField, areaMesh >, GeometricField< Type, fvPatchField, volMesh >, GeometricField< Type, fvsPatchField, surfaceMesh >, GeometricField< Type, pointPatchField, pointMesh >, GeometricField< typename flux< Type >::type, fvsPatchField, surfaceMesh >, GeometricField< value_type, fvPatchField, volMesh >, GeometricField< vector, faePatchField, edgeMesh >, GeometricField< vector, faPatchField, areaMesh >, GeometricField< vector, fvPatchField, volMesh >, GeometricField< vector, fvsPatchField, surfaceMesh >, and GeometricField< vector, pointPatchField, pointMesh >.

Definition at line 800 of file DimensionedField.H.

Referenced by DimensionedField< Type, areaMesh >::writeData().

Here is the caller graph for this function:

operator=() [1/4]

template<class Type, class GeoMesh>

void operator=

(

const DimensionedField< Type, GeoMesh > &

df

)

Definition at line 527 of file DimensionedField.C.

References checkField, DimensionedField(), operator, and DynamicField< T, SizeMin >::operator=().

Here is the call graph for this function:

operator=() [2/4]

template<class Type, class GeoMesh>

void operator=

(

const tmp< DimensionedField< Type, GeoMesh > > &

tdf

)

Definition at line 546 of file DimensionedField.C.

References checkField, operator, and DynamicField< Type >::transfer().

Here is the call graph for this function:

operator=() [3/4]

template<class Type, class GeoMesh>

void operator=

(

const dimensioned< Type > &

dt

)

Assign value (with dimension check).

Definition at line 568 of file DimensionedField.C.

References operator, and DynamicField< T, SizeMin >::operator=().

Here is the call graph for this function:

operator=() [4/4]

template<class Type, class GeoMesh>

void operator=

(

Foam::zero

)

Assign value zero (no dimension checks).

Definition at line 579 of file DimensionedField.C.

References DynamicField< T, SizeMin >::operator=().

Here is the call graph for this function:

operator+=() [1/3]

template<class Type, class GeoMesh>

void operator+=

(

const DimensionedField< Type, GeoMesh > &

df

)

Definition at line 620 of file DimensionedField.C.

operator+=() [2/3]

template<class Type, class GeoMesh>

void operator+=

(

const tmp< DimensionedField< Type, GeoMesh > > &

tdf

)

Definition at line 620 of file DimensionedField.C.

operator-=() [1/3]

template<class Type, class GeoMesh>

void operator-=

(

const DimensionedField< Type, GeoMesh > &

df

)

Definition at line 621 of file DimensionedField.C.

References COMPUTED_ASSIGNMENT.

operator-=() [2/3]

template<class Type, class GeoMesh>

void operator-=

(

const tmp< DimensionedField< Type, GeoMesh > > &

tdf

)

Definition at line 621 of file DimensionedField.C.

operator*=() [1/3]

template<class Type, class GeoMesh>

void operator*=

(

const DimensionedField< scalar, GeoMesh > &

df

)

Definition at line 622 of file DimensionedField.C.

References COMPUTED_ASSIGNMENT.

operator*=() [2/3]

template<class Type, class GeoMesh>

void operator*=

(

const tmp< DimensionedField< scalar, GeoMesh > > &

tdf

)

Definition at line 622 of file DimensionedField.C.

operator/=() [1/3]

template<class Type, class GeoMesh>

void operator/=

(

const DimensionedField< scalar, GeoMesh > &

df

)

Definition at line 623 of file DimensionedField.C.

References COMPUTED_ASSIGNMENT.

operator/=() [2/3]

template<class Type, class GeoMesh>

void operator/=

(

const tmp< DimensionedField< scalar, GeoMesh > > &

tdf

)

Definition at line 623 of file DimensionedField.C.

operator+=() [3/3]

template<class Type, class GeoMesh>

void operator+=

(

const dimensioned< Type > &

dt

)

Definition at line 620 of file DimensionedField.C.

operator-=() [3/3]

template<class Type, class GeoMesh>

void operator-=

(

const dimensioned< Type > &

dt

)

Definition at line 621 of file DimensionedField.C.

operator*=() [3/3]

template<class Type, class GeoMesh>

void operator*=

(

const dimensioned< scalar > &

dt

)

Definition at line 622 of file DimensionedField.C.

operator/=() [3/3]

template<class Type, class GeoMesh>

void operator/=

(

const dimensioned< scalar > &

dt

)

Definition at line 623 of file DimensionedField.C.

New_impl()

template<class Type, class GeoMesh>

template<class... Args>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New_impl	(	IOobjectOption::registerOption	regOpt,
		const word &	name,
		const Mesh &	mesh,
		Args &&...	args )

Definition at line 26 of file DimensionedFieldNew.C.

New() [17/18]

template<class Type, class GeoMesh>

template<class AnyType>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New	(	const DimensionedField< AnyType, GeoMesh > &	fld,
		const word &	name,
		const dimensionSet &	dims )

Definition at line 393 of file DimensionedFieldNew.C.

New() [18/18]

template<class Type, class GeoMesh>

template<class AnyType>

Foam::tmp< Foam::DimensionedField< Type, GeoMesh > > New	(	const DimensionedField< AnyType, GeoMesh > &	fld,
		const word &	name,
		const dimensioned< Type > &	dt )

Definition at line 433 of file DimensionedFieldNew.C.

Friends And Related Symbol Documentation

operator [1/2]

template<class Type, class GeoMesh>

Ostream & operator ( Ostream & os, const DimensionedField< Type, GeoMesh > & df )

friend

Calls DimensionedField::writeData().

Referenced by operator=(), operator=(), and operator=().

operator [2/2]

template<class Type, class GeoMesh>

Ostream & operator ( Ostream & os, const tmp< DimensionedField< Type, GeoMesh > > & tdf )

friend

Calls DimensionedField::writeData().

---

The documentation for this class was generated from the following files:

• src/meshTools/fields/volume/polyMeshFieldsFwd.H
• src/OpenFOAM/fields/DimensionedFields/DimensionedField/DimensionedField.H
• src/OpenFOAM/fields/DimensionedFields/DimensionedField/DimensionedField.C
• src/OpenFOAM/fields/DimensionedFields/DimensionedField/DimensionedFieldI.H
• src/OpenFOAM/fields/DimensionedFields/DimensionedField/DimensionedFieldIO.C
• src/OpenFOAM/fields/DimensionedFields/DimensionedField/DimensionedFieldNew.C
