scene Class Reference

Main class to assemble glTF components into a scene. More...

#include <foamGltfScene.H>

Public Member Functions
	scene ()
	Default construct.
template<class Type>
label	addField (const Type &fld, const word &name, const label target=-1)
	Returns accessor index.
template<class Type>
label	addMesh (const Type &fld, const word &name)
	Returns index of last mesh.
template<class Type>
label	addFieldToMesh (const Type &fld, const word &name, const label meshId)
	Returns accessor index.
label	addColourToMesh (const vectorField &fld, const word &name, const label meshId, const scalarField &alpha=scalarField::null())
	Add a colour field to the mesh, optionally with an alpha channel.
label	createAnimation (const word &name)
	Returns index of last animation.
void	addToAnimation (const label animationi, const label inputId, const label outputId, const label meshId, const string &interpolation="LINEAR")
	Add to existing animation.
void	write (const fileName &outputFile)
	Write to file pair (.gltf, .bin).
void	write (Ostream &os)
	Write JSON (.gltf) to stream with auxiliary binary data (.bin).
template<class Type>
Foam::label	addField (const Type &fld, const word &name, const label target)
template<class Type>
Foam::label	addMesh (const Type &fld, const word &name)
template<class Type>
Foam::label	addFieldToMesh (const Type &fld, const word &name, const label meshi)

Detailed Description

Main class to assemble glTF components into a scene.

Note

Implements the glTF v2 specification

Source files

• foamGltfScene.H
• foamGltfScene.C
• foamGltfSceneTemplates.C

Definition at line 64 of file foamGltfScene.H.

Constructor & Destructor Documentation

scene()

scene

(

)

Default construct.

Definition at line 27 of file foamGltfScene.C.

Member Function Documentation

addField() [1/2]

template<class Type>

label addField	(	const Type &	fld,
		const word &	name,
		const label	target = -1 )

Returns accessor index.

References fld(), and Foam::name().

Referenced by addFieldToMesh(), and addMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

addMesh() [1/2]

template<class Type>

label addMesh	(	const Type &	fld,
		const word &	name )

Returns index of last mesh.

References fld(), and Foam::name().

Here is the call graph for this function:

addFieldToMesh() [1/2]

template<class Type>

label addFieldToMesh	(	const Type &	fld,
		const word &	name,
		const label	meshId )

Returns accessor index.

References alpha, fld(), Foam::name(), Field< scalar >::null(), and os().

Here is the call graph for this function:

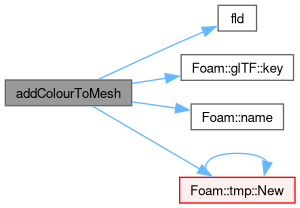

addColourToMesh()

Foam::label addColourToMesh	(	const vectorField &	fld,
		const word &	name,
		const label	meshId,
		const scalarField &	alpha = scalarField::null() )

Add a colour field to the mesh, optionally with an alpha channel.

A constant alpha value can be specified as a field of size 1.

Returns

accessor index

Parameters

fld	RGB colour field
alpha	Alpha channel

Definition at line 60 of file foamGltfScene.C.

References alpha, Foam::glTF::ARRAY_BUFFER, fld(), Foam::glTF::key(), Foam::name(), and tmp< T >::New().

Here is the call graph for this function:

createAnimation()

Foam::label createAnimation

(

const word &

name

)

Returns index of last animation.

Definition at line 110 of file foamGltfScene.C.

References Foam::name().

Here is the call graph for this function:

addToAnimation()

void addToAnimation	(	const label	animationi,
		const label	inputId,
		const label	outputId,
		const label	meshId,
		const string &	interpolation = "LINEAR" )

Add to existing animation.

Definition at line 117 of file foamGltfScene.C.

References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

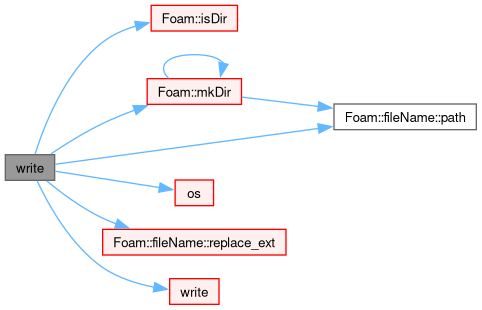

write() [1/2]

void write

(

const fileName &

outputFile

)

Write to file pair (.gltf, .bin).

Definition at line 155 of file foamGltfScene.C.

References Foam::isDir(), Foam::mkDir(), os(), fileName::path(), fileName::replace_ext(), and write().

Here is the call graph for this function:

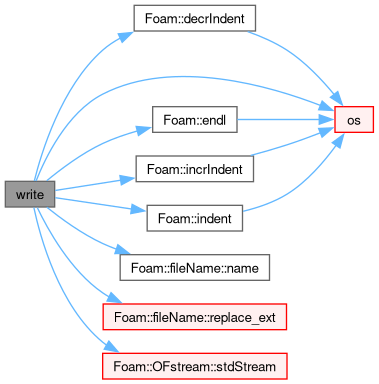

write() [2/2]

void write

(

Ostream &

os

)

Write JSON (.gltf) to stream with auxiliary binary data (.bin).

Definition at line 172 of file foamGltfScene.C.

References IOstreamOption::BINARY, Foam::decrIndent(), Foam::endl(), forAll, Foam::incrIndent(), Foam::indent(), fileName::name(), Foam::nl, os(), fileName::replace_ext(), and OFstream::stdStream().

Here is the call graph for this function:

addField() [2/2]

template<class Type>

Foam::label addField	(	const Type &	fld,
		const word &	name,
		const label	target )

Definition at line 22 of file foamGltfSceneTemplates.C.

References fld(), and Foam::name().

Here is the call graph for this function:

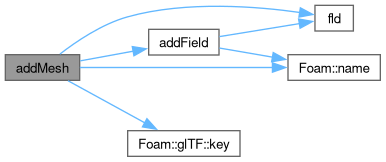

addMesh() [2/2]

template<class Type>

Foam::label addMesh	(	const Type &	fld,
		const word &	name )

Definition at line 52 of file foamGltfSceneTemplates.C.

References addField(), Foam::glTF::ARRAY_BUFFER, fld(), Foam::glTF::key(), and Foam::name().

Here is the call graph for this function:

addFieldToMesh() [2/2]

template<class Type>

Foam::label addFieldToMesh	(	const Type &	fld,
		const word &	name,
		const label	meshi )

Definition at line 65 of file foamGltfSceneTemplates.C.

References addField(), fld(), and Foam::name().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/fileFormats/gltf/foamGltfScene.H
• src/fileFormats/gltf/foamGltfScene.C
• src/fileFormats/gltf/foamGltfSceneTemplates.C
