faceZoneReferenceTemperature Class Reference

Heat transfer coefficient calculation that employs the area-average temperature of a specified face zone as the reference temperature. More...

#include <faceZoneReferenceTemperature.H>

Inheritance diagram for faceZoneReferenceTemperature:

Collaboration diagram for faceZoneReferenceTemperature:

Public Member Functions
	TypeName ("faceZoneReferenceTemperature")
	Runtime type information.
	faceZoneReferenceTemperature (const dictionary &dict, const fvMesh &mesh, const word &TName)
	Construct from components.
	faceZoneReferenceTemperature (const faceZoneReferenceTemperature &)=delete
	No copy construct.
void	operator= (const faceZoneReferenceTemperature &)=delete
	No copy assignment.
virtual	~faceZoneReferenceTemperature ()=default
	Destructor.
virtual bool	read (const dictionary &dict)
	Read the function-object dictionary.
Public Member Functions inherited from heatTransferCoeffModel
	TypeName ("heatTransferCoeffModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, heatTransferCoeffModel, dictionary,(const dictionary &dict, const fvMesh &mesh, const word &TName),(dict, mesh, TName))
	heatTransferCoeffModel (const dictionary &dict, const fvMesh &mesh, const word &TName)
	Construct from components.
	heatTransferCoeffModel (const heatTransferCoeffModel &)=delete
	No copy construct.
void	operator= (const heatTransferCoeffModel &)=delete
	No copy assignment.
virtual	~heatTransferCoeffModel ()=default
	Destructor.
const fvMesh &	mesh () const noexcept
	Return const reference to the mesh.
const labelList &	patchIDs () const noexcept
	Return const reference to wall patches to process.
const word &	TName () const noexcept
	Return const reference to name of temperature field.
const word &	qrName () const noexcept
	Return const reference to name of radiative heat-flux field.
tmp< FieldField< Field, scalar > >	q () const
	Return boundary fields of heat-flux field.
virtual bool	calc (volScalarField &result, const FieldField< Field, scalar > &q)
	Calculate the heat transfer coefficient field and return true if successful.

Additional Inherited Members
Static Public Member Functions inherited from heatTransferCoeffModel
static autoPtr< heatTransferCoeffModel >	New (const dictionary &dict, const fvMesh &mesh, const word &TName)
	Return a reference to the selected heat transfer coefficient model.
Protected Attributes inherited from heatTransferCoeffModel
const fvMesh &	mesh_
	Const reference to the mesh.
labelList	patchIDs_
	List of (wall) patches to process (selected by name).
const word	TName_
	Name of temperature field.
word	qrName_
	Name of radiative heat flux field.

Detailed Description

Heat transfer coefficient calculation that employs the area-average temperature of a specified face zone as the reference temperature.

The heat transfer coefficient is calculated by:

where

	=	Heat transfer coefficient [W/m^2/K]
	=	Heat flux [W/m^2]
	=	Area average of reference face zone temperature [K]
	=	Temperature field of current patch [K]

Usage

Minimal example by using system/controlDict.functions:

heatTransferCoeffFO
{
    // Inherited entries
    ...

    // Mandatory entries
    htcModel            faceZoneReferenceTemperature;
    referenceFaceZone   <word>;

    // Optional entries
    referenceRegion     <word>;
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
htcModel	Model name: faceZoneReferenceTemperature	word	yes	-
referenceFaceZone	Name of reference face zone	word	yes	-
referenceRegion	Name of region that reference face zone resides	word	no	region0

Source files

• faceZoneReferenceTemperature.H
• faceZoneReferenceTemperature.C

Definition at line 131 of file faceZoneReferenceTemperature.H.

Constructor & Destructor Documentation

faceZoneReferenceTemperature() [1/2]

faceZoneReferenceTemperature	(	const dictionary &	dict,
		const fvMesh &	mesh,
		const word &	TName )

Construct from components.

Definition at line 195 of file faceZoneReferenceTemperature.C.

References dict, heatTransferCoeffModel::heatTransferCoeffModel(), heatTransferCoeffModel::mesh(), read(), and heatTransferCoeffModel::TName().

Referenced by faceZoneReferenceTemperature(), and operator=().

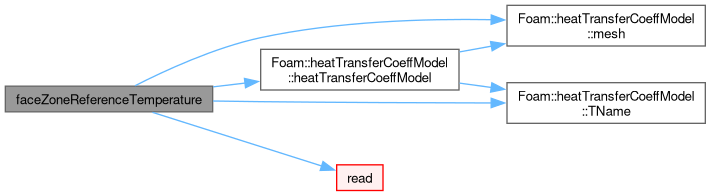

Here is the call graph for this function:

Here is the caller graph for this function:

faceZoneReferenceTemperature() [2/2]

faceZoneReferenceTemperature ( const faceZoneReferenceTemperature & )

delete

No copy construct.

References faceZoneReferenceTemperature().

Here is the call graph for this function:

~faceZoneReferenceTemperature()

virtual ~faceZoneReferenceTemperature ( )

virtualdefault

Destructor.

References dict.

Member Function Documentation

TypeName()

TypeName

(

"faceZoneReferenceTemperature"

)

Runtime type information.

References dict, heatTransferCoeffModel::mesh(), and heatTransferCoeffModel::TName().

Here is the call graph for this function:

operator=()

void operator= ( const faceZoneReferenceTemperature & )

delete

No copy assignment.

References faceZoneReferenceTemperature().

Here is the call graph for this function:

read()

bool read ( const dictionary & dict )

virtual

Read the function-object dictionary.

Reimplemented from heatTransferCoeffModel.

Definition at line 215 of file faceZoneReferenceTemperature.C.

References dict, and heatTransferCoeffModel::read().

Referenced by faceZoneReferenceTemperature().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/functionObjects/field/heatTransferCoeff/heatTransferCoeffModels/faceZoneReferenceTemperature/faceZoneReferenceTemperature.H
• src/functionObjects/field/heatTransferCoeff/heatTransferCoeffModels/faceZoneReferenceTemperature/faceZoneReferenceTemperature.C
