A simple i-j-k (row-major order) to linear addressing for a rectilinear mesh. Since the underlying mesh is rectilinear, some mesh-related sizing information can be derived directly from the addressing information. More...

#include <ijkMesh.H>

Inheritance diagram for ijkMesh:

[legend]

Collaboration diagram for ijkMesh:

[legend]

Public Member Functions
	ijkMesh ()
	Construct zero-sized.
	ijkMesh (const labelVector &ijk)
	Construct with addressing.
	ijkMesh (const label nx, const label ny, const label nz)
	Construct with addressing.
label	nPoints () const
	The number of mesh points (nx+1)(ny+1)(nz+1) in the i-j-k mesh.
label	nCells () const
	The number of mesh cells (nxnynz) in the i-j-k mesh.
label	nFaces () const
	The total number of mesh faces in the i-j-k mesh.
label	nInternalFaces () const
	The number of internal faces in the i-j-k mesh.
label	nBoundaryFaces () const
	The number of boundary faces in the i-j-k mesh.
label	nBoundaryFaces (const direction shapeFacei) const
	The number of boundary faces on the box face.
label	cellLabel (const label i, const label j, const label k) const
	The linear cell index for an i-j-k position - same as index().
label	cellLabel (const labelVector &ijk) const
	The linear cell index for an i-j-k position - same as index().
label	pointLabel (const label i, const label j, const label k) const
	The linear point index for an i-j-k position.
label	pointLabel (const labelVector &ijk) const
	The linear point index for an i-j-k position.
hexCell	vertLabels (const label i, const label j, const label k) const
	The hex cell vertices for an i-j-k position.
hexCell	vertLabels (const labelVector &ijk) const
	The hex cell vertices for an i-j-k position.
Public Member Functions inherited from ijkAddressing
	ijkAddressing ()
	Construct zero-size addressing.
	ijkAddressing (const labelVector &ijk)
	Construct with addressing.
	ijkAddressing (const label ni, const label nj, const label nk)
	Construct with addressing components.
bool	empty () const noexcept
	Addressing is considered empty if any component is zero.
const labelVector &	sizes () const noexcept
	The (i,j,k) addressing dimensions.
labelVector &	sizes () noexcept
	Return the (i,j,k) dimensions for modification.
label	size () const noexcept
	Return the total ijk size.
label	size (const vector::components cmpt) const
	The addressing dimension in the given direction.
void	clear ()
	Reset to (0,0,0) sizing.
void	reset (const label ni, const label nj, const label nk)
	Change the sizing parameters.
void	reset (const labelVector &newSizes)
	Change the sizing parameters.
label	index (const label i, const label j, const label k) const
	Linear addressing index (offset) for an (i,j,k) position.
label	index (const labelVector &ijk) const
	Linear addressing index (offset) for an (i,j,k) position.
labelVector	index (const label idx) const
	The (i,j,k) indexing from linear addressing.
void	checkIndex (const label i, const label j, const label k, const bool allowExtra=false) const
	Check indices are within ni,nj,nk range.
void	checkIndex (const labelVector &ijk, const bool allowExtra=false) const
	Check indices are within ni,nj,nk range.
void	checkSizes () const
	Check that all components of sizes() are non-negative.
void	checkSizes (const labelVector &other) const
	Check that all components of sizes() match.
void	checkSizes (const label nTotal) const
	Check that the total size matches.

Detailed Description

A simple i-j-k (row-major order) to linear addressing for a rectilinear mesh. Since the underlying mesh is rectilinear, some mesh-related sizing information can be derived directly from the addressing information.

Source files

Definition at line 53 of file ijkMesh.H.

Constructor & Destructor Documentation

◆ ijkMesh() [1/3]

ijkMesh ( )

inline

Construct zero-sized.

Definition at line 23 of file ijkMeshI.H.

References ijkAddressing::ijkAddressing().

Referenced by blockDescriptor::blockDescriptor(), blockDescriptor::blockDescriptor(), and PDRblock::PDRblock().

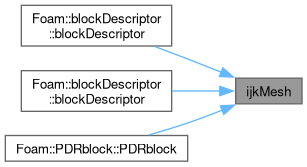

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ijkMesh() [2/3]

ijkMesh ( const labelVector & ijk )

inlineexplicit

Construct with addressing.

Definition at line 29 of file ijkMeshI.H.

References ijkAddressing::ijkAddressing().

Here is the call graph for this function:

◆ ijkMesh() [3/3]

ijkMesh	(	const label	nx,
		const label	ny,
		const label	nz )

inline

Construct with addressing.

Definition at line 35 of file ijkMeshI.H.

References ijkAddressing::ijkAddressing().

Here is the call graph for this function:

Member Function Documentation

◆ nPoints()

Foam::label nPoints ( ) const

inline

The number of mesh points (nx+1)*(ny+1)*(nz+1) in the i-j-k mesh.

Definition at line 48 of file ijkMeshI.H.

References ijkAddressing::empty(), n, and ijkAddressing::sizes().

Here is the call graph for this function:

◆ nCells()

Foam::label nCells ( ) const

inline

The number of mesh cells (nx*ny*nz) in the i-j-k mesh.

This is the same as the ijkAddressing::size()

Definition at line 61 of file ijkMeshI.H.

References ijkAddressing::size().

Referenced by PDRblock::location::checkIndex(), PDRblock::PDRblock(), PDRblock::reset(), and block::shapes().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nFaces()

Foam::label nFaces ( ) const

inline

The total number of mesh faces in the i-j-k mesh.

Definition at line 67 of file ijkMeshI.H.

References ijkAddressing::empty(), n, and ijkAddressing::sizes().

Referenced by PDRblock::innerMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nInternalFaces()

Foam::label nInternalFaces ( ) const

inline

The number of internal faces in the i-j-k mesh.

Definition at line 85 of file ijkMeshI.H.

References ijkAddressing::empty(), n, and ijkAddressing::sizes().

Referenced by PDRblock::innerMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nBoundaryFaces() [1/2]

Foam::label nBoundaryFaces ( ) const

inline

The number of boundary faces in the i-j-k mesh.

Definition at line 103 of file ijkMeshI.H.

References ijkAddressing::empty(), n, and ijkAddressing::sizes().

Referenced by PDRblock::reset(), and PDRblock::reset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nBoundaryFaces() [2/2]

Foam::label nBoundaryFaces ( const direction shapeFacei ) const

inline

The number of boundary faces on the box face.

Face: 0=x-min, 1=x-max, 2=y-min, 3=y-max, 4=z-min, 5=z-max

Definition at line 121 of file ijkMeshI.H.

References ijkAddressing::empty(), n, and ijkAddressing::sizes().

Here is the call graph for this function:

◆ cellLabel() [1/2]

Foam::label cellLabel	(	const label	i,
		const label	j,
		const label	k ) const

inline

The linear cell index for an i-j-k position - same as index().

Definition at line 158 of file ijkMeshI.H.

References ijkAddressing::index(), and k.

Here is the call graph for this function:

◆ cellLabel() [2/2]

Foam::label cellLabel ( const labelVector & ijk ) const

inline

The linear cell index for an i-j-k position - same as index().

Definition at line 169 of file ijkMeshI.H.

References ijkAddressing::index().

Here is the call graph for this function:

◆ pointLabel() [1/2]

Foam::label pointLabel	(	const label	i,
		const label	j,
		const label	k ) const

inline

The linear point index for an i-j-k position.

Addressable in the range (ni+1, nj+1, nk+1).

Definition at line 175 of file ijkMeshI.H.

References ijkAddressing::checkIndex(), k, n, and ijkAddressing::sizes().

Referenced by Foam::facePoint(), Foam::facePointN(), blockDescriptor::facePoints(), and vertLabels().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pointLabel() [2/2]

Foam::label pointLabel ( const labelVector & ijk ) const

inline

The linear point index for an i-j-k position.

Addressable in the range (ni+1, nj+1, nk+1).

Definition at line 192 of file ijkMeshI.H.

References ijkAddressing::checkIndex(), n, ijkAddressing::sizes(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ vertLabels() [1/2]

Foam::hexCell vertLabels	(	const label	i,
		const label	j,
		const label	k ) const

The hex cell vertices for an i-j-k position.

Definition at line 26 of file ijkMesh.C.

References k, and pointLabel().

Referenced by block::shapes(), and vertLabels().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vertLabels() [2/2]

Foam::hexCell vertLabels ( const labelVector & ijk ) const

The hex cell vertices for an i-j-k position.

Definition at line 43 of file ijkMesh.C.

References vertLabels(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/OpenFOAM/meshes/ijkMesh/ijkMesh.H
src/OpenFOAM/meshes/ijkMesh/ijkMesh.C
src/OpenFOAM/meshes/ijkMesh/ijkMeshI.H
