#include <kOmegaSST.H>

Inheritance diagram for kOmegaSST:

Collaboration diagram for kOmegaSST:

[legend]

Public Member Functions
	TypeName ("kOmegaSST")
	Runtime type information.
	kOmegaSST (const fvMesh &mesh, const solverControl &SolverControl)
	Construct from components.
virtual	~kOmegaSST ()=default
	Destructor.
virtual tmp< volScalarField::Internal >	G ()
	Return the turbulence production term.
virtual void	computeMeanFields ()
	Compute mean fields on the fly.
virtual void	correctBoundaryConditions (const incompressible::turbulenceModel &turbulence)
	Correct boundary conditions of turbulent fields.
Public Member Functions inherited from RASModelVariables
	TypeName ("RASModelVariables")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, RASModelVariables, dictionary,(const fvMesh &mesh, const solverControl &SolverControl),(mesh, SolverControl))
	RASModelVariables (const fvMesh &mesh, const solverControl &SolverControl)
	Construct from components.
	RASModelVariables (const RASModelVariables &rmv)
	Copy constructor.
autoPtr< RASModelVariables >	clone () const
	Clone.
virtual	~RASModelVariables ()=default
const word &	TMVar1BaseName () const
	Turbulence field names.
const word &	TMVar2BaseName () const
const word &	nutBaseName () const
virtual bool	hasTMVar1 () const
	Bools to identify which turbulent fields are present.
virtual bool	hasTMVar2 () const
virtual bool	hasNut () const
bool	hasDist () const
const volScalarField &	TMVar1 () const
	Return references to turbulence fields.
volScalarField &	TMVar1 ()
const volScalarField &	TMVar2 () const
volScalarField &	TMVar2 ()
const volScalarField &	nutRef () const
volScalarField &	nutRef ()
tmp< volScalarField >	nut () const
const volScalarField &	d () const
volScalarField &	d ()
tmp< scalarField >	TMVar1 (const label patchi) const
tmp< scalarField >	TMVar2 (const label patchi) const
tmp< scalarField >	nut (const label patchi) const
tmp< fvPatchScalarField >	nutPatchField (const label patchi) const
const volScalarField &	TMVar1Inst () const
	Return references to instantaneous turbulence fields.
volScalarField &	TMVar1Inst ()
const volScalarField &	TMVar2Inst () const
volScalarField &	TMVar2Inst ()
const volScalarField &	nutRefInst () const
volScalarField &	nutRefInst ()
virtual tmp< volScalarField >	nutJacobianVar1 (const singlePhaseTransportModel &laminarTransport) const
	Return nut Jacobian wrt the TM vars.
virtual tmp< volScalarField >	nutJacobianVar2 (const singlePhaseTransportModel &laminarTransport) const
void	restoreInitValues ()
	Restore turbulent fields to their initial values.
void	resetMeanFields ()
	Reset mean fields to zero.
tmp< volSymmTensorField >	devReff (const singlePhaseTransportModel &laminarTransport, const volVectorField &U) const
	Return stress tensor based on the mean flow variables.
virtual void	transfer (RASModelVariables &rmv)
	Transfer turbulence fields from an another object.

Protected Member Functions
virtual void	allocateMeanFields ()
tmp< volScalarField::Internal >	computeG ()
Protected Member Functions inherited from RASModelVariables
virtual void	allocateInitValues ()
refPtr< volScalarField >	cloneRefPtr (const refPtr< volScalarField > &obj) const
void	copyAndRename (volScalarField &f1, volScalarField &f2)
void	operator= (const RASModelVariables &)=delete
	No copy assignment.

Protected Attributes
autoPtr< volScalarField::Internal >	GMean_
	Average of the production term.
Protected Attributes inherited from RASModelVariables
const fvMesh &	mesh_
const solverControl &	solverControl_
word	TMVar1BaseName_
word	TMVar2BaseName_
word	nutBaseName_
refPtr< volScalarField >	TMVar1Ptr_
refPtr< volScalarField >	TMVar2Ptr_
refPtr< volScalarField >	nutPtr_
refPtr< volScalarField >	distPtr_
refPtr< volScalarField >	TMVar1InitPtr_
refPtr< volScalarField >	TMVar2InitPtr_
refPtr< volScalarField >	nutInitPtr_
refPtr< volScalarField >	TMVar1MeanPtr_
refPtr< volScalarField >	TMVar2MeanPtr_
refPtr< volScalarField >	nutMeanPtr_

Additional Inherited Members
Static Public Member Functions inherited from RASModelVariables
static autoPtr< RASModelVariables >	New (const fvMesh &mesh, const solverControl &SolverControl)
	Return a reference to the selected turbulence model.

Detailed Description

Source files

Definition at line 52 of file kOmegaSST.H.

Constructor & Destructor Documentation

◆ kOmegaSST()

kOmegaSST	(	const fvMesh &	mesh,
		const solverControl &	SolverControl )

Construct from components.

Definition at line 72 of file kOmegaSST.C.

References RASModelVariables::allocateInitValues(), allocateMeanFields(), RASModelVariables::distPtr_, mesh, RASModelVariables::mesh_, MeshObject< fvMesh, UpdateableMeshObject, wallDist >::New(), RASModelVariables::nutBaseName_, RASModelVariables::nutPtr_, RASModelVariables::RASModelVariables(), RASModelVariables::TMVar1BaseName_, RASModelVariables::TMVar1Ptr_, RASModelVariables::TMVar2BaseName_, and RASModelVariables::TMVar2Ptr_.

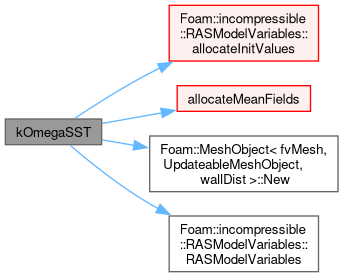

Here is the call graph for this function:

◆ ~kOmegaSST()

virtual ~kOmegaSST ( )

virtualdefault

Destructor.

Member Function Documentation

◆ allocateMeanFields()

void allocateMeanFields ( )

protectedvirtual

Reimplemented from RASModelVariables.

Definition at line 44 of file kOmegaSST.C.

References RASModelVariables::allocateMeanFields(), IOobjectOption::AUTO_WRITE, Foam::dimArea, Foam::dimTime, GMean_, RASModelVariables::mesh_, Foam::pow3(), IOobjectOption::READ_IF_PRESENT, IOobjectOption::REGISTER, RASModelVariables::solverControl_, and Foam::Zero.

Referenced by kOmegaSST().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeG()

tmp< volScalarField::Internal > computeG ( )

protected

Definition at line 96 of file kOmegaSST.C.

References GeometricField< Type, PatchField, GeoMesh >::correctBoundaryConditions(), Foam::devTwoSymm(), Foam::fvc::grad(), IOobject::groupName(), RASModelVariables::mesh_, GeometricField< scalar, fvPatchField, volMesh >::New(), RASModelVariables::nutRefInst(), turbulenceModel::propertiesName, IOobjectOption::REGISTER, IOobject::scopedName(), RASModelVariables::TMVar2(), RASModelVariables::TMVar2Inst(), Foam::type(), and U.

Referenced by computeMeanFields(), and G().

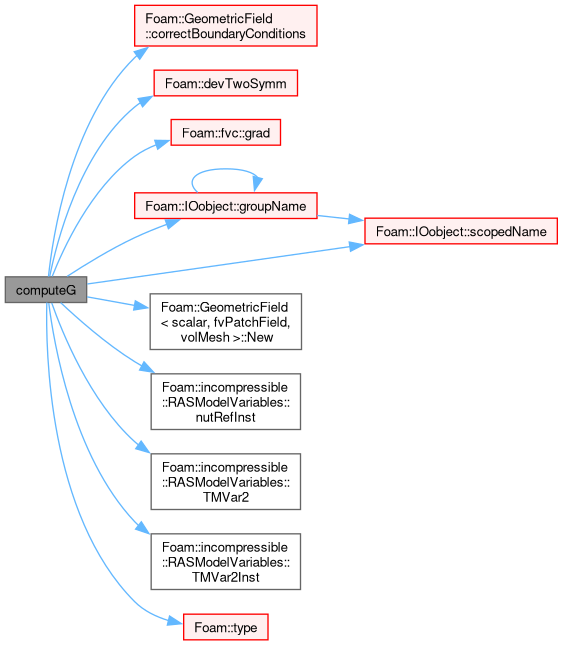

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "kOmegaSST" )

Runtime type information.

References mesh.

◆ G()

tmp< volScalarField::Internal > G ( )

virtual

Return the turbulence production term.

Reimplemented from RASModelVariables.

Definition at line 134 of file kOmegaSST.C.

References computeG(), DebugInfo, Foam::endl(), GMean_, and RASModelVariables::solverControl_.

Referenced by correctBoundaryConditions().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeMeanFields()

void computeMeanFields ( )

virtual

Compute mean fields on the fly.

Reimplemented from RASModelVariables.

Definition at line 148 of file kOmegaSST.C.

References computeG(), RASModelVariables::computeMeanFields(), GMean_, and RASModelVariables::solverControl_.

Here is the call graph for this function:

◆ correctBoundaryConditions()

void correctBoundaryConditions ( const incompressible::turbulenceModel & turbulence )

virtual

Correct boundary conditions of turbulent fields.

Reimplemented from RASModelVariables.

Definition at line 162 of file kOmegaSST.C.

References RASModelVariables::correctBoundaryConditions(), G(), Foam::fvc::grad(), Foam::magSqr(), RASModelVariables::nutRef(), Foam::symm(), and U.

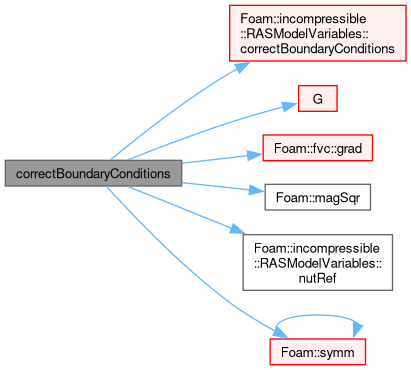

Here is the call graph for this function:

Member Data Documentation

◆ GMean_

autoPtr<volScalarField::Internal> GMean_

protected

Average of the production term.

Avaraged separetely due the bi-zonal treatment next to the wall

Definition at line 66 of file kOmegaSST.H.

Referenced by allocateMeanFields(), computeMeanFields(), and G().

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/turbulenceModels/turbulenceModelVariables/RAS/kOmegaSST/kOmegaSST.H
src/optimisation/adjointOptimisation/adjoint/turbulenceModels/turbulenceModelVariables/RAS/kOmegaSST/kOmegaSST.C
