strainRateFunction Class Reference

Run-time selected strain-rate function generalized Newtonian viscosity model. More...

#include <strainRateFunction.H>

Inheritance diagram for strainRateFunction:

Collaboration diagram for strainRateFunction:

Public Member Functions
	TypeName ("strainRateFunction")
	Runtime type information.
	strainRateFunction (const dictionary &viscosityProperties)
	Construct from dictionary (components).
virtual	~strainRateFunction ()=default
	Destructor.
virtual bool	read (const dictionary &viscosityProperties)
	Read transportProperties dictionary.
virtual tmp< volScalarField >	nu (const volScalarField &nu0, const volScalarField &strainRate) const
	Return the laminar viscosity.
Public Member Functions inherited from generalizedNewtonianViscosityModel
	TypeName ("generalizedNewtonianViscosityModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, generalizedNewtonianViscosityModel, dictionary,(const dictionary &viscosityProperties),(viscosityProperties))
	generalizedNewtonianViscosityModel (const generalizedNewtonianViscosityModel &)=delete
	No copy construct.
void	operator= (const generalizedNewtonianViscosityModel &)=delete
	No copy assignment.
	generalizedNewtonianViscosityModel (const dictionary &viscosityProperties)
	Construct from dictionary (components).
virtual	~generalizedNewtonianViscosityModel ()=default
	Destructor.
const dictionary &	viscosityProperties () const
	Return the phase transport properties dictionary.

Additional Inherited Members
Static Public Member Functions inherited from generalizedNewtonianViscosityModel
static autoPtr< generalizedNewtonianViscosityModel >	New (const dictionary &dict)
	Select a viscosity model.
Protected Attributes inherited from generalizedNewtonianViscosityModel
dictionary	viscosityProperties_

Detailed Description

Run-time selected strain-rate function generalized Newtonian viscosity model.

Example linear function of strain-rate:

    generalizedNewtonianModel strainRateFunction;

    function polynomial ((0 0.1) (1 1.3));

See also

Foam::generalizedNewtonianViscosityModel Foam::Function1

Source files

• strainRateFunction.H
• strainRateFunction.C

Definition at line 63 of file strainRateFunction.H.

Constructor & Destructor Documentation

strainRateFunction()

strainRateFunction ( const dictionary & viscosityProperties )

explicit

Construct from dictionary (components).

Definition at line 49 of file strainRateFunction.C.

References generalizedNewtonianViscosityModel::generalizedNewtonianViscosityModel(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, generalizedNewtonianViscosityModel::New(), and generalizedNewtonianViscosityModel::viscosityProperties().

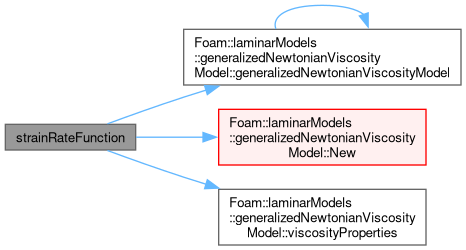

Here is the call graph for this function:

~strainRateFunction()

virtual ~strainRateFunction ( )

virtualdefault

Destructor.

References generalizedNewtonianViscosityModel::viscosityProperties().

Here is the call graph for this function:

Member Function Documentation

TypeName()

TypeName

(

"strainRateFunction"

)

Runtime type information.

References generalizedNewtonianViscosityModel::viscosityProperties().

Here is the call graph for this function:

read()

bool read ( const dictionary & viscosityProperties )

virtual

Read transportProperties dictionary.

Implements generalizedNewtonianViscosityModel.

Definition at line 69 of file strainRateFunction.C.

References Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, generalizedNewtonianViscosityModel::read(), and generalizedNewtonianViscosityModel::viscosityProperties().

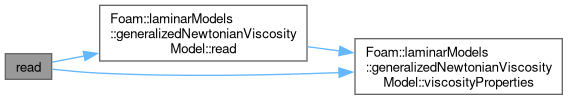

Here is the call graph for this function:

nu()

Foam::tmp< Foam::volScalarField > nu ( const volScalarField & nu0, const volScalarField & strainRate ) const

virtual

Return the laminar viscosity.

Implements generalizedNewtonianViscosityModel.

Definition at line 92 of file strainRateFunction.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), Foam::dimViscosity, forAll, IOobject::group(), IOobject::groupName(), DimensionedField< Type, GeoMesh >::mesh(), GeometricField< scalar, fvPatchField, volMesh >::New(), IOobject::scopedName(), Foam::type(), and Foam::Zero.

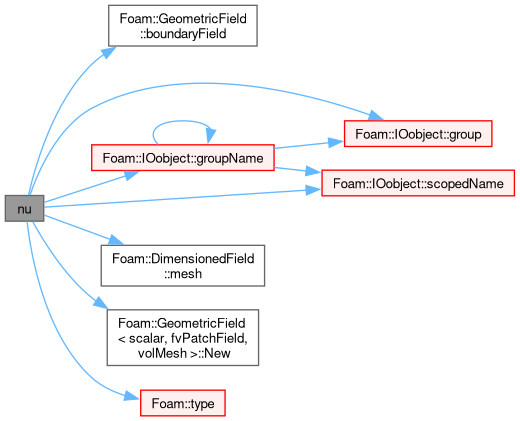

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/TurbulenceModels/turbulenceModels/laminar/generalizedNewtonian/generalizedNewtonianViscosityModels/strainRateFunction/strainRateFunction.H
• src/TurbulenceModels/turbulenceModels/laminar/generalizedNewtonian/generalizedNewtonianViscosityModels/strainRateFunction/strainRateFunction.C
