Cell layer addition mesh modifier. More...

#include <layerAdditionRemoval.H>

Inheritance diagram for layerAdditionRemoval:

Inheritance graph

[legend]

Collaboration diagram for layerAdditionRemoval:

Collaboration graph

[legend]

Public Member Functions
	TypeName ("layerAdditionRemoval")
	Runtime type information.
	layerAdditionRemoval (const word &name, const label index, const polyTopoChanger &ptc, const word &zoneName, const scalar minThickness, const scalar maxThickness, const bool thicknessFromVolume=true)
	Construct from components.
	layerAdditionRemoval (const word &name, const dictionary &dict, const label index, const polyTopoChanger &ptc)
	Construct from dictionary.
virtual	~layerAdditionRemoval ()=default
	Destructor.
virtual bool	changeTopology () const
	Check for topology change.
virtual void	setRefinement (polyTopoChange &) const
	Insert the layer addition/removal instructions.
virtual void	modifyMotionPoints (pointField &motionPoints) const
	Modify motion points to comply with the topological change.
virtual void	updateMesh (const mapPolyMesh &)
	Force recalculation of locally stored data on topological change.
scalar	minLayerThickness () const
	Return min layer thickness which triggers removal.
void	setMinLayerThickness (const scalar t) const
	Set min layer thickness which triggers removal.
scalar	maxLayerThickness () const
	Return max layer thickness which triggers removal.
void	setMaxLayerThickness (const scalar t) const
	Set max layer thickness which triggers removal.
virtual void	write (Ostream &) const
	Write.
virtual void	writeDict (Ostream &) const
	Write dictionary.
Public Member Functions inherited from polyMeshModifier
	TypeName ("meshModifier")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, polyMeshModifier, dictionary,(const word &name, const dictionary &dict, const label index, const polyTopoChanger &mme),(name, dict, index, mme))
	polyMeshModifier (const word &name, const label index, const polyTopoChanger &mme, const bool act)
	Construct from components.
virtual	~polyMeshModifier ()=default
	Destructor.
const word &	name () const
	Return name of this modifier.
label	index () const
	Return the index of this modifier.
const polyTopoChanger &	topoChanger () const
	Return reference to morph engine.
Switch	active () const
	If modifier activate?
void	enable () const
	Activate mesh modifier.
void	disable () const
	Activate mesh modifier.

Additional Inherited Members
Static Public Member Functions inherited from polyMeshModifier
static autoPtr< polyMeshModifier >	New (const word &name, const dictionary &dict, const label index, const polyTopoChanger &mme)
	Select constructed from dictionary.

Detailed Description

Cell layer addition mesh modifier.

Source files

Definition at line 51 of file layerAdditionRemoval.H.

Constructor & Destructor Documentation

◆ layerAdditionRemoval() [1/2]

layerAdditionRemoval	(	const word &	name,
		const label	index,
		const polyTopoChanger &	ptc,
		const word &	zoneName,
		const scalar	minThickness,
		const scalar	maxThickness,
		const bool	thicknessFromVolume = true )

Construct from components.

Definition at line 102 of file layerAdditionRemoval.C.

References polyMeshModifier::index(), mesh, and polyMeshModifier::name().

Here is the call graph for this function:

◆ layerAdditionRemoval() [2/2]

layerAdditionRemoval	(	const word &	name,
		const dictionary &	dict,
		const label	index,
		const polyTopoChanger &	ptc )

Construct from dictionary.

Definition at line 128 of file layerAdditionRemoval.C.

References dict, polyMeshModifier::index(), mesh, and polyMeshModifier::name().

Here is the call graph for this function:

◆ ~layerAdditionRemoval()

virtual ~layerAdditionRemoval ( )

virtualdefault

Destructor.

Member Function Documentation

◆ TypeName()

TypeName ( "layerAdditionRemoval" )

Runtime type information.

References dict, polyMeshModifier::index(), and polyMeshModifier::name().

Here is the call graph for this function:

◆ changeTopology()

bool changeTopology ( ) const

virtual

Check for topology change.

Implements polyMeshModifier.

Definition at line 153 of file layerAdditionRemoval.C.

References Foam::abort(), e, cell::edges(), Foam::endl(), Foam::FatalError, FatalErrorInFunction, forAll, HashTable< T, Key, Hash >::found(), Foam::mag(), faceZone::masterCells(), Foam::max(), mesh, Foam::min(), name, Foam::nl, Foam::Pout, Foam::reduce(), UList< T >::size(), and polyMeshModifier::topoChanger().

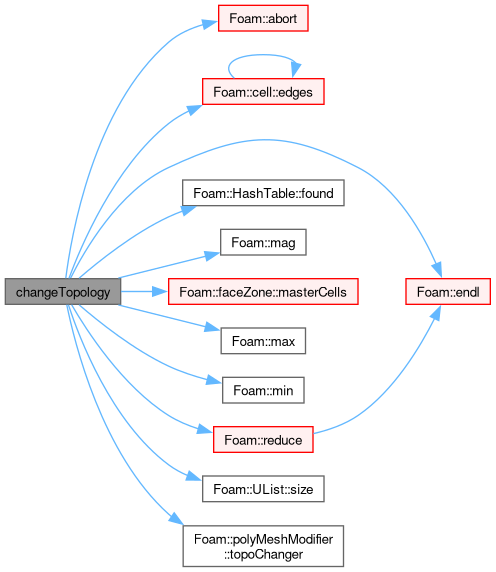

Here is the call graph for this function:

◆ setRefinement()

void setRefinement ( polyTopoChange & ref ) const

virtual

Insert the layer addition/removal instructions.

into the topological change

Implements polyMeshModifier.

Definition at line 351 of file layerAdditionRemoval.C.

References Foam::endl(), mesh, name, Foam::Pout, ref(), timeIndex, and polyMeshModifier::topoChanger().

Here is the call graph for this function:

◆ modifyMotionPoints()

void modifyMotionPoints ( pointField & motionPoints ) const

virtual

Modify motion points to comply with the topological change.

Implements polyMeshModifier.

Definition at line 206 of file setLayerPairing.C.

References Foam::endl(), name, and Foam::Pout.

Here is the call graph for this function:

◆ updateMesh()

void updateMesh ( const mapPolyMesh & )

virtual

Force recalculation of locally stored data on topological change.

Implements polyMeshModifier.

Definition at line 390 of file layerAdditionRemoval.C.

References Foam::endl(), mesh, name, Foam::Pout, and polyMeshModifier::topoChanger().

Here is the call graph for this function:

◆ minLayerThickness()

scalar minLayerThickness ( ) const

inline

Return min layer thickness which triggers removal.

Definition at line 255 of file layerAdditionRemoval.H.

◆ setMinLayerThickness()

void setMinLayerThickness ( const scalar t ) const

Set min layer thickness which triggers removal.

Definition at line 415 of file layerAdditionRemoval.C.

References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

◆ maxLayerThickness()

scalar maxLayerThickness ( ) const

inline

Return max layer thickness which triggers removal.

Definition at line 268 of file layerAdditionRemoval.H.

◆ setMaxLayerThickness()

void setMaxLayerThickness ( const scalar t ) const

Set max layer thickness which triggers removal.

Definition at line 428 of file layerAdditionRemoval.C.

References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Implements polyMeshModifier.

Definition at line 441 of file layerAdditionRemoval.C.

References Foam::endl(), name, Foam::nl, os(), and Foam::type().

Here is the call graph for this function:

◆ writeDict()

void writeDict ( Ostream & os ) const

virtual

Write dictionary.

Implements polyMeshModifier.

Definition at line 453 of file layerAdditionRemoval.C.

References polyMeshModifier::active(), name, Foam::nl, os(), and Foam::type().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/dynamicMesh/layerAdditionRemoval/layerAdditionRemoval.H
src/dynamicMesh/layerAdditionRemoval/addCellLayer.C
src/dynamicMesh/layerAdditionRemoval/layerAdditionRemoval.C
src/dynamicMesh/layerAdditionRemoval/removeCellLayer.C
src/dynamicMesh/layerAdditionRemoval/setLayerPairing.C
