Class containing mesh-to-mesh mapping information after a change in polyMesh topology. More...

#include <mapPolyMesh.H>

Public Member Functions
	mapPolyMesh (const mapPolyMesh &)=delete
	No copy construct.
void	operator= (const mapPolyMesh &)=delete
	No copy assignment.
	mapPolyMesh (const polyMesh &mesh)
	Construct from mesh.
	mapPolyMesh (const polyMesh &mesh, const label nOldPoints, const label nOldFaces, const label nOldCells, const labelList &pointMap, const List< objectMap > &pointsFromPoints, const labelList &faceMap, const List< objectMap > &facesFromPoints, const List< objectMap > &facesFromEdges, const List< objectMap > &facesFromFaces, const labelList &cellMap, const List< objectMap > &cellsFromPoints, const List< objectMap > &cellsFromEdges, const List< objectMap > &cellsFromFaces, const List< objectMap > &cellsFromCells, const labelList &reversePointMap, const labelList &reverseFaceMap, const labelList &reverseCellMap, const labelHashSet &flipFaceFlux, const labelListList &patchPointMap, const labelListList &pointZoneMap, const labelListList &faceZonePointMap, const labelListList &faceZoneFaceMap, const labelListList &cellZoneMap, const pointField &preMotionPoints, const labelList &oldPatchStarts, const labelList &oldPatchNMeshPoints, const autoPtr< scalarField > &oldCellVolumesPtr)
	Copy construct from components, except for oldCellVolumes which is move construct.
	mapPolyMesh (const polyMesh &mesh, const label nOldPoints, const label nOldFaces, const label nOldCells, labelList &pointMap, List< objectMap > &pointsFromPoints, labelList &faceMap, List< objectMap > &facesFromPoints, List< objectMap > &facesFromEdges, List< objectMap > &facesFromFaces, labelList &cellMap, List< objectMap > &cellsFromPoints, List< objectMap > &cellsFromEdges, List< objectMap > &cellsFromFaces, List< objectMap > &cellsFromCells, labelList &reversePointMap, labelList &reverseFaceMap, labelList &reverseCellMap, labelHashSet &flipFaceFlux, labelListList &patchPointMap, labelListList &pointZoneMap, labelListList &faceZonePointMap, labelListList &faceZoneFaceMap, labelListList &cellZoneMap, pointField &preMotionPoints, labelList &oldPatchStarts, labelList &oldPatchNMeshPoints, autoPtr< scalarField > &oldCellVolumesPtr, const bool reuse)
	Construct from components and optionally reuse storage.
const polyMesh &	mesh () const noexcept
	Return polyMesh.
label	nOldPoints () const noexcept
	Number of old points.
label	nOldInternalFaces () const
	Number of old internal faces.
label	nOldFaces () const noexcept
	Number of old faces.
label	nOldCells () const noexcept
	Number of old cells.
const labelList &	pointMap () const noexcept
	Old point map.
const List< objectMap > &	pointsFromPointsMap () const noexcept
	Points originating from points.
const labelList &	faceMap () const noexcept
	Old face map.
const List< objectMap > &	facesFromPointsMap () const noexcept
	Faces inflated from points.
const List< objectMap > &	facesFromEdgesMap () const noexcept
	Faces inflated from edges.
const List< objectMap > &	facesFromFacesMap () const noexcept
	Faces originating from faces.
const labelList &	cellMap () const noexcept
	Old cell map.
const List< objectMap > &	cellsFromPointsMap () const noexcept
	Cells inflated from points.
const List< objectMap > &	cellsFromEdgesMap () const noexcept
	Cells inflated from edges.
const List< objectMap > &	cellsFromFacesMap () const noexcept
	Cells inflated from faces.
const List< objectMap > &	cellsFromCellsMap () const noexcept
	Cells originating from cells.
const labelList &	reversePointMap () const noexcept
	Reverse point map.
label	mergedPoint (const label oldPointi) const
	If point is removed return point (on new mesh) it merged.
const labelList &	reverseFaceMap () const noexcept
	Reverse face map.
label	mergedFace (const label oldFacei) const
	If face is removed return face (on new mesh) it merged into.
const labelList &	reverseCellMap () const noexcept
	Reverse cell map.
label	mergedCell (const label oldCelli) const
	If cell is removed return cell (on new mesh) it merged into.
const labelHashSet &	flipFaceFlux () const noexcept
	Map of flipped face flux faces.
const labelListList &	patchPointMap () const noexcept
	Patch point renumbering.
const labelListList &	pointZoneMap () const noexcept
	Point zone renumbering.
const labelListList &	faceZonePointMap () const noexcept
	Face zone point renumbering.
const labelListList &	faceZoneFaceMap () const noexcept
	Face zone face renumbering.
const labelListList &	cellZoneMap () const noexcept
	Cell zone renumbering.
const pointField &	preMotionPoints () const noexcept
	Pre-motion point positions.
bool	hasMotionPoints () const noexcept
	Has valid preMotionPoints?
const labelList &	oldPatchSizes () const noexcept
	Return list of the old patch sizes.
const labelList &	oldPatchStarts () const noexcept
	Return list of the old patch start labels.
const labelList &	oldPatchNMeshPoints () const noexcept
	Return numbers of mesh points per old patch.
bool	hasOldCellVolumes () const noexcept
const scalarField &	oldCellVolumes () const

Detailed Description

Class containing mesh-to-mesh mapping information after a change in polyMesh topology.

General:

pointMap/faceMap/cellMap:
from current mesh back to previous mesh. (so to 'pull' the information onto the current mesh)
reversePointMap/faceMap/cellMap:
from previous mesh to current. (so to 'push' information)

In the topology change points/faces/cells

can be unchanged. (faces might be renumbered though)
can be removed (into nothing)
can be removed into/merged with existing same entity (so point merged with other point, face with other face, cell with other cell. Note that probably only cell with cell is relevant)
can be added from existing same 'master' entity (so point from point, face from face and cell from cell)
can be inflated: face out of edge or point, cell out of face, edge or point.
can be appended: added 'out of nothing'.

All this information is necessary to correctly map fields.

points

unchanged:
- pointMap[pointi] contains old point label
- reversePointMap[oldPointi] contains new point label
removed:
- reversePointMap[oldPointi] contains -1
merged into point:
- reversePointMap[oldPointi] contains <-1 : -newPointi-2
- pointMap[pointi] contains the old master point label
- pointsFromPoints gives for pointi all the old point labels (including the old master point!)
added-from-same:
- pointMap[pointi] contains the old master point label
appended:
- pointMap[pointi] contains -1

faces

unchanged:
- faceMap[facei] contains old face label
- reverseFaceMap[oldFacei] contains new face label
removed:
- reverseFaceMap[oldFacei] contains -1
merged into face:
- reverseFaceMap[oldFacei] contains <-1 : -newFacei-2
- faceMap[facei] contains the old master face label
- facesFromFaces gives for facei all the old face labels (including the old master face!)
added-from-same:
- faceMap[facei] contains the old master face label
inflated-from-edge:
- faceMap[facei] contains -1
- facesFromEdges contains an entry with
  - facei
  - list of faces(*) on old mesh that connected to the old edge
inflated-from-point:
- faceMap[facei] contains -1
- facesFromPoints contains an entry with
  - facei
  - list of faces(*) on old mesh that connected to the old point
appended:
- faceMap[facei] contains -1

Note (*)
if the newly inflated face is a boundary face the list of faces will only be boundary faces; if the new face is an internal face they will only be internal faces.

cells

unchanged:
- cellMap[celli] contains old cell label
- reverseCellMap[oldCelli] contains new cell label
removed:
- reverseCellMap[oldCelli] contains -1
merged into cell:
- reverseCellMap[oldCelli] contains <-1 : -newCelli-2
- cellMap[celli] contains the old master cell label
- cellsFromCells gives for celli all the old cell labels (including the old master cell!)
added-from-same:
- cellMap[celli] contains the old master cell label
inflated-from-face:
- cellMap[celli] contains -1
- cellsFromFaces contains an entry with
  - celli
  - list of cells on old mesh that connected to the old face
inflated-from-edge:
- cellMap[celli] contains -1
- cellsFromEdges contains an entry with
  - celli
  - list of cells on old mesh that connected to the old edge
inflated-from-point:
- cellMap[celli] contains -1
- cellsFromPoints contains an entry with
  - celli
  - list of cells on old mesh that connected to the old point
appended:
- cellMap[celli] contains -1

Source files

Definition at line 158 of file mapPolyMesh.H.

Constructor & Destructor Documentation

◆ mapPolyMesh() [1/4]

mapPolyMesh ( const mapPolyMesh & )

delete

No copy construct.

References mapPolyMesh().

Referenced by mapPolyMesh(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mapPolyMesh() [2/4]

mapPolyMesh ( const polyMesh & mesh )

Construct from mesh.

Definition at line 27 of file mapPolyMesh.C.

References forAll, Foam::identity(), mesh(), nPoints, and points.

Here is the call graph for this function:

◆ mapPolyMesh() [3/4]

mapPolyMesh	(	const polyMesh &	mesh,
		const label	nOldPoints,
		const label	nOldFaces,
		const label	nOldCells,
		const labelList &	pointMap,
		const List< objectMap > &	pointsFromPoints,
		const labelList &	faceMap,
		const List< objectMap > &	facesFromPoints,
		const List< objectMap > &	facesFromEdges,
		const List< objectMap > &	facesFromFaces,
		const labelList &	cellMap,
		const List< objectMap > &	cellsFromPoints,
		const List< objectMap > &	cellsFromEdges,
		const List< objectMap > &	cellsFromFaces,
		const List< objectMap > &	cellsFromCells,
		const labelList &	reversePointMap,
		const labelList &	reverseFaceMap,
		const labelList &	reverseCellMap,
		const labelHashSet &	flipFaceFlux,
		const labelListList &	patchPointMap,
		const labelListList &	pointZoneMap,
		const labelListList &	faceZonePointMap,
		const labelListList &	faceZoneFaceMap,
		const labelListList &	cellZoneMap,
		const pointField &	preMotionPoints,
		const labelList &	oldPatchStarts,
		const labelList &	oldPatchNMeshPoints,
		const autoPtr< scalarField > &	oldCellVolumesPtr )

Copy construct from components, except for oldCellVolumes which is move construct.

Definition at line 92 of file mapPolyMesh.C.

References Foam::abort(), cellMap(), cellZoneMap(), faceMap(), faceZoneFaceMap(), faceZonePointMap(), Foam::FatalError, FatalErrorInFunction, flipFaceFlux(), if(), mesh(), Foam::min(), nOldCells(), nOldFaces(), nOldPoints(), oldPatchNMeshPoints(), oldPatchStarts(), patchPointMap(), pointMap(), pointZoneMap(), preMotionPoints(), reverseCellMap(), reverseFaceMap(), and reversePointMap().

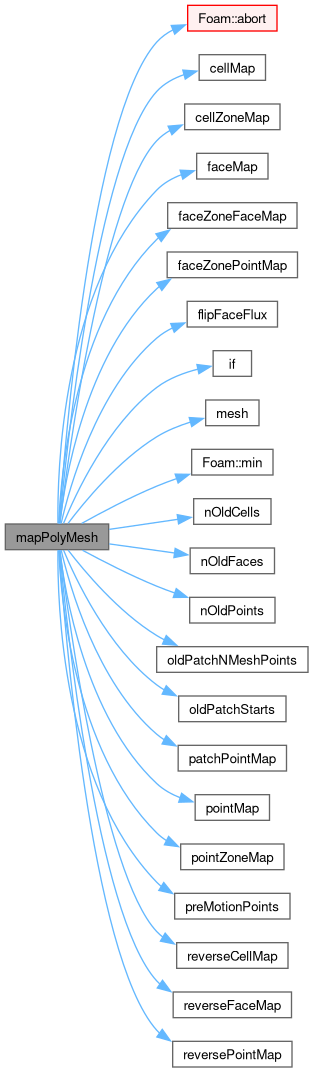

Here is the call graph for this function:

◆ mapPolyMesh() [4/4]

mapPolyMesh	(	const polyMesh &	mesh,
		const label	nOldPoints,
		const label	nOldFaces,
		const label	nOldCells,
		labelList &	pointMap,
		List< objectMap > &	pointsFromPoints,
		labelList &	faceMap,
		List< objectMap > &	facesFromPoints,
		List< objectMap > &	facesFromEdges,
		List< objectMap > &	facesFromFaces,
		labelList &	cellMap,
		List< objectMap > &	cellsFromPoints,
		List< objectMap > &	cellsFromEdges,
		List< objectMap > &	cellsFromFaces,
		List< objectMap > &	cellsFromCells,
		labelList &	reversePointMap,
		labelList &	reverseFaceMap,
		labelList &	reverseCellMap,
		labelHashSet &	flipFaceFlux,
		labelListList &	patchPointMap,
		labelListList &	pointZoneMap,
		labelListList &	faceZonePointMap,
		labelListList &	faceZoneFaceMap,
		labelListList &	cellZoneMap,
		pointField &	preMotionPoints,
		labelList &	oldPatchStarts,
		labelList &	oldPatchNMeshPoints,
		autoPtr< scalarField > &	oldCellVolumesPtr,
		const bool	reuse )

Construct from components and optionally reuse storage.

Definition at line 180 of file mapPolyMesh.C.

References Foam::abort(), cellMap(), cellZoneMap(), autoPtr< T >::clone(), faceMap(), faceZoneFaceMap(), faceZonePointMap(), Foam::FatalError, FatalErrorInFunction, flipFaceFlux(), if(), mesh(), Foam::min(), nOldCells(), nOldFaces(), nOldPoints(), oldPatchNMeshPoints(), oldPatchStarts(), patchPointMap(), pointMap(), pointZoneMap(), preMotionPoints(), reverseCellMap(), reverseFaceMap(), and reversePointMap().

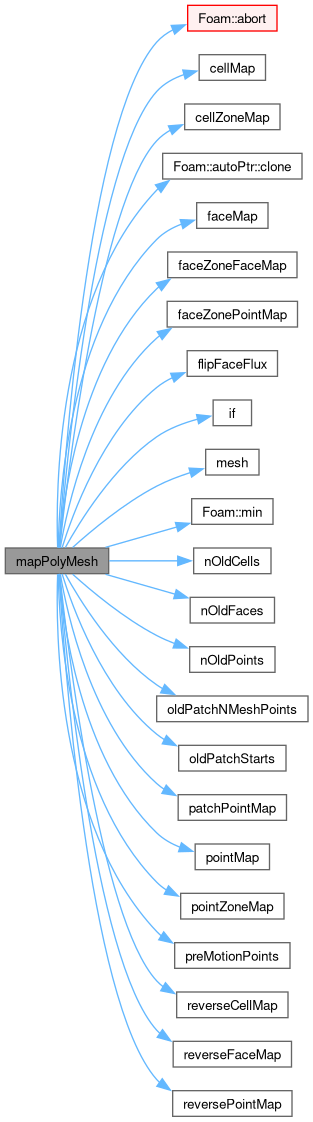

Here is the call graph for this function:

Member Function Documentation

◆ operator=()

void operator= ( const mapPolyMesh & )

delete

No copy assignment.

References cellMap(), cellZoneMap(), faceMap(), faceZoneFaceMap(), faceZonePointMap(), flipFaceFlux(), mapPolyMesh(), mesh(), nOldCells(), nOldFaces(), nOldPoints(), oldPatchNMeshPoints(), oldPatchStarts(), patchPointMap(), pointMap(), pointZoneMap(), preMotionPoints(), reverseCellMap(), reverseFaceMap(), and reversePointMap().

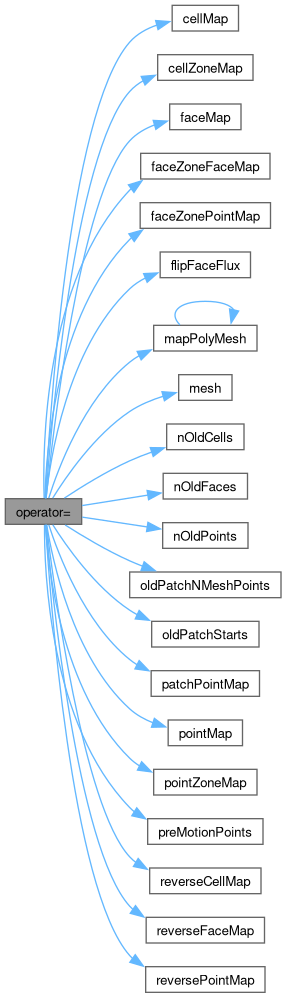

Here is the call graph for this function:

◆ mesh()

const polyMesh & mesh ( ) const

inlinenoexcept

Return polyMesh.

Definition at line 440 of file mapPolyMesh.H.

References Foam::noexcept.

Referenced by mapPolyMesh(), mapPolyMesh(), mapPolyMesh(), operator=(), derivedFields::updateMesh(), ObukhovLength::updateMesh(), streamLineBase::updateMesh(), hexRef8Data::updateMesh(), probeModel::updateMesh(), sampledSets::updateMesh(), and sampledSurfaces::updateMesh().

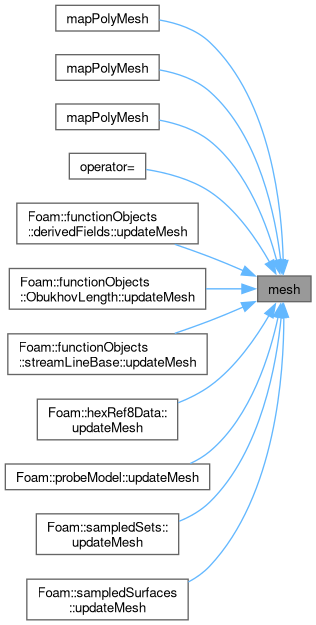

Here is the caller graph for this function:

◆ nOldPoints()

label nOldPoints ( ) const

inlinenoexcept

Number of old points.

Definition at line 448 of file mapPolyMesh.H.

References Foam::noexcept.

Referenced by mapPolyMesh(), mapPolyMesh(), operator=(), hexRef8::updateMesh(), and hexRef8Data::updateMesh().

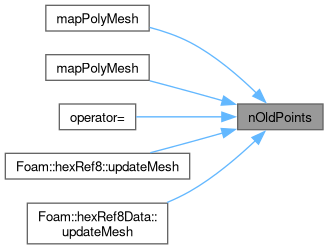

Here is the caller graph for this function:

◆ nOldInternalFaces()

label nOldInternalFaces ( ) const

inline

Number of old internal faces.

Definition at line 456 of file mapPolyMesh.H.

◆ nOldFaces()

label nOldFaces ( ) const

inlinenoexcept

Number of old faces.

Definition at line 464 of file mapPolyMesh.H.

References Foam::noexcept.

Referenced by snappyLayerDriver::addLayers(), fvMesh::mapFields(), mapPolyMesh(), mapPolyMesh(), and operator=().

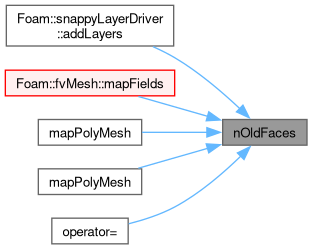

Here is the caller graph for this function:

◆ nOldCells()

label nOldCells ( ) const

inlinenoexcept

Number of old cells.

Definition at line 472 of file mapPolyMesh.H.

References Foam::noexcept.

Referenced by snappyLayerDriver::addLayers(), dynamicRefineFvMesh::mapFields(), fvMesh::mapFields(), mapPolyMesh(), mapPolyMesh(), operator=(), fvMesh::updateMesh(), hexRef8::updateMesh(), and hexRef8Data::updateMesh().

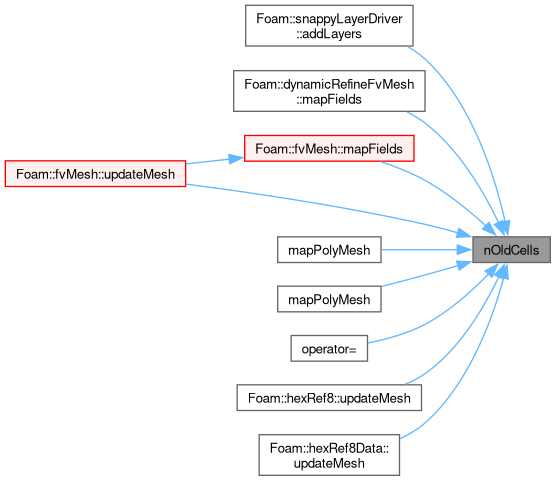

Here is the caller graph for this function:

◆ pointMap()

const labelList & pointMap ( ) const

inlinenoexcept

Old point map.

Contains the old point label for all new points. For preserved points this is the old point label. For added points this is the master point ID

Definition at line 484 of file mapPolyMesh.H.

References Foam::noexcept.

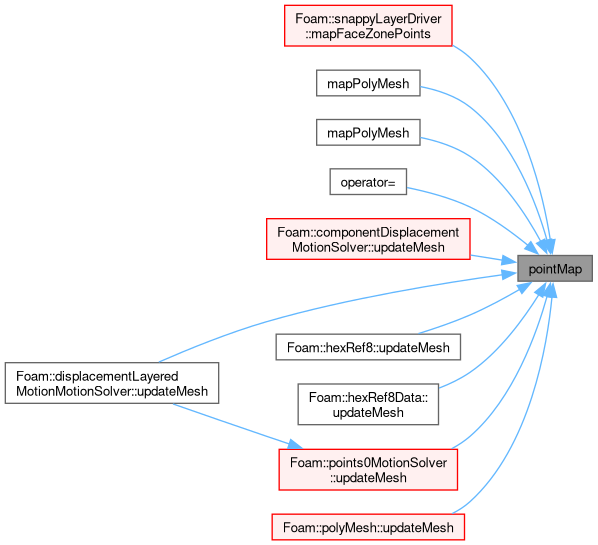

Referenced by snappyLayerDriver::mapFaceZonePoints(), mapPolyMesh(), mapPolyMesh(), operator=(), componentDisplacementMotionSolver::updateMesh(), displacementLayeredMotionMotionSolver::updateMesh(), hexRef8::updateMesh(), hexRef8Data::updateMesh(), points0MotionSolver::updateMesh(), and polyMesh::updateMesh().

Here is the caller graph for this function:

◆ pointsFromPointsMap()

const List< objectMap > & pointsFromPointsMap ( ) const

inlinenoexcept

Points originating from points.

Definition at line 492 of file mapPolyMesh.H.

References Foam::noexcept.

◆ faceMap()

const labelList & faceMap ( ) const

inlinenoexcept

Old face map.

Contains a list of old face labels for every new face. Warning: this map contains invalid entries for new faces

Definition at line 503 of file mapPolyMesh.H.

References Foam::noexcept.

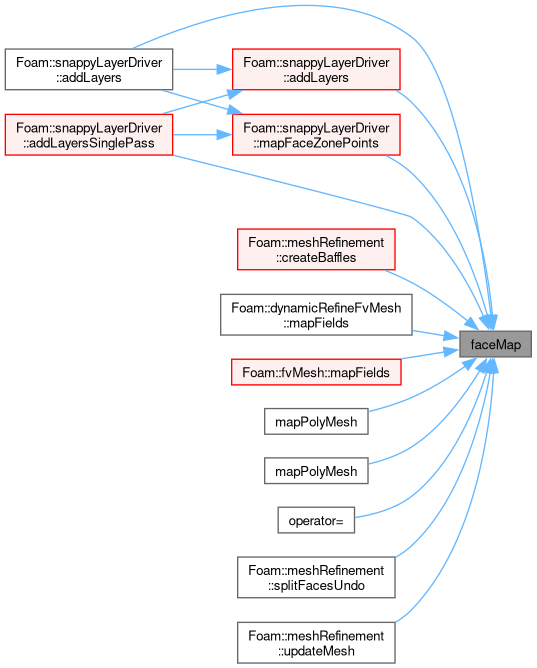

Referenced by snappyLayerDriver::addLayers(), snappyLayerDriver::addLayers(), snappyLayerDriver::addLayersSinglePass(), meshRefinement::createBaffles(), snappyLayerDriver::mapFaceZonePoints(), dynamicRefineFvMesh::mapFields(), fvMesh::mapFields(), mapPolyMesh(), mapPolyMesh(), operator=(), meshRefinement::splitFacesUndo(), and meshRefinement::updateMesh().

Here is the caller graph for this function:

◆ facesFromPointsMap()

const List< objectMap > & facesFromPointsMap ( ) const

inlinenoexcept

Faces inflated from points.

Definition at line 511 of file mapPolyMesh.H.

References Foam::noexcept.

◆ facesFromEdgesMap()

const List< objectMap > & facesFromEdgesMap ( ) const

inlinenoexcept

Faces inflated from edges.

Definition at line 519 of file mapPolyMesh.H.

References Foam::noexcept.

◆ facesFromFacesMap()

const List< objectMap > & facesFromFacesMap ( ) const

inlinenoexcept

Faces originating from faces.

Definition at line 527 of file mapPolyMesh.H.

References Foam::noexcept.

◆ cellMap()

const labelList & cellMap ( ) const

inlinenoexcept

Old cell map.

Contains old cell label for all preserved cells.

Definition at line 537 of file mapPolyMesh.H.

References Foam::noexcept.

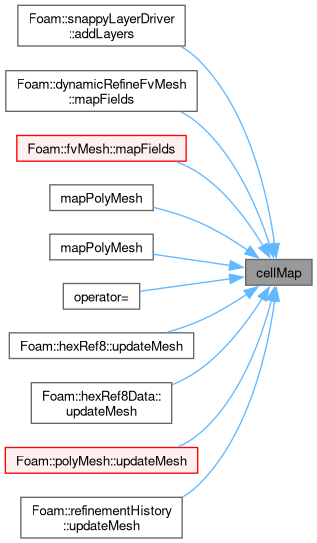

Referenced by snappyLayerDriver::addLayers(), dynamicRefineFvMesh::mapFields(), fvMesh::mapFields(), mapPolyMesh(), mapPolyMesh(), operator=(), hexRef8::updateMesh(), hexRef8Data::updateMesh(), polyMesh::updateMesh(), and refinementHistory::updateMesh().

Here is the caller graph for this function:

◆ cellsFromPointsMap()

const List< objectMap > & cellsFromPointsMap ( ) const

inlinenoexcept

Cells inflated from points.

Definition at line 545 of file mapPolyMesh.H.

References Foam::noexcept.

◆ cellsFromEdgesMap()

const List< objectMap > & cellsFromEdgesMap ( ) const

inlinenoexcept

Cells inflated from edges.

Definition at line 553 of file mapPolyMesh.H.

References Foam::noexcept.

◆ cellsFromFacesMap()

const List< objectMap > & cellsFromFacesMap ( ) const

inlinenoexcept

Cells inflated from faces.

Definition at line 561 of file mapPolyMesh.H.

References Foam::noexcept.

◆ cellsFromCellsMap()

const List< objectMap > & cellsFromCellsMap ( ) const

inlinenoexcept

Cells originating from cells.

Definition at line 569 of file mapPolyMesh.H.

References Foam::noexcept.

Referenced by dynamicRefineFvMesh::mapFields().

Here is the caller graph for this function:

◆ reversePointMap()

const labelList & reversePointMap ( ) const

inlinenoexcept

Reverse point map.

Contains new point label for all old and added points

Definition at line 582 of file mapPolyMesh.H.

References Foam::noexcept.

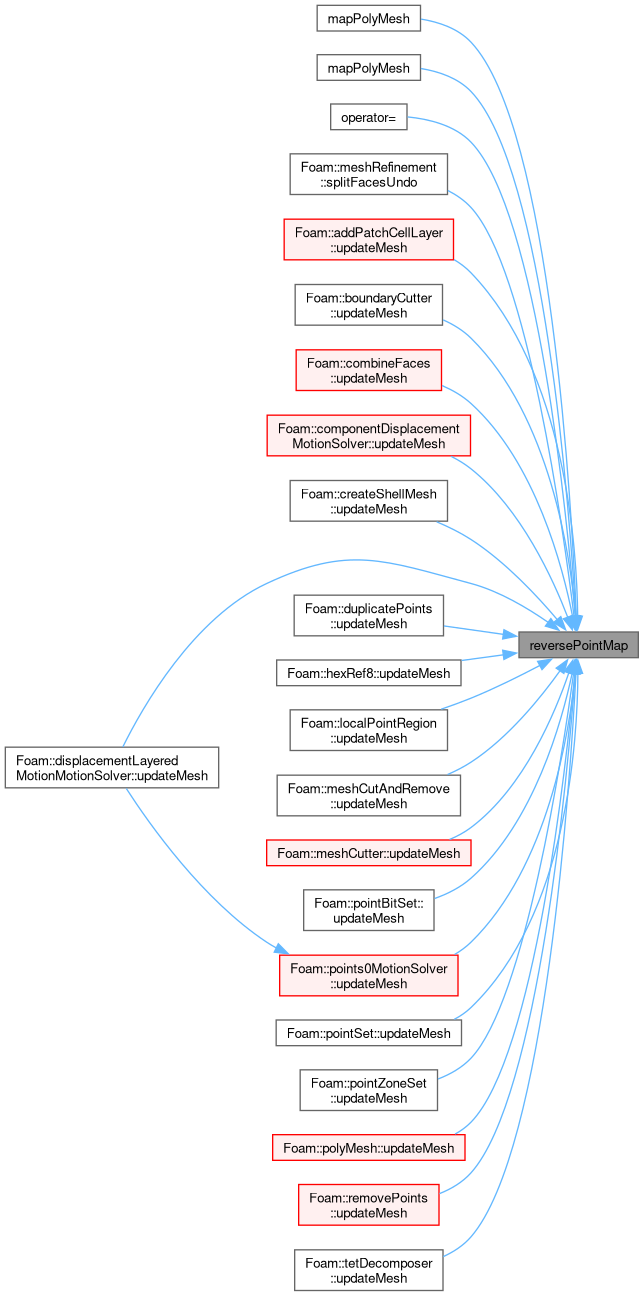

Referenced by mapPolyMesh(), mapPolyMesh(), operator=(), meshRefinement::splitFacesUndo(), addPatchCellLayer::updateMesh(), boundaryCutter::updateMesh(), combineFaces::updateMesh(), componentDisplacementMotionSolver::updateMesh(), createShellMesh::updateMesh(), displacementLayeredMotionMotionSolver::updateMesh(), duplicatePoints::updateMesh(), hexRef8::updateMesh(), localPointRegion::updateMesh(), meshCutAndRemove::updateMesh(), meshCutter::updateMesh(), pointBitSet::updateMesh(), points0MotionSolver::updateMesh(), pointSet::updateMesh(), pointZoneSet::updateMesh(), polyMesh::updateMesh(), removePoints::updateMesh(), and tetDecomposer::updateMesh().

Here is the caller graph for this function:

◆ mergedPoint()

label mergedPoint ( const label oldPointi ) const

inline

If point is removed return point (on new mesh) it merged.

into

Definition at line 592 of file mapPolyMesh.H.

References Foam::abort(), Foam::endl(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

◆ reverseFaceMap()

const labelList & reverseFaceMap ( ) const

inlinenoexcept

Reverse face map.

Contains new face label for all old and added faces

Definition at line 620 of file mapPolyMesh.H.

References Foam::noexcept.

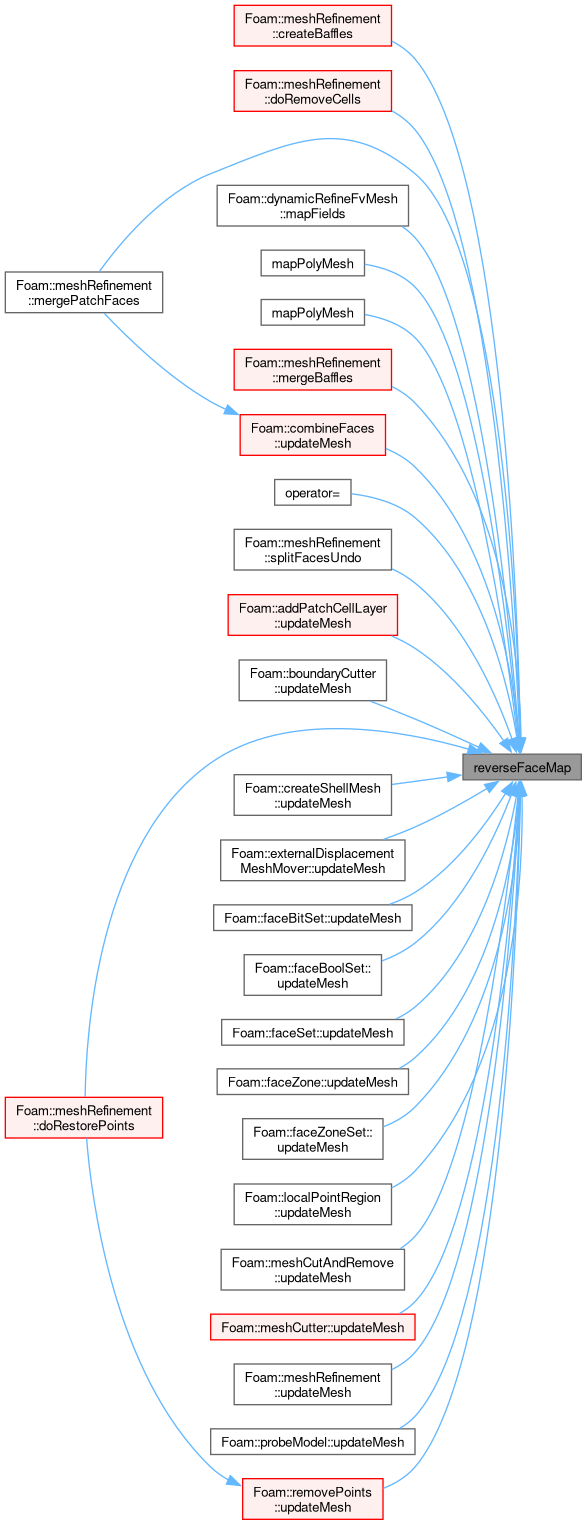

Referenced by meshRefinement::createBaffles(), meshRefinement::doRemoveCells(), meshRefinement::doRestorePoints(), dynamicRefineFvMesh::mapFields(), mapPolyMesh(), mapPolyMesh(), meshRefinement::mergeBaffles(), meshRefinement::mergePatchFaces(), operator=(), meshRefinement::splitFacesUndo(), addPatchCellLayer::updateMesh(), boundaryCutter::updateMesh(), combineFaces::updateMesh(), createShellMesh::updateMesh(), externalDisplacementMeshMover::updateMesh(), faceBitSet::updateMesh(), faceBoolSet::updateMesh(), faceSet::updateMesh(), faceZone::updateMesh(), faceZoneSet::updateMesh(), localPointRegion::updateMesh(), meshCutAndRemove::updateMesh(), meshCutter::updateMesh(), meshRefinement::updateMesh(), probeModel::updateMesh(), and removePoints::updateMesh().

Here is the caller graph for this function:

◆ mergedFace()

label mergedFace ( const label oldFacei ) const

inline

If face is removed return face (on new mesh) it merged into.

Definition at line 628 of file mapPolyMesh.H.

References Foam::abort(), Foam::endl(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

◆ reverseCellMap()

const labelList & reverseCellMap ( ) const

inlinenoexcept

Reverse cell map.

Contains new cell label for all old and added cells

Definition at line 656 of file mapPolyMesh.H.

References Foam::noexcept.

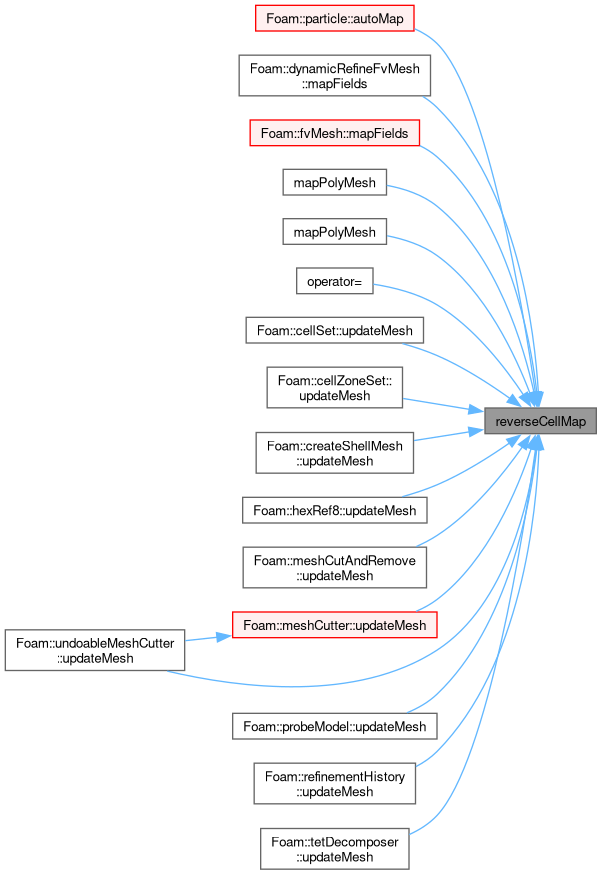

Referenced by particle< Type >::autoMap(), dynamicRefineFvMesh::mapFields(), fvMesh::mapFields(), mapPolyMesh(), mapPolyMesh(), operator=(), cellSet::updateMesh(), cellZoneSet::updateMesh(), createShellMesh::updateMesh(), hexRef8::updateMesh(), meshCutAndRemove::updateMesh(), meshCutter::updateMesh(), probeModel::updateMesh(), refinementHistory::updateMesh(), tetDecomposer::updateMesh(), and undoableMeshCutter::updateMesh().

Here is the caller graph for this function:

◆ mergedCell()

label mergedCell ( const label oldCelli ) const

inline

If cell is removed return cell (on new mesh) it merged into.

Definition at line 664 of file mapPolyMesh.H.

References Foam::abort(), Foam::endl(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

◆ flipFaceFlux()

const labelHashSet & flipFaceFlux ( ) const

inlinenoexcept

Map of flipped face flux faces.

Definition at line 690 of file mapPolyMesh.H.

References Foam::noexcept.

Referenced by mapPolyMesh(), mapPolyMesh(), and operator=().

Here is the caller graph for this function:

◆ patchPointMap()

const labelListList & patchPointMap ( ) const

inlinenoexcept

Patch point renumbering.

For every preserved point on a patch give the old position. For added points, the index is set to -1

Definition at line 701 of file mapPolyMesh.H.

References Foam::noexcept.

Referenced by mapPolyMesh(), mapPolyMesh(), and operator=().

Here is the caller graph for this function:

◆ pointZoneMap()

const labelListList & pointZoneMap ( ) const

inlinenoexcept

Point zone renumbering.

For every preserved point in zone give the old position. For added points, the index is set to -1

Definition at line 715 of file mapPolyMesh.H.

References Foam::noexcept.

Referenced by mapPolyMesh(), mapPolyMesh(), and operator=().

Here is the caller graph for this function:

◆ faceZonePointMap()

const labelListList & faceZonePointMap ( ) const

inlinenoexcept

Face zone point renumbering.

For every preserved point in zone give the old position. For added points, the index is set to -1

Definition at line 726 of file mapPolyMesh.H.

References Foam::noexcept.

Referenced by mapPolyMesh(), mapPolyMesh(), and operator=().

Here is the caller graph for this function:

◆ faceZoneFaceMap()

const labelListList & faceZoneFaceMap ( ) const

inlinenoexcept

Face zone face renumbering.

For every preserved face in zone give the old position. For added faces, the index is set to -1

Definition at line 737 of file mapPolyMesh.H.

References Foam::noexcept.

Referenced by mapPolyMesh(), mapPolyMesh(), and operator=().

Here is the caller graph for this function:

◆ cellZoneMap()

const labelListList & cellZoneMap ( ) const

inlinenoexcept

Cell zone renumbering.

For every preserved cell in zone give the old position. For added cells, the index is set to -1

Definition at line 748 of file mapPolyMesh.H.

References Foam::noexcept.

Referenced by mapPolyMesh(), mapPolyMesh(), and operator=().

Here is the caller graph for this function:

◆ preMotionPoints()

const pointField & preMotionPoints ( ) const

inlinenoexcept

Pre-motion point positions.

This specifies the correct way of blowing up zero-volume objects

Definition at line 759 of file mapPolyMesh.H.

References Foam::noexcept.

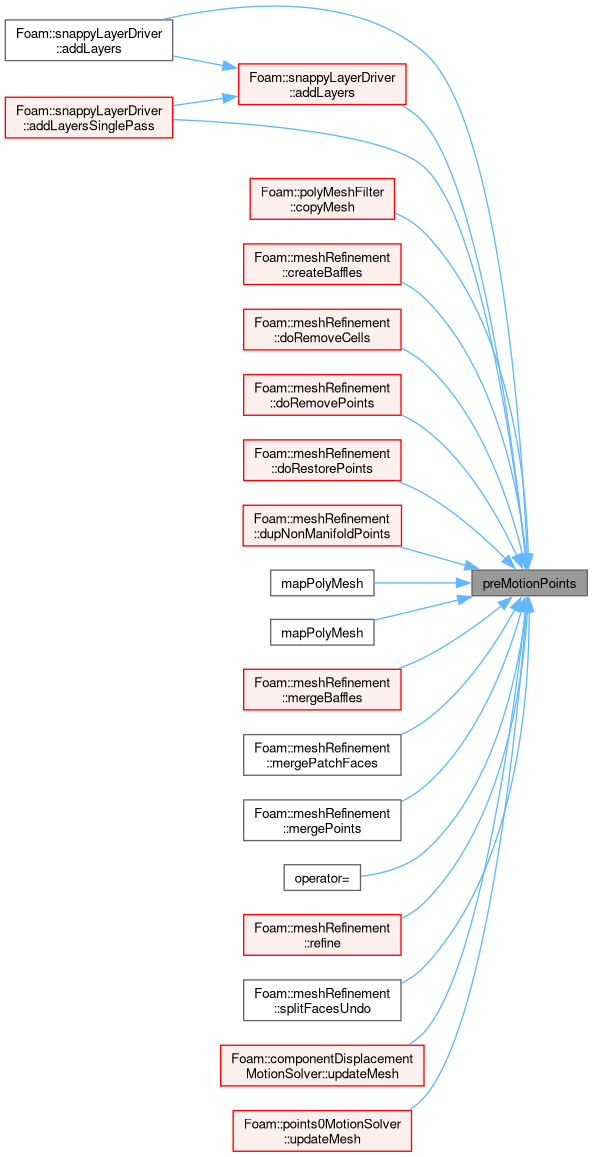

Here is the caller graph for this function:

◆ hasMotionPoints()

bool hasMotionPoints ( ) const

inlinenoexcept

Has valid preMotionPoints?

Definition at line 767 of file mapPolyMesh.H.

References Foam::noexcept.

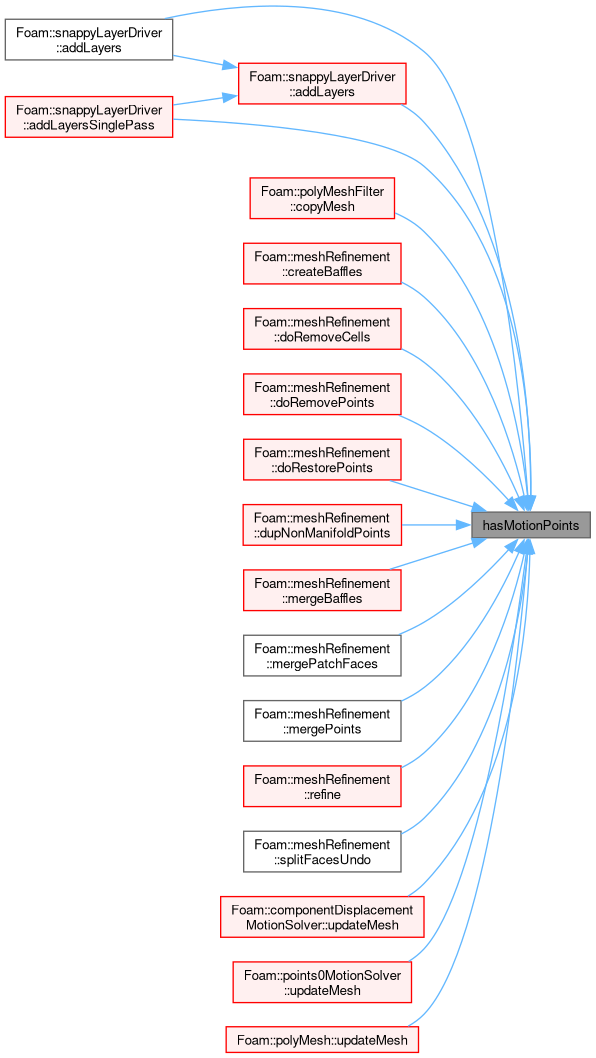

Referenced by snappyLayerDriver::addLayers(), snappyLayerDriver::addLayers(), snappyLayerDriver::addLayersSinglePass(), polyMeshFilter::copyMesh(), meshRefinement::createBaffles(), meshRefinement::doRemoveCells(), meshRefinement::doRemovePoints(), meshRefinement::doRestorePoints(), meshRefinement::dupNonManifoldPoints(), meshRefinement::mergeBaffles(), meshRefinement::mergePatchFaces(), meshRefinement::mergePoints(), meshRefinement::refine(), meshRefinement::splitFacesUndo(), componentDisplacementMotionSolver::updateMesh(), points0MotionSolver::updateMesh(), and polyMesh::updateMesh().

Here is the caller graph for this function:

◆ oldPatchSizes()

const labelList & oldPatchSizes ( ) const

inlinenoexcept

Return list of the old patch sizes.

Definition at line 776 of file mapPolyMesh.H.

References Foam::noexcept.

◆ oldPatchStarts()

const labelList & oldPatchStarts ( ) const

inlinenoexcept

Return list of the old patch start labels.

Definition at line 784 of file mapPolyMesh.H.

References Foam::noexcept.

Referenced by mapPolyMesh(), mapPolyMesh(), and operator=().

Here is the caller graph for this function:

◆ oldPatchNMeshPoints()

const labelList & oldPatchNMeshPoints ( ) const

inlinenoexcept

Return numbers of mesh points per old patch.

Definition at line 792 of file mapPolyMesh.H.

References Foam::noexcept.

Referenced by mapPolyMesh(), mapPolyMesh(), and operator=().

Here is the caller graph for this function:

◆ hasOldCellVolumes()

bool hasOldCellVolumes ( ) const

inlinenoexcept

Definition at line 800 of file mapPolyMesh.H.

References Foam::noexcept.

◆ oldCellVolumes()

const scalarField & oldCellVolumes ( ) const

inline

Definition at line 805 of file mapPolyMesh.H.

Referenced by fvMesh::updateMesh().

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/OpenFOAM/meshes/polyMesh/mapPolyMesh/mapPolyMesh.H
src/OpenFOAM/meshes/polyMesh/mapPolyMesh/mapPolyMesh.C

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ mapPolyMesh() [1/4]

◆ mapPolyMesh() [2/4]

◆ mapPolyMesh() [3/4]

◆ mapPolyMesh() [4/4]

Member Function Documentation

◆ operator=()

◆ mesh()

◆ nOldPoints()

◆ nOldInternalFaces()

◆ nOldFaces()

◆ nOldCells()

◆ pointMap()

◆ pointsFromPointsMap()

◆ faceMap()

◆ facesFromPointsMap()

◆ facesFromEdgesMap()

◆ facesFromFacesMap()

◆ cellMap()

◆ cellsFromPointsMap()

◆ cellsFromEdgesMap()

◆ cellsFromFacesMap()

◆ cellsFromCellsMap()

◆ reversePointMap()

◆ mergedPoint()

◆ reverseFaceMap()

◆ mergedFace()

◆ reverseCellMap()

◆ mergedCell()

◆ flipFaceFlux()

◆ patchPointMap()

◆ pointZoneMap()

◆ faceZonePointMap()

◆ faceZoneFaceMap()

◆ cellZoneMap()

◆ preMotionPoints()

◆ hasMotionPoints()

◆ oldPatchSizes()

◆ oldPatchStarts()

◆ oldPatchNMeshPoints()

◆ hasOldCellVolumes()

◆ oldCellVolumes()
