LegendreMagnaudet Class Reference

Lift model of Legendre and Magnaudet. More...

#include <LegendreMagnaudet.H>

Inheritance diagram for LegendreMagnaudet:
Inheritance graph
[legend]
Collaboration diagram for LegendreMagnaudet:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("LegendreMagnaudet")
 Runtime type information.
 LegendreMagnaudet (const dictionary &dict, const phasePair &pair)
 Construct from a dictionary and a phase pair.
virtual ~LegendreMagnaudet ()
 Destructor.
virtual tmp< volScalarField > Cl () const
 Lift coefficient.
 TypeName ("LegendreMagnaudet")
 Runtime type information.
 LegendreMagnaudet (const dictionary &dict, const phasePair &pair)
 Construct from a dictionary and a phase pair.
virtual ~LegendreMagnaudet ()
 Destructor.
virtual tmp< volScalarField > Cl () const
 Lift coefficient.
Public Member Functions inherited from liftModel
 TypeName ("liftModel")
 Runtime type information.
 declareRunTimeSelectionTable (autoPtr, liftModel, dictionary,(const dictionary &dict, const phasePair &pair),(dict, pair))
 liftModel (const dictionary &dict, const phasePair &pair)
 Construct from a dictionary and a phase pair.
virtual ~liftModel ()=default
 Destructor.
virtual tmp< volVectorField > Fi () const
 Return phase-intensive lift force.
virtual tmp< volVectorField > F () const
 Return lift force.
virtual tmp< surfaceScalarField > Ff () const
 Return face lift force.
 TypeName ("liftModel")
 Runtime type information.
 declareRunTimeSelectionTable (autoPtr, liftModel, dictionary,(const dictionary &dict, const phasePair &pair),(dict, pair))
 liftModel (const dictionary &dict, const phasePair &pair)
 Construct from a dictionary and a phase pair.
virtual ~liftModel ()=default
 Destructor.
virtual tmp< volVectorField > Fi () const
 Return phase-intensive lift force.
virtual tmp< volVectorField > F () const
 Return lift force.
virtual tmp< surfaceScalarField > Ff () const
 Return face lift force.

Additional Inherited Members

Static Public Member Functions inherited from liftModel
static autoPtr< liftModel > New (const dictionary &dict, const phasePair &pair)
static autoPtr< liftModel > New (const dictionary &dict, const phasePair &pair)
Static Public Attributes inherited from liftModel
static const dimensionSet dimF
 Force dimensions.
Protected Attributes inherited from liftModel
const phasePair & pair_
 Phase pair.

Detailed Description

Lift model of Legendre and Magnaudet.

References:

    Otromke, M. (2013).
    Implementation and Comparison of Correlations for interfacial Forces in
    a Gas-Liquid System within an Euler-Euler Framework.
    PhD Thesis.

    Legendre, D., & Magnaudet, J. (1998).
    The lift force on a spherical bubble in a viscous linear shear flow.
    Journal of Fluid Mechanics, 368, 81-126.
Source files

References:

    "Implementation and Comparison of Correlations for interfacial Forces
    in a Gas-Liquid System within an Euler-Euler Framework"
    Otromke, M.
    PhD Thesis
    April 2013

    "The lift force on a spherical bubble in a viscous linear shear flow"
    Legendre, D., Magnaudet, J.,
    Journal of Fluid Mechanics
    Volume 368, August 1998, pp. 81-126
Source files

Definition at line 65 of file LegendreMagnaudet.H.

Constructor & Destructor Documentation

◆ LegendreMagnaudet() [1/2]

LegendreMagnaudet ( const dictionary & dict,
const phasePair & pair )

Construct from a dictionary and a phase pair.

Definition at line 40 of file LegendreMagnaudet.C.

References dict, Foam::dimless, and liftModel::liftModel().

Here is the call graph for this function:

◆ ~LegendreMagnaudet() [1/2]

~LegendreMagnaudet ( )
virtual

Destructor.

Definition at line 53 of file LegendreMagnaudet.C.

◆ LegendreMagnaudet() [2/2]

LegendreMagnaudet ( const dictionary & dict,
const phasePair & pair )

Construct from a dictionary and a phase pair.

References dict.

◆ ~LegendreMagnaudet() [2/2]

virtual ~LegendreMagnaudet ( )
virtual

Destructor.

Member Function Documentation

◆ TypeName() [1/2]

TypeName ( "LegendreMagnaudet" )

Runtime type information.

References dict.

◆ Cl() [1/2]

Foam::tmp< Foam::volScalarField > Cl ( ) const
virtual

Lift coefficient.

Implements liftModel.

Definition at line 59 of file LegendreMagnaudet.C.

References Foam::fvc::grad(), Foam::mag(), Foam::max(), liftModel::pair_, Foam::constant::mathematical::pi(), Foam::pow3(), Foam::pow4(), Foam::Re(), Foam::sqr(), and Foam::sqrt().

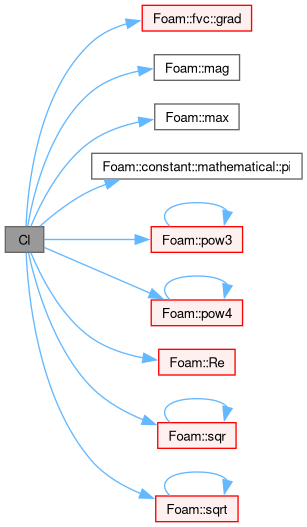

Here is the call graph for this function:

◆ TypeName() [2/2]

TypeName ( "LegendreMagnaudet" )

Runtime type information.

◆ Cl() [2/2]

virtual tmp< volScalarField > Cl ( ) const
virtual

Lift coefficient.

Implements liftModel.

The documentation for this class was generated from the following files:
  • src/phaseSystemModels/reactingEuler/multiphaseSystem/interfacialModels/liftModels/LegendreMagnaudet/LegendreMagnaudet.H
  • src/phaseSystemModels/twoPhaseEuler/twoPhaseSystem/interfacialModels/liftModels/LegendreMagnaudet/LegendreMagnaudet.H
  • src/phaseSystemModels/reactingEuler/multiphaseSystem/interfacialModels/liftModels/LegendreMagnaudet/LegendreMagnaudet.C
  • src/phaseSystemModels/twoPhaseEuler/twoPhaseSystem/interfacialModels/liftModels/LegendreMagnaudet/LegendreMagnaudet.C
