linearUpwindNormal interpolation scheme class derived from upwind and returns upwind weighting factors and also applies a gradient-based explicit correction. The magnitude of the correcting gradient is equal to 1 More...

#include <linearUpwindNormal.H>

Inheritance diagram for linearUpwindNormal< Type >:

[legend]

Collaboration diagram for linearUpwindNormal< Type >:

[legend]

Public Member Functions
	TypeName ("linearUpwindNormal")
	Runtime type information.
	linearUpwindNormal (const fvMesh &mesh, const surfaceScalarField &faceFlux)
	Construct from faceFlux.
	linearUpwindNormal (const fvMesh &mesh, Istream &schemeData)
	Construct from Istream.
	linearUpwindNormal (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData)
	Construct from faceFlux and Istream.
virtual bool	corrected () const
	Return true if this scheme uses an explicit correction.
virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	correction (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the explicit correction to the face-interpolate.
Public Member Functions inherited from upwind< Type >
	TypeName ("upwind")
	Runtime type information.
	upwind (const fvMesh &mesh, const surfaceScalarField &faceFlux)
	Construct from faceFlux.
	upwind (const fvMesh &mesh, Istream &is)
	Construct from Istream.
	upwind (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &)
	Construct from faceFlux and Istream.
virtual tmp< surfaceScalarField >	limiter (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the interpolation limiter.
tmp< surfaceScalarField >	weights () const
	Return the interpolation weighting factors.
virtual tmp< surfaceScalarField >	weights (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the interpolation weighting factors.
Public Member Functions inherited from limitedSurfaceInterpolationScheme< Type >
	TypeName ("limitedSurfaceInterpolationScheme")
	Runtime type information.
	declareRunTimeSelectionTable (tmp, limitedSurfaceInterpolationScheme, Mesh,(const fvMesh &mesh, Istream &schemeData),(mesh, schemeData))
	declareRunTimeSelectionTable (tmp, limitedSurfaceInterpolationScheme, MeshFlux,(const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData),(mesh, faceFlux, schemeData))
	limitedSurfaceInterpolationScheme (const fvMesh &mesh, const surfaceScalarField &faceFlux)
	Construct from mesh and faceFlux.
	limitedSurfaceInterpolationScheme (const fvMesh &mesh, Istream &is)
	Construct from mesh and Istream.
virtual	~limitedSurfaceInterpolationScheme ()
	Destructor.
tmp< surfaceScalarField >	weights (const GeometricField< Type, fvPatchField, volMesh > &, const surfaceScalarField &CDweights, tmp< surfaceScalarField > tLimiter) const
	Return the interpolation weighting factors for the given field,.
virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	flux (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the interpolation weighting factors.
Public Member Functions inherited from surfaceInterpolationScheme< Type >
	TypeName ("surfaceInterpolationScheme")
	Runtime type information.
	declareRunTimeSelectionTable (tmp, surfaceInterpolationScheme, Mesh,(const fvMesh &mesh, Istream &schemeData),(mesh, schemeData))
	declareRunTimeSelectionTable (tmp, surfaceInterpolationScheme, MeshFlux,(const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData),(mesh, faceFlux, schemeData))
	surfaceInterpolationScheme (const fvMesh &mesh)
	Construct from mesh.
virtual	~surfaceInterpolationScheme ()=default
	Destructor.
const fvMesh &	mesh () const
	Return mesh reference.
virtual tmp< GeometricField< typename innerProduct< vector, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf) const
	Return the face-interpolate of the given cell field.
tmp< GeometricField< typename innerProduct< vector, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const tmp< GeometricField< Type, fvPatchField, volMesh > > &) const
	Return the face-interpolate of the given tmp cell field.
virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the face-interpolate of the given cell field.
tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const tmp< GeometricField< Type, fvPatchField, volMesh > > &) const
	Return the face-interpolate of the given tmp cell field.
template<class SFType>
Foam::tmp< Foam::GeometricField< typename Foam::innerProduct< typename SFType::value_type, Type >::type, Foam::fvsPatchField, Foam::surfaceMesh > >	dotInterpolate (const SFType &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf, const tmp< surfaceScalarField > &tlambdas)
tmp< GeometricField< typename innerProduct< vector, scalar >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< scalar, fvPatchField, volMesh > &) const
Foam::tmp< Foam::GeometricField< typename Foam::innerProduct< Foam::vector, Foam::scalar >::type, Foam::fvsPatchField, Foam::surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< scalar, fvPatchField, volMesh > &) const
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Additional Inherited Members
Static Public Member Functions inherited from limitedSurfaceInterpolationScheme< Type >
static tmp< limitedSurfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< limitedSurfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData)
	Return new tmp interpolation scheme.
Static Public Member Functions inherited from surfaceInterpolationScheme< Type >
static tmp< surfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< surfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &, const tmp< surfaceScalarField > &, const tmp< surfaceScalarField > &)
	Return the face-interpolate of the given cell field.
template<class SFType>
static tmp< GeometricField< typename innerProduct< typename SFType::value_type, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const SFType &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf, const tmp< surfaceScalarField > &tlambdas)
	Return the face-interpolate of the given cell field.
static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &, const tmp< surfaceScalarField > &)
	Return the face-interpolate of the given cell field.
Protected Attributes inherited from limitedSurfaceInterpolationScheme< Type >
const surfaceScalarField &	faceFlux_

Detailed Description

template<class Type>
class Foam::linearUpwindNormal< Type >

linearUpwindNormal interpolation scheme class derived from upwind and returns upwind weighting factors and also applies a gradient-based explicit correction. The magnitude of the correcting gradient is equal to 1

Source files

Definition at line 53 of file linearUpwindNormal.H.

Constructor & Destructor Documentation

◆ linearUpwindNormal() [1/3]

template<class Type>

linearUpwindNormal	(	const fvMesh &	mesh,
		const surfaceScalarField &	faceFlux )

inline

Construct from faceFlux.

Definition at line 89 of file linearUpwindNormal.H.

References surfaceInterpolationScheme< Type >::mesh(), and upwind< Type >::upwind().

Here is the call graph for this function:

◆ linearUpwindNormal() [2/3]

template<class Type>

linearUpwindNormal	(	const fvMesh &	mesh,
		Istream &	schemeData )

inline

Construct from Istream.

The name of the flux field is read from the Istream and looked-up from the mesh objectRegistry

Definition at line 109 of file linearUpwindNormal.H.

References surfaceInterpolationScheme< Type >::mesh(), limitedSurfaceInterpolationScheme< Type >::New(), and upwind< Type >::upwind().

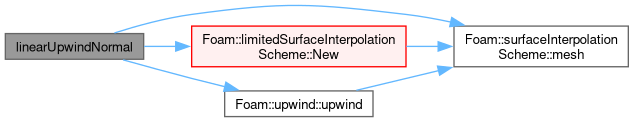

Here is the call graph for this function:

◆ linearUpwindNormal() [3/3]

template<class Type>

linearUpwindNormal	(	const fvMesh &	mesh,
		const surfaceScalarField &	faceFlux,
		Istream &	schemeData )

inline

Construct from faceFlux and Istream.

Definition at line 130 of file linearUpwindNormal.H.

References surfaceInterpolationScheme< Type >::mesh(), limitedSurfaceInterpolationScheme< Type >::New(), and upwind< Type >::upwind().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

template<class Type>

TypeName ( "linearUpwindNormal< Type >" )

Runtime type information.

◆ corrected()

template<class Type>

virtual bool corrected ( ) const

inlinevirtual

Return true if this scheme uses an explicit correction.

Reimplemented from surfaceInterpolationScheme< Type >.

Definition at line 155 of file linearUpwindNormal.H.

◆ correction()

template<class Type>

Foam::tmp< Foam::GeometricField< Type, Foam::fvsPatchField, Foam::surfaceMesh > > correction ( const GeometricField< Type, fvPatchField, volMesh > & vf ) const

virtual

Return the explicit correction to the face-interpolate.

Reimplemented from surfaceInterpolationScheme< Type >.

Definition at line 30 of file linearUpwindNormal.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), fvsPatchFieldBase::coupled(), DimensionedField< Type, GeoMesh >::dimensions(), limitedSurfaceInterpolationScheme< Type >::faceFlux_, forAll, Foam::mag(), surfaceInterpolationScheme< Type >::mesh(), mesh, IOobject::name(), IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, and Foam::Zero.

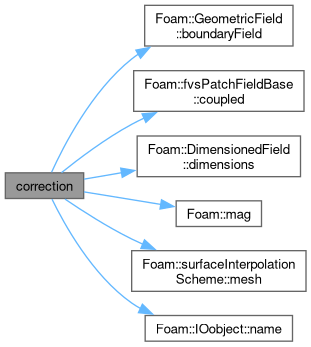

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/finiteVolume/interpolation/surfaceInterpolation/schemes/limitedSchemes/linearUpwindNormal/linearUpwindNormal.H
src/optimisation/adjointOptimisation/adjoint/finiteVolume/interpolation/surfaceInterpolation/schemes/limitedSchemes/linearUpwindNormal/linearUpwindNormal.C
