Generic thermophysical properties class for a liquid in which the functions and coefficients for each property are run-time selected. More...

#include <liquid.H>

Inheritance diagram for liquid:

[legend]

Collaboration diagram for liquid:

[legend]

Public Member Functions
	TypeName ("liquid")
	Runtime type information.
	liquid (const dictionary &dict)
	Construct from dictionary.
	liquid (const liquid &rhs)
	Copy construct.
virtual autoPtr< liquidProperties >	clone () const
	Return a clone.
scalar	rho (scalar p, scalar T) const
	Liquid density [kg/m^3].
scalar	pv (scalar p, scalar T) const
	Vapour pressure [Pa].
scalar	hl (scalar p, scalar T) const
	Heat of vapourisation [J/kg].
scalar	Cp (scalar p, scalar T) const
	Liquid heat capacity [J/(kg K)].
scalar	h (scalar p, scalar T) const
	Liquid Enthalpy [J/(kg)].
scalar	Cpg (scalar p, scalar T) const
	Ideal gas heat capacity [J/(kg K)].
scalar	B (scalar p, scalar T) const
	Second Virial Coefficient [m^3/kg].
scalar	mu (scalar p, scalar T) const
	Liquid viscosity [Pa s].
scalar	mug (scalar p, scalar T) const
	Vapour viscosity [Pa s].
scalar	kappa (scalar p, scalar T) const
	Liquid thermal conductivity [W/(m K)].
scalar	kappag (scalar p, scalar T) const
	Vapour thermal conductivity [W/(m K)].
scalar	sigma (scalar p, scalar T) const
	Surface tension [N/m].
scalar	D (scalar p, scalar T) const
	Vapour diffusivity [m2/s].
scalar	D (scalar p, scalar T, scalar Wb) const
	Vapour diffusivity [m2/s] with specified binary pair.
void	writeData (Ostream &os) const
	Write the function coefficients.
Public Member Functions inherited from liquidProperties
	TypeName ("liquid")
	declareRunTimeSelectionTable (autoPtr, liquidProperties,,(),())
	declareRunTimeSelectionTable (autoPtr, liquidProperties, dictionary,(const dictionary &dict),(dict))
	liquidProperties (scalar W, scalar Tc, scalar Pc, scalar Vc, scalar Zc, scalar Tt, scalar Pt, scalar Tb, scalar dipm, scalar omega, scalar delta)
	Construct from components.
	liquidProperties (const dictionary &dict)
	Construct from dictionary.
virtual	~liquidProperties ()=default
	Destructor.
scalar	Y () const
	No of moles of this species in mixture.
scalar	Tc () const
	Critical temperature [K].
scalar	Pc () const
	Critical pressure [Pa].
scalar	Vc () const
	Critical volume [m^3/kmol].
scalar	Zc () const
	Critical compressibility factor.
scalar	Tt () const
	Triple point temperature [K].
scalar	Pt () const
	Triple point pressure [Pa].
scalar	Tb () const
	Normal boiling temperature [K].
scalar	dipm () const
	Dipole moment [].
scalar	omega () const
	Pitzer's acentric factor [].
scalar	delta () const
	Solubility parameter [(J/m^3)^(1/2)].
scalar	limit (const scalar T) const
	Limit temperature to be within the range.
scalar	psi (scalar p, scalar T) const
	Liquid compressibility rho/p [s^2/m^2].
scalar	CpMCv (scalar p, scalar T) const
	Return (Cp - Cv) [J/(kg K].
scalar	Ha (const scalar p, const scalar T) const
	Absolute Enthalpy [J/kg].
scalar	Hs (const scalar p, const scalar T) const
	Sensible enthalpy [J/kg].
scalar	Hc () const
	Chemical enthalpy [J/kg].
scalar	S (const scalar p, const scalar T) const
scalar	alphah (const scalar p, const scalar T) const
	Liquid thermal diffusivity of enthalpy [kg/ms].
virtual scalar	pvInvert (scalar p) const
	Invert the vapour pressure relationship to retrieve the.
void	readIfPresent (const dictionary &dict)
	Read and set the properties present it the given dictionary.
template<class Func>
void	readIfPresent (Func &f, const word &name, const dictionary &dict)
	Read and set the function coefficients.
template<class Liquid>
void	readIfPresent (Liquid &l, const dictionary &dict)
	Read and set the function coefficients.
template<class Liquid>
void	writeData (const Liquid &l, Ostream &os) const
	Write the data for each of the property functions.
Public Member Functions inherited from thermophysicalProperties
	TypeName ("thermophysicalProperties")
	declareRunTimeSelectionTable (autoPtr, thermophysicalProperties,,(),())
	declareRunTimeSelectionTable (autoPtr, thermophysicalProperties, dictionary,(const dictionary &dict),(dict))
	thermophysicalProperties (scalar W)
	Construct from molecular weight.
	thermophysicalProperties (const dictionary &dict)
	Construct from dictionary.
virtual	~thermophysicalProperties ()=default
	Destructor.
scalar	W () const
	Molecular weight [kg/kmol].
scalar	limit (const scalar T) const
	Limit temperature to be within the range.
void	readIfPresent (const dictionary &dict)
	Read and set the properties present it the given dictionary.

Friends
class	liquidProperties

Additional Inherited Members
Static Public Member Functions inherited from liquidProperties
template<class Derived>
static autoPtr< liquidProperties >	Clone (const Derived &prop)
	Clone liquidProperties.
static autoPtr< liquidProperties >	New (const word &name)
	Return a pointer to a new liquidProperties created from name.
static autoPtr< liquidProperties >	New (const dictionary &dict)
	Return a pointer to a new liquidProperties created from dictionary.
Static Public Member Functions inherited from thermophysicalProperties
static autoPtr< thermophysicalProperties >	New (const word &name)
	Return a pointer to a new thermophysicalProperties created from name.
static autoPtr< thermophysicalProperties >	New (const dictionary &dict)
	Return a pointer to a new thermophysicalProperties.
Static Public Attributes inherited from liquidProperties
static const bool	incompressible = true
	Is the equation of state is incompressible i.e. rho != f(p).
static const bool	isochoric = false
	Is the equation of state is isochoric i.e. rho = const.

Detailed Description

Generic thermophysical properties class for a liquid in which the functions and coefficients for each property are run-time selected.

Source files

Definition at line 50 of file liquid.H.

Constructor & Destructor Documentation

◆ liquid() [1/2]

liquid ( const dictionary & dict )

explicit

Construct from dictionary.

Definition at line 68 of file liquid.C.

References dict, liquidProperties, and Foam::NewOrNone().

Referenced by liquid(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ liquid() [2/2]

liquid ( const liquid & rhs )

Copy construct.

Definition at line 88 of file liquid.C.

References clone(), liquid(), liquidProperties, and Foam::rhs().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "liquid" )

Runtime type information.

References dict, liquid(), and Foam::rhs().

Here is the call graph for this function:

◆ clone()

virtual autoPtr< liquidProperties > clone ( ) const

inlinevirtual

Return a clone.

Implements liquidProperties.

Definition at line 97 of file liquid.H.

References liquidProperties::Clone().

Referenced by liquid().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rho()

Foam::scalar rho	(	scalar	p,
		scalar	T ) const

inlinevirtual

Liquid density [kg/m^3].

Implements thermophysicalProperties.

Definition at line 21 of file liquidI.H.

References p, and Foam::T().

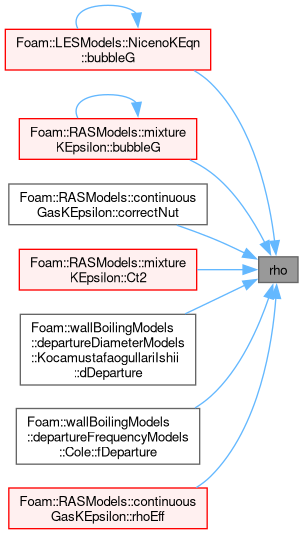

Referenced by NicenoKEqn< BasicTurbulenceModel >::bubbleG(), mixtureKEpsilon< BasicTurbulenceModel >::bubbleG(), continuousGasKEpsilon< BasicTurbulenceModel >::correctNut(), mixtureKEpsilon< BasicTurbulenceModel >::Ct2(), KocamustafaogullariIshii::dDeparture(), Cole::fDeparture(), and continuousGasKEpsilon< BasicTurbulenceModel >::rhoEff().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pv()

Foam::scalar pv	(	scalar	p,
		scalar	T ) const

inlinevirtual

Vapour pressure [Pa].

Implements liquidProperties.

Definition at line 27 of file liquidI.H.

References p, and Foam::T().

Here is the call graph for this function:

◆ hl()

Foam::scalar hl	(	scalar	p,
		scalar	T ) const

inlinevirtual

Heat of vapourisation [J/kg].

Implements liquidProperties.

Definition at line 33 of file liquidI.H.

References p, and Foam::T().

Here is the call graph for this function:

◆ Cp()

Foam::scalar Cp	(	scalar	p,
		scalar	T ) const

inlinevirtual

Liquid heat capacity [J/(kg K)].

Implements thermophysicalProperties.

Definition at line 39 of file liquidI.H.

References p, and Foam::T().

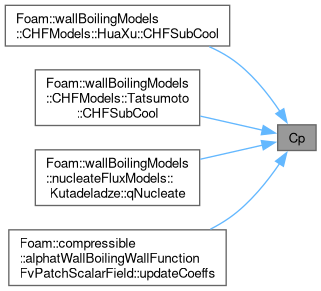

Referenced by HuaXu::CHFSubCool(), Tatsumoto::CHFSubCool(), Kutadeladze::qNucleate(), and alphatWallBoilingWallFunctionFvPatchScalarField::updateCoeffs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ h()

Foam::scalar h	(	scalar	p,
		scalar	T ) const

inlinevirtual

Liquid Enthalpy [J/(kg)].

Implements liquidProperties.

Definition at line 45 of file liquidI.H.

References p, and Foam::T().

Here is the call graph for this function:

◆ Cpg()

Foam::scalar Cpg	(	scalar	p,
		scalar	T ) const

inlinevirtual

Ideal gas heat capacity [J/(kg K)].

Implements liquidProperties.

Definition at line 51 of file liquidI.H.

References p, and Foam::T().

Here is the call graph for this function:

◆ B()

Foam::scalar B	(	scalar	p,
		scalar	T ) const

inline

Second Virial Coefficient [m^3/kg].

Definition at line 57 of file liquidI.H.

References p, and Foam::T().

Here is the call graph for this function:

◆ mu()

Foam::scalar mu	(	scalar	p,
		scalar	T ) const

inlinevirtual

Liquid viscosity [Pa s].

Implements liquidProperties.

Definition at line 63 of file liquidI.H.

References p, and Foam::T().

Referenced by Kutadeladze::qNucleate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mug()

Foam::scalar mug	(	scalar	p,
		scalar	T ) const

inlinevirtual

Vapour viscosity [Pa s].

Implements liquidProperties.

Definition at line 69 of file liquidI.H.

References p, and Foam::T().

Here is the call graph for this function:

◆ kappa()

Foam::scalar kappa	(	scalar	p,
		scalar	T ) const

inlinevirtual

Liquid thermal conductivity [W/(m K)].

Implements liquidProperties.

Definition at line 75 of file liquidI.H.

References p, and Foam::T().

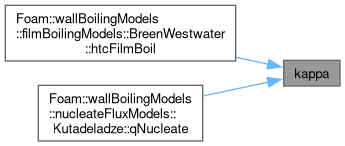

Referenced by BreenWestwater::htcFilmBoil(), and Kutadeladze::qNucleate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ kappag()

Foam::scalar kappag	(	scalar	p,
		scalar	T ) const

inlinevirtual

Vapour thermal conductivity [W/(m K)].

Implements liquidProperties.

Definition at line 81 of file liquidI.H.

References p, and Foam::T().

Here is the call graph for this function:

◆ sigma()

Foam::scalar sigma	(	scalar	p,
		scalar	T ) const

inlinevirtual

Surface tension [N/m].

Implements liquidProperties.

Definition at line 87 of file liquidI.H.

References p, and Foam::T().

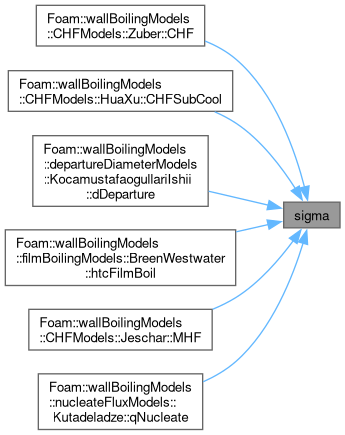

Referenced by Zuber::CHF(), HuaXu::CHFSubCool(), KocamustafaogullariIshii::dDeparture(), BreenWestwater::htcFilmBoil(), Jeschar::MHF(), and Kutadeladze::qNucleate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ D() [1/2]

Foam::scalar D	(	scalar	p,
		scalar	T ) const

inlinevirtual

Vapour diffusivity [m2/s].

Implements liquidProperties.

Definition at line 93 of file liquidI.H.

References p, and Foam::T().

Here is the call graph for this function:

◆ D() [2/2]

Foam::scalar D	(	scalar	p,
		scalar	T,
		scalar	Wb ) const

inlinevirtual

Vapour diffusivity [m2/s] with specified binary pair.

Implements liquidProperties.

Definition at line 99 of file liquidI.H.

References p, and Foam::T().

Here is the call graph for this function:

◆ writeData()

void writeData ( Ostream & os ) const

virtual

Write the function coefficients.

Implements liquidProperties.

Definition at line 109 of file liquid.C.

References Foam::endl(), Foam::nl, os(), and liquidProperties::writeData().

Here is the call graph for this function:

◆ liquidProperties

friend class liquidProperties

friend

Definition at line 73 of file liquid.H.

References liquidProperties.

Referenced by liquid(), liquid(), and liquidProperties.

The documentation for this class was generated from the following files:

src/thermophysicalModels/thermophysicalProperties/liquidProperties/liquid/liquid.H
src/thermophysicalModels/thermophysicalProperties/liquidProperties/liquid/liquid.C
src/thermophysicalModels/thermophysicalProperties/liquidProperties/liquid/liquidI.H

Public Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ liquid() [1/2]

◆ liquid() [2/2]

Member Function Documentation

◆ TypeName()

◆ clone()

◆ rho()

◆ pv()

◆ hl()

◆ Cp()

◆ h()

◆ Cpg()

◆ B()

◆ mu()

◆ mug()

◆ kappa()

◆ kappag()

◆ sigma()

◆ D() [1/2]

◆ D() [2/2]

◆ writeData()

Friends And Related Symbol Documentation

◆ liquidProperties
