The thermophysical properties of a liquid. More...

#include <liquidProperties.H>

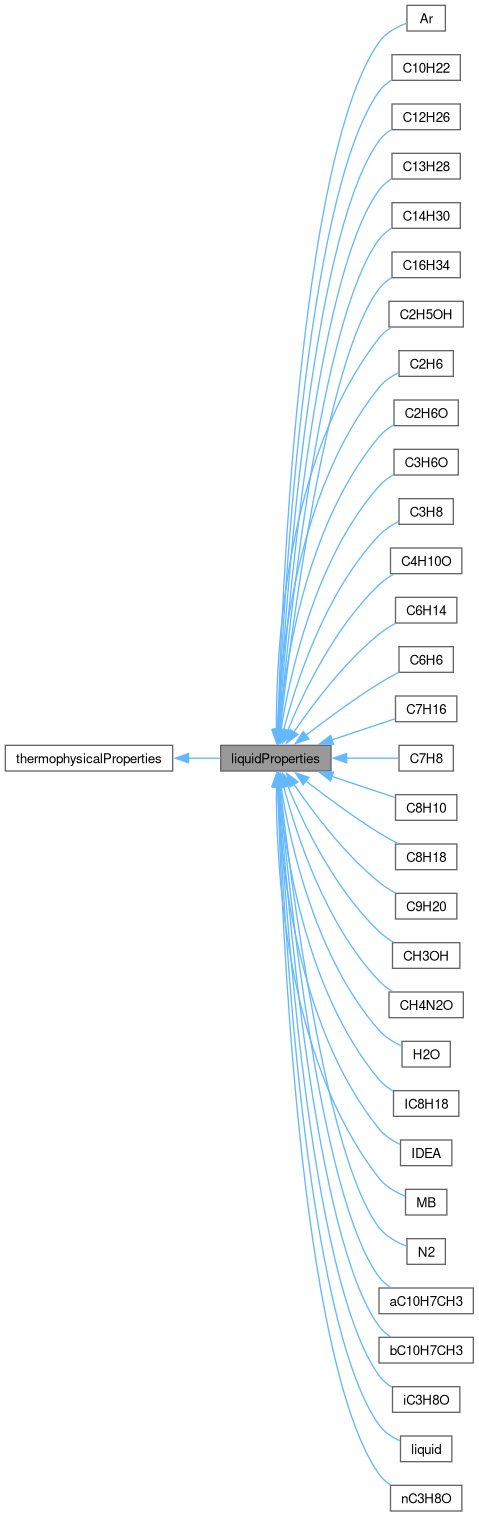

Inheritance diagram for liquidProperties:

[legend]

Collaboration diagram for liquidProperties:

Public Member Functions
	TypeName ("liquid")
	declareRunTimeSelectionTable (autoPtr, liquidProperties,,(),())
	declareRunTimeSelectionTable (autoPtr, liquidProperties, dictionary,(const dictionary &dict),(dict))
	liquidProperties (scalar W, scalar Tc, scalar Pc, scalar Vc, scalar Zc, scalar Tt, scalar Pt, scalar Tb, scalar dipm, scalar omega, scalar delta)
	Construct from components.
	liquidProperties (const dictionary &dict)
	Construct from dictionary.
virtual autoPtr< liquidProperties >	clone () const =0
	Construct and return clone.
virtual	~liquidProperties ()=default
	Destructor.
scalar	Y () const
	No of moles of this species in mixture.
scalar	Tc () const
	Critical temperature [K].
scalar	Pc () const
	Critical pressure [Pa].
scalar	Vc () const
	Critical volume [m^3/kmol].
scalar	Zc () const
	Critical compressibility factor.
scalar	Tt () const
	Triple point temperature [K].
scalar	Pt () const
	Triple point pressure [Pa].
scalar	Tb () const
	Normal boiling temperature [K].
scalar	dipm () const
	Dipole moment [].
scalar	omega () const
	Pitzer's acentric factor [].
scalar	delta () const
	Solubility parameter [(J/m^3)^(1/2)].
scalar	limit (const scalar T) const
	Limit temperature to be within the range.
scalar	psi (scalar p, scalar T) const
	Liquid compressibility rho/p [s^2/m^2].
scalar	CpMCv (scalar p, scalar T) const
	Return (Cp - Cv) [J/(kg K].
scalar	Ha (const scalar p, const scalar T) const
	Absolute Enthalpy [J/kg].
scalar	Hs (const scalar p, const scalar T) const
	Sensible enthalpy [J/kg].
scalar	Hc () const
	Chemical enthalpy [J/kg].
scalar	S (const scalar p, const scalar T) const
virtual scalar	pv (scalar p, scalar T) const =0
	Vapour pressure [Pa].
virtual scalar	hl (scalar p, scalar T) const =0
	Heat of vapourisation [J/kg].
virtual scalar	h (scalar p, scalar T) const =0
	Liquid enthalpy [J/kg] - reference to 298.15 K.
virtual scalar	Cpg (scalar p, scalar T) const =0
	Vapour heat capacity [J/(kg K)].
virtual scalar	mu (scalar p, scalar T) const =0
	Liquid viscosity [Pa s].
virtual scalar	mug (scalar p, scalar T) const =0
	Vapour viscosity [Pa s].
virtual scalar	kappa (scalar p, scalar T) const =0
	Liquid thermal conductivity [W/(m K)].
scalar	alphah (const scalar p, const scalar T) const
	Liquid thermal diffusivity of enthalpy [kg/ms].
virtual scalar	kappag (scalar p, scalar T) const =0
	Vapour thermal conductivity [W/(m K)].
virtual scalar	sigma (scalar p, scalar T) const =0
	Surface tension [N/m].
virtual scalar	D (scalar p, scalar T) const =0
	Vapour diffusivity [m2/s].
virtual scalar	D (scalar p, scalar T, scalar Wb) const =0
	Vapour diffusivity [m2/s] with specified binary pair.
virtual scalar	pvInvert (scalar p) const
	Invert the vapour pressure relationship to retrieve the.
void	readIfPresent (const dictionary &dict)
	Read and set the properties present it the given dictionary.
template<class Func>
void	readIfPresent (Func &f, const word &name, const dictionary &dict)
	Read and set the function coefficients.
template<class Liquid>
void	readIfPresent (Liquid &l, const dictionary &dict)
	Read and set the function coefficients.
virtual void	writeData (Ostream &os) const =0
	Write the function coefficients.
template<class Liquid>
void	writeData (const Liquid &l, Ostream &os) const
	Write the data for each of the property functions.
Public Member Functions inherited from thermophysicalProperties
	TypeName ("thermophysicalProperties")
	declareRunTimeSelectionTable (autoPtr, thermophysicalProperties,,(),())
	declareRunTimeSelectionTable (autoPtr, thermophysicalProperties, dictionary,(const dictionary &dict),(dict))
	thermophysicalProperties (scalar W)
	Construct from molecular weight.
	thermophysicalProperties (const dictionary &dict)
	Construct from dictionary.
virtual	~thermophysicalProperties ()=default
	Destructor.
scalar	W () const
	Molecular weight [kg/kmol].
scalar	limit (const scalar T) const
	Limit temperature to be within the range.
virtual scalar	rho (scalar p, scalar T) const =0
	Liquid density [kg/m^3].
virtual scalar	Cp (const scalar p, const scalar T) const =0
	Heat capacity at constant pressure [J/(kg K)].
void	readIfPresent (const dictionary &dict)
	Read and set the properties present it the given dictionary.

Static Public Member Functions
template<class Derived>
static autoPtr< liquidProperties >	Clone (const Derived &prop)
	Clone liquidProperties.
static autoPtr< liquidProperties >	New (const word &name)
	Return a pointer to a new liquidProperties created from name.
static autoPtr< liquidProperties >	New (const dictionary &dict)
	Return a pointer to a new liquidProperties created from dictionary.
Static Public Member Functions inherited from thermophysicalProperties
static autoPtr< thermophysicalProperties >	New (const word &name)
	Return a pointer to a new thermophysicalProperties created from name.
static autoPtr< thermophysicalProperties >	New (const dictionary &dict)
	Return a pointer to a new thermophysicalProperties.

Static Public Attributes
static const bool	incompressible = true
	Is the equation of state is incompressible i.e. rho != f(p).
static const bool	isochoric = false
	Is the equation of state is isochoric i.e. rho = const.

Friends
Ostream &	operator<< (Ostream &os, const liquidProperties &l)
	Ostream Operator.

Detailed Description

The thermophysical properties of a liquid.

Source files

Definition at line 47 of file liquidProperties.H.

Constructor & Destructor Documentation

◆ liquidProperties() [1/2]

liquidProperties	(	scalar	W,
		scalar	Tc,
		scalar	Pc,
		scalar	Vc,
		scalar	Zc,
		scalar	Tt,
		scalar	Pt,
		scalar	Tb,
		scalar	dipm,
		scalar	omega,
		scalar	delta )

Construct from components.

Definition at line 36 of file liquidProperties.C.

References delta(), dipm(), omega(), Pc(), Pt(), Tb(), Tc(), thermophysicalProperties::thermophysicalProperties(), Tt(), Vc(), thermophysicalProperties::W(), and Zc().

Referenced by declareRunTimeSelectionTable(), declareRunTimeSelectionTable(), and operator<<.

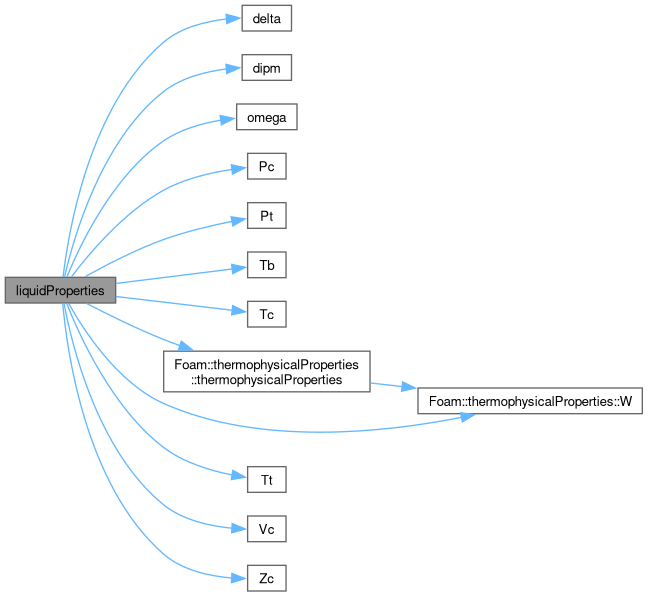

Here is the call graph for this function:

Here is the caller graph for this function:

◆ liquidProperties() [2/2]

liquidProperties ( const dictionary & dict )

Construct from dictionary.

Definition at line 65 of file liquidProperties.C.

References dict, and thermophysicalProperties::thermophysicalProperties().

Here is the call graph for this function:

◆ ~liquidProperties()

virtual ~liquidProperties ( )

virtualdefault

Destructor.

Member Function Documentation

◆ TypeName()

TypeName ( "liquid" )

◆ declareRunTimeSelectionTable() [1/2]

declareRunTimeSelectionTable	(	autoPtr	,
		liquidProperties	,
		()	,
		()	)

References liquidProperties().

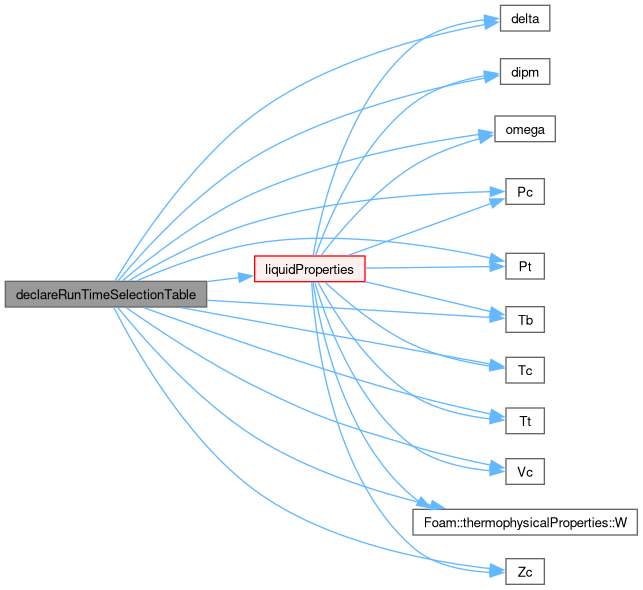

Here is the call graph for this function:

◆ declareRunTimeSelectionTable() [2/2]

declareRunTimeSelectionTable	(	autoPtr	,
		liquidProperties	,
		dictionary	,
		(const dictionary &dict)	,
		(dict)	)

References delta(), dict, dipm(), liquidProperties(), omega(), Pc(), Pt(), Tb(), Tc(), Tt(), Vc(), thermophysicalProperties::W(), and Zc().

Here is the call graph for this function:

◆ clone()

virtual autoPtr< liquidProperties > clone ( ) const

pure virtual

Construct and return clone.

Implemented in aC10H7CH3, Ar, bC10H7CH3, C10H22, C12H26, C13H28, C14H30, C16H34, C2H5OH, C2H6, C2H6O, C3H6O, C3H8, C4H10O, C6H14, C6H6, C7H16, C7H8, C8H10, C8H18, C9H20, CH3OH, CH4N2O, H2O, iC3H8O, IC8H18, IDEA, liquid, MB, N2, and nC3H8O.

◆ Clone()

template<class Derived>

autoPtr< liquidProperties > Clone ( const Derived & prop )

inlinestatic

Clone liquidProperties.

Definition at line 167 of file liquidProperties.H.

Referenced by aC10H7CH3::clone(), Ar::clone(), bC10H7CH3::clone(), C10H22::clone(), C12H26::clone(), C13H28::clone(), C14H30::clone(), C16H34::clone(), C2H5OH::clone(), C2H6::clone(), C2H6O::clone(), C3H6O::clone(), C3H8::clone(), C4H10O::clone(), C6H14::clone(), C6H6::clone(), C7H16::clone(), C7H8::clone(), C8H10::clone(), C8H18::clone(), C9H20::clone(), CH3OH::clone(), CH4N2O::clone(), H2O::clone(), iC3H8O::clone(), IC8H18::clone(), IDEA::clone(), liquid::clone(), MB::clone(), N2::clone(), and nC3H8O::clone().

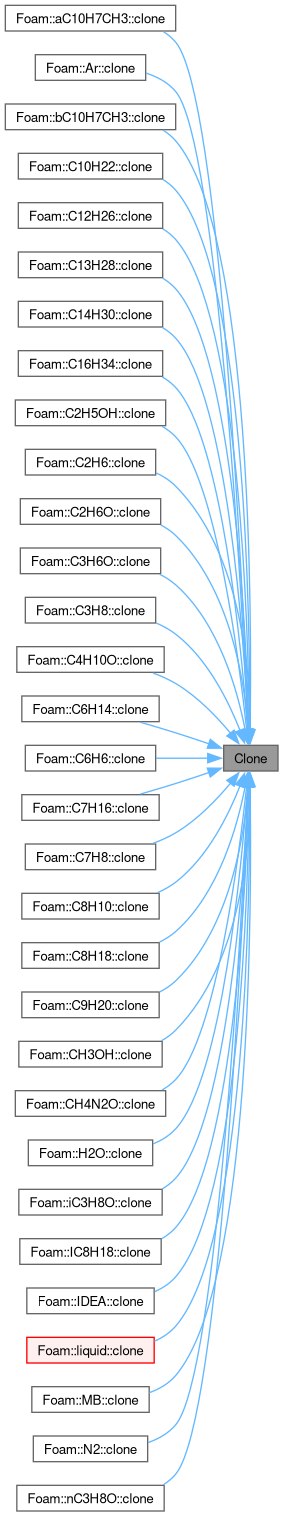

Here is the caller graph for this function:

◆ New() [1/2]

Foam::autoPtr< Foam::liquidProperties > New ( const word & name )

static

Return a pointer to a new liquidProperties created from name.

Definition at line 83 of file liquidProperties.C.

References DebugInFunction, Foam::exit(), Foam::FatalError, FatalErrorInLookup, Foam::name(), and Foam::nl.

Referenced by humidityTemperatureCoupledMixedFvPatchScalarField::humidityTemperatureCoupledMixedFvPatchScalarField(), liquidFilmThermo::initLiquid(), and liquidMixtureProperties::liquidMixtureProperties().

Here is the call graph for this function:

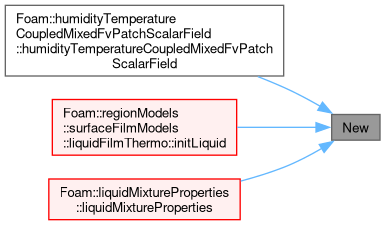

Here is the caller graph for this function:

◆ New() [2/2]

Foam::autoPtr< Foam::liquidProperties > New ( const dictionary & dict )

static

Return a pointer to a new liquidProperties created from dictionary.

Definition at line 106 of file liquidProperties.C.

References DebugInFunction, dict, Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, Foam::New(), and Foam::nl.

Here is the call graph for this function:

◆ Y()

Foam::scalar Y ( ) const

inline

No of moles of this species in mixture.

Note Mixing of liquidProperties is not currently supported so Y = 1

Definition at line 27 of file liquidPropertiesI.H.

◆ Tc()

Foam::scalar Tc ( ) const

inline

Critical temperature [K].

Definition at line 33 of file liquidPropertiesI.H.

Referenced by declareRunTimeSelectionTable(), and liquidProperties().

Here is the caller graph for this function:

◆ Pc()

Foam::scalar Pc ( ) const

inline

Critical pressure [Pa].

Definition at line 39 of file liquidPropertiesI.H.

Referenced by declareRunTimeSelectionTable(), and liquidProperties().

Here is the caller graph for this function:

◆ Vc()

Foam::scalar Vc ( ) const

inline

Critical volume [m^3/kmol].

Definition at line 45 of file liquidPropertiesI.H.

Referenced by declareRunTimeSelectionTable(), and liquidProperties().

Here is the caller graph for this function:

◆ Zc()

Foam::scalar Zc ( ) const

inline

Critical compressibility factor.

Definition at line 51 of file liquidPropertiesI.H.

Referenced by declareRunTimeSelectionTable(), and liquidProperties().

Here is the caller graph for this function:

◆ Tt()

Foam::scalar Tt ( ) const

inline

Triple point temperature [K].

Definition at line 57 of file liquidPropertiesI.H.

Referenced by declareRunTimeSelectionTable(), and liquidProperties().

Here is the caller graph for this function:

◆ Pt()

Foam::scalar Pt ( ) const

inline

Triple point pressure [Pa].

Definition at line 63 of file liquidPropertiesI.H.

Referenced by declareRunTimeSelectionTable(), and liquidProperties().

Here is the caller graph for this function:

◆ Tb()

Foam::scalar Tb ( ) const

inline

Normal boiling temperature [K].

Definition at line 69 of file liquidPropertiesI.H.

Referenced by declareRunTimeSelectionTable(), and liquidProperties().

Here is the caller graph for this function:

◆ dipm()

Foam::scalar dipm ( ) const

inline

Dipole moment [].

Definition at line 75 of file liquidPropertiesI.H.

Referenced by declareRunTimeSelectionTable(), and liquidProperties().

Here is the caller graph for this function:

◆ omega()

Foam::scalar omega ( ) const

inline

Pitzer's acentric factor [].

Definition at line 81 of file liquidPropertiesI.H.

Referenced by declareRunTimeSelectionTable(), and liquidProperties().

Here is the caller graph for this function:

◆ delta()

Foam::scalar delta ( ) const

inline

Solubility parameter [(J/m^3)^(1/2)].

Definition at line 87 of file liquidPropertiesI.H.

Referenced by declareRunTimeSelectionTable(), and liquidProperties().

Here is the caller graph for this function:

◆ limit()

Foam::scalar limit ( const scalar T ) const

inline

Limit temperature to be within the range.

Definition at line 21 of file liquidPropertiesI.H.

References Foam::T().

Here is the call graph for this function:

◆ psi()

Foam::scalar psi	(	scalar	p,
		scalar	T ) const

inlinevirtual

Liquid compressibility rho/p [s^2/m^2].

Note: currently it is assumed the liquid is incompressible

Implements thermophysicalProperties.

Definition at line 93 of file liquidPropertiesI.H.

References p, and Foam::T().

Here is the call graph for this function:

◆ CpMCv()

Foam::scalar CpMCv	(	scalar	p,
		scalar	T ) const

inlinevirtual

Return (Cp - Cv) [J/(kg K].

Note: currently it is assumed the liquid is incompressible so CpMCv = 0

Implements thermophysicalProperties.

Definition at line 99 of file liquidPropertiesI.H.

References p, and Foam::T().

Here is the call graph for this function:

◆ Ha()

Foam::scalar Ha	(	const scalar	p,
		const scalar	T ) const

inlinevirtual

Absolute Enthalpy [J/kg].

Implements thermophysicalProperties.

Definition at line 105 of file liquidPropertiesI.H.

References h, p, and Foam::T().

Here is the call graph for this function:

◆ Hs()

Foam::scalar Hs	(	const scalar	p,
		const scalar	T ) const

inlinevirtual

Sensible enthalpy [J/kg].

Implements thermophysicalProperties.

Definition at line 111 of file liquidPropertiesI.H.

References h, p, and Foam::T().

Here is the call graph for this function:

◆ Hc()

Foam::scalar Hc ( ) const

inlinevirtual

Chemical enthalpy [J/kg].

Implements thermophysicalProperties.

Definition at line 117 of file liquidPropertiesI.H.

◆ S()

Foam::scalar S	(	const scalar	p,
		const scalar	T ) const

virtual

Implements thermophysicalProperties.

Definition at line 167 of file liquidProperties.C.

References NotImplemented, p, and Foam::T().

Here is the call graph for this function:

◆ pv()

virtual scalar pv	(	scalar	p,
		scalar	T ) const

pure virtual

Vapour pressure [Pa].

Implemented in aC10H7CH3, Ar, bC10H7CH3, C10H22, C12H26, C13H28, C14H30, C16H34, C2H5OH, C2H6, C2H6O, C3H6O, C3H8, C4H10O, C6H14, C6H6, C7H16, C7H8, C8H10, C8H18, C9H20, CH3OH, CH4N2O, H2O, iC3H8O, IC8H18, IDEA, liquid, MB, N2, and nC3H8O.

References p, and Foam::T().

Referenced by pvInvert().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hl()

virtual scalar hl	(	scalar	p,
		scalar	T ) const

pure virtual

Heat of vapourisation [J/kg].

Implemented in aC10H7CH3, Ar, bC10H7CH3, C10H22, C12H26, C13H28, C14H30, C16H34, C2H5OH, C2H6, C2H6O, C3H6O, C3H8, C4H10O, C6H14, C6H6, C7H16, C7H8, C8H10, C8H18, C9H20, CH3OH, CH4N2O, H2O, iC3H8O, IC8H18, IDEA, liquid, MB, N2, and nC3H8O.

References p, and Foam::T().

Referenced by SprayParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::chi().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ h()

virtual scalar h	(	scalar	p,
		scalar	T ) const

pure virtual

Liquid enthalpy [J/kg] - reference to 298.15 K.

Implemented in aC10H7CH3, Ar, bC10H7CH3, C10H22, C12H26, C13H28, C14H30, C16H34, C2H5OH, C2H6, C2H6O, C3H6O, C3H8, C4H10O, C6H14, C6H6, C7H16, C7H8, C8H10, C8H18, C9H20, CH3OH, CH4N2O, H2O, iC3H8O, IC8H18, IDEA, liquid, MB, N2, and nC3H8O.

References p, and Foam::T().

Referenced by SprayParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::chi().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Cpg()

virtual scalar Cpg	(	scalar	p,
		scalar	T ) const

pure virtual

Vapour heat capacity [J/(kg K)].

Implemented in aC10H7CH3, Ar, bC10H7CH3, C10H22, C12H26, C13H28, C14H30, C16H34, C2H5OH, C2H6, C2H6O, C3H6O, C3H8, C4H10O, C6H14, C6H6, C7H16, C7H8, C8H10, C8H18, C9H20, CH3OH, CH4N2O, H2O, iC3H8O, IC8H18, IDEA, liquid, MB, N2, and nC3H8O.

References p, and Foam::T().

Here is the call graph for this function:

◆ mu()

virtual scalar mu	(	scalar	p,
		scalar	T ) const

pure virtual

Liquid viscosity [Pa s].

Implements thermophysicalProperties.

Implemented in aC10H7CH3, Ar, bC10H7CH3, C10H22, C12H26, C13H28, C14H30, C16H34, C2H5OH, C2H6, C2H6O, C3H6O, C3H8, C4H10O, C6H14, C6H6, C7H16, C7H8, C8H10, C8H18, C9H20, CH3OH, CH4N2O, H2O, iC3H8O, IC8H18, IDEA, liquid, MB, N2, and nC3H8O.

References p, and Foam::T().

Referenced by ThermoSurfaceFilm< CloudType >::transferParcel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mug()

virtual scalar mug	(	scalar	p,
		scalar	T ) const

pure virtual

Vapour viscosity [Pa s].

Implemented in aC10H7CH3, Ar, bC10H7CH3, C10H22, C12H26, C13H28, C14H30, C16H34, C2H5OH, C2H6, C2H6O, C3H6O, C3H8, C4H10O, C6H14, C6H6, C7H16, C7H8, C8H10, C8H18, C9H20, CH3OH, CH4N2O, H2O, iC3H8O, IC8H18, IDEA, liquid, MB, N2, and nC3H8O.

References p, and Foam::T().

Here is the call graph for this function:

◆ kappa()

virtual scalar kappa	(	scalar	p,
		scalar	T ) const

pure virtual

Liquid thermal conductivity [W/(m K)].

Implements thermophysicalProperties.

Implemented in aC10H7CH3, Ar, bC10H7CH3, C10H22, C12H26, C13H28, C14H30, C16H34, C2H5OH, C2H6, C2H6O, C3H6O, C3H8, C4H10O, C6H14, C6H6, C7H16, C7H8, C8H10, C8H18, C9H20, CH3OH, CH4N2O, H2O, iC3H8O, IC8H18, IDEA, liquid, MB, N2, and nC3H8O.

References p, and Foam::T().

Referenced by alphah().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ alphah()

Foam::scalar alphah	(	const scalar	p,
		const scalar	T ) const

inlinevirtual

Liquid thermal diffusivity of enthalpy [kg/ms].

Implements thermophysicalProperties.

Definition at line 123 of file liquidPropertiesI.H.

References Cp, kappa(), p, and Foam::T().

Here is the call graph for this function:

◆ kappag()

virtual scalar kappag	(	scalar	p,
		scalar	T ) const

pure virtual

Vapour thermal conductivity [W/(m K)].

Implemented in aC10H7CH3, Ar, bC10H7CH3, C10H22, C12H26, C13H28, C14H30, C16H34, C2H5OH, C2H6, C2H6O, C3H6O, C3H8, C4H10O, C6H14, C6H6, C7H16, C7H8, C8H10, C8H18, C9H20, CH3OH, CH4N2O, H2O, iC3H8O, IC8H18, IDEA, liquid, MB, N2, and nC3H8O.

References p, and Foam::T().

Here is the call graph for this function:

◆ sigma()

virtual scalar sigma	(	scalar	p,
		scalar	T ) const

pure virtual

Surface tension [N/m].

Implemented in aC10H7CH3, Ar, bC10H7CH3, C10H22, C12H26, C13H28, C14H30, C16H34, C2H5OH, C2H6, C2H6O, C3H6O, C3H8, C4H10O, C6H14, C6H6, C7H16, C7H8, C8H10, C8H18, C9H20, CH3OH, CH4N2O, H2O, iC3H8O, IC8H18, IDEA, liquid, MB, N2, and nC3H8O.

References p, and Foam::T().

Referenced by ThermoSurfaceFilm< CloudType >::transferParcel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ D() [1/2]

virtual scalar D	(	scalar	p,
		scalar	T ) const

pure virtual

Vapour diffusivity [m2/s].

Implemented in aC10H7CH3, Ar, bC10H7CH3, C10H22, C12H26, C13H28, C14H30, C16H34, C2H5OH, C2H6, C2H6O, C3H6O, C3H8, C4H10O, C6H14, C6H6, C7H16, C7H8, C8H10, C8H18, C9H20, CH3OH, CH4N2O, H2O, iC3H8O, IC8H18, IDEA, liquid, MB, N2, and nC3H8O.

References p, and Foam::T().

Here is the call graph for this function:

◆ D() [2/2]

virtual scalar D	(	scalar	p,
		scalar	T,
		scalar	Wb ) const

pure virtual

Vapour diffusivity [m2/s] with specified binary pair.

Implemented in aC10H7CH3, Ar, bC10H7CH3, C10H22, C12H26, C13H28, C14H30, C16H34, C2H5OH, C2H6, C2H6O, C3H6O, C3H8, C4H10O, C6H14, C6H6, C7H16, C7H8, C8H10, C8H18, C9H20, CH3OH, CH4N2O, H2O, iC3H8O, IC8H18, IDEA, liquid, MB, N2, and nC3H8O.

References dict, f(), Foam::name(), os(), p, and Foam::T().

Here is the call graph for this function:

◆ pvInvert()

Foam::scalar pvInvert ( scalar p ) const

virtual

Invert the vapour pressure relationship to retrieve the.

boiling temperature as a function of pressure

Definition at line 174 of file liquidProperties.C.

References Foam::endl(), Foam::nl, p, pv(), Foam::T(), and WarningInFunction.

Referenced by SprayParcel< ReactingParcel< ThermoParcel< KinematicParcel< particle > > > >::chi().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readIfPresent() [1/3]

void readIfPresent ( const dictionary & dict )

Read and set the properties present it the given dictionary.

Definition at line 217 of file liquidProperties.C.

References dict, and thermophysicalProperties::readIfPresent().

Referenced by aC10H7CH3::aC10H7CH3(), Ar::Ar(), bC10H7CH3::bC10H7CH3(), C10H22::C10H22(), C12H26::C12H26(), C13H28::C13H28(), C14H30::C14H30(), C16H34::C16H34(), C2H5OH::C2H5OH(), C2H6::C2H6(), C2H6O::C2H6O(), C3H6O::C3H6O(), C3H8::C3H8(), C4H10O::C4H10O(), C6H14::C6H14(), C6H6::C6H6(), C7H16::C7H16(), C7H8::C7H8(), C8H10::C8H10(), C8H18::C8H18(), C9H20::C9H20(), CH3OH::CH3OH(), CH4N2O::CH4N2O(), H2O::H2O(), iC3H8O::iC3H8O(), IC8H18::IC8H18(), IDEA::IDEA(), MB::MB(), N2::N2(), and nC3H8O::nC3H8O().

Here is the call graph for this function:

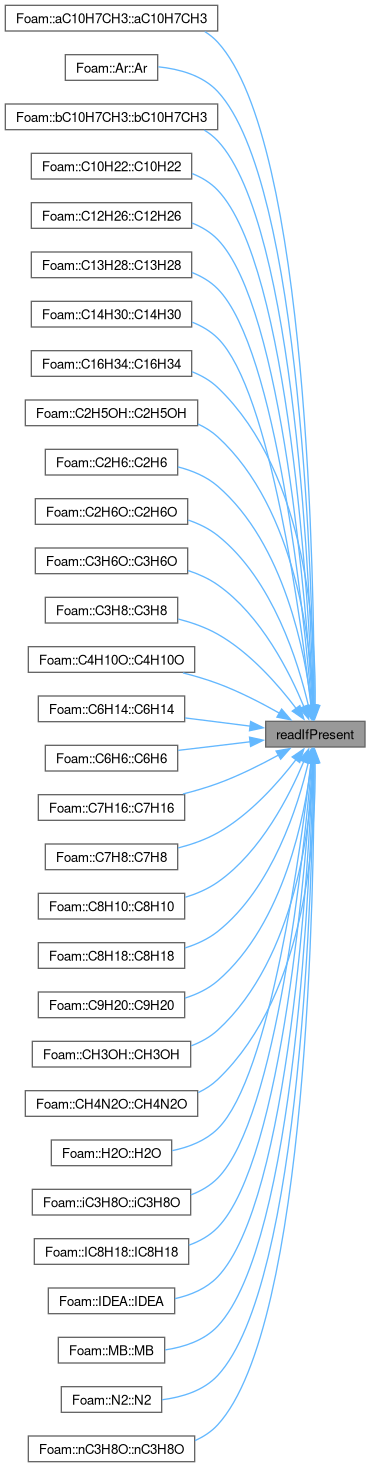

Here is the caller graph for this function:

◆ readIfPresent() [2/3]

template<class Func>

void readIfPresent	(	Func &	f,
		const word &	name,
		const dictionary &	dict )

inline

Read and set the function coefficients.

if present it the given dictionary

Definition at line 130 of file liquidPropertiesI.H.

References dict, f(), and Foam::name().

Here is the call graph for this function:

◆ readIfPresent() [3/3]

template<class Liquid>

void readIfPresent	(	Liquid &	l,
		const dictionary &	dict )

inline

Read and set the function coefficients.

if present it the given dictionary

Definition at line 145 of file liquidPropertiesI.H.

References dict, and readIfPresent().

Here is the call graph for this function:

◆ writeData() [1/2]

void writeData ( Ostream & os ) const

pure virtual

Write the function coefficients.

Implements thermophysicalProperties.

Implemented in aC10H7CH3, Ar, bC10H7CH3, C10H22, C12H26, C13H28, C14H30, C16H34, C2H5OH, C2H6, C2H6O, C3H6O, C3H8, C4H10O, C6H14, C6H6, C7H16, C7H8, C8H10, C8H18, C9H20, CH3OH, CH4N2O, H2O, iC3H8O, IC8H18, IDEA, liquid, MB, N2, and nC3H8O.

Definition at line 233 of file liquidProperties.C.

References os(), token::SPACE, and thermophysicalProperties::writeData().

Referenced by Foam::operator<<(), aC10H7CH3::writeData(), Ar::writeData(), bC10H7CH3::writeData(), C10H22::writeData(), C12H26::writeData(), C13H28::writeData(), C14H30::writeData(), C16H34::writeData(), C2H5OH::writeData(), C2H6::writeData(), C2H6O::writeData(), C3H6O::writeData(), C3H8::writeData(), C4H10O::writeData(), C6H14::writeData(), C6H6::writeData(), C7H16::writeData(), C7H8::writeData(), C8H10::writeData(), C8H18::writeData(), C9H20::writeData(), CH3OH::writeData(), CH4N2O::writeData(), H2O::writeData(), iC3H8O::writeData(), IC8H18::writeData(), IDEA::writeData(), liquid::writeData(), MB::writeData(), N2::writeData(), and nC3H8O::writeData().

Here is the call graph for this function:

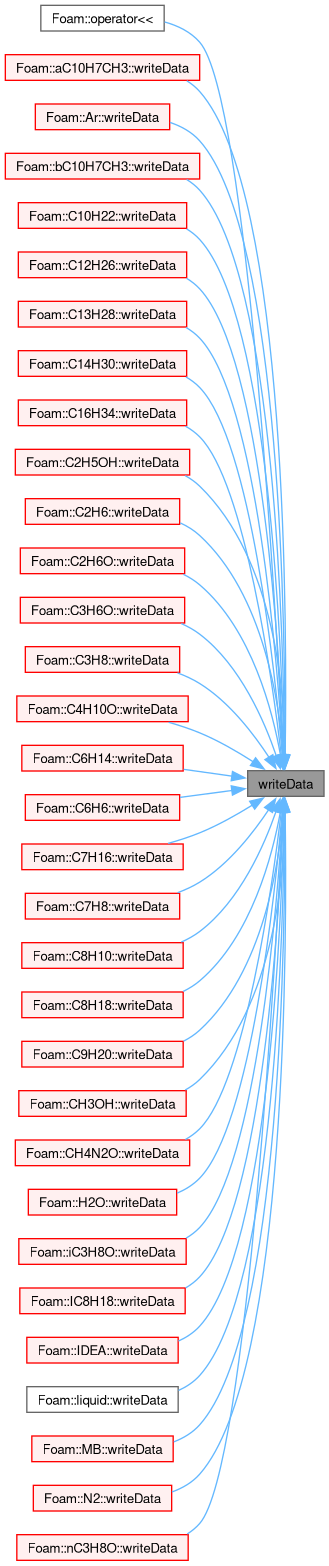

Here is the caller graph for this function:

◆ writeData() [2/2]

template<class Liquid>

void writeData	(	const Liquid &	l,
		Ostream &	os ) const

inline

Write the data for each of the property functions.

Definition at line 169 of file liquidPropertiesI.H.

References Foam::endl(), Foam::nl, and os().

Here is the call graph for this function:

◆ operator<<

Ostream & operator<<	(	Ostream &	os,
		const liquidProperties &	l )

friend

Ostream Operator.

References liquidProperties(), and os().

Member Data Documentation

◆ incompressible

const bool incompressible = true

static

Is the equation of state is incompressible i.e. rho != f(p).

Definition at line 194 of file liquidProperties.H.

◆ isochoric

const bool isochoric = false

static

Is the equation of state is isochoric i.e. rho = const.

Definition at line 199 of file liquidProperties.H.

The documentation for this class was generated from the following files:

src/thermophysicalModels/thermophysicalProperties/liquidProperties/liquidProperties/liquidProperties.H
src/thermophysicalModels/thermophysicalProperties/liquidProperties/liquidProperties/liquidProperties.C
src/thermophysicalModels/thermophysicalProperties/liquidProperties/liquidProperties/liquidPropertiesI.H

Public Member Functions

Static Public Member Functions

Static Public Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ liquidProperties() [1/2]

◆ liquidProperties() [2/2]

◆ ~liquidProperties()

Member Function Documentation

◆ TypeName()

◆ declareRunTimeSelectionTable() [1/2]

◆ declareRunTimeSelectionTable() [2/2]

◆ clone()

◆ Clone()

◆ New() [1/2]

◆ New() [2/2]

◆ Y()

◆ Tc()

◆ Pc()

◆ Vc()

◆ Zc()

◆ Tt()

◆ Pt()

◆ Tb()

◆ dipm()

◆ omega()

◆ delta()

◆ limit()

◆ psi()

◆ CpMCv()

◆ Ha()

◆ Hs()

◆ Hc()

◆ S()

◆ pv()

◆ hl()

◆ h()

◆ Cpg()

◆ mu()

◆ mug()

◆ kappa()

◆ alphah()

◆ kappag()

◆ sigma()

◆ D() [1/2]

◆ D() [2/2]

◆ pvInvert()

◆ readIfPresent() [1/3]

◆ readIfPresent() [2/3]

◆ readIfPresent() [3/3]

◆ writeData() [1/2]

◆ writeData() [2/2]

Friends And Related Symbol Documentation

◆ operator<<

Member Data Documentation

◆ incompressible

◆ isochoric
