#include <marchingCells.H>

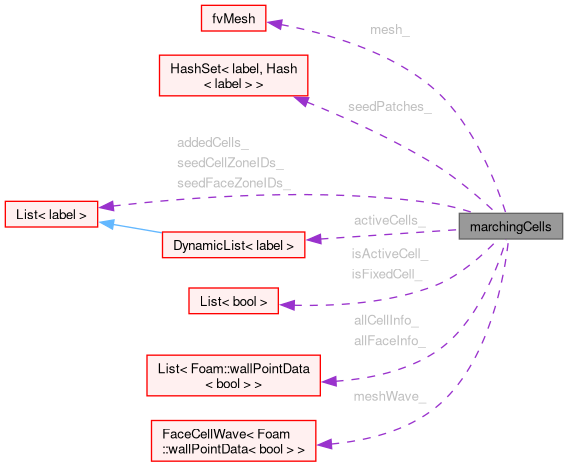

Collaboration diagram for marchingCells:

[legend]

Public Member Functions
	TypeName ("marchingCells")
	Runtime type information.
	marchingCells (const fvMesh &mesh, const dictionary &dict)
	Construct from components.
virtual	~marchingCells ()=default
	Destructor.
const labelList &	getActiveCells () const
	Get the active cells.
label	numberOfAddedCells () const
	Number of newly added cells in the last iteration.
void	update (const label iters=1)
	Update active cells.
void	setMarchingStep (const label step)
	Set marching step.
void	addFixedCells (const cellZoneMesh &cellZoneMesh, const labelList &fixedCellZoneIDs)
	Add fixed cells through cellZone IDs.
void	addFixedCells (const labelList &fixedCellIDs)
	Add fixed cells.

Protected Member Functions
void	initialise ()
	Initialise the active cells from the seeding patches.
void	appendSeedCell (const label cellID)
	Append cell to seed cells.
void	march (label nVisited, const label cI, labelList &newlyAddedCells)

Protected Attributes
const fvMesh &	mesh_
labelHashSet	seedPatches_
	Patches used as seeds in the marching algorithm.
labelList	seedCellZoneIDs_
	Cell zones, the boundary faces of which are used as seeds in the marching algorithm.
labelList	seedFaceZoneIDs_
	Face zones used as seeds in the marching algorithm.
label	marchingStep_
	Marching step.
boolList	isActiveCell_
	Whether each cell is curently active or not.
boolList	isFixedCell_
	Should this cell remain incative.
DynamicList< label >	activeCells_
	Which are the active cells.
labelList	addedCells_
	Which are the added cells.
bool	initialised_
	Has the initial seeding been conducted.
label	nIters_
	Iterations conducted thus far.
List< wallPointData< bool > >	allFaceInfo_
	Information for all faces.
List< wallPointData< bool > >	allCellInfo_
	Information for all cells.
FaceCellWave< wallPointData< bool > >	meshWave_
	Engine propagating the active cells.

Detailed Description

Definition at line 54 of file marchingCells.H.

Constructor & Destructor Documentation

◆ marchingCells()

marchingCells	(	const fvMesh &	mesh,
		const dictionary &	dict )

Construct from components.

Definition at line 138 of file marchingCells.C.

References activeCells_, addedCells_, allCellInfo_, allFaceInfo_, dict, initialised_, isActiveCell_, isFixedCell_, marchingStep_, mesh, mesh_, meshWave_, nIters_, seedCellZoneIDs_, seedFaceZoneIDs_, and seedPatches_.

◆ ~marchingCells()

virtual ~marchingCells ( )

virtualdefault

Destructor.

Member Function Documentation

◆ initialise()

void initialise ( )

protected

Initialise the active cells from the seeding patches.

Definition at line 36 of file marchingCells.C.

References polyMesh::boundaryMesh(), fvMeshSubset::exposedPatchName, polyPatch::faceCentres(), Foam::faceMap(), fvMeshSubset::faceMap(), polyBoundaryMesh::findPatchID(), forAll, initialised_, mesh_, meshWave_, patchID, seedCellZoneIDs_, seedFaceZoneIDs_, seedPatches_, List< T >::setSize(), polyPatch::start(), and fvMeshSubset::subMesh().

Referenced by update().

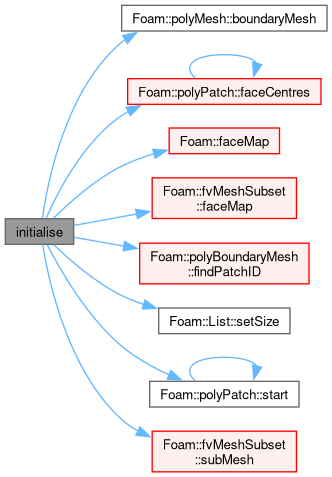

Here is the call graph for this function:

Here is the caller graph for this function:

◆ appendSeedCell()

void appendSeedCell ( const label cellID )

protected

Append cell to seed cells.

Definition at line 99 of file marchingCells.C.

References activeCells_, isActiveCell_, and isFixedCell_.

◆ march()

void march	(	label	nVisited,
		const label	cI,
		labelList &	newlyAddedCells )

protected

Definition at line 109 of file marchingCells.C.

References List< T >::append(), isActiveCell_, isFixedCell_, march(), marchingStep_, and mesh_.

Referenced by march().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "marchingCells" )

Runtime type information.

References dict, and mesh.

◆ getActiveCells()

const labelList & getActiveCells ( ) const

inline

Get the active cells.

Definition at line 202 of file marchingCells.H.

References activeCells_.

◆ numberOfAddedCells()

label numberOfAddedCells ( ) const

inline

Number of newly added cells in the last iteration.

Definition at line 210 of file marchingCells.H.

References addedCells_.

◆ update()

void update ( const label iters = 1 )

Update active cells.

Definition at line 181 of file marchingCells.C.

References activeCells_, addedCells_, allCellInfo_, forAll, initialise(), initialised_, HashSet< Key, Hash >::insert(), isActiveCell_, isFixedCell_, iters(), marchingStep_, mesh_, meshWave_, name, nIters_, and regIOobject::write().

Here is the call graph for this function:

◆ setMarchingStep()

void setMarchingStep ( const label step )

inline

Set marching step.

Definition at line 226 of file marchingCells.H.

References marchingStep_.

◆ addFixedCells() [1/2]

void addFixedCells	(	const cellZoneMesh &	cellZoneMesh,
		const labelList &	fixedCellZoneIDs )

Add fixed cells through cellZone IDs.

Definition at line 228 of file marchingCells.C.

References isActiveCell_, and isFixedCell_.

◆ addFixedCells() [2/2]

void addFixedCells ( const labelList & fixedCellIDs )

Add fixed cells.

Definition at line 245 of file marchingCells.C.

References isActiveCell_, and isFixedCell_.

Member Data Documentation

◆ mesh_

const fvMesh& mesh_

protected

Definition at line 61 of file marchingCells.H.

Referenced by initialise(), march(), marchingCells(), and update().

◆ seedPatches_

labelHashSet seedPatches_

protected

Patches used as seeds in the marching algorithm.

Definition at line 66 of file marchingCells.H.

Referenced by initialise(), and marchingCells().

◆ seedCellZoneIDs_

labelList seedCellZoneIDs_

protected

Cell zones, the boundary faces of which are used as seeds in the marching algorithm.

Definition at line 72 of file marchingCells.H.

Referenced by initialise(), and marchingCells().

◆ seedFaceZoneIDs_

labelList seedFaceZoneIDs_

protected

Face zones used as seeds in the marching algorithm.

Definition at line 77 of file marchingCells.H.

Referenced by initialise(), and marchingCells().

◆ marchingStep_

label marchingStep_

protected

Marching step.

Definition at line 82 of file marchingCells.H.

Referenced by march(), marchingCells(), setMarchingStep(), and update().

◆ isActiveCell_

boolList isActiveCell_

protected

Whether each cell is curently active or not.

Definition at line 87 of file marchingCells.H.

Referenced by addFixedCells(), addFixedCells(), appendSeedCell(), march(), marchingCells(), and update().

◆ isFixedCell_

boolList isFixedCell_

protected

Should this cell remain incative.

Definition at line 92 of file marchingCells.H.

Referenced by addFixedCells(), addFixedCells(), appendSeedCell(), march(), marchingCells(), and update().

◆ activeCells_

DynamicList<label> activeCells_

protected

Which are the active cells.

Definition at line 97 of file marchingCells.H.

Referenced by appendSeedCell(), getActiveCells(), marchingCells(), and update().

◆ addedCells_

labelList addedCells_

protected

Which are the added cells.

Definition at line 102 of file marchingCells.H.

Referenced by marchingCells(), numberOfAddedCells(), and update().

◆ initialised_

bool initialised_

protected

Has the initial seeding been conducted.

Definition at line 107 of file marchingCells.H.

Referenced by initialise(), marchingCells(), and update().

◆ nIters_

label nIters_

protected

Iterations conducted thus far.

Definition at line 112 of file marchingCells.H.

Referenced by marchingCells(), and update().

◆ allFaceInfo_

List<wallPointData<bool> > allFaceInfo_

protected

Information for all faces.

Definition at line 117 of file marchingCells.H.

Referenced by marchingCells().

◆ allCellInfo_

List<wallPointData<bool> > allCellInfo_

protected

Information for all cells.

Definition at line 122 of file marchingCells.H.

Referenced by marchingCells(), and update().

◆ meshWave_

FaceCellWave<wallPointData<bool> > meshWave_

protected

Engine propagating the active cells.

Uses infrastructure from FaceCellWave, to easily handle parallel interfaces

Definition at line 130 of file marchingCells.H.

Referenced by initialise(), marchingCells(), and update().

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/optimisation/designVariables/topODesignVariables/marchingCells/marchingCells.H
src/optimisation/adjointOptimisation/adjoint/optimisation/designVariables/topODesignVariables/marchingCells/marchingCells.C
