Wave propagation of information through grid. Every iteration information goes through one layer of cells. Templated on information that is transferred. More...

#include <FaceCellWave.H>

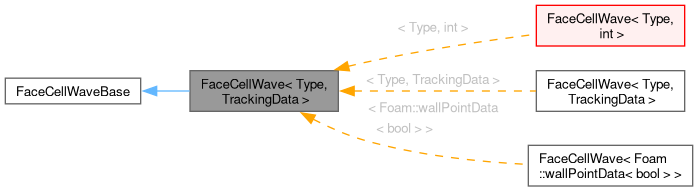

Inheritance diagram for FaceCellWave< Type, TrackingData >:

[legend]

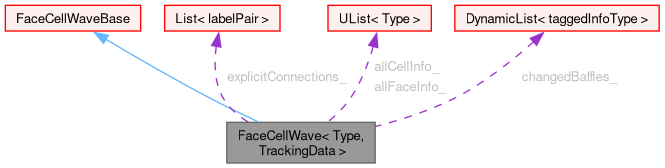

Collaboration diagram for FaceCellWave< Type, TrackingData >:

[legend]

Public Member Functions
	FaceCellWave (const polyMesh &mesh, UList< Type > &allFaceInfo, UList< Type > &allCellInfo, TrackingData &td=FaceCellWaveBase::dummyTrackData_)
	Construct from mesh. Use setFaceInfo and iterate() to do actual calculation.
	FaceCellWave (const polyMesh &mesh, const labelUList &initialChangedFaces, const UList< Type > &changedFacesInfo, UList< Type > &allFaceInfo, UList< Type > &allCellInfo, const label maxIter, TrackingData &td=FaceCellWaveBase::dummyTrackData_)
	Construct from mesh and list of changed faces with the Type.
	FaceCellWave (const polyMesh &mesh, const UList< labelPair > &explicitConnections, const bool handleCyclicAMI, const labelUList &initialChangedFaces, const UList< Type > &changedFacesInfo, UList< Type > &allFaceInfo, UList< Type > &allCellInfo, const label maxIter, TrackingData &td=FaceCellWaveBase::dummyTrackData_)
	Construct from mesh and explicitly connected boundary faces.
virtual	~FaceCellWave ()=default
	Destructor.
UList< Type > &	allFaceInfo () noexcept
	Access allFaceInfo.
UList< Type > &	allCellInfo () noexcept
	Access allCellInfo.
const TrackingData &	data () const noexcept
	Additional data to be passed into container.
void	setFaceInfo (const label facei, const Type &faceInfo)
	Set single initial changed face.
void	setFaceInfo (const labelUList &changedFaces, const UList< Type > &changedFacesInfo)
	Set initial changed faces.
virtual label	faceToCell ()
	Propagate from face to cell.
virtual label	cellToFace ()
	Propagate from cell to face.
virtual label	iterate (const label maxIter)
	Iterate until no changes or maxIter reached.
Public Member Functions inherited from FaceCellWaveBase
	ClassName ("FaceCellWave")
	Runtime type information.
	FaceCellWaveBase (const polyMesh &mesh)
	Construct with mesh reference and set initial sizes.
const polyMesh &	mesh () const noexcept
	Return access to the mesh.
label	nChangedCells () const noexcept
	Current number of changed cells.
label	nChangedFaces () const noexcept
	Current number of changed faces.
label	nUnvisitedCells () const noexcept
	Get number of unvisited cells, i.e. cells that were not (yet) reached from walking across mesh.
label	nUnvisitedFaces () const noexcept
	Get number of unvisited faces.

Protected Types
typedef std::pair< label, Type >	taggedInfoType
	Information tagged with a source or destination id.

Protected Member Functions
bool	updateCell (const label celli, const label neighbourFacei, const Type &neighbourInfo, const scalar tol, Type &cellInfo)
	Updates cellInfo with information from neighbour.
bool	updateFace (const label facei, const label neighbourCelli, const Type &neighbourInfo, const scalar tol, Type &faceInfo)
	Updates faceInfo with information from neighbour.
bool	updateFace (const label facei, const Type &neighbourInfo, const scalar tol, Type &faceInfo)
	Updates faceInfo with information from same face.
void	checkCyclic (const polyPatch &pPatch) const
	Debugging: check info on both sides of cyclic.
template<class PatchType>
bool	hasPatch () const
	Has cyclic patch?
void	mergeFaceInfo (const polyPatch &patch, const label nFaces, const labelUList &changedFaces, const UList< Type > &changedFacesInfo)
	Merge received patch data into global data.
label	getChangedPatchFaces (const polyPatch &patch, const label startFacei, const label nFaces, labelUList &changedPatchFaces, UList< Type > &changedPatchFacesInfo) const
	Extract info for single patch only.
void	leaveDomain (const polyPatch &patch, const label nFaces, const labelUList &faceLabels, UList< Type > &faceInfo) const
	Handle leaving domain. Implementation referred to Type.
void	enterDomain (const polyPatch &patch, const label nFaces, const labelUList &faceLabels, UList< Type > &faceInfo) const
	Handle leaving domain. Implementation referred to Type.
void	transform (const tensorField &rotTensor, const label nFaces, UList< Type > &faceInfo)
	Apply transformation to Type.
void	handleProcPatches ()
	Merge data from across processor boundaries.
void	handleCyclicPatches ()
	Merge data from across cyclics.
void	handleAMICyclicPatches ()
	Merge data from across AMI cyclics.
void	handleExplicitConnections ()
	Merge data across explicitly provided local connections.
	FaceCellWave (const FaceCellWave &)=delete
	No copy construct.
void	operator= (const FaceCellWave &)=delete
	No copy assignment.

Static Protected Member Functions
static void	offset (const polyPatch &patch, const label off, const label nFaces, labelUList &faces)
	Offset face labels by constant value.

Protected Attributes
const labelPairList	explicitConnections_
	Optional boundary faces that information should travel through.
UList< Type > &	allFaceInfo_
	Information for all faces.
UList< Type > &	allCellInfo_
	Information for all cells.
TrackingData &	td_
	Additional data to be passed into container.
DynamicList< taggedInfoType >	changedBaffles_
const bool	hasCyclicPatches_
	Contains cyclics.
const bool	hasCyclicAMIPatches_
	Contains cyclicAMI.
label	nEvals_
	Number of evaluations.
Protected Attributes inherited from FaceCellWaveBase
const polyMesh &	mesh_
	Reference to mesh.
PstreamBuffers	pBufs_
	Buffers when updating processor patches.
bitSet	changedFace_
	Track if face has changed.
bitSet	changedCell_
	Track if cell has changed.
DynamicList< label >	changedFaces_
	List of changed faces.
DynamicList< label >	changedCells_
	List of changed cells.
label	nUnvisitedFaces_
	Current count of unvisited faces.
label	nUnvisitedCells_
	Current count of unvisited cells.

Additional Inherited Members
Static Public Member Functions inherited from FaceCellWaveBase
static scalar	propagationTol () noexcept
	Access to propagation tolerance.
static scalar	setPropagationTol (const scalar tol) noexcept
	Change propagation tolerance, return previous value.
Static Public Attributes inherited from FaceCellWaveBase
static int	dummyTrackData_ = 12345
	Default trackData value (for default template argument).
Static Protected Attributes inherited from FaceCellWaveBase
static const scalar	geomTol_ = 1e-6
static scalar	propagationTol_ = 0.01

Detailed Description

template<class Type, class TrackingData = int>
class Foam::FaceCellWave< Type, TrackingData >

Wave propagation of information through grid. Every iteration information goes through one layer of cells. Templated on information that is transferred.

Handles parallel and cyclics and non-parallel cyclics.

Note: whether to propagate depends on the return value of Type::update which returns true (i.e. propagate) if the value changes by more than a certain tolerance. This tolerance can be very strict for normal face-cell and parallel cyclics (we use a value of 0.01 just to limit propagation of small changes) but for non-parallel cyclics this tolerance can be critical and if chosen too small can lead to non-convergence.

Source files

Definition at line 206 of file FaceCellWave.H.

Member Typedef Documentation

◆ taggedInfoType

template<class Type, class TrackingData = int>

typedef std::pair<label,Type> taggedInfoType

protected

Information tagged with a source or destination id.

With std::pair as lightweight, movable container.

Definition at line 217 of file FaceCellWave.H.

Constructor & Destructor Documentation

◆ FaceCellWave() [1/4]

template<class Type, class TrackingData = int>

FaceCellWave ( const FaceCellWave< Type, TrackingData > & )

protecteddelete

No copy construct.

References FaceCellWave().

Referenced by FaceCellWave(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FaceCellWave() [2/4]

template<class Type, class TrackingData>

FaceCellWave	(	const polyMesh &	mesh,
		UList< Type > &	allFaceInfo,
		UList< Type > &	allCellInfo,
		TrackingData &	td = FaceCellWaveBase::dummyTrackData_ )

Construct from mesh. Use setFaceInfo and iterate() to do actual calculation.

Definition at line 1029 of file FaceCellWave.C.

References allCellInfo(), allCellInfo_, allFaceInfo(), allFaceInfo_, changedBaffles_, explicitConnections_, FaceCellWaveBase::FaceCellWaveBase(), hasCyclicAMIPatches_, hasCyclicPatches_, hasPatch(), FaceCellWaveBase::mesh(), FaceCellWaveBase::mesh_, nEvals_, Foam::returnReduceOr(), td(), and td_.

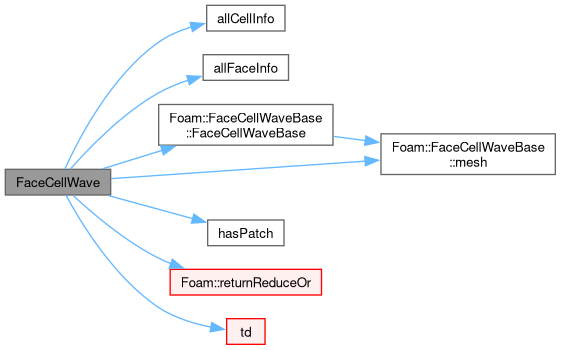

Here is the call graph for this function:

◆ FaceCellWave() [3/4]

template<class Type, class TrackingData>

FaceCellWave	(	const polyMesh &	mesh,
		const labelUList &	initialChangedFaces,
		const UList< Type > &	changedFacesInfo,
		UList< Type > &	allFaceInfo,
		UList< Type > &	allCellInfo,
		const label	maxIter,
		TrackingData &	td = FaceCellWaveBase::dummyTrackData_ )

Construct from mesh and list of changed faces with the Type.

for these faces. Iterates until nothing changes or maxIter reached. (maxIter can be 0 or negative). 0 initializes, -1 does not

Definition at line 1069 of file FaceCellWave.C.

References allCellInfo(), allCellInfo_, allFaceInfo(), allFaceInfo_, changedBaffles_, Foam::endl(), Foam::exit(), explicitConnections_, FaceCellWaveBase::FaceCellWaveBase(), Foam::FatalError, FatalErrorInFunction, hasCyclicAMIPatches_, hasCyclicPatches_, hasPatch(), iterate(), FaceCellWaveBase::mesh(), FaceCellWaveBase::mesh_, FaceCellWaveBase::nChangedCells(), FaceCellWaveBase::nChangedFaces(), nEvals_, Foam::nl, Foam::returnReduceOr(), setFaceInfo(), td(), and td_.

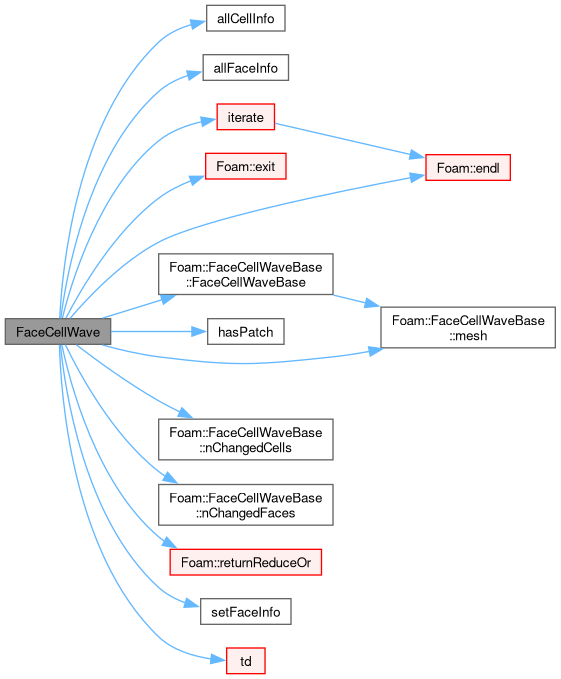

Here is the call graph for this function:

◆ FaceCellWave() [4/4]

template<class Type, class TrackingData>

FaceCellWave	(	const polyMesh &	mesh,
		const UList< labelPair > &	explicitConnections,
		const bool	handleCyclicAMI,
		const labelUList &	initialChangedFaces,
		const UList< Type > &	changedFacesInfo,
		UList< Type > &	allFaceInfo,
		UList< Type > &	allCellInfo,
		const label	maxIter,
		TrackingData &	td = FaceCellWaveBase::dummyTrackData_ )

Construct from mesh and explicitly connected boundary faces.

and list of changed faces with the Type for these faces. Iterates until nothing changes or maxIter reached. (maxIter can be 0 or negative). 0 initializes, -1 does not

Definition at line 1128 of file FaceCellWave.C.

References allCellInfo(), allCellInfo_, allFaceInfo(), allFaceInfo_, changedBaffles_, Foam::endl(), Foam::exit(), explicitConnections_, FaceCellWaveBase::FaceCellWaveBase(), Foam::FatalError, FatalErrorInFunction, hasCyclicAMIPatches_, hasCyclicPatches_, hasPatch(), iterate(), FaceCellWaveBase::mesh(), FaceCellWaveBase::mesh_, FaceCellWaveBase::nChangedCells(), FaceCellWaveBase::nChangedFaces(), nEvals_, Foam::nl, Foam::returnReduceOr(), setFaceInfo(), td(), and td_.

Here is the call graph for this function:

◆ ~FaceCellWave()

template<class Type, class TrackingData = int>

virtual ~FaceCellWave ( )

virtualdefault

Destructor.

Member Function Documentation

◆ updateCell()

template<class Type, class TrackingData>

bool updateCell	(	const label	celli,
		const label	neighbourFacei,
		const Type &	neighbourInfo,
		const scalar	tol,
		Type &	cellInfo )

protected

Updates cellInfo with information from neighbour.

Updates all statistics.

Definition at line 197 of file FaceCellWave.C.

References FaceCellWaveBase::changedCell_, FaceCellWaveBase::changedCells_, FaceCellWaveBase::mesh_, nEvals_, FaceCellWaveBase::nUnvisitedCells_, td_, cellInfo::updateCell(), and cellInfo::valid().

Referenced by faceToCell().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateFace() [1/2]

template<class Type, class TrackingData>

bool updateFace	(	const label	facei,
		const label	neighbourCelli,
		const Type &	neighbourInfo,
		const scalar	tol,
		Type &	faceInfo )

protected

Updates faceInfo with information from neighbour.

Updates all statistics.

Definition at line 245 of file FaceCellWave.C.

References FaceCellWaveBase::mesh_, nEvals_, and td_.

Referenced by cellToFace(), handleAMICyclicPatches(), handleExplicitConnections(), and mergeFaceInfo().

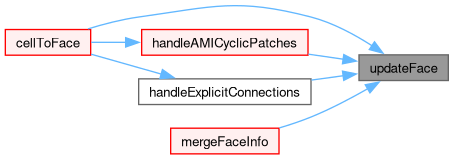

Here is the caller graph for this function:

◆ updateFace() [2/2]

template<class Type, class TrackingData>

bool updateFace	(	const label	facei,
		const Type &	neighbourInfo,
		const scalar	tol,
		Type &	faceInfo )

protected

Updates faceInfo with information from same face.

Updates all statistics.

Definition at line 293 of file FaceCellWave.C.

References nEvals_, and td_.

◆ checkCyclic()

template<class Type, class TrackingData>

void checkCyclic ( const polyPatch & pPatch ) const

protected

Debugging: check info on both sides of cyclic.

Definition at line 339 of file FaceCellWave.C.

Referenced by handleCyclicPatches().

Here is the caller graph for this function:

◆ hasPatch()

template<class Type, class TrackingData>

template<class PatchType>

bool hasPatch ( ) const

protected

Has cyclic patch?

Definition at line 386 of file FaceCellWave.C.

References FaceCellWaveBase::mesh_, and p.

Referenced by FaceCellWave(), FaceCellWave(), and FaceCellWave().

Here is the caller graph for this function:

◆ mergeFaceInfo()

template<class Type, class TrackingData>

void mergeFaceInfo	(	const polyPatch &	patch,
		const label	nFaces,
		const labelUList &	changedFaces,
		const UList< Type > &	changedFacesInfo )

protected

Merge received patch data into global data.

Definition at line 453 of file FaceCellWave.C.

References allFaceInfo_, FaceCellWaveBase::propagationTol_, td_, and updateFace().

Referenced by handleCyclicPatches(), and handleProcPatches().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getChangedPatchFaces()

template<class Type, class TrackingData>

Foam::label getChangedPatchFaces	(	const polyPatch &	patch,
		const label	startFacei,
		const label	nFaces,
		labelUList &	changedPatchFaces,
		UList< Type > &	changedPatchFacesInfo ) const

protected

Extract info for single patch only.

Definition at line 487 of file FaceCellWave.C.

References allFaceInfo_, and FaceCellWaveBase::changedFace_.

Referenced by handleCyclicPatches(), and handleProcPatches().

Here is the caller graph for this function:

◆ leaveDomain()

template<class Type, class TrackingData>

void leaveDomain	(	const polyPatch &	patch,
		const label	nFaces,
		const labelUList &	faceLabels,
		UList< Type > &	faceInfo ) const

protected

Handle leaving domain. Implementation referred to Type.

Definition at line 519 of file FaceCellWave.C.

References faceLabels(), and FaceCellWaveBase::mesh_.

Referenced by handleCyclicPatches(), and handleProcPatches().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ enterDomain()

template<class Type, class TrackingData>

void enterDomain	(	const polyPatch &	patch,
		const label	nFaces,
		const labelUList &	faceLabels,
		UList< Type > &	faceInfo ) const

protected

Handle leaving domain. Implementation referred to Type.

Definition at line 542 of file FaceCellWave.C.

Referenced by handleCyclicPatches(), and handleProcPatches().

Here is the caller graph for this function:

◆ offset()

template<class Type, class TrackingData>

void offset	(	const polyPatch &	patch,
		const label	off,
		const label	nFaces,
		labelUList &	faces )

staticprotected

Offset face labels by constant value.

Definition at line 594 of file FaceCellWave.C.

◆ transform()

template<class Type, class TrackingData>

void transform	(	const tensorField &	rotTensor,
		const label	nFaces,
		UList< Type > &	faceInfo )

protected

Apply transformation to Type.

Definition at line 565 of file FaceCellWave.C.

References FaceCellWaveBase::mesh_, UList< T >::size(), Foam::T(), and td_.

Referenced by handleAMICyclicPatches(), handleCyclicPatches(), and handleProcPatches().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ handleProcPatches()

template<class Type, class TrackingData>

void handleProcPatches ( )

protected

Merge data from across processor boundaries.

Transfer changed faces from neighbouring processors.

Definition at line 613 of file FaceCellWave.C.

References UList< T >::empty(), Foam::endl(), enterDomain(), getChangedPatchFaces(), leaveDomain(), mergeFaceInfo(), FaceCellWaveBase::mesh_, FaceCellWaveBase::pBufs_, Foam::Pout, globalMeshData::processorPatches(), processorTopology::procNeighbours(), Foam::refCast(), DynamicList< T, SizeMin >::resize(), DynamicList< T, SizeMin >::resize_nocopy(), UList< T >::size(), globalMeshData::topology(), and transform().

Referenced by cellToFace(), and iterate().

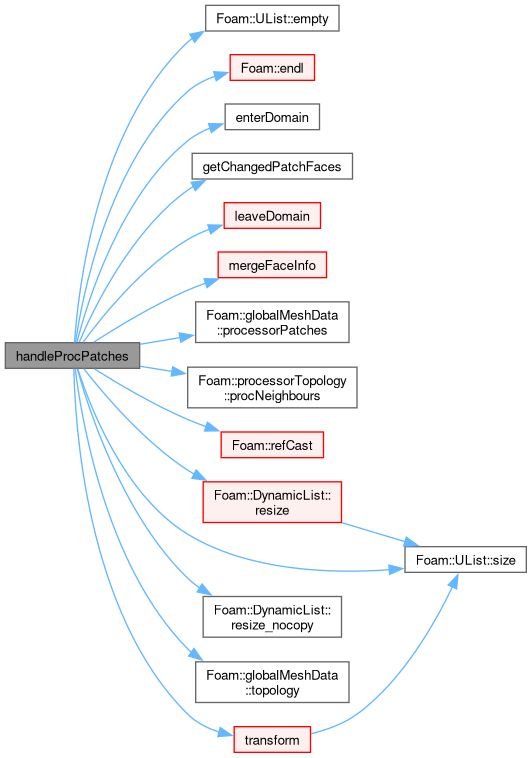

Here is the call graph for this function:

Here is the caller graph for this function:

◆ handleCyclicPatches()

template<class Type, class TrackingData>

void handleCyclicPatches ( )

protected

Merge data from across cyclics.

Transfer changed faces across cyclic halves

Definition at line 758 of file FaceCellWave.C.

References checkCyclic(), Foam::endl(), enterDomain(), getChangedPatchFaces(), Foam::isA(), leaveDomain(), mergeFaceInfo(), FaceCellWaveBase::mesh_, cyclicPolyPatch::neighbPatch(), Foam::Pout, UList< T >::size(), and transform().

Referenced by cellToFace(), and iterate().

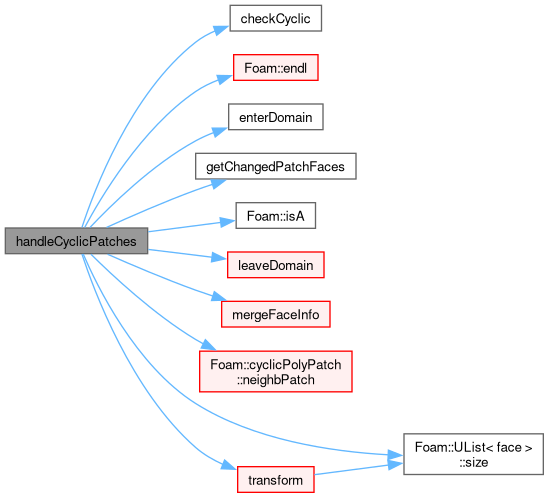

Here is the call graph for this function:

Here is the caller graph for this function:

◆ handleAMICyclicPatches()

template<class Type, class TrackingData>

void handleAMICyclicPatches ( )

protected

Merge data from across AMI cyclics.

Definition at line 841 of file FaceCellWave.C.

References allCellInfo_, allFaceInfo_, polyPatch::faceCentres(), forAll, Foam::isA(), FaceCellWaveBase::mesh_, cyclicPolyPatch::neighbPatch(), UList< T >::null(), coupledPolyPatch::parallel(), polyPatch::patchSlice(), FaceCellWaveBase::propagationTol_, coupledPolyPatch::separated(), UList< T >::size(), td_, transform(), and updateFace().

Referenced by cellToFace(), and iterate().

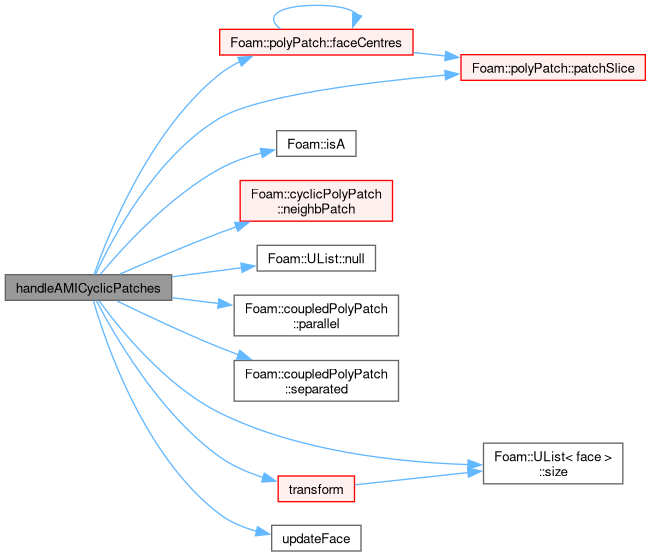

Here is the call graph for this function:

Here is the caller graph for this function:

◆ handleExplicitConnections()

template<class Type, class TrackingData>

void handleExplicitConnections ( )

protected

Merge data across explicitly provided local connections.

These are usually baffles

Definition at line 977 of file FaceCellWave.C.

References allFaceInfo_, changedBaffles_, FaceCellWaveBase::changedFace_, explicitConnections_, FaceCellWaveBase::propagationTol_, td_, and updateFace().

Referenced by cellToFace().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=()

template<class Type, class TrackingData = int>

void operator= ( const FaceCellWave< Type, TrackingData > & )

protecteddelete

No copy assignment.

References allCellInfo(), allFaceInfo(), FaceCellWaveBase::dummyTrackData_, FaceCellWave(), FaceCellWaveBase::mesh(), and td().

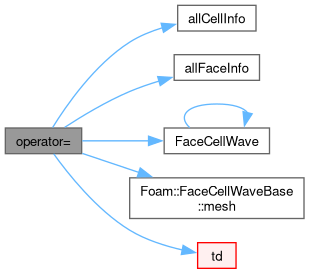

Here is the call graph for this function:

◆ allFaceInfo()

template<class Type, class TrackingData = int>

UList< Type > & allFaceInfo ( )

inlinenoexcept

Access allFaceInfo.

Definition at line 490 of file FaceCellWave.H.

References allFaceInfo_, and Foam::noexcept.

Referenced by FaceCellWave(), FaceCellWave(), FaceCellWave(), and operator=().

Here is the caller graph for this function:

◆ allCellInfo()

template<class Type, class TrackingData = int>

UList< Type > & allCellInfo ( )

inlinenoexcept

Access allCellInfo.

Definition at line 498 of file FaceCellWave.H.

References allCellInfo_, and Foam::noexcept.

Referenced by FaceCellWave(), FaceCellWave(), FaceCellWave(), and operator=().

Here is the caller graph for this function:

◆ data()

template<class Type, class TrackingData = int>

const TrackingData & data ( ) const

inlinenoexcept

Additional data to be passed into container.

Definition at line 506 of file FaceCellWave.H.

References Foam::noexcept, and td_.

Referenced by wallDistAddressing::correct(), decompositionMethod::decompose(), structuredDecomp::decompose(), wallDistAddressing::getValues(), and levelSetDesignVariables::updateSignedDistances().

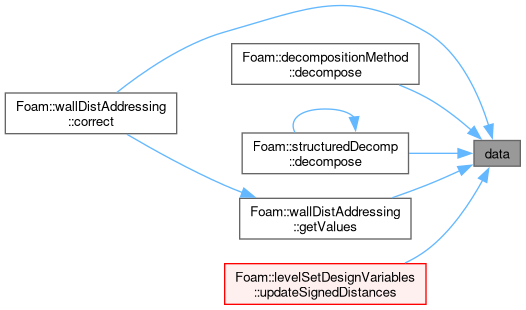

Here is the caller graph for this function:

◆ setFaceInfo() [1/2]

template<class Type, class TrackingData>

void setFaceInfo	(	const label	facei,
		const Type &	faceInfo )

Set single initial changed face.

This is a noop if the face had already been visited

Definition at line 400 of file FaceCellWave.C.

Referenced by hexRef8::consistentSlowRefinement(), FaceCellWave(), and FaceCellWave().

Here is the caller graph for this function:

◆ setFaceInfo() [2/2]

template<class Type, class TrackingData>

void setFaceInfo	(	const labelUList &	changedFaces,
		const UList< Type > &	changedFacesInfo )

Set initial changed faces.

Definition at line 424 of file FaceCellWave.C.

References allFaceInfo_, FaceCellWaveBase::changedFace_, FaceCellWaveBase::changedFaces_, forAll, FaceCellWaveBase::nUnvisitedFaces_, and td_.

◆ faceToCell()

template<class Type, class TrackingData>

Foam::label faceToCell ( )

virtual

Propagate from face to cell.

Returns: total number of cells (over all processors) changed.

Reimplemented in OppositeFaceCellWave< Type, TrackingData >.

Definition at line 1192 of file FaceCellWave.C.

References Foam::abort(), allCellInfo_, allFaceInfo_, FaceCellWaveBase::changedFace_, FaceCellWaveBase::changedFaces_, Foam::endl(), Foam::FatalError, FatalErrorInFunction, FaceCellWaveBase::mesh_, FaceCellWaveBase::nChangedCells(), Foam::Pout, FaceCellWaveBase::propagationTol_, Foam::returnReduce(), td_, and updateCell().

Referenced by iterate().

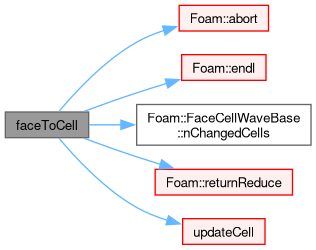

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cellToFace()

template<class Type, class TrackingData>

Foam::label cellToFace ( )

virtual

Propagate from cell to face.

Returns: total number of faces (over all processors) changed. Note that faces on processor patches are counted twice.

Reimplemented in OppositeFaceCellWave< Type, TrackingData >.

Definition at line 1269 of file FaceCellWave.C.

References Foam::abort(), allCellInfo_, allFaceInfo_, cells, FaceCellWaveBase::changedCell_, FaceCellWaveBase::changedCells_, Foam::endl(), faceLabels(), Foam::FatalError, FatalErrorInFunction, handleAMICyclicPatches(), handleCyclicPatches(), handleExplicitConnections(), handleProcPatches(), hasCyclicAMIPatches_, hasCyclicPatches_, FaceCellWaveBase::mesh_, FaceCellWaveBase::nChangedFaces(), UPstream::parRun(), Foam::Pout, FaceCellWaveBase::propagationTol_, Foam::returnReduce(), td_, and updateFace().

Referenced by iterate().

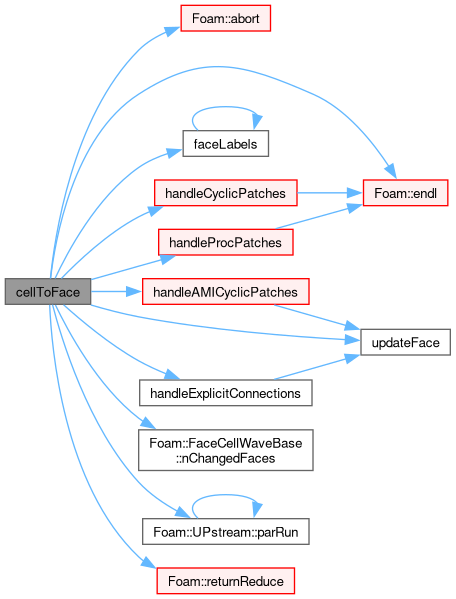

Here is the call graph for this function:

Here is the caller graph for this function:

◆ iterate()

template<class Type, class TrackingData>

Foam::label iterate ( const label maxIter )

virtual

Iterate until no changes or maxIter reached.

Returns: the number of iterations taken.

Definition at line 1345 of file FaceCellWave.C.

References cellToFace(), Foam::endl(), faceToCell(), handleAMICyclicPatches(), handleCyclicPatches(), handleProcPatches(), hasCyclicAMIPatches_, hasCyclicPatches_, Foam::Info, nEvals_, Foam::nl, FaceCellWaveBase::nUnvisitedCells_, FaceCellWaveBase::nUnvisitedFaces_, and UPstream::parRun().

Referenced by hexRef8::consistentSlowRefinement(), FaceCellWave(), FaceCellWave(), and structuredRenumber::renumber().

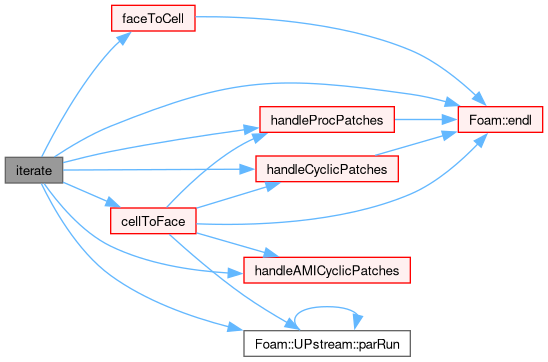

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ explicitConnections_

template<class Type, class TrackingData = int>

const labelPairList explicitConnections_

protected

Optional boundary faces that information should travel through.

Definition at line 225 of file FaceCellWave.H.

Referenced by FaceCellWave(), FaceCellWave(), FaceCellWave(), and handleExplicitConnections().

◆ allFaceInfo_

template<class Type, class TrackingData = int>

UList<Type>& allFaceInfo_

protected

Information for all faces.

Definition at line 230 of file FaceCellWave.H.

Referenced by allFaceInfo(), cellToFace(), FaceCellWave(), FaceCellWave(), FaceCellWave(), faceToCell(), getChangedPatchFaces(), handleAMICyclicPatches(), handleExplicitConnections(), mergeFaceInfo(), and setFaceInfo().

◆ allCellInfo_

template<class Type, class TrackingData = int>

UList<Type>& allCellInfo_

protected

Information for all cells.

Definition at line 235 of file FaceCellWave.H.

Referenced by allCellInfo(), cellToFace(), FaceCellWave(), FaceCellWave(), FaceCellWave(), faceToCell(), and handleAMICyclicPatches().

◆ td_

template<class Type, class TrackingData = int>

TrackingData& td_

protected

Additional data to be passed into container.

Definition at line 240 of file FaceCellWave.H.

Referenced by cellToFace(), data(), FaceCellWave(), FaceCellWave(), FaceCellWave(), faceToCell(), handleAMICyclicPatches(), handleExplicitConnections(), mergeFaceInfo(), setFaceInfo(), transform(), updateCell(), updateFace(), and updateFace().

◆ changedBaffles_

template<class Type, class TrackingData = int>

DynamicList<taggedInfoType> changedBaffles_

protected

Definition at line 244 of file FaceCellWave.H.

Referenced by FaceCellWave(), FaceCellWave(), FaceCellWave(), and handleExplicitConnections().

◆ hasCyclicPatches_

template<class Type, class TrackingData = int>

const bool hasCyclicPatches_

protected

Contains cyclics.

Definition at line 249 of file FaceCellWave.H.

Referenced by cellToFace(), FaceCellWave(), FaceCellWave(), FaceCellWave(), and iterate().

◆ hasCyclicAMIPatches_

template<class Type, class TrackingData = int>

const bool hasCyclicAMIPatches_

protected

Contains cyclicAMI.

Definition at line 254 of file FaceCellWave.H.

Referenced by cellToFace(), FaceCellWave(), FaceCellWave(), FaceCellWave(), and iterate().

◆ nEvals_

template<class Type, class TrackingData = int>

label nEvals_

protected

Number of evaluations.

Definition at line 259 of file FaceCellWave.H.

Referenced by FaceCellWave(), FaceCellWave(), FaceCellWave(), iterate(), updateCell(), updateFace(), and updateFace().

The documentation for this class was generated from the following files:

src/meshTools/algorithms/MeshWave/FaceCellWave.H
src/meshTools/algorithms/MeshWave/FaceCellWave.C

Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ taggedInfoType

Constructor & Destructor Documentation

◆ FaceCellWave() [1/4]

◆ FaceCellWave() [2/4]

◆ FaceCellWave() [3/4]

◆ FaceCellWave() [4/4]

◆ ~FaceCellWave()

Member Function Documentation

◆ updateCell()

◆ updateFace() [1/2]

◆ updateFace() [2/2]

◆ checkCyclic()

◆ hasPatch()

◆ mergeFaceInfo()

◆ getChangedPatchFaces()

◆ leaveDomain()

◆ enterDomain()

◆ offset()

◆ transform()

◆ handleProcPatches()

◆ handleCyclicPatches()

◆ handleAMICyclicPatches()

◆ handleExplicitConnections()

◆ operator=()

◆ allFaceInfo()

◆ allCellInfo()

◆ data()

◆ setFaceInfo() [1/2]

◆ setFaceInfo() [2/2]

◆ faceToCell()

◆ cellToFace()

◆ iterate()

Member Data Documentation

◆ explicitConnections_

◆ allFaceInfo_

◆ allCellInfo_

◆ td_

◆ changedBaffles_

◆ hasCyclicPatches_

◆ hasCyclicAMIPatches_

◆ nEvals_
