Abstract base class for defining constraints for the control points of volumetric B-Splines morphing boxes. More...

#include <morphingBoxConstraint.H>

Inheritance diagram for morphingBoxConstraint:

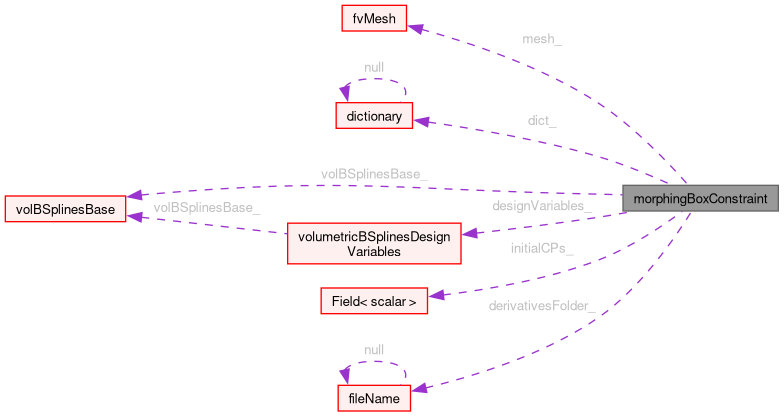

Collaboration diagram for morphingBoxConstraint:

[legend]

Public Member Functions
	TypeName ("morphingBoxConstraint")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, morphingBoxConstraint, dictionary,(const fvMesh &mesh, const dictionary &dict, volumetricBSplinesDesignVariables &designVariables),(mesh, dict, designVariables))
	morphingBoxConstraint (const fvMesh &mesh, const dictionary &dict, volumetricBSplinesDesignVariables &designVariables)
	Construct from components.
virtual	~morphingBoxConstraint ()=default
	Destructor.
virtual labelList	computeActiveDesignVariables (const labelList &activeCPCoors)=0
	Compute the active design variables based on the IDs of the active control point coordinates.
virtual void	computeBounds (autoPtr< scalarField > &lowerBounds, autoPtr< scalarField > &upperBounds)
	Transform bounds from control points to design variables.
virtual void	updateBounds (autoPtr< scalarField > &lowerBounds, autoPtr< scalarField > &upperBounds)
	Update the bounds of the design variables.
virtual tmp< scalarField >	designVariablesToControlPoints (const scalarField &designVariables)=0
	Convert design variables to control points, stored in a scalarField.
virtual tmp< scalarField >	controlPointsToDesignVariables (const scalarField &cps)=0
	Return the design variables corresponding to the given control points.
virtual tmp< scalarField >	correctionCPs (const scalarField &correction)=0
	Convert the correction of the design variables to the correction of the control points.
virtual tmp< scalarField >	postProcessSens (const scalarField &controlPointSens, const word &adjointSolverName)
	Chain rule from control points to design variables.
virtual scalar	computeEta (scalarField &correction, const scalar maxInitChange)
	Compute eta if not set in the first step.
bool	initialiseVars () const
	Initialise the design variables?
virtual bool	writeData (Ostream &os) const
	Append useful information to the design variables IOdictionary.

Static Public Member Functions
static autoPtr< morphingBoxConstraint >	New (const fvMesh &mesh, const dictionary &dict, volumetricBSplinesDesignVariables &designVariables)
	Construct and return the selected morphingBoxConstraint.

Protected Member Functions
virtual void	computeDVsSensitivities (scalarField &dvSens, const scalarField &cpSens)=0
	Compute sensitivities wrt the design variables (chain rule).
virtual void	writeDVSensitivities (const scalarField &sens, const word &name)
	Write sensitivities w.r.t. the design variables.

Protected Attributes
const fvMesh &	mesh_
	Mesh reference.
const dictionary	dict_
	Volumetric B-Splines variables dict.
volumetricBSplinesDesignVariables &	designVariables_
	Reference to underlaying volumetric B-Splines morpher.
volBSplinesBase &	volBSplinesBase_
	Easy access to the volBSplinesBase resting in the designVariables_.
scalarField	initialCPs_
	Initial CPs stored in scalarField.
bool	initialiseVars_
	Initialise the design variables.
fileName	derivativesFolder_
	Folder holding the twist sensitivities.

Detailed Description

Abstract base class for defining constraints for the control points of volumetric B-Splines morphing boxes.

Source files

Definition at line 52 of file morphingBoxConstraint.H.

Constructor & Destructor Documentation

◆ morphingBoxConstraint()

morphingBoxConstraint	(	const fvMesh &	mesh,
		const dictionary &	dict,
		volumetricBSplinesDesignVariables &	designVariables )

Construct from components.

Definition at line 70 of file morphingBoxConstraint.C.

References derivativesFolder_, designVariables_, dict, dict_, initialCPs_, initialiseVars_, mesh, mesh_, Foam::mkDir(), and volBSplinesBase_.

Here is the call graph for this function:

◆ ~morphingBoxConstraint()

virtual ~morphingBoxConstraint ( )

virtualdefault

Destructor.

Member Function Documentation

◆ computeDVsSensitivities()

virtual void computeDVsSensitivities	(	scalarField &	dvSens,
		const scalarField &	cpSens )

protectedpure virtual

Compute sensitivities wrt the design variables (chain rule).

Implemented in noConstraint.

References Foam::name().

Referenced by postProcessSens().

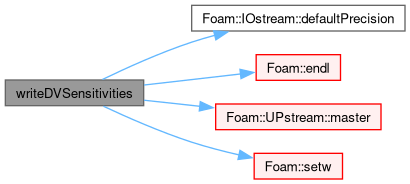

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeDVSensitivities()

void writeDVSensitivities	(	const scalarField &	sens,
		const word &	name )

protectedvirtual

Write sensitivities w.r.t. the design variables.

Definition at line 39 of file morphingBoxConstraint.C.

References IOstream::defaultPrecision(), derivativesFolder_, designVariables_, Foam::endl(), forAll, UPstream::master(), mesh_, and Foam::setw().

Referenced by postProcessSens().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "morphingBoxConstraint" )

Runtime type information.

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		morphingBoxConstraint	,
		dictionary	,
		(const fvMesh &mesh, const dictionary &dict, volumetricBSplinesDesignVariables &designVariables)	,
		(mesh, dict, designVariables)	)

References dict, and mesh.

◆ New()

Foam::autoPtr< Foam::morphingBoxConstraint > New	(	const fvMesh &	mesh,
		const dictionary &	dict,
		volumetricBSplinesDesignVariables &	designVariables )

static

Construct and return the selected morphingBoxConstraint.

Definition at line 106 of file morphingBoxConstraint.C.

References dict, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInLookup, Foam::Info, and mesh.

Here is the call graph for this function:

◆ computeActiveDesignVariables()

virtual labelList computeActiveDesignVariables ( const labelList & activeCPCoors )

pure virtual

Compute the active design variables based on the IDs of the active control point coordinates.

Implemented in noConstraint.

◆ computeBounds()

void computeBounds	(	autoPtr< scalarField > &	lowerBounds,
		autoPtr< scalarField > &	upperBounds )

virtual

Transform bounds from control points to design variables.

WIP

Reimplemented in noConstraint.

Definition at line 138 of file morphingBoxConstraint.C.

References NotImplemented.

◆ updateBounds()

void updateBounds	(	autoPtr< scalarField > &	lowerBounds,
		autoPtr< scalarField > &	upperBounds )

virtual

Update the bounds of the design variables.

WIP

Reimplemented in noConstraint.

Definition at line 151 of file morphingBoxConstraint.C.

References designVariables_, and NotImplemented.

◆ designVariablesToControlPoints()

virtual tmp< scalarField > designVariablesToControlPoints ( const scalarField & designVariables )

pure virtual

Convert design variables to control points, stored in a scalarField.

Implemented in noConstraint.

◆ controlPointsToDesignVariables()

virtual tmp< scalarField > controlPointsToDesignVariables ( const scalarField & cps )

pure virtual

Return the design variables corresponding to the given control points.

Implemented in noConstraint.

◆ correctionCPs()

virtual tmp< scalarField > correctionCPs ( const scalarField & correction )

pure virtual

Convert the correction of the design variables to the correction of the control points.

Implemented in noConstraint.

References Foam::correction().

Here is the call graph for this function:

◆ postProcessSens()

Foam::tmp< Foam::scalarField > postProcessSens	(	const scalarField &	controlPointSens,
		const word &	adjointSolverName )

virtual

Chain rule from control points to design variables.

Definition at line 164 of file morphingBoxConstraint.C.

References computeDVsSensitivities(), designVariables_, tmp< T >::New(), writeDVSensitivities(), and Foam::Zero.

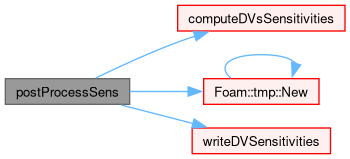

Here is the call graph for this function:

◆ computeEta()

Foam::scalar computeEta	(	scalarField &	correction,
		const scalar	maxInitChange )

virtual

Compute eta if not set in the first step.

Definition at line 181 of file morphingBoxConstraint.C.

References Foam::correction(), designVariables_, Foam::endl(), Foam::Info, and volBSplinesBase_.

Here is the call graph for this function:

◆ initialiseVars()

bool initialiseVars ( ) const

inline

Initialise the design variables?

Definition at line 266 of file morphingBoxConstraint.H.

References initialiseVars_.

◆ writeData()

bool writeData ( Ostream & os ) const

virtual

Append useful information to the design variables IOdictionary.

Definition at line 208 of file morphingBoxConstraint.C.

References os().

Here is the call graph for this function:

Member Data Documentation

◆ mesh_

const fvMesh& mesh_

protected

Mesh reference.

Definition at line 61 of file morphingBoxConstraint.H.

Referenced by morphingBoxConstraint(), and writeDVSensitivities().

◆ dict_

const dictionary dict_

protected

Volumetric B-Splines variables dict.

Definition at line 66 of file morphingBoxConstraint.H.

Referenced by morphingBoxConstraint().

◆ designVariables_

volumetricBSplinesDesignVariables& designVariables_

protected

Reference to underlaying volumetric B-Splines morpher.

Definition at line 71 of file morphingBoxConstraint.H.

Referenced by computeEta(), morphingBoxConstraint(), noConstraint::noConstraint(), postProcessSens(), updateBounds(), noConstraint::updateBounds(), and writeDVSensitivities().

◆ volBSplinesBase_

volBSplinesBase& volBSplinesBase_

protected

Easy access to the volBSplinesBase resting in the designVariables_.

Definition at line 76 of file morphingBoxConstraint.H.

Referenced by computeEta(), morphingBoxConstraint(), noConstraint::noConstraint(), and noConstraint::updateBounds().

◆ initialCPs_

scalarField initialCPs_

protected

Initial CPs stored in scalarField.

Definition at line 81 of file morphingBoxConstraint.H.

Referenced by morphingBoxConstraint().

◆ initialiseVars_

bool initialiseVars_

protected

Initialise the design variables.

Definition at line 86 of file morphingBoxConstraint.H.

Referenced by initialiseVars(), and morphingBoxConstraint().

◆ derivativesFolder_

fileName derivativesFolder_

protected

Folder holding the twist sensitivities.

Definition at line 91 of file morphingBoxConstraint.H.

Referenced by morphingBoxConstraint(), and writeDVSensitivities().

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/optimisation/designVariables/shape/volumetricBSplines/morphingBoxConstraints/morphingBoxConstaint/morphingBoxConstraint.H
src/optimisation/adjointOptimisation/adjoint/optimisation/designVariables/shape/volumetricBSplines/morphingBoxConstraints/morphingBoxConstaint/morphingBoxConstraint.C
