motionSmootherAlgo Class Reference

Given a displacement moves the mesh by scaling the displacement back until there are no more mesh errors. More...

#include <motionSmootherAlgo.H>

Inheritance diagram for motionSmootherAlgo:
Inheritance graph
[legend]

Public Member Functions

 ClassName ("motionSmootherAlgo")
 motionSmootherAlgo (polyMesh &, pointMesh &, indirectPrimitivePatch &pp, pointVectorField &displacement, pointScalarField &scale, pointField &oldPoints, const labelList &adaptPatchIDs, const dictionary &paramDict, const bool dryRun=false)
 Construct from mesh, patches to work on and smoothing parameters.
 ~motionSmootherAlgo ()
 Destructor.
const polyMesh & mesh () const
 Reference to mesh.
const pointMesh & pMesh () const
 Reference to pointMesh.
const indirectPrimitivePatch & patch () const
 Reference to patch.
const labelList & adaptPatchIDs () const
 Patch labels that are being adapted.
const dictionary & paramDict () const
pointVectorField & pointDisplacement ()
 Return reference to the point motion displacement field.
const pointVectorField & pointDisplacement () const
 Return const reference to the point motion displacement field.
void correct ()
 Take over existing mesh position.
void setDisplacementPatchFields ()
 Set patch fields on displacement to be consistent with.
void setDisplacement (pointField &patchDisp)
void correctBoundaryConditions (pointVectorField &) const
 Special correctBoundaryConditions which evaluates fixedValue.
void modifyMotionPoints (pointField &newPoints) const
 Apply optional point constraint (2d correction).
tmp< pointField > curPoints () const
 Get the current points (oldPoints+scale*displacement).
scalar setErrorReduction (const scalar)
 Set the errorReduction (by how much to scale the displacement.
bool scaleMesh (labelList &checkFaces, const bool smoothMesh=true, const label nAllow=0)
 Move mesh with given scale. Return true if mesh ok or has.
bool scaleMesh (labelList &checkFaces, const List< labelPair > &baffles, const bool smoothMesh=true, const label nAllow=0)
 Move mesh (with baffles) with given scale.
bool scaleMesh (labelList &checkFaces, const List< labelPair > &baffles, const dictionary &paramDict, const dictionary &meshQualityDict, const bool smoothMesh=true, const label nAllow=0)
 Move mesh with externally provided mesh constraints.
void movePoints ()
 Update for new mesh geometry.
void updateMesh ()
 Update for new mesh topology.
template<class Type>
void smooth (const GeometricField< Type, pointPatchField, pointMesh > &fld, const scalarField &edgeWeight, GeometricField< Type, pointPatchField, pointMesh > &newFld) const
 Fully explicit smoothing of fields (not positions).
template<class Type>
Foam::tmp< Foam::GeometricField< Type, Foam::pointPatchField, Foam::pointMesh > > avg (const GeometricField< Type, pointPatchField, pointMesh > &fld, const scalarField &edgeWeight) const

Static Public Member Functions

static void setDisplacementPatchFields (const labelList &patchIDs, pointVectorField &pointDisplacement)
 Set patch fields on patchIDs to be consistent with.
static void setDisplacement (const labelList &patchIDs, const indirectPrimitivePatch &pp, pointField &patchDisp, pointVectorField &displacement)
 Set displacement field from displacement on patch points.
static bool checkMesh (const bool report, const polyMesh &mesh, const dictionary &dict, labelHashSet &wrongFaces, const bool dryRun=false)
 Check mesh with mesh settings in dict. Collects incorrect faces.
static bool checkMesh (const bool report, const polyMesh &mesh, const dictionary &dict, const labelList &checkFaces, labelHashSet &wrongFaces, const bool dryRun=false)
 Check (subset of mesh) with mesh settings in dict.
static bool checkMesh (const bool report, const polyMesh &mesh, const dictionary &dict, const labelList &checkFaces, const List< labelPair > &baffles, labelHashSet &wrongFaces, const bool dryRun=false)
 Check (subset of mesh including baffles) with mesh settings.
static bool checkMesh (const bool report, const dictionary &dict, const polyMeshGeometry &, const pointField &, const labelList &checkFaces, labelHashSet &wrongFaces, const bool dryRun=false)
 Check part of mesh with mesh settings in dict.
static bool checkMesh (const bool report, const dictionary &dict, const polyMeshGeometry &, const pointField &, const labelList &checkFaces, const List< labelPair > &baffles, labelHashSet &wrongFaces, const bool dryRun=false)
 Check part of mesh including baffles with mesh settings in dict.
template<class Type>
static Type get (const dictionary &dict, const word &keyword, const bool noExit, enum keyType::option matchOpt, const Type &defaultValue=Zero)
 Wrapper around dictionary::get which does not exit.

Detailed Description

Given a displacement moves the mesh by scaling the displacement back until there are no more mesh errors.

Holds displacement field (read upon construction since need boundary conditions) and scaling factor and optional patch number on which to scale back displacement.

E.g.

    // Construct iterative mesh mover.
    motionSmoother meshMover(mesh, labelList(1, patchi));

    // Set desired displacement:
    meshMover.displacement() = ..

    for (label iter = 0; iter < maxIter; iter++)
    {
        if (meshMover.scaleMesh(true))
        {
            Info<< "Successfully moved mesh" << endl;
            return true;
        }
    }
Note
  • Shared points (parallel): a processor can have points which are part of pp on another processor but have no pp itself (i.e. it has points and/or edges but no faces of pp). Hence we have to be careful when e.g. synchronising displacements that the value from the processor which has faces of pp get priority. This is currently handled in setDisplacement by resetting the internal displacement to zero on coupled points that are coupled to patch points before doing anything else. The combine operator used will give preference to non-zero values.
  • Various routines take baffles. These are sets of boundary faces that are treated as a single internal face. This is a hack used to apply movement to internal faces.
  • Mesh constraints are looked up from the supplied dictionary. (uses recursive lookup)
Source files

Definition at line 96 of file motionSmootherAlgo.H.

Constructor & Destructor Documentation

◆ motionSmootherAlgo()

motionSmootherAlgo ( polyMesh & mesh,
pointMesh & pMesh,
indirectPrimitivePatch & pp,
pointVectorField & displacement,
pointScalarField & scale,
pointField & oldPoints,
const labelList & adaptPatchIDs,
const dictionary & paramDict,
const bool dryRun = false )

Construct from mesh, patches to work on and smoothing parameters.

Definition at line 318 of file motionSmootherAlgo.C.

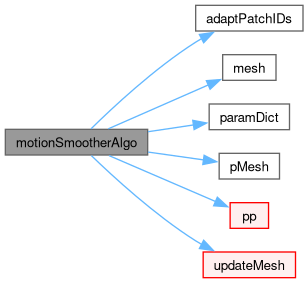

References adaptPatchIDs(), mesh(), nPoints, paramDict(), pMesh(), pp(), and updateMesh().

Here is the call graph for this function:

◆ ~motionSmootherAlgo()

~motionSmootherAlgo ( )

Destructor.

Definition at line 348 of file motionSmootherAlgo.C.

Member Function Documentation

◆ ClassName()

ClassName ( "motionSmootherAlgo" )

References adaptPatchIDs(), paramDict(), and pp().

Here is the call graph for this function:

◆ mesh()

const Foam::polyMesh & mesh ( ) const

Reference to mesh.

Definition at line 354 of file motionSmootherAlgo.C.

Referenced by avg(), checkMesh(), checkMesh(), checkMesh(), motionSmoother::ClassName(), motionSmoother::motionSmoother(), motionSmoother::motionSmoother(), motionSmootherAlgo(), and setDisplacement().

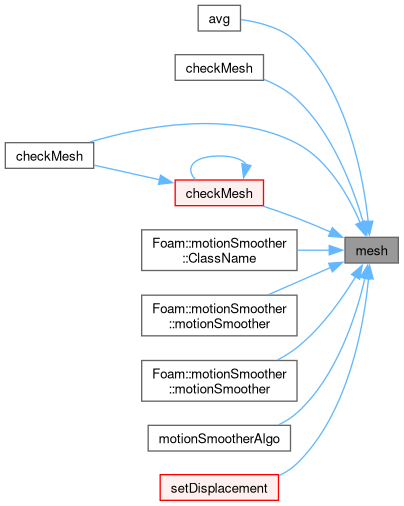

Here is the caller graph for this function:

◆ pMesh()

const Foam::pointMesh & pMesh ( ) const

Reference to pointMesh.

Definition at line 360 of file motionSmootherAlgo.C.

Referenced by motionSmoother::ClassName(), motionSmoother::motionSmoother(), motionSmootherAlgo(), and snappySnapDriver::smoothDisplacement().

Here is the caller graph for this function:

◆ patch()

const Foam::indirectPrimitivePatch & patch ( ) const

Reference to patch.

Definition at line 366 of file motionSmootherAlgo.C.

Referenced by snappySnapDriver::smoothDisplacement().

Here is the caller graph for this function:

◆ adaptPatchIDs()

const Foam::labelList & adaptPatchIDs ( ) const

Patch labels that are being adapted.

Definition at line 372 of file motionSmootherAlgo.C.

Referenced by motionSmoother::ClassName(), ClassName(), motionSmoother::motionSmoother(), motionSmoother::motionSmoother(), and motionSmootherAlgo().

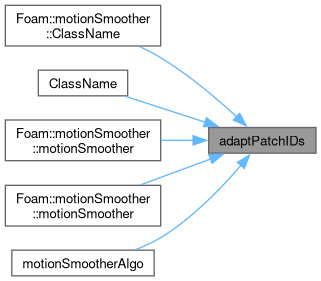

Here is the caller graph for this function:

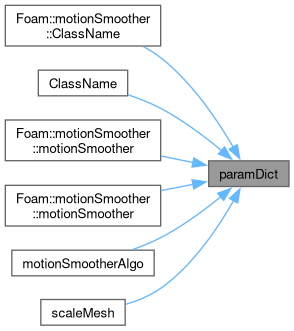

◆ paramDict()

const Foam::dictionary & paramDict ( ) const

Definition at line 378 of file motionSmootherAlgo.C.

Referenced by motionSmoother::ClassName(), ClassName(), motionSmoother::motionSmoother(), motionSmoother::motionSmoother(), motionSmootherAlgo(), and scaleMesh().

Here is the caller graph for this function:

◆ pointDisplacement() [1/2]

pointVectorField & pointDisplacement ( )
inline

Return reference to the point motion displacement field.

Definition at line 376 of file motionSmootherAlgo.H.

Referenced by snappySnapDriver::preSmoothPatch().

Here is the caller graph for this function:

◆ pointDisplacement() [2/2]

const pointVectorField & pointDisplacement ( ) const
inline

Return const reference to the point motion displacement field.

Definition at line 384 of file motionSmootherAlgo.H.

◆ correct()

void correct ( )

Take over existing mesh position.

Definition at line 384 of file motionSmootherAlgo.C.

Referenced by snappySnapDriver::doSnap(), and snappySnapDriver::preSmoothPatch().

Here is the caller graph for this function:

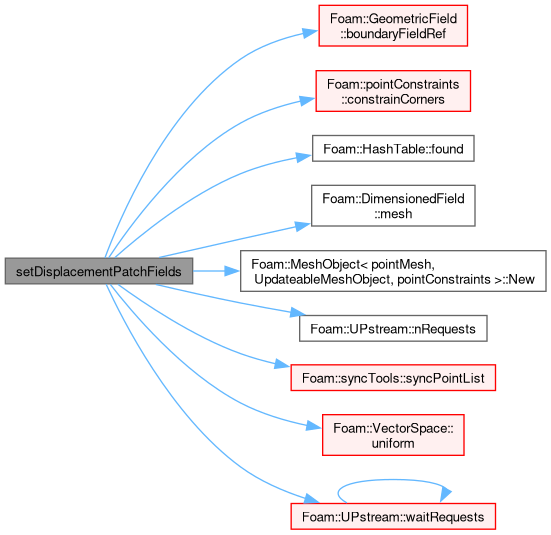

◆ setDisplacementPatchFields() [1/2]

void setDisplacementPatchFields ( const labelList & patchIDs,
pointVectorField & pointDisplacement )
static

Set patch fields on patchIDs to be consistent with.

all other boundary conditions

Definition at line 396 of file motionSmootherAlgo.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), pointConstraints::constrainCorners(), HashTable< T, Key, Hash >::found(), DimensionedField< Type, GeoMesh >::mesh(), MeshObject< pointMesh, UpdateableMeshObject, pointConstraints >::New(), UPstream::nonBlocking, UPstream::nRequests(), patchIDs, syncTools::syncPointList(), VectorSpace< Form, Cmpt, Ncmpts >::uniform(), and UPstream::waitRequests().

Referenced by setDisplacement(), and setDisplacementPatchFields().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ setDisplacementPatchFields() [2/2]

void setDisplacementPatchFields ( )

Set patch fields on displacement to be consistent with.

internal values.

Definition at line 456 of file motionSmootherAlgo.C.

References setDisplacementPatchFields().

Here is the call graph for this function:

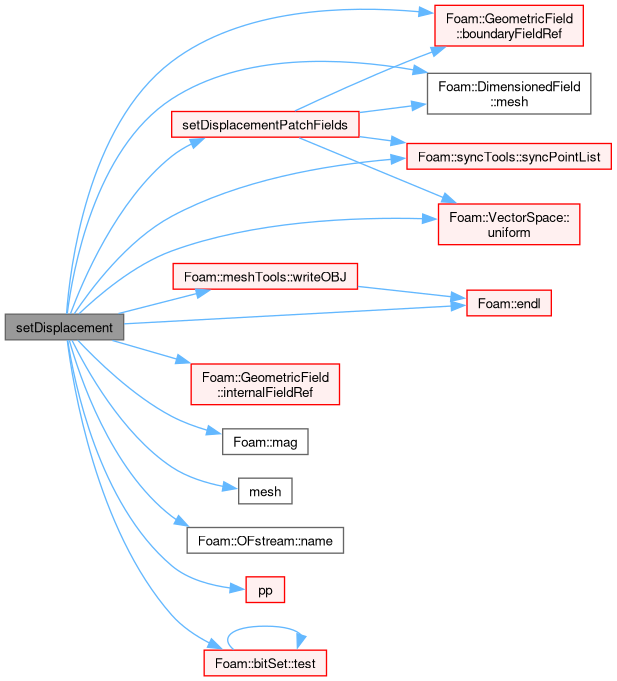

◆ setDisplacement() [1/2]

void setDisplacement ( const labelList & patchIDs,
const indirectPrimitivePatch & pp,
pointField & patchDisp,
pointVectorField & displacement )
static

Set displacement field from displacement on patch points.

Modify provided displacement to be consistent with actual boundary conditions on displacement. Note: resets the displacement to be 0 on coupled patches beforehand to make sure shared points partially on pp (on some processors) and partially not (on other processors) get the value from pp.

Definition at line 462 of file motionSmootherAlgo.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), Foam::endl(), forAll, GeometricField< Type, PatchField, GeoMesh >::internalFieldRef(), Foam::mag(), DimensionedField< Type, GeoMesh >::mesh(), mesh(), OFstream::name(), patchIDs, Foam::Pout, pp(), setDisplacementPatchFields(), syncTools::syncPointList(), bitSet::test(), VectorSpace< Form, Cmpt, Ncmpts >::uniform(), and Foam::meshTools::writeOBJ().

Referenced by snappyLayerDriver::addLayers(), snappySnapDriver::doSnap(), snappySnapDriver::preSmoothPatch(), and setDisplacement().

Here is the call graph for this function:

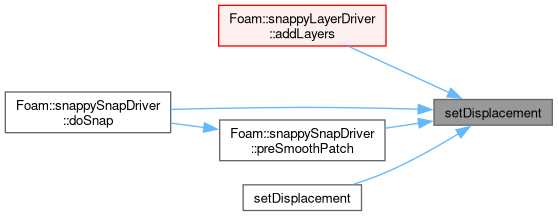

Here is the caller graph for this function:

◆ setDisplacement() [2/2]

void setDisplacement ( pointField & patchDisp)

Definition at line 564 of file motionSmootherAlgo.C.

References setDisplacement().

Here is the call graph for this function:

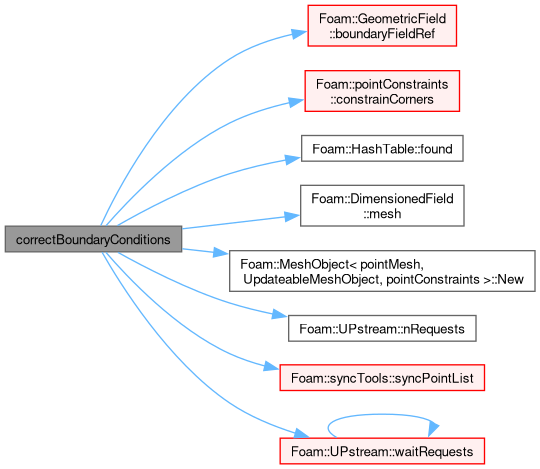

◆ correctBoundaryConditions()

void correctBoundaryConditions ( pointVectorField & displacement) const

Special correctBoundaryConditions which evaluates fixedValue.

patches first so they get overwritten with any constraint bc's.

Definition at line 571 of file motionSmootherAlgo.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), pointConstraints::constrainCorners(), HashTable< T, Key, Hash >::found(), DimensionedField< Type, GeoMesh >::mesh(), MeshObject< pointMesh, UpdateableMeshObject, pointConstraints >::New(), UPstream::nonBlocking, UPstream::nRequests(), syncTools::syncPointList(), UPstream::waitRequests(), and VectorSpace< Form, Cmpt, Ncmpts >::zero.

Here is the call graph for this function:

◆ modifyMotionPoints()

void modifyMotionPoints ( pointField & newPoints) const

Apply optional point constraint (2d correction).

Definition at line 639 of file motionSmootherAlgo.C.

References twoDPointCorrector::correctPoints(), e, Foam::endl(), forAll, Foam::Info, MeshObject< polyMesh, UpdateableMeshObject, twoDPointCorrector >::New(), twoDPointCorrector::normalEdgeIndices(), twoDPointCorrector::planeNormal(), Foam::Pout, twoDPointCorrector::required(), and WarningInFunction.

Referenced by curPoints().

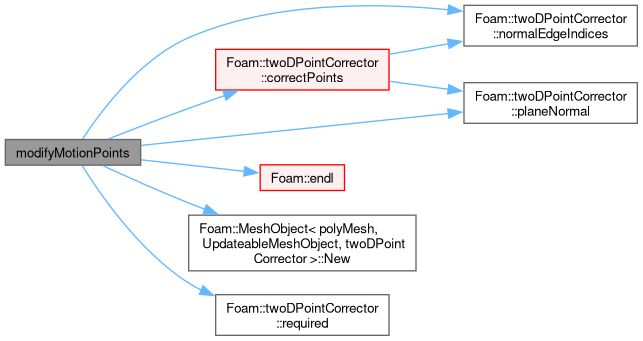

Here is the call graph for this function:
Here is the caller graph for this function:

◆ curPoints()

Foam::tmp< Foam::pointField > curPoints ( ) const

Get the current points (oldPoints+scale*displacement).

Definition at line 751 of file motionSmootherAlgo.C.

References correctBoundaryConditions(), e, Foam::endl(), forAll, Foam::isA(), modifyMotionPoints(), IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, pbm, Foam::Pout, GeometricField< Type, PatchField, GeoMesh >::primitiveField(), tmp< T >::ref(), List< T >::setSize(), UPtrList< T >::size(), FieldBase::typeName, and VectorSpace< Form, Cmpt, Ncmpts >::zero.

Referenced by scaleMesh().

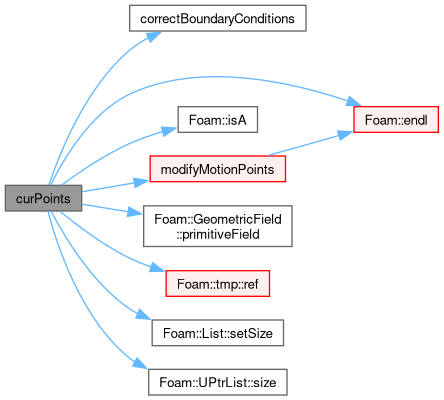

Here is the call graph for this function:
Here is the caller graph for this function:

◆ setErrorReduction()

Foam::scalar setErrorReduction ( const scalar errorReduction)

Set the errorReduction (by how much to scale the displacement.

at error locations) parameter. Returns the old value. Set to 0 (so revert to old mesh) grows out one cell layer from error faces.

Definition at line 699 of file motionSmootherAlgo.C.

Referenced by snappySnapDriver::preSmoothPatch(), and snappySnapDriver::scaleMesh().

Here is the caller graph for this function:

◆ scaleMesh() [1/3]

bool scaleMesh ( labelList & checkFaces,
const bool smoothMesh = true,
const label nAllow = 0 )

Move mesh with given scale. Return true if mesh ok or has.

less than nAllow errors, false otherwise and locally update scale. Smoothmesh=false means only patch points get moved. Parallel ok (as long as displacement field is consistent across patches)

Definition at line 713 of file motionSmootherAlgo.C.

References scaleMesh().

Referenced by snappySnapDriver::preSmoothPatch(), scaleMesh(), scaleMesh(), and snappySnapDriver::scaleMesh().

Here is the call graph for this function:

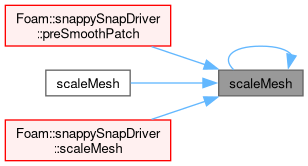

Here is the caller graph for this function:

◆ scaleMesh() [2/3]

bool scaleMesh ( labelList & checkFaces,
const List< labelPair > & baffles,
const bool smoothMesh = true,
const label nAllow = 0 )

Move mesh (with baffles) with given scale.

Definition at line 731 of file motionSmootherAlgo.C.

References scaleMesh().

Here is the call graph for this function:

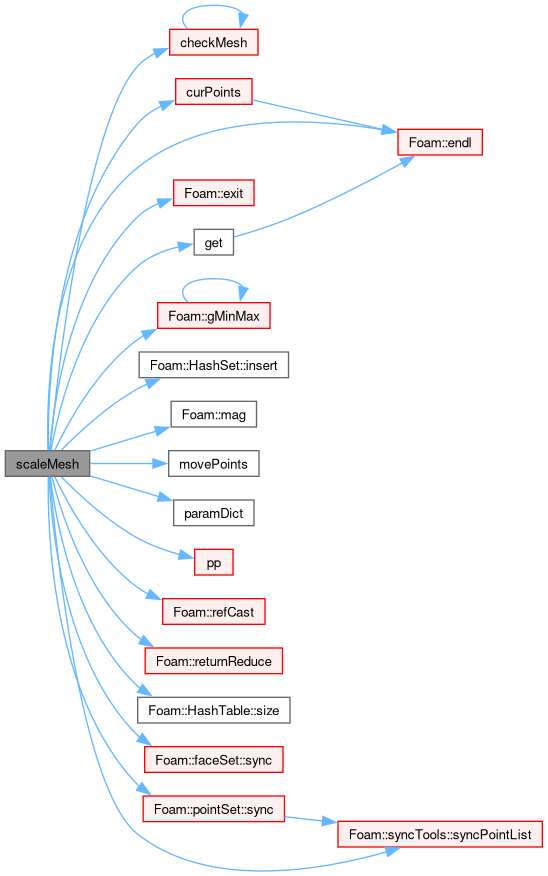

◆ scaleMesh() [3/3]

bool scaleMesh ( labelList & checkFaces,
const List< labelPair > & baffles,
const dictionary & paramDict,
const dictionary & meshQualityDict,
const bool smoothMesh = true,
const label nAllow = 0 )

Move mesh with externally provided mesh constraints.

Definition at line 824 of file motionSmootherAlgo.C.

References checkMesh(), coupled, curPoints(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, get(), Foam::gMinMax(), Foam::Info, HashSet< Key, Hash >::insert(), limits, Foam::mag(), movePoints(), Foam::nl, paramDict(), patches, Foam::Pout, pp(), Foam::refCast(), keyType::REGEX_RECURSIVE, Foam::returnReduce(), HashTable< T, Key, Hash >::size(), faceSet::sync(), pointSet::sync(), syncTools::syncPointList(), and VectorSpace< Form, Cmpt, Ncmpts >::zero.

Here is the call graph for this function:

◆ movePoints()

void movePoints ( )

Update for new mesh geometry.

Definition at line 690 of file motionSmootherAlgo.C.

Referenced by scaleMesh().

Here is the caller graph for this function:

◆ updateMesh()

void updateMesh ( )

Update for new mesh topology.

Definition at line 1039 of file motionSmootherAlgo.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, syncTools::getMasterEdges(), Foam::isA(), Foam::nl, and patches.

Referenced by motionSmootherAlgo().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ checkMesh() [1/5]

bool checkMesh ( const bool report,
const polyMesh & mesh,
const dictionary & dict,
labelHashSet & wrongFaces,
const bool dryRun = false )
static

Check mesh with mesh settings in dict. Collects incorrect faces.

in set. Returns true if one or more faces in error. Parallel ok.

Definition at line 496 of file motionSmootherAlgoCheck.C.

References checkMesh(), dict, Foam::identity(), and mesh().

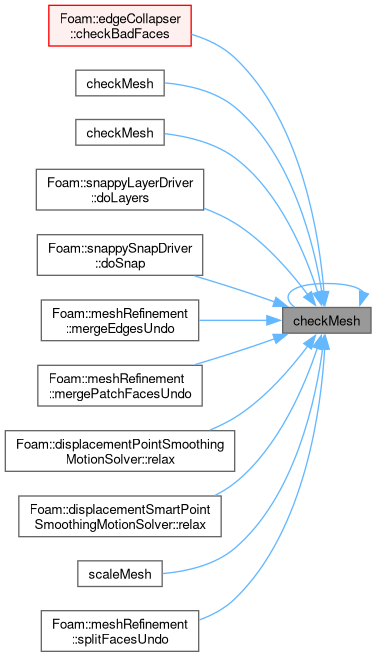

Referenced by edgeCollapser::checkBadFaces(), checkMesh(), checkMesh(), checkMesh(), snappyLayerDriver::doLayers(), snappySnapDriver::doSnap(), meshRefinement::mergeEdgesUndo(), meshRefinement::mergePatchFacesUndo(), displacementPointSmoothingMotionSolver::relax(), displacementSmartPointSmoothingMotionSolver::relax(), scaleMesh(), and meshRefinement::splitFacesUndo().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ checkMesh() [2/5]

bool checkMesh ( const bool report,
const polyMesh & mesh,
const dictionary & dict,
const labelList & checkFaces,
labelHashSet & wrongFaces,
const bool dryRun = false )
static

Check (subset of mesh) with mesh settings in dict.

Collects incorrect faces in set. Returns true if one or more faces in error. Parallel ok.

Definition at line 29 of file motionSmootherAlgoCheck.C.

References checkMesh(), dict, and mesh().

Here is the call graph for this function:

◆ checkMesh() [3/5]

bool checkMesh ( const bool report,
const polyMesh & mesh,
const dictionary & dict,
const labelList & checkFaces,
const List< labelPair > & baffles,
labelHashSet & wrongFaces,
const bool dryRun = false )
static

Check (subset of mesh including baffles) with mesh settings.

in dict. Collects incorrect faces in set. Returns true if one or more faces in error. Parallel ok.

Definition at line 52 of file motionSmootherAlgoCheck.C.

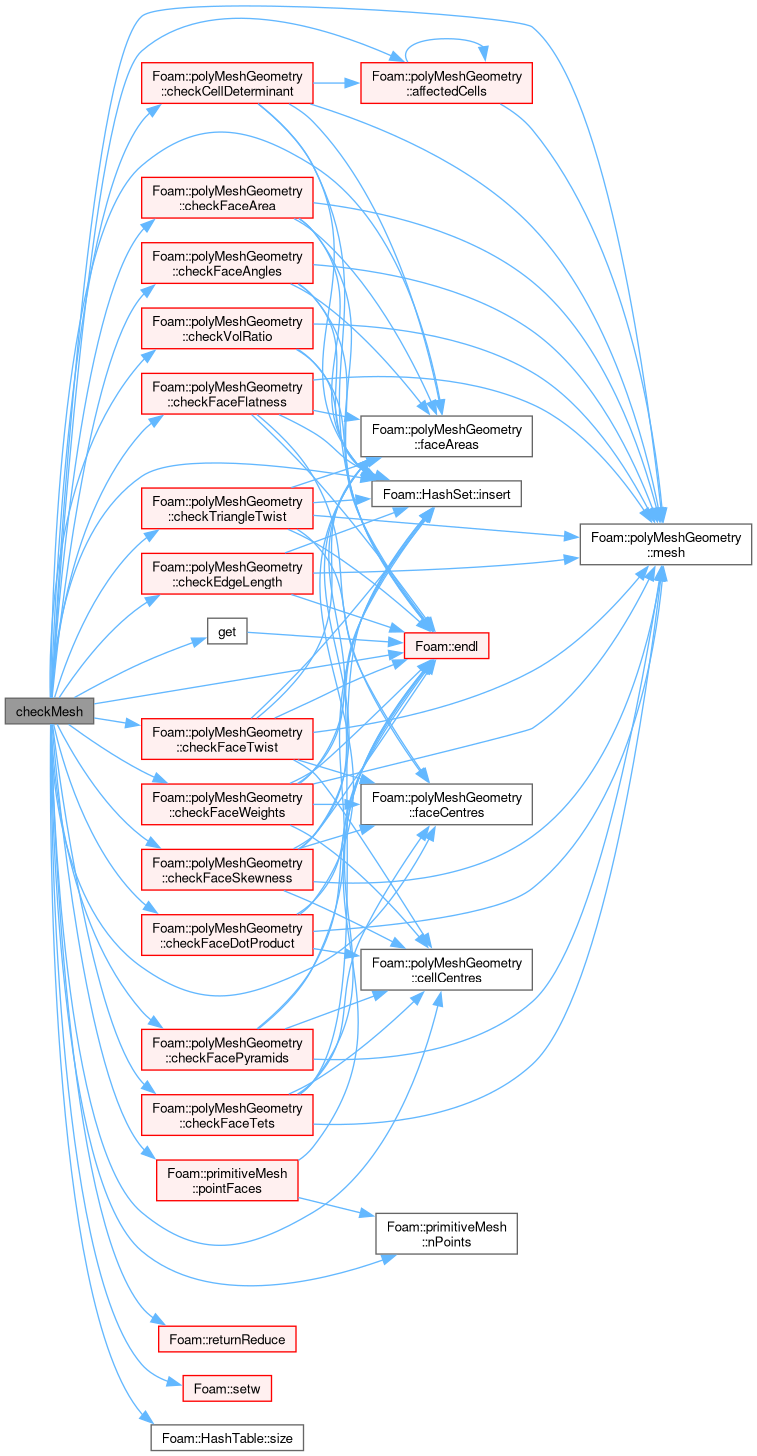

References polyMeshGeometry::affectedCells(), polyMeshGeometry::checkCellDeterminant(), polyMeshGeometry::checkEdgeLength(), polyMeshGeometry::checkFaceAngles(), polyMeshGeometry::checkFaceArea(), polyMeshGeometry::checkFaceDotProduct(), polyMeshGeometry::checkFaceFlatness(), polyMeshGeometry::checkFacePyramids(), polyMeshGeometry::checkFaceSkewness(), polyMeshGeometry::checkFaceTets(), polyMeshGeometry::checkFaceTwist(), polyMeshGeometry::checkFaceWeights(), polyMeshGeometry::checkTriangleTwist(), polyMeshGeometry::checkVolRatio(), dict, Foam::endl(), Foam::FatalError, Foam::FatalIOError, get(), Foam::Info, HashSet< Key, Hash >::insert(), IOWarningInFunction, mesh(), Foam::nl, pFaces, keyType::REGEX_RECURSIVE, Foam::returnReduce(), Foam::setw(), and HashTable< T, Key, Hash >::size().

Here is the call graph for this function:

◆ checkMesh() [4/5]

bool checkMesh ( const bool report,
const dictionary & dict,
const polyMeshGeometry & meshGeom,
const pointField & points,
const labelList & checkFaces,
labelHashSet & wrongFaces,
const bool dryRun = false )
static

Check part of mesh with mesh settings in dict.

Collects incorrect faces in set. Returns true if one or more faces in error. Parallel ok.

Definition at line 516 of file motionSmootherAlgoCheck.C.

References checkMesh(), dict, and points.

Here is the call graph for this function:

◆ checkMesh() [5/5]

bool checkMesh ( const bool report,
const dictionary & dict,
const polyMeshGeometry & meshGeom,
const pointField & points,
const labelList & checkFaces,
const List< labelPair > & baffles,
labelHashSet & wrongFaces,
const bool dryRun = false )
static

Check part of mesh including baffles with mesh settings in dict.

Collects incorrect faces in set. Returns true if one or more faces in error. Parallel ok.

Definition at line 543 of file motionSmootherAlgoCheck.C.

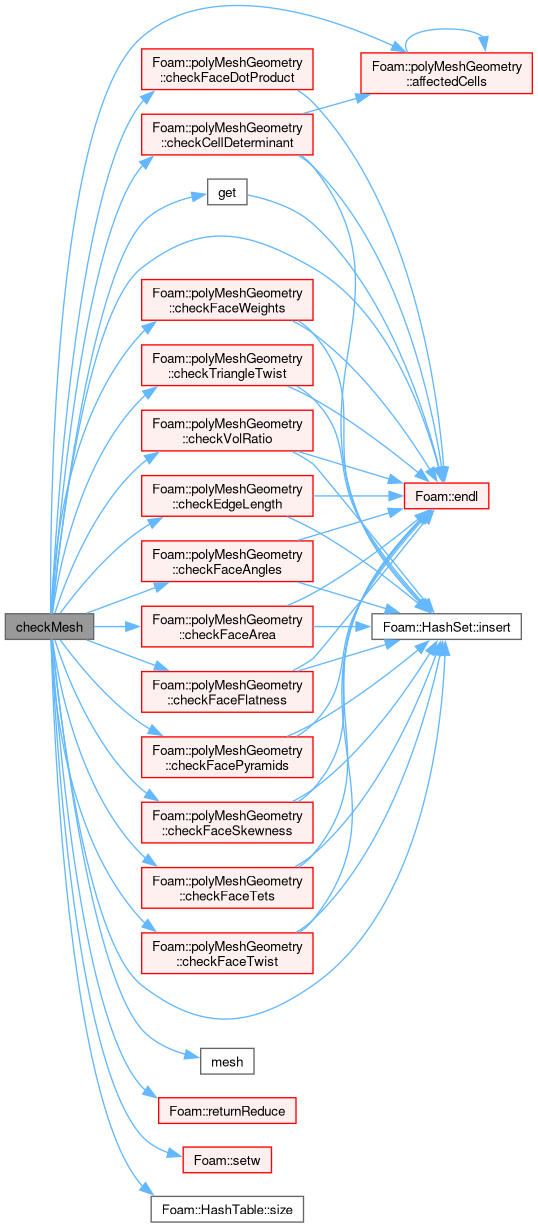

References polyMeshGeometry::affectedCells(), polyMeshGeometry::cellCentres(), polyMeshGeometry::checkCellDeterminant(), polyMeshGeometry::checkEdgeLength(), polyMeshGeometry::checkFaceAngles(), polyMeshGeometry::checkFaceArea(), polyMeshGeometry::checkFaceDotProduct(), polyMeshGeometry::checkFaceFlatness(), polyMeshGeometry::checkFacePyramids(), polyMeshGeometry::checkFaceSkewness(), polyMeshGeometry::checkFaceTets(), polyMeshGeometry::checkFaceTwist(), polyMeshGeometry::checkFaceWeights(), polyMeshGeometry::checkTriangleTwist(), polyMeshGeometry::checkVolRatio(), dict, Foam::endl(), polyMeshGeometry::faceAreas(), polyMeshGeometry::faceCentres(), Foam::FatalError, Foam::FatalIOError, get(), Foam::Info, HashSet< Key, Hash >::insert(), polyMeshGeometry::mesh(), Foam::nl, primitiveMesh::nPoints(), Foam::Perr, pFaces, primitiveMesh::pointFaces(), points, keyType::REGEX_RECURSIVE, Foam::returnReduce(), Foam::setw(), and HashTable< T, Key, Hash >::size().

Here is the call graph for this function:

◆ smooth()

template<class Type>
void smooth ( const GeometricField< Type, pointPatchField, pointMesh > & fld,
const scalarField & edgeWeight,
GeometricField< Type, pointPatchField, pointMesh > & newFld ) const

Fully explicit smoothing of fields (not positions).

of internal points with varying diffusivity.

Definition at line 225 of file motionSmootherAlgoTemplates.C.

References pointConstraints::constrain(), fld(), forAll, and MeshObject< pointMesh, UpdateableMeshObject, pointConstraints >::New().

Referenced by snappySnapDriver::smoothDisplacement().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ get()

template<class Type>
Type get ( const dictionary & dict,
const word & keyword,
const bool noExit,
enum keyType::option matchOpt,
const Type & defaultValue = Zero )
static

Wrapper around dictionary::get which does not exit.

Definition at line 287 of file motionSmootherAlgoTemplates.C.

References dict, Foam::endl(), Foam::FatalIOError, IOobjectOption::MUST_READ, and IOobjectOption::READ_IF_PRESENT.

Referenced by checkMesh(), checkMesh(), and scaleMesh().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ avg()

template<class Type>
Foam::tmp< Foam::GeometricField< Type, Foam::pointPatchField, Foam::pointMesh > > avg ( const GeometricField< Type, pointPatchField, pointMesh > & fld,
const scalarField & edgeWeight ) const

Definition at line 134 of file motionSmootherAlgoTemplates.C.

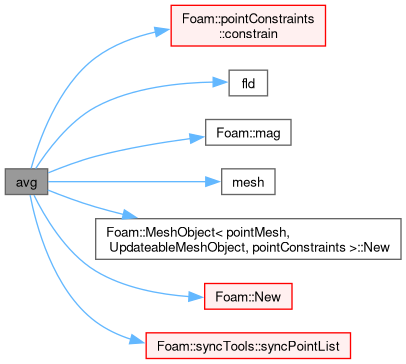

References pointConstraints::constrain(), e, fld(), forAll, Foam::mag(), mesh(), MeshObject< pointMesh, UpdateableMeshObject, pointConstraints >::New(), Foam::New(), IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, syncTools::syncPointList(), and Foam::Zero.

Here is the call graph for this function:
The documentation for this class was generated from the following files:
