WenYu Class Reference

H, Enwald, E. Peirano, A-E Almstedt 'Eulerian Two-Phase Flow Theory Applied to Fluidization' Int. J. Multiphase Flow, Vol. 22, Suppl, pp. 21-66 (1996) Eq. 86-87, p. 40. More...

#include <WenYu.H>

Inheritance diagram for WenYu:

Collaboration diagram for WenYu:

Public Member Functions
	TypeName ("WenYu")
	Runtime type information.
	WenYu (const dictionary &interfaceDict, const phaseModel &phase1, const phaseModel &phase2)
	Construct from components.
virtual	~WenYu ()
	Destructor.
tmp< volScalarField >	K (const volScalarField &Ur) const
	The drag function K used in the momentum eq.
Public Member Functions inherited from dragModel
	TypeName ("dragModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, dragModel, dictionary,(const dictionary &interfaceDict, const phaseModel &phase1, const phaseModel &phase2),(interfaceDict, phase1, phase2))
	dragModel (const dictionary &dict, const phaseModel &phase1, const phaseModel &phase2)
virtual	~dragModel ()=default
	Destructor.
const phaseModel &	phase1 () const
const phaseModel &	phase2 () const
const dimensionedScalar &	residualPhaseFraction () const
const dimensionedScalar &	residualSlip () const

Additional Inherited Members
Static Public Member Functions inherited from dragModel
static autoPtr< dragModel >	New (const dictionary &dict, const phaseModel &phase1, const phaseModel &phase2)
Protected Attributes inherited from dragModel
const dictionary &	interfaceDict_
const phaseModel &	phase1_
const phaseModel &	phase2_
dimensionedScalar	residualPhaseFraction_
dimensionedScalar	residualSlip_

Detailed Description

H, Enwald, E. Peirano, A-E Almstedt 'Eulerian Two-Phase Flow Theory Applied to Fluidization' Int. J. Multiphase Flow, Vol. 22, Suppl, pp. 21-66 (1996) Eq. 86-87, p. 40.

This is identical to the Wen and Yu, Rowe model Table 3.6 p.56 in the Ph.D. thesis of Berend van Wachem 'Derivation, Implementation and Validation of Computer Simulation Models for Gas-Solid Fluidized Beds'

NB: The difference between the Gidaspow-version is the void-fraction in the Re-number

Source files

• WenYu.H
• WenYu.C

Definition at line 64 of file WenYu.H.

Constructor & Destructor Documentation

WenYu()

WenYu	(	const dictionary &	interfaceDict,
		const phaseModel &	phase1,
		const phaseModel &	phase2 )

Construct from components.

Definition at line 48 of file WenYu.C.

References dragModel::dragModel(), dragModel::phase1(), and dragModel::phase2().

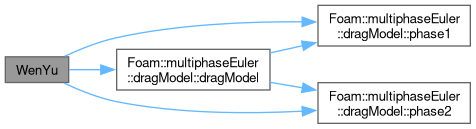

Here is the call graph for this function:

~WenYu()

~WenYu ( )

virtual

Destructor.

Definition at line 61 of file WenYu.C.

Member Function Documentation

TypeName()

TypeName

(

"WenYu"

)

Runtime type information.

References dragModel::phase1(), and dragModel::phase2().

Here is the call graph for this function:

K()

Foam::tmp< Foam::volScalarField > K ( const volScalarField & Ur ) const

virtual

The drag function K used in the momentum eq.

ddt(alpha1*rho1*U1) + ... = ... alpha1*alpha2*K*(U1-U2) ddt(alpha2*rho2*U2) + ... = ... alpha1*alpha2*K*(U2-U1) ********************************** NB! ***************************** for numerical reasons alpha1 and alpha2 has been extracted from the dragFunction K, so you MUST divide K by alpha1*alpha2 when implementing the drag function ********************************** NB! *****************************

Implements dragModel.

Definition at line 67 of file WenYu.C.

References alpha2, Foam::max(), Foam::neg(), dragModel::phase1_, dragModel::phase2_, Foam::pos0(), Foam::pow(), and Foam::Re().

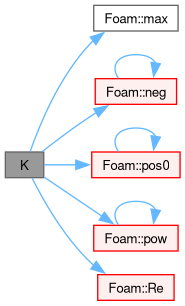

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/multiphaseEuler/multiphaseSystem/interfacialModels/dragModels/WenYu/WenYu.H
• src/phaseSystemModels/multiphaseEuler/multiphaseSystem/interfacialModels/dragModels/WenYu/WenYu.C
