#include <dragModel.H>

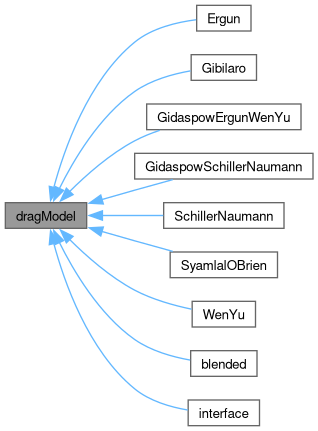

Inheritance diagram for dragModel:

[legend]

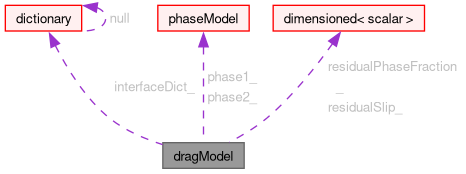

Collaboration diagram for dragModel:

[legend]

Public Member Functions
	TypeName ("dragModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, dragModel, dictionary,(const dictionary &interfaceDict, const phaseModel &phase1, const phaseModel &phase2),(interfaceDict, phase1, phase2))
	dragModel (const dictionary &dict, const phaseModel &phase1, const phaseModel &phase2)
virtual	~dragModel ()=default
	Destructor.
const phaseModel &	phase1 () const
const phaseModel &	phase2 () const
const dimensionedScalar &	residualPhaseFraction () const
const dimensionedScalar &	residualSlip () const
virtual tmp< volScalarField >	K (const volScalarField &Ur) const =0
	The drag function K used in the momentum eq.

Static Public Member Functions
static autoPtr< dragModel >	New (const dictionary &dict, const phaseModel &phase1, const phaseModel &phase2)

Protected Attributes
const dictionary &	interfaceDict_
const phaseModel &	phase1_
const phaseModel &	phase2_
dimensionedScalar	residualPhaseFraction_
dimensionedScalar	residualSlip_

Detailed Description

Source files

Definition at line 50 of file dragModel.H.

Constructor & Destructor Documentation

◆ dragModel()

dragModel	(	const dictionary &	dict,
		const phaseModel &	phase1,
		const phaseModel &	phase2 )

Definition at line 38 of file dragModel.C.

References dict, Foam::dimless, Foam::dimVelocity, interfaceDict_, phase1(), phase1_, phase2(), phase2_, residualPhaseFraction_, and residualSlip_.

Referenced by blended::blended(), declareRunTimeSelectionTable(), Ergun::Ergun(), Gibilaro::Gibilaro(), GidaspowErgunWenYu::GidaspowErgunWenYu(), GidaspowSchillerNaumann::GidaspowSchillerNaumann(), interface::interface(), SchillerNaumann::SchillerNaumann(), SyamlalOBrien::SyamlalOBrien(), and WenYu::WenYu().

Here is the call graph for this function:

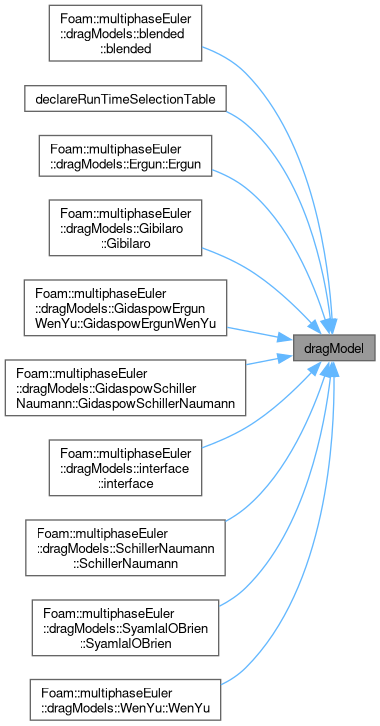

Here is the caller graph for this function:

◆ ~dragModel()

virtual ~dragModel ( )

virtualdefault

Destructor.

References dict, phase1(), and phase2().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "dragModel" )

Runtime type information.

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		dragModel	,
		dictionary	,
		(const dictionary &interfaceDict, const phaseModel &phase1, const phaseModel &phase2)	,
		(interfaceDict, phase1, phase2)	)

References dict, dragModel(), phase1(), and phase2().

Here is the call graph for this function:

◆ New()

Foam::autoPtr< Foam::multiphaseEuler::dragModel > New	(	const dictionary &	dict,
		const phaseModel &	phase1,
		const phaseModel &	phase2 )

static

Definition at line 56 of file dragModel.C.

References dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, Foam::Info, phase1(), and phase2().

Referenced by blended::blended(), and multiphaseSystem::multiphaseSystem().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ phase1()

const phaseModel & phase1 ( ) const

inline

Definition at line 114 of file dragModel.H.

References phase1_.

Referenced by blended::blended(), declareRunTimeSelectionTable(), multiphaseSystem::dragCoeffs(), dragModel(), Ergun::Ergun(), Gibilaro::Gibilaro(), GidaspowErgunWenYu::GidaspowErgunWenYu(), GidaspowSchillerNaumann::GidaspowSchillerNaumann(), interface::interface(), New(), SchillerNaumann::SchillerNaumann(), SyamlalOBrien::SyamlalOBrien(), blended::TypeName(), Ergun::TypeName(), Gibilaro::TypeName(), GidaspowErgunWenYu::TypeName(), GidaspowSchillerNaumann::TypeName(), interface::TypeName(), SchillerNaumann::TypeName(), SyamlalOBrien::TypeName(), WenYu::TypeName(), WenYu::WenYu(), and ~dragModel().

Here is the caller graph for this function:

◆ phase2()

const phaseModel & phase2 ( ) const

inline

Definition at line 119 of file dragModel.H.

References phase2_.

Referenced by blended::blended(), declareRunTimeSelectionTable(), multiphaseSystem::dragCoeffs(), dragModel(), Ergun::Ergun(), Gibilaro::Gibilaro(), GidaspowErgunWenYu::GidaspowErgunWenYu(), GidaspowSchillerNaumann::GidaspowSchillerNaumann(), interface::interface(), New(), SchillerNaumann::SchillerNaumann(), SyamlalOBrien::SyamlalOBrien(), blended::TypeName(), Ergun::TypeName(), Gibilaro::TypeName(), GidaspowErgunWenYu::TypeName(), GidaspowSchillerNaumann::TypeName(), interface::TypeName(), SchillerNaumann::TypeName(), SyamlalOBrien::TypeName(), WenYu::TypeName(), WenYu::WenYu(), and ~dragModel().

Here is the caller graph for this function:

◆ residualPhaseFraction()

const dimensionedScalar & residualPhaseFraction ( ) const

inline

Definition at line 124 of file dragModel.H.

References residualPhaseFraction_.

Referenced by multiphaseSystem::dragCoeffs().

Here is the caller graph for this function:

◆ residualSlip()

const dimensionedScalar & residualSlip ( ) const

inline

Definition at line 129 of file dragModel.H.

References residualSlip_.

Referenced by multiphaseSystem::dragCoeffs().

Here is the caller graph for this function:

◆ K()

virtual tmp< volScalarField > K ( const volScalarField & Ur ) const

pure virtual

The drag function K used in the momentum eq.

ddt(alpha1*rho1*U1) + ... = ... alpha1*alpha2*K*(U1-U2) ddt(alpha2*rho2*U2) + ... = ... alpha1*alpha2*K*(U2-U1) ********************************** NB! ***************************** for numerical reasons alpha1 and alpha2 has been extracted from the dragFunction K, so you MUST divide K by alpha1*alpha2 when implementing the drag function ********************************** NB! *****************************

Implemented in blended, Ergun, Gibilaro, GidaspowErgunWenYu, GidaspowSchillerNaumann, interface, SchillerNaumann, SyamlalOBrien, and WenYu.

Referenced by multiphaseSystem::dragCoeffs().

Here is the caller graph for this function:

Member Data Documentation

◆ interfaceDict_

const dictionary& interfaceDict_

protected

Definition at line 56 of file dragModel.H.

Referenced by dragModel().

◆ phase1_

const phaseModel& phase1_

protected

Definition at line 57 of file dragModel.H.

Referenced by dragModel(), Ergun::K(), Gibilaro::K(), GidaspowErgunWenYu::K(), GidaspowSchillerNaumann::K(), SchillerNaumann::K(), SyamlalOBrien::K(), WenYu::K(), and phase1().

◆ phase2_

const phaseModel& phase2_

protected

Definition at line 58 of file dragModel.H.

Referenced by dragModel(), Ergun::K(), Gibilaro::K(), GidaspowErgunWenYu::K(), GidaspowSchillerNaumann::K(), SchillerNaumann::K(), SyamlalOBrien::K(), WenYu::K(), and phase2().

◆ residualPhaseFraction_

dimensionedScalar residualPhaseFraction_

protected

Definition at line 59 of file dragModel.H.

Referenced by dragModel(), and residualPhaseFraction().

◆ residualSlip_

dimensionedScalar residualSlip_

protected

Definition at line 60 of file dragModel.H.

Referenced by dragModel(), and residualSlip().

The documentation for this class was generated from the following files:

src/phaseSystemModels/multiphaseEuler/multiphaseSystem/interfacialModels/dragModels/dragModel/dragModel.H
src/phaseSystemModels/multiphaseEuler/multiphaseSystem/interfacialModels/dragModels/dragModel/dragModel.C
