Blends two drag models based on the phase fractions to handle phase-inversion. More...

#include <blended.H>

Inheritance diagram for blended:

Collaboration diagram for blended:

Public Member Functions
	TypeName ("blended")
	Runtime type information.
	blended (const dictionary &interfaceDict, const phaseModel &phase1, const phaseModel &phase2)
	Construct from components.
virtual	~blended ()=default
	Destructor.
tmp< volScalarField >	K (const volScalarField &Ur) const
	The drag function K used in the momentum eq.
Public Member Functions inherited from dragModel
	TypeName ("dragModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, dragModel, dictionary,(const dictionary &interfaceDict, const phaseModel &phase1, const phaseModel &phase2),(interfaceDict, phase1, phase2))
	dragModel (const dictionary &dict, const phaseModel &phase1, const phaseModel &phase2)
virtual	~dragModel ()=default
	Destructor.
const phaseModel &	phase1 () const
const phaseModel &	phase2 () const
const dimensionedScalar &	residualPhaseFraction () const
const dimensionedScalar &	residualSlip () const

Additional Inherited Members
Static Public Member Functions inherited from dragModel
static autoPtr< dragModel >	New (const dictionary &dict, const phaseModel &phase1, const phaseModel &phase2)
Protected Attributes inherited from dragModel
const dictionary &	interfaceDict_
const phaseModel &	phase1_
const phaseModel &	phase2_
dimensionedScalar	residualPhaseFraction_
dimensionedScalar	residualSlip_

Detailed Description

Blends two drag models based on the phase fractions to handle phase-inversion.

Source files

Definition at line 52 of file blended.H.

Constructor & Destructor Documentation

◆ blended()

blended	(	const dictionary &	interfaceDict,
		const phaseModel &	phase1,
		const phaseModel &	phase2 )

Construct from components.

Definition at line 48 of file blended.C.

References dragModel::dragModel(), Foam::name(), dragModel::New(), dragModel::phase1(), and dragModel::phase2().

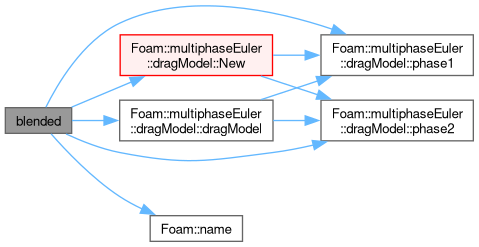

Here is the call graph for this function:

◆ ~blended()

virtual ~blended ( )

virtualdefault

Destructor.

Member Function Documentation

◆ TypeName()

TypeName ( "blended" )

Runtime type information.

References dragModel::phase1(), and dragModel::phase2().

Here is the call graph for this function:

◆ K()

Foam::tmp< Foam::volScalarField > K ( const volScalarField & Ur ) const

virtual

The drag function K used in the momentum eq.

ddt(alpha1*rho1*U1) + ... = ... alpha1*alpha2*K*(U1-U2) ddt(alpha2*rho2*U2) + ... = ... alpha1*alpha2*K*(U2-U1) ********************************** NB! ***************************** for numerical reasons alpha1 and alpha2 has been extracted from the dragFunction K, so you MUST divide K by alpha1*alpha2 when implementing the drag function ********************************** NB! *****************************

Implements dragModel.

Definition at line 63 of file blended.C.

References phase1, and phase2.

The documentation for this class was generated from the following files:

src/phaseSystemModels/multiphaseEuler/multiphaseSystem/interfacialModels/dragModels/blended/blended.H
src/phaseSystemModels/multiphaseEuler/multiphaseSystem/interfacialModels/dragModels/blended/blended.C
