heatTransferModel Class Reference

#include <heatTransferModel.H>

Inheritance diagram for heatTransferModel:

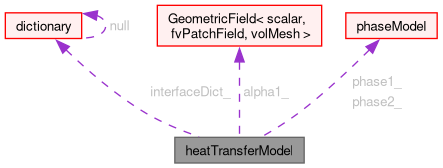

Collaboration diagram for heatTransferModel:

Public Member Functions
	TypeName ("heatTransferModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, heatTransferModel, dictionary,(const dictionary &dict, const volScalarField &alpha1, const phaseModel &phase1, const phaseModel &phase2),(dict, alpha1, phase1, phase2))
	heatTransferModel (const dictionary &dict, const volScalarField &alpha1, const phaseModel &phase1, const phaseModel &phase2)
virtual	~heatTransferModel ()=default
	Destructor.
virtual tmp< volScalarField >	K (const volScalarField &Ur) const =0
	The heat-transfer function K used in the enthalpy eq.

Static Public Member Functions
static autoPtr< heatTransferModel >	New (const dictionary &dict, const volScalarField &alpha1, const phaseModel &phase1, const phaseModel &phase2)

Protected Attributes
const dictionary &	interfaceDict_
const volScalarField &	alpha1_
const phaseModel &	phase1_
const phaseModel &	phase2_

Detailed Description

Source files

• heatTransferModel.H
• heatTransferModel.C
• newHeatTransferModel.C

Definition at line 51 of file heatTransferModel.H.

Constructor & Destructor Documentation

heatTransferModel()

heatTransferModel	(	const dictionary &	dict,
		const volScalarField &	alpha1,
		const phaseModel &	phase1,
		const phaseModel &	phase2 )

Definition at line 38 of file heatTransferModel.C.

References alpha1, alpha1_, dict, interfaceDict_, phase1, phase1_, phase2, and phase2_.

Referenced by declareRunTimeSelectionTable(), and RanzMarshall::RanzMarshall().

Here is the caller graph for this function:

~heatTransferModel()

virtual ~heatTransferModel ( )

virtualdefault

Destructor.

References alpha1, dict, phase1, and phase2.

Member Function Documentation

TypeName()

TypeName

(

"heatTransferModel"

)

Runtime type information.

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		heatTransferModel	,
		dictionary	,
		(const dictionary &dict, const volScalarField &alpha1, const phaseModel &phase1, const phaseModel &phase2)	,
		(dict, alpha1, phase1, phase2)	)

References alpha1, dict, heatTransferModel(), phase1, and phase2.

Here is the call graph for this function:

New()

Foam::autoPtr< Foam::multiphaseEuler::heatTransferModel > New ( const dictionary & dict, const volScalarField & alpha1, const phaseModel & phase1, const phaseModel & phase2 )

static

Definition at line 56 of file heatTransferModel.C.

References alpha1, dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, Foam::Info, phase1, and phase2.

Here is the call graph for this function:

K()

virtual tmp< volScalarField > K ( const volScalarField & Ur ) const

pure virtual

The heat-transfer function K used in the enthalpy eq.

ddt(alpha1*rho1*ha) + ... = ... alpha1*alpha2*K*(Ta - Tb) ddt(alpha2*rho2*hb) + ... = ... alpha1*alpha2*K*(Tb - Ta) ********************************** NB! ***************************** for numerical reasons alpha1 and alpha2 has been extracted from the heat-transfer function K, so you MUST divide K by alpha1*alpha2 when implementing the heat-transfer function ********************************** NB! *****************************

Implemented in RanzMarshall.

Member Data Documentation

interfaceDict_

const dictionary& interfaceDict_

protected

Definition at line 57 of file heatTransferModel.H.

Referenced by heatTransferModel().

alpha1_

const volScalarField& alpha1_

protected

Definition at line 58 of file heatTransferModel.H.

Referenced by heatTransferModel().

phase1_

const phaseModel& phase1_

protected

Definition at line 59 of file heatTransferModel.H.

Referenced by heatTransferModel(), and RanzMarshall::K().

phase2_

const phaseModel& phase2_

protected

Definition at line 60 of file heatTransferModel.H.

Referenced by heatTransferModel(), and RanzMarshall::K().

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/multiphaseEuler/multiphaseSystem/interfacialModels/heatTransferModels/heatTransferModel/heatTransferModel.H
• src/phaseSystemModels/multiphaseEuler/multiphaseSystem/interfacialModels/heatTransferModels/heatTransferModel/heatTransferModel.C
