#include <RanzMarshall.H>

Inheritance diagram for RanzMarshall:

Collaboration diagram for RanzMarshall:

Public Member Functions
	TypeName ("RanzMarshall")
	Runtime type information.
	RanzMarshall (const dictionary &interfaceDict, const volScalarField &alpha1, const phaseModel &phase1, const phaseModel &phase2)
	Construct from components.
virtual	~RanzMarshall ()
	Destructor.
tmp< volScalarField >	K (const volScalarField &Ur) const
	The heat-transfer function K used in the enthalpy eq.
Public Member Functions inherited from heatTransferModel
	TypeName ("heatTransferModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, heatTransferModel, dictionary,(const dictionary &dict, const volScalarField &alpha1, const phaseModel &phase1, const phaseModel &phase2),(dict, alpha1, phase1, phase2))
	heatTransferModel (const dictionary &dict, const volScalarField &alpha1, const phaseModel &phase1, const phaseModel &phase2)
virtual	~heatTransferModel ()=default
	Destructor.

Additional Inherited Members
Static Public Member Functions inherited from heatTransferModel
static autoPtr< heatTransferModel >	New (const dictionary &dict, const volScalarField &alpha1, const phaseModel &phase1, const phaseModel &phase2)
Protected Attributes inherited from heatTransferModel
const dictionary &	interfaceDict_
const volScalarField &	alpha1_
const phaseModel &	phase1_
const phaseModel &	phase2_

Detailed Description

Source files

Definition at line 50 of file RanzMarshall.H.

Constructor & Destructor Documentation

◆ RanzMarshall()

RanzMarshall	(	const dictionary &	interfaceDict,
		const volScalarField &	alpha1,
		const phaseModel &	phase1,
		const phaseModel &	phase2 )

Construct from components.

Definition at line 48 of file RanzMarshall.C.

References alpha1, heatTransferModel::heatTransferModel(), phase1, and phase2.

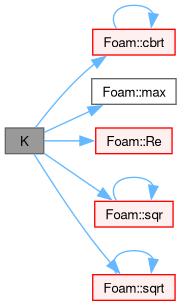

Here is the call graph for this function:

◆ ~RanzMarshall()

~RanzMarshall ( )

virtual

Destructor.

Definition at line 62 of file RanzMarshall.C.

Member Function Documentation

◆ TypeName()

TypeName ( "RanzMarshall" )

Runtime type information.

References alpha1, phase1, and phase2.

◆ K()

Foam::tmp< Foam::volScalarField > K ( const volScalarField & Ur ) const

virtual

The heat-transfer function K used in the enthalpy eq.

ddt(alpha1*rho1*ha) + ... = ... alpha1*alpha2*K*(Ta - Tb) ddt(alpha2*rho2*hb) + ... = ... alpha1*alpha2*K*(Tb - Ta) ********************************** NB! ***************************** for numerical reasons alpha1 and alpha2 has been extracted from the heat-transfer function K, so you MUST divide K by alpha1*alpha2 when implementing the heat-transfer function ********************************** NB! *****************************

Implements heatTransferModel.

Definition at line 69 of file RanzMarshall.C.

References Foam::cbrt(), Foam::max(), heatTransferModel::phase1_, heatTransferModel::phase2_, Foam::Re(), Foam::sqr(), and Foam::sqrt().
