nonBlockingGaussSeidelSmoother Class Reference
Numerics » Matrix manipulation and solvers » Smoothers

Variant of gaussSeidelSmoother that expects processor boundary cells to be sorted last and so can block later. Only when the cells are actually visited does it need the results to be present. It is expected that there is little benefit to be gained from doing this on a patch by patch basis since the number of processor interfaces is quite small and the overhead of checking whether a processor interface is finished might be quite high (call into mpi). Also this would require a dynamic memory allocation to store the state of the outstanding requests. More...

#include <nonBlockingGaussSeidelSmoother.H>

Inheritance diagram for nonBlockingGaussSeidelSmoother:
Inheritance graph
[legend]
Collaboration diagram for nonBlockingGaussSeidelSmoother:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("nonBlockingGaussSeidel")
 Runtime type information.
 nonBlockingGaussSeidelSmoother (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
 Construct from components.
virtual void smooth (solveScalarField &psi, const scalarField &Source, const direction cmpt, const label nSweeps) const
 Smooth the solution for a given number of sweeps.
virtual void scalarSmooth (solveScalarField &psi, const solveScalarField &source, const direction cmpt, const label nSweeps) const
 Smooth the solution for a given number of sweeps.
Public Member Functions inherited from lduMatrix::smoother
virtual const word & type () const =0
 Runtime type information.
 declareRunTimeSelectionTable (autoPtr, smoother, symMatrix,(const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls),(fieldName, matrix, interfaceBouCoeffs, interfaceIntCoeffs, interfaces, solverControls))
 declareRunTimeSelectionTable (autoPtr, smoother, asymMatrix,(const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls),(fieldName, matrix, interfaceBouCoeffs, interfaceIntCoeffs, interfaces, solverControls))
 smoother (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces)
 Construct for given field name, matrix etc.
virtual ~smoother ()=default
 Destructor.
const word & fieldName () const noexcept
const lduMatrix & matrix () const noexcept
const FieldField< Field, scalar > & interfaceBouCoeffs () const noexcept
const FieldField< Field, scalar > & interfaceIntCoeffs () const noexcept
const lduInterfaceFieldPtrsList & interfaces () const noexcept

Static Public Member Functions

static void smooth (const word &fieldName, solveScalarField &psi, const lduMatrix &matrix, const label blockStart, const solveScalarField &source, const FieldField< Field, scalar > &interfaceBouCoeffs, const lduInterfaceFieldPtrsList &interfaces, const direction cmpt, const label nSweeps)
 Smooth for the given number of sweeps.
Static Public Member Functions inherited from lduMatrix::smoother
static word getName (const dictionary &)
 Find the smoother name (directly or from a sub-dictionary).
static autoPtr< smoother > New (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
 Return a new smoother.

Additional Inherited Members

Protected Attributes inherited from lduMatrix::smoother
word fieldName_
const lduMatrix & matrix_
const FieldField< Field, scalar > & interfaceBouCoeffs_
const FieldField< Field, scalar > & interfaceIntCoeffs_
const lduInterfaceFieldPtrsList & interfaces_

Detailed Description

Variant of gaussSeidelSmoother that expects processor boundary cells to be sorted last and so can block later. Only when the cells are actually visited does it need the results to be present. It is expected that there is little benefit to be gained from doing this on a patch by patch basis since the number of processor interfaces is quite small and the overhead of checking whether a processor interface is finished might be quite high (call into mpi). Also this would require a dynamic memory allocation to store the state of the outstanding requests.

Source files

Definition at line 58 of file nonBlockingGaussSeidelSmoother.H.

Constructor & Destructor Documentation

◆ nonBlockingGaussSeidelSmoother()

nonBlockingGaussSeidelSmoother ( const word & fieldName,
const lduMatrix & matrix,
const FieldField< Field, scalar > & interfaceBouCoeffs,
const FieldField< Field, scalar > & interfaceIntCoeffs,
const lduInterfaceFieldPtrsList & interfaces,
const dictionary & solverControls )

Construct from components.

Definition at line 43 of file nonBlockingGaussSeidelSmoother.C.

References Foam::endl(), lduMatrix::smoother::fieldName(), forAll, lduMatrix::smoother::interfaceBouCoeffs(), lduMatrix::smoother::interfaceIntCoeffs(), lduMatrix::smoother::interfaces(), lduMatrix::smoother::matrix(), lduMatrix::smoother::matrix_, Foam::min(), Foam::Pout, and lduMatrix::smoother::smoother().

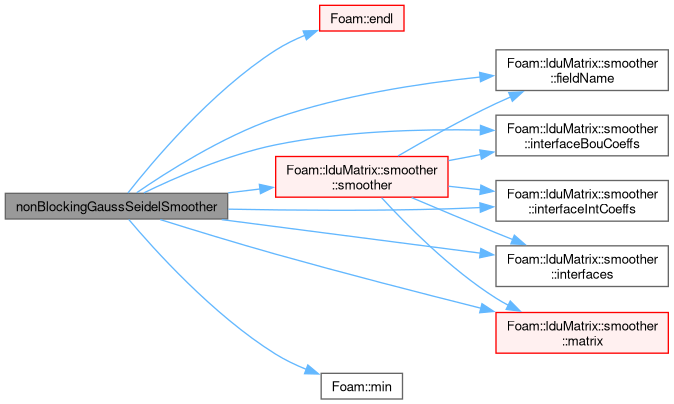

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "nonBlockingGaussSeidel" )

Runtime type information.

References lduMatrix::smoother::fieldName(), lduMatrix::smoother::interfaceBouCoeffs(), lduMatrix::smoother::interfaceIntCoeffs(), lduMatrix::smoother::interfaces(), lduMatrix::smoother::matrix(), and psi.

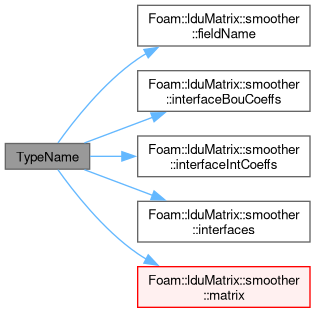

Here is the call graph for this function:

◆ smooth() [1/2]

void smooth ( const word & fieldName,
solveScalarField & psi,
const lduMatrix & matrix,
const label blockStart,
const solveScalarField & source,
const FieldField< Field, scalar > & interfaceBouCoeffs,
const lduInterfaceFieldPtrsList & interfaces,
const direction cmpt,
const label nSweeps )
static

Smooth for the given number of sweeps.

Definition at line 91 of file nonBlockingGaussSeidelSmoother.C.

References UList< T >::begin(), lduMatrix::smoother::fieldName_, lduMatrix::smoother::interfaceBouCoeffs_, lduMatrix::smoother::interfaces_, lduMatrix::smoother::matrix_, UPstream::nRequests(), and psi.

Referenced by scalarSmooth().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ smooth() [2/2]

void smooth ( solveScalarField & psi,
const scalarField & Source,
const direction cmpt,
const label nSweeps ) const
virtual

Smooth the solution for a given number of sweeps.

Implements lduMatrix::smoother.

Definition at line 247 of file nonBlockingGaussSeidelSmoother.C.

References psi, and scalarSmooth().

Here is the call graph for this function:

◆ scalarSmooth()

void scalarSmooth ( solveScalarField & psi,
const solveScalarField & source,
const direction cmpt,
const label nSweeps ) const
virtual

Smooth the solution for a given number of sweeps.

Implements lduMatrix::smoother.

Definition at line 224 of file nonBlockingGaussSeidelSmoother.C.

References lduMatrix::smoother::fieldName_, lduMatrix::smoother::interfaceBouCoeffs_, lduMatrix::smoother::interfaces_, lduMatrix::smoother::matrix_, psi, and smooth().

Referenced by smooth().

Here is the call graph for this function:
Here is the caller graph for this function:
The documentation for this class was generated from the following files:
