Poisson Class Reference

Calculation of approximate distance to nearest patch for all cells and boundary by solving Poisson's equation. More...

#include <PoissonPatchDistMethod.H>

Inheritance diagram for Poisson:
Inheritance graph
[legend]
Collaboration diagram for Poisson:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("Poisson")
 Runtime type information.
 Poisson (const dictionary &dict, const fvMesh &mesh, const labelHashSet &patchIDs)
 Construct from coefficients dictionary, mesh.
 Poisson (const fvMesh &mesh, const labelHashSet &patchIDs)
 Construct from mesh and fixed-value patch set.
virtual bool correct (volScalarField &y)
 Correct the given distance-to-patch field.
virtual bool correct (volScalarField &y, volVectorField &n)
 Correct the given distance-to-patch and normal-to-patch fields.
Public Member Functions inherited from patchDistMethod
 TypeName ("patchDistMethod")
 Runtime type information.
 declareRunTimeSelectionTable (autoPtr, patchDistMethod, dictionary,(const dictionary &dict, const fvMesh &mesh, const labelHashSet &patchIDs),(dict, mesh, patchIDs))
 patchDistMethod (const fvMesh &mesh, const labelHashSet &patchIDs)
 Construct from mesh and patch ID set.
virtual ~patchDistMethod ()
 Destructor.
const labelHashSet & patchIDs () const
 Return the patchIDs.
virtual bool movePoints ()
 Update cached geometry when the mesh moves.
virtual void updateMesh (const mapPolyMesh &)
 Update cached topology and geometry when the mesh changes.
template<class Type>
Foam::wordList patchTypes (const fvMesh &mesh, const labelHashSet &patchIDs)

Additional Inherited Members

Static Public Member Functions inherited from patchDistMethod
static autoPtr< patchDistMethod > New (const dictionary &dict, const fvMesh &mesh, const labelHashSet &patchIDs, const word &defaultPatchDistMethod=word::null)
template<class Type>
static wordList patchTypes (const fvMesh &mesh, const labelHashSet &patchIDs)
 Return the patch types for y and n.
Protected Member Functions inherited from patchDistMethod
 patchDistMethod (const patchDistMethod &)=delete
 No copy construct.
void operator= (const patchDistMethod &)=delete
 No copy assignment.
Protected Attributes inherited from patchDistMethod
const fvMesh & mesh_
 Reference to the mesh.
const labelHashSet patchIDs_
 Set of patch IDs.

Detailed Description

Calculation of approximate distance to nearest patch for all cells and boundary by solving Poisson's equation.

References:

    D.B. Spalding,
    "Calculation of turbulent heat transfer in cluttered spaces",
    Proc. 10th Int. Heat Transfer Conference, Brighton, UK, (1994).

    E. Fares and W. Schroder,
    "Differential Equation for Approximate Wall Distance",
    Int.J.Numer.Meth., 39:743-762, (2002).

    P.G. Tucker,
    "Differential equation based wall distance computation for DES and
     RANS",
    J.Comp.Phys., Vol. 190, Issue 1, 1 st September, pp. 229-248 (2003)

Example of the wallDist specification in fvSchemes:

    laplacianSchemes
    {
        .
        .
        laplacian(yPsi) Gauss linear corrected;
        .
        .
    }

    wallDist
    {
        method Poisson;

        // Optional entry enabling the calculation
        // of the normal-to-wall field
        nRequired false;
    }

Also the solver specification for yPsi is required in fvSolution, e.g. for simple cases:

    yPsi
    {
        solver          PCG;
        preconditioner  DIC;
        tolerance       1e-5;
        relTol          0;
    }

or for more complex cases:

    yPsi
    {
        solver          GAMG;
        smoother        GaussSeidel;
        cacheAgglomeration true;
        nCellsInCoarsestLevel 10;
        agglomerator    faceAreaPair;
        mergeLevels     1;
        tolerance       1e-5;
        relTol          0;
    }
See also
Foam::patchDistMethod::meshWave Foam::wallDist
Source files

Definition at line 115 of file PoissonPatchDistMethod.H.

Constructor & Destructor Documentation

◆ Poisson() [1/2]

Poisson ( const dictionary & dict,
const fvMesh & mesh,
const labelHashSet & patchIDs )

Construct from coefficients dictionary, mesh.

and fixed-value patch set

Definition at line 40 of file PoissonPatchDistMethod.C.

References dict, mesh, patchDistMethod::patchDistMethod(), and patchDistMethod::patchIDs().

Here is the call graph for this function:

◆ Poisson() [2/2]

Poisson ( const fvMesh & mesh,
const labelHashSet & patchIDs )

Construct from mesh and fixed-value patch set.

Definition at line 51 of file PoissonPatchDistMethod.C.

References mesh, patchDistMethod::patchDistMethod(), and patchDistMethod::patchIDs().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "Poisson" )

Runtime type information.

References dict, mesh, n, patchDistMethod::patchIDs(), and y.

Here is the call graph for this function:

◆ correct() [1/2]

bool correct ( volScalarField & y)
virtual

Correct the given distance-to-patch field.

Implements patchDistMethod.

Definition at line 63 of file PoissonPatchDistMethod.C.

References correct(), GeometricField< vector, fvPatchField, volMesh >::null(), and y.

Here is the call graph for this function:

◆ correct() [2/2]

bool correct ( volScalarField & y,
volVectorField & n )
virtual

Correct the given distance-to-patch and normal-to-patch fields.

Implements patchDistMethod.

Definition at line 69 of file PoissonPatchDistMethod.C.

References Foam::dimLength, Foam::dimless, Foam::fvc::grad(), Foam::fvm::laplacian(), Foam::mag(), Foam::magSqr(), Foam::max(), patchDistMethod::mesh_, n, GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, Foam::notNull(), solve(), Foam::sqr(), Foam::sqrt(), y, and Foam::Zero.

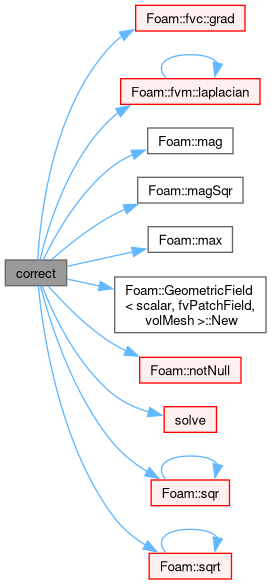

Here is the call graph for this function:
