meshWave Class Reference

Fast topological mesh-wave method for calculating the distance to nearest patch for all cells and boundary. More...

#include <meshWavePatchDistMethod.H>

Inheritance diagram for meshWave:
Inheritance graph
[legend]
Collaboration diagram for meshWave:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("meshWave")
 Runtime type information.
 meshWave (const dictionary &dict, const fvMesh &mesh, const labelHashSet &patchIDs)
 Construct from coefficients dictionary, mesh.
 meshWave (const fvMesh &mesh, const labelHashSet &patchIDs, const bool correctWalls=true)
 Construct from mesh, fixed-value patch set and flag specifying.
virtual bool correct (volScalarField &y)
 Correct the given distance-to-patch field.
virtual bool correct (volScalarField &y, volVectorField &n)
 Correct the given distance-to-patch and normal-to-patch fields.
Public Member Functions inherited from patchDistMethod
 TypeName ("patchDistMethod")
 Runtime type information.
 declareRunTimeSelectionTable (autoPtr, patchDistMethod, dictionary,(const dictionary &dict, const fvMesh &mesh, const labelHashSet &patchIDs),(dict, mesh, patchIDs))
 patchDistMethod (const fvMesh &mesh, const labelHashSet &patchIDs)
 Construct from mesh and patch ID set.
virtual ~patchDistMethod ()
 Destructor.
const labelHashSet & patchIDs () const
 Return the patchIDs.
virtual bool movePoints ()
 Update cached geometry when the mesh moves.
virtual void updateMesh (const mapPolyMesh &)
 Update cached topology and geometry when the mesh changes.
template<class Type>
Foam::wordList patchTypes (const fvMesh &mesh, const labelHashSet &patchIDs)

Protected Attributes

const bool correctWalls_
 Do accurate distance calculation for near-wall cells.
label nUnset_
 Number of unset cells and faces.
Protected Attributes inherited from patchDistMethod
const fvMesh & mesh_
 Reference to the mesh.
const labelHashSet patchIDs_
 Set of patch IDs.

Additional Inherited Members

Static Public Member Functions inherited from patchDistMethod
static autoPtr< patchDistMethod > New (const dictionary &dict, const fvMesh &mesh, const labelHashSet &patchIDs, const word &defaultPatchDistMethod=word::null)
template<class Type>
static wordList patchTypes (const fvMesh &mesh, const labelHashSet &patchIDs)
 Return the patch types for y and n.
Protected Member Functions inherited from patchDistMethod
 patchDistMethod (const patchDistMethod &)=delete
 No copy construct.
void operator= (const patchDistMethod &)=delete
 No copy assignment.

Detailed Description

Fast topological mesh-wave method for calculating the distance to nearest patch for all cells and boundary.

For regular/un-distorted meshes this method is accurate but for skewed, non-orthogonal meshes it is approximate with the error increasing with the degree of mesh distortion. The distance from the near-wall cells to the boundary may optionally be corrected for mesh distortion by setting correctWalls = true.

Example of the wallDist specification in fvSchemes:

    wallDist
    {
        method meshWave;

        // Optional entry enabling the calculation
        // of the normal-to-wall field
        nRequired false;
    }
See also
Foam::patchDistMethod::Poisson Foam::wallDist
Source files

Definition at line 72 of file meshWavePatchDistMethod.H.

Constructor & Destructor Documentation

◆ meshWave() [1/2]

meshWave ( const dictionary & dict,
const fvMesh & mesh,
const labelHashSet & patchIDs )

Construct from coefficients dictionary, mesh.

and fixed-value patch set

Definition at line 44 of file meshWavePatchDistMethod.C.

References correctWalls_, dict, mesh, nUnset_, patchDistMethod::patchDistMethod(), and patchDistMethod::patchIDs().

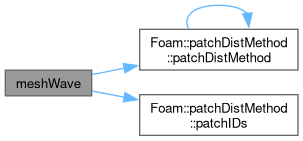

Here is the call graph for this function:

◆ meshWave() [2/2]

meshWave ( const fvMesh & mesh,
const labelHashSet & patchIDs,
const bool correctWalls = true )

Construct from mesh, fixed-value patch set and flag specifying.

whether or not to correct wall. Calculate for all cells. correctWalls : correct wall (face&point) cells for correct distance, searching neighbours.

Definition at line 57 of file meshWavePatchDistMethod.C.

References correctWalls_, mesh, nUnset_, patchDistMethod::patchDistMethod(), and patchDistMethod::patchIDs().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "meshWave" )

Runtime type information.

References dict, mesh, n, patchDistMethod::patchIDs(), and y.

Here is the call graph for this function:

◆ correct() [1/2]

bool correct ( volScalarField & y)
virtual

Correct the given distance-to-patch field.

Implements patchDistMethod.

Reimplemented in directionalMeshWave.

Definition at line 72 of file meshWavePatchDistMethod.C.

References correctWalls_, Foam::dimLength, patchWave::distance(), forAll, Foam::isA(), patchDistMethod::mesh_, patchWave::nUnset(), nUnset_, patchWave::patchDistance(), patchDistMethod::patchIDs_, PtrList< T >::transfer(), and y.

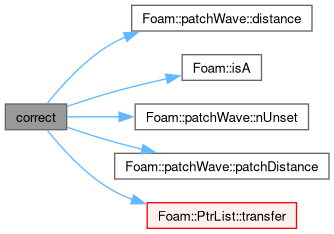

Here is the call graph for this function:

◆ correct() [2/2]

bool correct ( volScalarField & y,
volVectorField & n )
virtual

Correct the given distance-to-patch and normal-to-patch fields.

Implements patchDistMethod.

Reimplemented in directionalMeshWave.

Definition at line 105 of file meshWavePatchDistMethod.C.

References patchDataWave< TransferType, TrackingData >::cellData(), correctWalls_, Foam::dimLength, patchDataWave< TransferType, TrackingData >::distance(), forAll, Foam::isA(), patchDistMethod::mesh_, n, patchDataWave< TransferType, TrackingData >::nUnset(), nUnset_, patchDataWave< TransferType, TrackingData >::patchData(), patchDataWave< TransferType, TrackingData >::patchDistance(), patchDistMethod::patchIDs_, UPtrList< T >::set(), PtrList< T >::transfer(), and y.

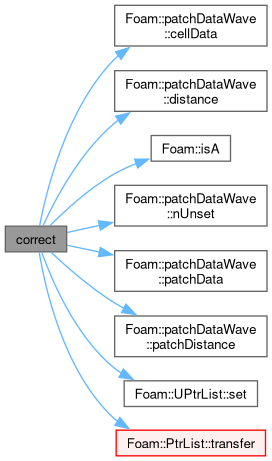

Here is the call graph for this function:

Member Data Documentation

◆ correctWalls_

const bool correctWalls_
protected

Do accurate distance calculation for near-wall cells.

Definition at line 83 of file meshWavePatchDistMethod.H.

Referenced by directionalMeshWave::correct(), correct(), correct(), meshWave(), and meshWave().

◆ nUnset_

label nUnset_
mutableprotected

Number of unset cells and faces.

Definition at line 88 of file meshWavePatchDistMethod.H.

Referenced by directionalMeshWave::correct(), correct(), correct(), meshWave(), and meshWave().
