perfectInterface Class Reference

Hack of attachDetach to couple patches when they perfectly align. Does not decouple. Used by stitchMesh app. Does geometric matching. More...

#include <perfectInterface.H>

Inheritance diagram for perfectInterface:
Inheritance graph
[legend]
Collaboration diagram for perfectInterface:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("perfectInterface")
 Runtime type information.
 perfectInterface (const word &name, const label index, const polyTopoChanger &mme, const word &faceZoneName, const word &masterPatchName, const word &slavePatchName)
 Construct from components.
 perfectInterface (const word &name, const dictionary &dict, const label index, const polyTopoChanger &mme)
 Construct from dictionary.
virtual ~perfectInterface ()=default
 Destructor.
virtual bool changeTopology () const
 Check for topology change.
virtual void setRefinement (polyTopoChange &) const
 Insert the layer addition/removal instructions.
virtual void setRefinement (const indirectPrimitivePatch &pp0, const indirectPrimitivePatch &pp1, polyTopoChange &) const
 Insert the layer addition/removal instructions.
virtual void modifyMotionPoints (pointField &motionPoints) const
 Modify motion points to comply with the topological change.
virtual void updateMesh (const mapPolyMesh &)
 Force recalculation of locally stored data on topological change.
virtual void write (Ostream &) const
 Write.
virtual void writeDict (Ostream &) const
 Write dictionary.
Public Member Functions inherited from polyMeshModifier
 TypeName ("meshModifier")
 Runtime type information.
 declareRunTimeSelectionTable (autoPtr, polyMeshModifier, dictionary,(const word &name, const dictionary &dict, const label index, const polyTopoChanger &mme),(name, dict, index, mme))
 polyMeshModifier (const word &name, const label index, const polyTopoChanger &mme, const bool act)
 Construct from components.
virtual ~polyMeshModifier ()=default
 Destructor.
const word & name () const
 Return name of this modifier.
label index () const
 Return the index of this modifier.
const polyTopoChanger & topoChanger () const
 Return reference to morph engine.
Switch active () const
 If modifier activate?
void enable () const
 Activate mesh modifier.
void disable () const
 Activate mesh modifier.

Additional Inherited Members

Static Public Member Functions inherited from polyMeshModifier
static autoPtr< polyMeshModifier > New (const word &name, const dictionary &dict, const label index, const polyTopoChanger &mme)
 Select constructed from dictionary.

Detailed Description

Hack of attachDetach to couple patches when they perfectly align. Does not decouple. Used by stitchMesh app. Does geometric matching.

Source files

Definition at line 54 of file perfectInterface.H.

Constructor & Destructor Documentation

◆ perfectInterface() [1/2]

perfectInterface ( const word & name,
const label index,
const polyTopoChanger & mme,
const word & faceZoneName,
const word & masterPatchName,
const word & slavePatchName )

Construct from components.

Definition at line 79 of file perfectInterface.C.

References polyMeshModifier::index(), mesh, and polyMeshModifier::name().

Here is the call graph for this function:

◆ perfectInterface() [2/2]

perfectInterface ( const word & name,
const dictionary & dict,
const label index,
const polyTopoChanger & mme )

Construct from dictionary.

Definition at line 96 of file perfectInterface.C.

References dict, polyMeshModifier::index(), mesh, and polyMeshModifier::name().

Here is the call graph for this function:

◆ ~perfectInterface()

virtual ~perfectInterface ( )
virtualdefault

Destructor.

Member Function Documentation

◆ TypeName()

TypeName ( "perfectInterface" )

Runtime type information.

References dict, polyMeshModifier::index(), and polyMeshModifier::name().

Here is the call graph for this function:

◆ changeTopology()

bool changeTopology ( ) const
virtual

Check for topology change.

Implements polyMeshModifier.

Definition at line 125 of file perfectInterface.C.

References polyMeshModifier::active(), Foam::endl(), name, and Foam::Pout.

Here is the call graph for this function:

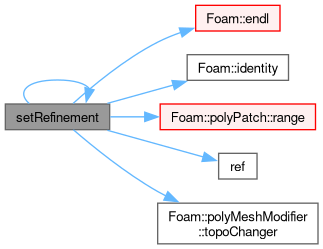

◆ setRefinement() [1/2]

void setRefinement ( polyTopoChange & ref) const
virtual

Insert the layer addition/removal instructions.

into the topological change

Implements polyMeshModifier.

Definition at line 420 of file perfectInterface.C.

References Foam::endl(), Foam::identity(), mesh, name, patches, Foam::Pout, polyPatch::range(), ref(), setRefinement(), and polyMeshModifier::topoChanger().

Referenced by setRefinement().

Here is the call graph for this function:
Here is the caller graph for this function:

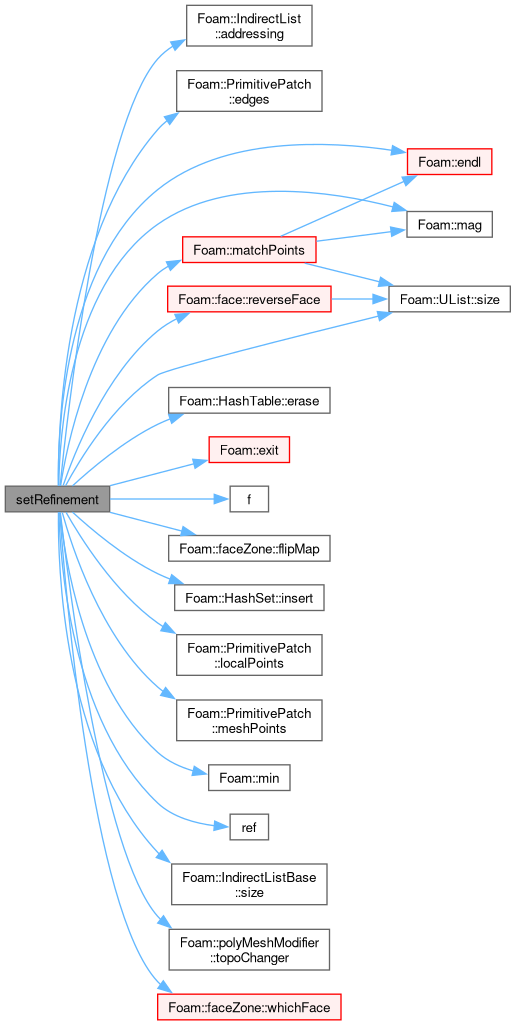

◆ setRefinement() [2/2]

void setRefinement ( const indirectPrimitivePatch & pp0,
const indirectPrimitivePatch & pp1,
polyTopoChange & ref ) const
virtual

Insert the layer addition/removal instructions.

into the topological change. Uses only mesh, not any of the patch and zone indices. Bit of a workaround - used in extruding a mesh.

Definition at line 147 of file perfectInterface.C.

References IndirectList< T >::addressing(), PrimitivePatch< FaceList, PointField >::edges(), Foam::endl(), HashTable< T, Key, Hash >::erase(), Foam::exit(), f(), Foam::FatalError, FatalErrorInFunction, faceZone::flipMap(), forAll, HashSet< Key, Hash >::insert(), PrimitivePatch< FaceList, PointField >::localPoints(), Foam::mag(), Foam::matchPoints(), mesh, PrimitivePatch< FaceList, PointField >::meshPoints(), Foam::min(), patches, pFaces, Foam::Pout, ref(), face::reverseFace(), IndirectListBase< T, Addr >::size(), UList< T >::size(), polyMeshModifier::topoChanger(), WarningInFunction, and faceZone::whichFace().

Here is the call graph for this function:

◆ modifyMotionPoints()

void modifyMotionPoints ( pointField & motionPoints) const
virtual

Modify motion points to comply with the topological change.

Implements polyMeshModifier.

Definition at line 461 of file perfectInterface.C.

◆ updateMesh()

void updateMesh ( const mapPolyMesh & morphMap)
virtual

Force recalculation of locally stored data on topological change.

Implements polyMeshModifier.

Definition at line 468 of file perfectInterface.C.

References mesh, and polyMeshModifier::topoChanger().

Here is the call graph for this function:

◆ write()

void write ( Ostream & os) const
virtual

Write.

Implements polyMeshModifier.

Definition at line 479 of file perfectInterface.C.

References Foam::endl(), name, Foam::nl, os(), and Foam::type().

Here is the call graph for this function:

◆ writeDict()

void writeDict ( Ostream & os) const
virtual

Write dictionary.

Implements polyMeshModifier.

Definition at line 489 of file perfectInterface.C.

References polyMeshModifier::active(), name, Foam::nl, os(), and Foam::type().

Here is the call graph for this function:
The documentation for this class was generated from the following files:
