pointMeshTools Class Reference

#include <pointMeshTools.H>

Static Public Member Functions

static void featurePointsEdges (const polyMesh &mesh, const uindirectPrimitivePatch &boundary, const labelUList &faceToZone, const label nZones, const scalar edgeFeatureAngle, labelListList &zoneToMeshPoints, List< pointConstraintList > &zoneToConstraints, labelList &twoZoneMeshPoints, pointConstraintList &twoZoneConstraints, labelList &multiZoneMeshPoints, pointConstraintList &multiZoneConstraints)
 Analyse patch for feature edges, feature points. Handles points not being on a face of patch but coupled to it.

Detailed Description

Definition at line 48 of file pointMeshTools.H.

Member Function Documentation

◆ featurePointsEdges()

void featurePointsEdges ( const polyMesh & mesh,
const uindirectPrimitivePatch & boundary,
const labelUList & faceToZone,
const label nZones,
const scalar edgeFeatureAngle,
labelListList & zoneToMeshPoints,
List< pointConstraintList > & zoneToConstraints,
labelList & twoZoneMeshPoints,
pointConstraintList & twoZoneConstraints,
labelList & multiZoneMeshPoints,
pointConstraintList & multiZoneConstraints )
static

Analyse patch for feature edges, feature points. Handles points not being on a face of patch but coupled to it.

Definition at line 30 of file pointMeshTools.C.

References DynamicList< T, SizeMin >::append(), mapDistributeBase::constructSize(), Foam::cos(), globalMeshData::coupledPatch(), Foam::degToRad(), e, PrimitivePatch< FaceList, PointField >::edgeFaces(), PrimitivePatch< FaceList, PointField >::edges(), f(), PrimitivePatch< FaceList, PointField >::faceNormals(), Pair< T >::first(), UList< T >::first(), forAll, globalMeshData::globalEdgeSlaves(), globalMeshData::globalEdgeSlavesMap(), globalMeshData::globalEdgeTransformedSlaves(), globalMeshData::globalTransforms(), PatchTools::matchEdges(), mesh, PrimitivePatch< FaceList, PointField >::meshPoints(), PrimitivePatch< FaceList, PointField >::nEdges(), Vector< Cmpt >::normalise(), PrimitivePatch< FaceList, PointField >::nPoints(), p0, PatchTools::pointNormals(), PrimitivePatch< FaceList, PointField >::points(), pZones(), List< T >::resize_nocopy(), Pair< T >::second(), List< T >::setSize(), globalMeshData::syncData(), syncTools::syncPointList(), VectorSpace< Form, Cmpt, Ncmpts >::uniform(), x, y, and Foam::Zero.

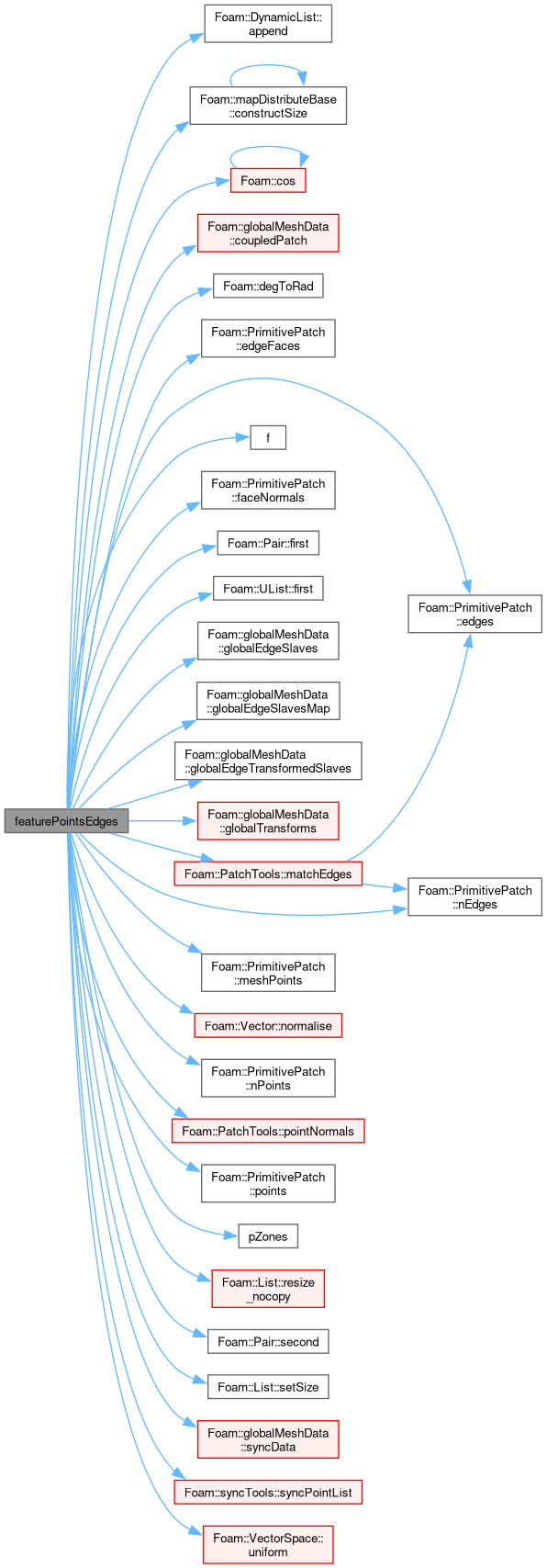

Here is the call graph for this function:
The documentation for this class was generated from the following files:
