polyAddFace Class Reference

A face addition data class. A face can be inflated either from a point or from another face and can either be in internal or a boundary face. More...

#include <polyAddFace.H>

Inheritance diagram for polyAddFace:
Inheritance graph
[legend]
Collaboration diagram for polyAddFace:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("addFace")
 Runtime type information.
 polyAddFace ()
 Construct null. Used for constructing lists.
 polyAddFace (const face &f, const label owner, const label neighbour, const label masterPointID, const label masterEdgeID, const label masterFaceID, const bool flipFaceFlux, const label patchID, const label zoneID, const bool zoneFlip)
 Construct from components.
virtual autoPtr< topoAction > clone () const
 Construct and return a clone.
const face & newFace () const
 Return face.
label owner () const
 Return owner cell.
label neighbour () const
 Return neighbour cell.
bool isPointMaster () const
 Is the face mastered by a point.
bool isEdgeMaster () const
 Is the face mastered by an edge.
bool isFaceMaster () const
 Is the face mastered by another face.
bool appended () const
 Is the face appended with no master.
label masterPointID () const
 Return master point ID.
label masterEdgeID () const
 Return master edge ID.
label masterFaceID () const
 Return master face ID.
bool flipFaceFlux () const
 Does the face flux need to be flipped.
bool isInPatch () const
 Does the face belong to a boundary patch?
label patchID () const
 Boundary patch ID.
bool isInZone () const
 Does the face belong to a zone?
bool onlyInZone () const
 Is the face only a zone face (i.e. not belonging to a cell).
label zoneID () const
 Face zone ID.
label zoneFlip () const
 Face zone flip.
Public Member Functions inherited from topoAction
 TypeName ("topoAction")
 Runtime type information.
 topoAction ()
 Construct null.
virtual ~topoAction ()=default
 Destructor.

Detailed Description

A face addition data class. A face can be inflated either from a point or from another face and can either be in internal or a boundary face.

Definition at line 47 of file polyAddFace.H.

Constructor & Destructor Documentation

◆ polyAddFace() [1/2]

polyAddFace ( )
inline

Construct null. Used for constructing lists.

Definition at line 119 of file polyAddFace.H.

Referenced by clone().

Here is the caller graph for this function:

◆ polyAddFace() [2/2]

polyAddFace ( const face & f,
const label owner,
const label neighbour,
const label masterPointID,
const label masterEdgeID,
const label masterFaceID,
const bool flipFaceFlux,
const label patchID,
const label zoneID,
const bool zoneFlip )
inline

Construct from components.

Definition at line 137 of file polyAddFace.H.

References Foam::abort(), f(), Foam::FatalError, FatalErrorInFunction, flipFaceFlux(), if(), masterEdgeID(), masterFaceID(), masterPointID(), Foam::min(), neighbour(), owner(), patchID(), zoneFlip(), and zoneID().

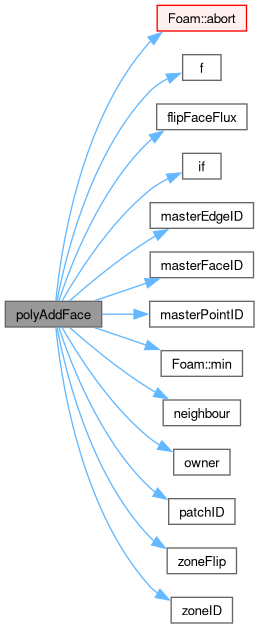

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "addFace" )

Runtime type information.

◆ clone()

virtual autoPtr< topoAction > clone ( ) const
inlinevirtual

Construct and return a clone.

Implements topoAction.

Definition at line 251 of file polyAddFace.H.

References polyAddFace().

Here is the call graph for this function:

◆ newFace()

const face & newFace ( ) const
inline

Return face.

Definition at line 264 of file polyAddFace.H.

Referenced by polyTopoChange::setAction().

Here is the caller graph for this function:

◆ owner()

label owner ( ) const
inline

Return owner cell.

Definition at line 272 of file polyAddFace.H.

Referenced by polyAddFace(), and polyTopoChange::setAction().

Here is the caller graph for this function:

◆ neighbour()

label neighbour ( ) const
inline

Return neighbour cell.

Definition at line 280 of file polyAddFace.H.

Referenced by polyAddFace(), and polyTopoChange::setAction().

Here is the caller graph for this function:

◆ isPointMaster()

bool isPointMaster ( ) const
inline

Is the face mastered by a point.

Definition at line 288 of file polyAddFace.H.

Referenced by appended().

Here is the caller graph for this function:

◆ isEdgeMaster()

bool isEdgeMaster ( ) const
inline

Is the face mastered by an edge.

Definition at line 296 of file polyAddFace.H.

Referenced by appended().

Here is the caller graph for this function:

◆ isFaceMaster()

bool isFaceMaster ( ) const
inline

Is the face mastered by another face.

Definition at line 304 of file polyAddFace.H.

Referenced by appended().

Here is the caller graph for this function:

◆ appended()

bool appended ( ) const
inline

Is the face appended with no master.

Definition at line 312 of file polyAddFace.H.

References isEdgeMaster(), isFaceMaster(), and isPointMaster().

Here is the call graph for this function:

◆ masterPointID()

label masterPointID ( ) const
inline

Return master point ID.

Definition at line 320 of file polyAddFace.H.

Referenced by polyAddFace(), and polyTopoChange::setAction().

Here is the caller graph for this function:

◆ masterEdgeID()

label masterEdgeID ( ) const
inline

Return master edge ID.

Definition at line 328 of file polyAddFace.H.

Referenced by polyAddFace(), and polyTopoChange::setAction().

Here is the caller graph for this function:

◆ masterFaceID()

label masterFaceID ( ) const
inline

Return master face ID.

Definition at line 336 of file polyAddFace.H.

Referenced by polyAddFace(), and polyTopoChange::setAction().

Here is the caller graph for this function:

◆ flipFaceFlux()

bool flipFaceFlux ( ) const
inline

Does the face flux need to be flipped.

Definition at line 344 of file polyAddFace.H.

Referenced by polyAddFace(), and polyTopoChange::setAction().

Here is the caller graph for this function:

◆ isInPatch()

bool isInPatch ( ) const
inline

Does the face belong to a boundary patch?

Definition at line 352 of file polyAddFace.H.

◆ patchID()

label patchID ( ) const
inline

Boundary patch ID.

Definition at line 360 of file polyAddFace.H.

Referenced by polyAddFace(), and polyTopoChange::setAction().

Here is the caller graph for this function:

◆ isInZone()

bool isInZone ( ) const
inline

Does the face belong to a zone?

Definition at line 368 of file polyAddFace.H.

◆ onlyInZone()

bool onlyInZone ( ) const
inline

Is the face only a zone face (i.e. not belonging to a cell).

Definition at line 376 of file polyAddFace.H.

◆ zoneID()

label zoneID ( ) const
inline

Face zone ID.

Definition at line 384 of file polyAddFace.H.

Referenced by polyAddFace(), and polyTopoChange::setAction().

Here is the caller graph for this function:

◆ zoneFlip()

label zoneFlip ( ) const
inline

Face zone flip.

Definition at line 392 of file polyAddFace.H.

Referenced by polyAddFace(), and polyTopoChange::setAction().

Here is the caller graph for this function:
The documentation for this class was generated from the following file:
