Transport package using polynomial functions for solid kappa. More...

#include <polynomialSolidTransport.H>

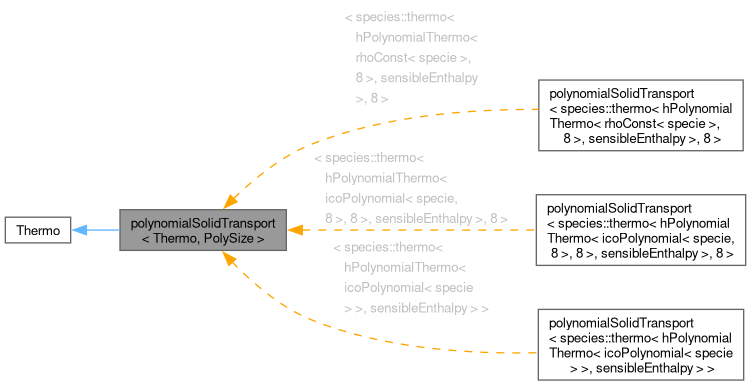

Inheritance diagram for polynomialSolidTransport< Thermo, PolySize >:

[legend]

Collaboration diagram for polynomialSolidTransport< Thermo, PolySize >:

Public Member Functions
	polynomialSolidTransport (const word &, const polynomialSolidTransport &)
	Construct as named copy.
	polynomialSolidTransport (const dictionary &dict)
	Construct from dictionary.
autoPtr< polynomialSolidTransport >	clone () const
	Construct and return a clone.
scalar	mu (const scalar p, const scalar T) const
	Dynamic viscosity [kg/ms].
scalar	kappa (const scalar p, const scalar T) const
	Thermal conductivity [W/mK].
vector	Kappa (const scalar p, const scalar T) const
	Thermal conductivity [W/mK].
scalar	alphah (const scalar p, const scalar T) const
	Thermal diffusivity of enthalpy [kg/ms].
void	write (Ostream &os) const
	Write to Ostream.
void	operator+= (const polynomialSolidTransport &)
void	operator*= (const scalar)

Static Public Member Functions
static autoPtr< polynomialSolidTransport >	New (const dictionary &dict)
static word	typeName ()
	Return the instantiated type name.

Static Public Attributes
static const bool	isotropic = true
	Is the thermal conductivity isotropic.

Friends
polynomialSolidTransport	operator+ (const polynomialSolidTransport &, const polynomialSolidTransport &)
polynomialSolidTransport	operator* (const scalar, const polynomialSolidTransport &)
Ostream &	operator (Ostream &, const polynomialSolidTransport &)

Detailed Description

template<class Thermo, int PolySize = 8>
class Foam::polynomialSolidTransport< Thermo, PolySize >

Transport package using polynomial functions for solid kappa.

Usage

Property	Description
`kappaCoeffs<8>`	Thermal conductivity polynomial coefficients

Example of the specification of the transport properties:

    transport
    {
        kappaCoeffs<8>     ( 1000 -0.05 0.003 0 0 0 0 0 );
    }

The polynomial expression is evaluated as so:

$\‍[ \kappa = 1000 - 0.05 T + 0.003 T^2 \‍]$

Note: Thermal conductivity polynomial coefficients evaluate to an expression in [W/m/K].

Source files

See also: Foam::Polynomial

Definition at line 109 of file polynomialSolidTransport.H.

Constructor & Destructor Documentation

◆ polynomialSolidTransport() [1/2]

template<class Thermo, int PolySize>

polynomialSolidTransport	(	const word &	name,
		const polynomialSolidTransport< Thermo, PolySize > &	pt )

inline

Construct as named copy.

Definition at line 39 of file polynomialSolidTransportI.H.

References Foam::name().

Here is the call graph for this function:

◆ polynomialSolidTransport() [2/2]

template<class Thermo, int PolySize>

polynomialSolidTransport ( const dictionary & dict )

explicit

Construct from dictionary.

Definition at line 27 of file polynomialSolidTransport.C.

References dict.

Member Function Documentation

◆ clone()

template<class Thermo, int PolySize>

Foam::autoPtr< Foam::polynomialSolidTransport< Thermo, PolySize > > clone ( ) const

inline

Construct and return a clone.

Definition at line 53 of file polynomialSolidTransportI.H.

References Foam::New().

Here is the call graph for this function:

◆ New()

template<class Thermo, int PolySize>

Foam::autoPtr< Foam::polynomialSolidTransport< Thermo, PolySize > > New ( const dictionary & dict )

inlinestatic

Definition at line 61 of file polynomialSolidTransportI.H.

References dict, and Foam::New().

Here is the call graph for this function:

◆ typeName()

template<class Thermo, int PolySize = 8>

word typeName ( )

inlinestatic

Return the instantiated type name.

Definition at line 181 of file polynomialSolidTransport.H.

◆ mu()

template<class Thermo, int PolySize>

Foam::scalar mu	(	const scalar	p,
		const scalar	T ) const

inline

Dynamic viscosity [kg/ms].

Definition at line 70 of file polynomialSolidTransportI.H.

References NotImplemented, p, and Foam::T().

Here is the call graph for this function:

◆ kappa()

template<class Thermo, int PolySize>

Foam::scalar kappa	(	const scalar	p,
		const scalar	T ) const

inline

Thermal conductivity [W/mK].

Definition at line 82 of file polynomialSolidTransportI.H.

References p, and Foam::T().

Referenced by alphah(), and Kappa().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Kappa()

template<class Thermo, int PolySize>

Foam::vector Kappa	(	const scalar	p,
		const scalar	T ) const

inline

Thermal conductivity [W/mK].

Definition at line 93 of file polynomialSolidTransportI.H.

References kappa(), p, and Foam::T().

Here is the call graph for this function:

◆ alphah()

template<class Thermo, int PolySize>

Foam::scalar alphah	(	const scalar	p,
		const scalar	T ) const

inline

Thermal diffusivity of enthalpy [kg/ms].

Definition at line 105 of file polynomialSolidTransportI.H.

References Cp, kappa(), p, and Foam::T().

Here is the call graph for this function:

◆ write()

template<class Thermo, int PolySize>

void write ( Ostream & os ) const

Write to Ostream.

Definition at line 40 of file polynomialSolidTransport.C.

References os().

Here is the call graph for this function:

◆ operator+=()

template<class Thermo, int PolySize = 8>

void operator+= ( const polynomialSolidTransport< Thermo, PolySize > & )

inline

Definition at line 117 of file polynomialSolidTransportI.H.

References operator, and Y.

Here is the call graph for this function:

◆ operator*=()

template<class Thermo, int PolySize>

void operator*= ( const scalar s )

inline

Definition at line 134 of file polynomialSolidTransportI.H.

References operator, and s().

Here is the call graph for this function:

◆ operator+

template<class Thermo, int PolySize = 8>

polynomialSolidTransport operator+	(	const polynomialSolidTransport< Thermo, PolySize > &	,
		const polynomialSolidTransport< Thermo, PolySize > &	)

friend

◆ operator*

template<class Thermo, int PolySize = 8>

polynomialSolidTransport operator*	(	const scalar	,
		const polynomialSolidTransport< Thermo, PolySize > &	)

friend

◆ operator

template<class Thermo, int PolySize = 8>

Ostream & operator	(	Ostream &	,
		const polynomialSolidTransport< Thermo, PolySize > &	)

friend

Referenced by operator*=(), and operator+=().

Member Data Documentation

◆ isotropic

template<class Thermo, int PolySize = 8>

const bool isotropic = true

static

Is the thermal conductivity isotropic.

Definition at line 189 of file polynomialSolidTransport.H.

The documentation for this class was generated from the following files:

src/thermophysicalModels/solidSpecie/transport/polynomial/polynomialSolidTransport.H
src/thermophysicalModels/solidSpecie/transport/polynomial/polynomialSolidTransport.C
src/thermophysicalModels/solidSpecie/transport/polynomial/polynomialSolidTransportI.H
