GAMG agglomerated processor interface. More...

#include <processorGAMGInterface.H>

Inheritance diagram for processorGAMGInterface:

[legend]

Collaboration diagram for processorGAMGInterface:

[legend]

Public Member Functions
	TypeName ("processor")
	Runtime type information.
	processorGAMGInterface (const label index, const lduInterfacePtrsList &coarseInterfaces, const lduInterface &fineInterface, const labelField &restrictAddressing, const labelField &neighbourRestrictAddressing, const label fineLevelIndex, const label coarseComm)
	Construct from fine-level interface, local and neighbour restrict addressing.
	processorGAMGInterface (const label index, const lduInterfacePtrsList &coarseInterfaces, const labelUList &faceCells, const labelUList &faceRestrictAddresssing, const label coarseComm, const label myProcNo, const label neighbProcNo, const tensorField &forwardT, const int tag)
	Construct from components.
	processorGAMGInterface (const label index, const lduInterfacePtrsList &coarseInterfaces, Istream &is)
	Construct from Istream.
virtual	~processorGAMGInterface ()=default
	Destructor.
virtual void	initInternalFieldTransfer (const Pstream::commsTypes commsType, const labelUList &iF) const
	Initialise neighbour field transfer.
virtual void	initInternalFieldTransfer (const Pstream::commsTypes commsType, const labelUList &iF, const labelUList &faceCells) const
	Initialise neighbour field transfer using faceCells mapping.
virtual tmp< labelField >	internalFieldTransfer (const Pstream::commsTypes commsType, const labelUList &iF) const
	Transfer and return internal field adjacent to the interface.
virtual label	comm () const
	Processor interface functions.
virtual int	myProcNo () const
	Return processor number (rank in communicator).
virtual int	neighbProcNo () const
	Return neighbour processor number (rank in communicator).
virtual const tensorField &	forwardT () const
	Return face transformation tensor.
virtual int	tag () const
	Return message tag used for sending.
virtual void	write (Ostream &os) const
	Write to stream.
Public Member Functions inherited from GAMGInterface
	TypeName ("GAMGInterface")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, GAMGInterface, lduInterface,(const label index, const lduInterfacePtrsList &coarseInterfaces, const lduInterface &fineInterface, const labelField &localRestrictAddressing, const labelField &neighbourRestrictAddressing, const label fineLevelIndex, const label coarseComm),(index, coarseInterfaces, fineInterface, localRestrictAddressing, neighbourRestrictAddressing, fineLevelIndex, coarseComm))
	declareRunTimeSelectionTable (autoPtr, GAMGInterface, Istream,(const label index, const lduInterfacePtrsList &coarseInterfaces, Istream &is),(index, coarseInterfaces, is))
	GAMGInterface (const label index, const lduInterfacePtrsList &coarseInterfaces)
	Construct from interfaces, restrict addressing set later on.
	GAMGInterface (const label index, const lduInterfacePtrsList &coarseInterfaces, const labelUList &faceCells, const labelUList &faceRestrictAddressing)
	Construct from interfaces and restrict addressing.
	GAMGInterface (const label index, const lduInterfacePtrsList &coarseInterfaces, Istream &is)
	Construct from Istream.
virtual autoPtr< GAMGInterface >	clone (const label index, const lduInterfacePtrsList &coarseInterfaces, const labelList &interfaceMap, const labelUList &faceCells, const labelUList &faceRestrictAddresssing, const labelUList &faceOffsets, const lduInterfacePtrsList &allInterfaces, const label coarseComm, const label myProcNo, const labelList &procAgglomMap) const
	Construct by assembling and return a clone.
virtual label	size () const
	Return size.
virtual label	index () const
virtual const lduInterfacePtrsList &	coarseInterfaces () const
virtual const labelUList &	faceCells () const
	Return faceCell addressing.
virtual const labelList &	faceRestrictAddressing () const
	Return (local)face restrict addressing.
virtual labelList &	faceRestrictAddressing ()
	Return non-const access to face restrict addressing.
template<class Type>
tmp< Field< Type > >	interfaceInternalField (const UList< Type > &internalData) const
	Return the interface internal field of the given field.
template<class Type>
tmp< Field< Type > >	interfaceInternalField (const UList< Type > &internalData, const labelUList &faceCells) const
	Return the interface internal field of the given field using faceCell mapping.
template<class Type>
void	interfaceInternalField (const UList< Type > &internalData, List< Type > &) const
	Get the interface internal field of the given field.
virtual tmp< labelField >	interfaceInternalField (const labelUList &internalData) const
	Return the values of the given internal data adjacent to.
virtual tmp< labelField >	interfaceInternalField (const labelUList &internalData, const labelUList &faceCells) const
	Return the values of the given internal data adjacent to the interface as a field using faceCell mapping.
void	combine (const GAMGInterface &)
	Merge the next level with this level.
virtual tmp< scalarField >	agglomerateCoeffs (const scalarField &fineCoeffs) const
	Agglomerating the given fine-level coefficients and return.
template<class Type>
Foam::tmp< Foam::Field< Type > >	interfaceInternalField (const UList< Type > &iF) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	interfaceInternalField (const UList< Type > &iF, const labelUList &faceCells) const
Public Member Functions inherited from lduInterface
	TypeNameNoDebug ("lduInterface")
	Runtime type information.
	lduInterface () noexcept=default
	Default construct.
virtual	~lduInterface ()=default
	Destructor.
Public Member Functions inherited from processorLduInterface
	TypeNameNoDebug ("processorLduInterface")
	Runtime type information.
	processorLduInterface () noexcept=default
	Default construct.
virtual	~processorLduInterface ()=default
	Destructor.
template<class Type>
void	send (const UPstream::commsTypes commsType, const UList< Type > &f) const
	Raw send function.
template<class Type>
void	receive (const UPstream::commsTypes commsType, UList< Type > &f) const
	Raw receive function.
template<class Type>
tmp< Field< Type > >	receive (const UPstream::commsTypes commsType, const label size) const
	Raw receive function returning field.
template<class Type>
void	compressedSend (const UPstream::commsTypes commsType, const UList< Type > &f) const
	Raw send function with data compression.
template<class Type>
void	compressedReceive (const UPstream::commsTypes commsType, UList< Type > &f) const
	Raw receive function with data compression.
template<class Type>
tmp< Field< Type > >	compressedReceive (const UPstream::commsTypes commsType, const label size) const
	Raw receive function with data compression returning field.
template<class Type>
Foam::tmp< Foam::Field< Type > >	receive (const UPstream::commsTypes commsType, const label size) const
template<class Type>
Foam::tmp< Foam::Field< Type > >	compressedReceive (const UPstream::commsTypes commsType, const label size) const

Additional Inherited Members
Static Public Member Functions inherited from GAMGInterface
static autoPtr< GAMGInterface >	New (const label index, const lduInterfacePtrsList &coarseInterfaces, const lduInterface &fineInterface, const labelField &localRestrictAddressing, const labelField &neighbourRestrictAddressing, const label fineLevelIndex, const label coarseComm)
	Return a pointer to a new interface created on freestore given.
static autoPtr< GAMGInterface >	New (const word &coupleType, const label index, const lduInterfacePtrsList &coarseInterfaces, Istream &is)
	Return a pointer to a new interface created on freestore given.
Protected Member Functions inherited from GAMGInterface
	GAMGInterface (const GAMGInterface &)=delete
	No copy construct.
void	operator= (const GAMGInterface &)=delete
	No copy assignment.
Protected Attributes inherited from GAMGInterface
const label	index_
	My index in coarseInterfaces.
const lduInterfacePtrsList &	coarseInterfaces_
	All interfaces.
labelList	faceCells_
	Face-cell addressing.
labelList	faceRestrictAddressing_
	Face restrict addressing.

Detailed Description

GAMG agglomerated processor interface.

Source files

Definition at line 48 of file processorGAMGInterface.H.

Constructor & Destructor Documentation

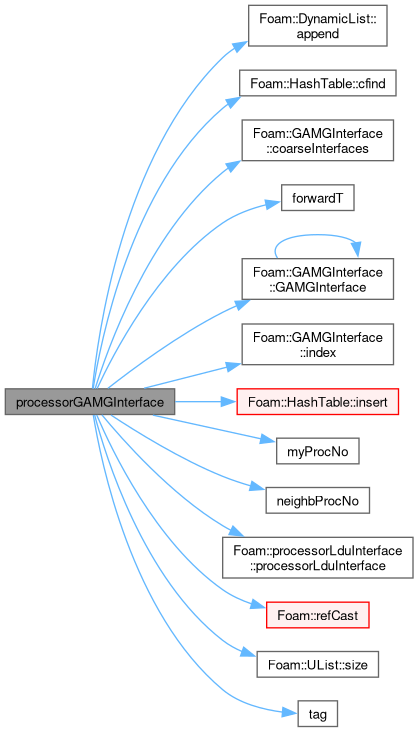

◆ processorGAMGInterface() [1/3]

processorGAMGInterface	(	const label	index,
		const lduInterfacePtrsList &	coarseInterfaces,
		const lduInterface &	fineInterface,
		const labelField &	restrictAddressing,
		const labelField &	neighbourRestrictAddressing,
		const label	fineLevelIndex,
		const label	coarseComm )

Construct from fine-level interface, local and neighbour restrict addressing.

Definition at line 48 of file processorGAMGInterface.C.

References DynamicList< T, SizeMin >::append(), HashTable< T, Key, Hash >::cfind(), GAMGInterface::coarseInterfaces(), GAMGInterface::faceCells_, GAMGInterface::faceRestrictAddressing_, forAll, forwardT(), GAMGInterface::GAMGInterface(), GAMGInterface::index(), HashTable< T, Key, Hash >::insert(), myProcNo(), neighbProcNo(), processorLduInterface::processorLduInterface(), Foam::refCast(), UList< T >::size(), and tag().

Here is the call graph for this function:

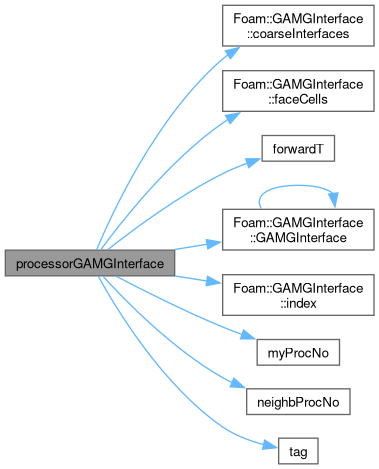

◆ processorGAMGInterface() [2/3]

processorGAMGInterface	(	const label	index,
		const lduInterfacePtrsList &	coarseInterfaces,
		const labelUList &	faceCells,
		const labelUList &	faceRestrictAddresssing,
		const label	coarseComm,
		const label	myProcNo,
		const label	neighbProcNo,
		const tensorField &	forwardT,
		const int	tag )

Construct from components.

Definition at line 131 of file processorGAMGInterface.C.

References GAMGInterface::coarseInterfaces(), GAMGInterface::faceCells(), forwardT(), GAMGInterface::GAMGInterface(), GAMGInterface::index(), myProcNo(), neighbProcNo(), and tag().

Here is the call graph for this function:

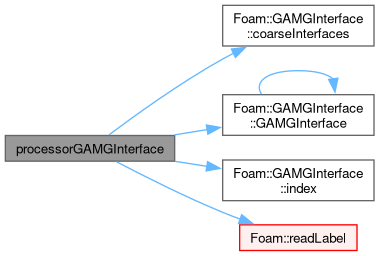

◆ processorGAMGInterface() [3/3]

processorGAMGInterface	(	const label	index,
		const lduInterfacePtrsList &	coarseInterfaces,
		Istream &	is )

Construct from Istream.

Definition at line 159 of file processorGAMGInterface.C.

References GAMGInterface::coarseInterfaces(), GAMGInterface::GAMGInterface(), GAMGInterface::index(), and Foam::readLabel().

Here is the call graph for this function:

◆ ~processorGAMGInterface()

virtual ~processorGAMGInterface ( )

virtualdefault

Destructor.

References GAMGInterface::faceCells().

Here is the call graph for this function:

Member Function Documentation

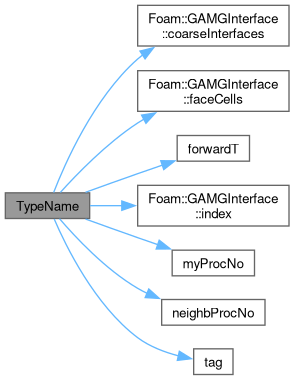

◆ TypeName()

TypeName ( "processor" )

Runtime type information.

References GAMGInterface::coarseInterfaces(), GAMGInterface::faceCells(), forwardT(), GAMGInterface::index(), myProcNo(), neighbProcNo(), and tag().

Here is the call graph for this function:

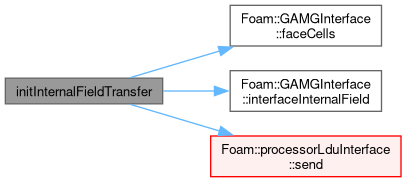

◆ initInternalFieldTransfer() [1/2]

void initInternalFieldTransfer	(	const Pstream::commsTypes	commsType,
		const labelUList &	iF ) const

virtual

Initialise neighbour field transfer.

Reimplemented from lduInterface.

Definition at line 177 of file processorGAMGInterface.C.

References GAMGInterface::interfaceInternalField(), and processorLduInterface::send().

Here is the call graph for this function:

◆ initInternalFieldTransfer() [2/2]

void initInternalFieldTransfer	(	const Pstream::commsTypes	commsType,
		const labelUList &	iF,
		const labelUList &	faceCells ) const

virtual

Initialise neighbour field transfer using faceCells mapping.

Reimplemented from lduInterface.

Definition at line 187 of file processorGAMGInterface.C.

References GAMGInterface::faceCells(), GAMGInterface::interfaceInternalField(), and processorLduInterface::send().

Here is the call graph for this function:

◆ internalFieldTransfer()

Foam::tmp< Foam::labelField > internalFieldTransfer	(	const Pstream::commsTypes	commsType,
		const labelUList &	iF ) const

virtual

Transfer and return internal field adjacent to the interface.

Implements lduInterface.

Definition at line 198 of file processorGAMGInterface.C.

References processorLduInterface::receive(), and GAMGInterface::size().

Here is the call graph for this function:

◆ comm()

virtual label comm ( ) const

inlinevirtual

Processor interface functions.

Return communicator used for sending

Implements processorLduInterface.

Definition at line 192 of file processorGAMGInterface.H.

◆ myProcNo()

virtual int myProcNo ( ) const

inlinevirtual

Return processor number (rank in communicator).

Implements processorLduInterface.

Definition at line 200 of file processorGAMGInterface.H.

Referenced by processorGAMGInterface(), processorGAMGInterface(), and TypeName().

Here is the caller graph for this function:

◆ neighbProcNo()

virtual int neighbProcNo ( ) const

inlinevirtual

Return neighbour processor number (rank in communicator).

Implements processorLduInterface.

Definition at line 208 of file processorGAMGInterface.H.

Referenced by processorGAMGInterface(), processorGAMGInterface(), and TypeName().

Here is the caller graph for this function:

◆ forwardT()

virtual const tensorField & forwardT ( ) const

inlinevirtual

Return face transformation tensor.

Implements processorLduInterface.

Definition at line 216 of file processorGAMGInterface.H.

Referenced by processorGAMGInterface(), processorGAMGInterface(), and TypeName().

Here is the caller graph for this function:

◆ tag()

virtual int tag ( ) const

inlinevirtual

Return message tag used for sending.

Implements processorLduInterface.

Definition at line 224 of file processorGAMGInterface.H.

Referenced by processorGAMGInterface(), processorGAMGInterface(), and TypeName().

Here is the caller graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write to stream.

Implements GAMGInterface.

Definition at line 210 of file processorGAMGInterface.C.

References os(), token::SPACE, and GAMGInterface::write().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/OpenFOAM/matrices/lduMatrix/solvers/GAMG/interfaces/processorGAMGInterface/processorGAMGInterface.H
src/OpenFOAM/matrices/lduMatrix/solvers/GAMG/interfaces/processorGAMGInterface/processorGAMGInterface.C

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ processorGAMGInterface() [1/3]

◆ processorGAMGInterface() [2/3]

◆ processorGAMGInterface() [3/3]

◆ ~processorGAMGInterface()

Member Function Documentation

◆ TypeName()

◆ initInternalFieldTransfer() [1/2]

◆ initInternalFieldTransfer() [2/2]

◆ internalFieldTransfer()

◆ comm()

◆ myProcNo()

◆ neighbProcNo()

◆ forwardT()

◆ tag()

◆ write()
