processorLduInterfaceField Class Reference

Abstract base class for processor coupled interfaces. More...

#include <processorLduInterfaceField.H>

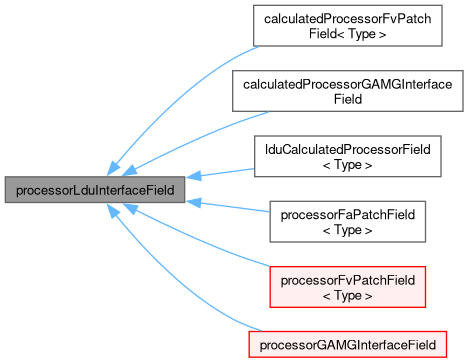

Inheritance diagram for processorLduInterfaceField:

Public Member Functions
	TypeName ("processorLduInterfaceField")
	Runtime type information.
	processorLduInterfaceField ()=default
	Default construct.
virtual	~processorLduInterfaceField ()=default
	Destructor.
virtual label	comm () const =0
	Return communicator used for comms.
virtual int	myProcNo () const =0
	Return processor number.
virtual int	neighbProcNo () const =0
	Return neighbour processor number.
virtual bool	doTransform () const =0
	Is the transform required.
virtual const tensorField &	forwardT () const =0
	Return face transformation tensor.
virtual int	rank () const =0
	Return rank of component for transform.
template<class Type>
void	transformCoupleField (Field< Type > &f) const
	Transform given patch field.
void	transformCoupleField (solveScalarField &f, const direction cmpt) const
	Transform given patch component field.

Detailed Description

Abstract base class for processor coupled interfaces.

Source files

• processorLduInterfaceField.H
• processorLduInterfaceField.C

Definition at line 48 of file processorLduInterfaceField.H.

Constructor & Destructor Documentation

processorLduInterfaceField()

processorLduInterfaceField ( )

default

Default construct.

Referenced by processorFaPatchField< Type >::processorFaPatchField(), and processorFvPatchField< Type >::processorFvPatchField().

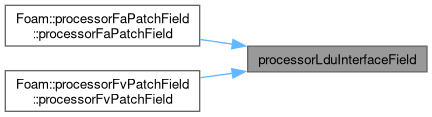

Here is the caller graph for this function:

~processorLduInterfaceField()

virtual ~processorLduInterfaceField ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"processorLduInterfaceField"

)

Runtime type information.

comm()

virtual label comm ( ) const

pure virtual

Return communicator used for comms.

Implemented in calculatedProcessorFvPatchField< Type >, calculatedProcessorGAMGInterfaceField, lduCalculatedProcessorField< Type >, processorFaPatchField< Type >, processorFvPatchField< Type >, and processorGAMGInterfaceField.

myProcNo()

virtual int myProcNo ( ) const

pure virtual

Return processor number.

Implemented in calculatedProcessorFvPatchField< Type >, calculatedProcessorGAMGInterfaceField, lduCalculatedProcessorField< Type >, processorFaPatchField< Type >, processorFvPatchField< Type >, and processorGAMGInterfaceField.

neighbProcNo()

virtual int neighbProcNo ( ) const

pure virtual

Return neighbour processor number.

Implemented in calculatedProcessorFvPatchField< Type >, calculatedProcessorGAMGInterfaceField, lduCalculatedProcessorField< Type >, processorFaPatchField< Type >, processorFvPatchField< Type >, and processorGAMGInterfaceField.

doTransform()

virtual bool doTransform ( ) const

pure virtual

Is the transform required.

Implemented in calculatedProcessorFvPatchField< Type >, calculatedProcessorGAMGInterfaceField, lduCalculatedProcessorField< Type >, processorCyclicFvPatchField< Type >, processorFaPatchField< Type >, processorFvPatchField< Type >, and processorGAMGInterfaceField.

Referenced by transformCoupleField(), and transformCoupleField().

Here is the caller graph for this function:

forwardT()

virtual const tensorField & forwardT ( ) const

pure virtual

Return face transformation tensor.

Implemented in calculatedProcessorFvPatchField< Type >, calculatedProcessorGAMGInterfaceField, lduCalculatedProcessorField< Type >, processorCyclicFvPatchField< Type >, processorFaPatchField< Type >, processorFvPatchField< Type >, and processorGAMGInterfaceField.

Referenced by transformCoupleField(), and transformCoupleField().

Here is the caller graph for this function:

rank()

virtual int rank ( ) const

pure virtual

Return rank of component for transform.

Implemented in calculatedProcessorFvPatchField< Type >, calculatedProcessorGAMGInterfaceField, lduCalculatedProcessorField< Type >, processorFaPatchField< Type >, processorFvPatchField< Type >, and processorGAMGInterfaceField.

References f().

Referenced by transformCoupleField().

Here is the call graph for this function:

Here is the caller graph for this function:

transformCoupleField() [1/2]

template<class Type>

void transformCoupleField

(

Field< Type > &

f

)

const

Transform given patch field.

Definition at line 133 of file processorLduInterfaceField.H.

References doTransform(), f(), forwardT(), and Foam::transform().

Referenced by calculatedProcessorGAMGInterfaceField::updateInterfaceMatrix(), processorFaPatchField< Type >::updateInterfaceMatrix(), processorFaPatchField< Type >::updateInterfaceMatrix(), processorFvPatchField< Type >::updateInterfaceMatrix(), processorFvPatchField< Type >::updateInterfaceMatrix(), and processorGAMGInterfaceField::updateInterfaceMatrix().

Here is the call graph for this function:

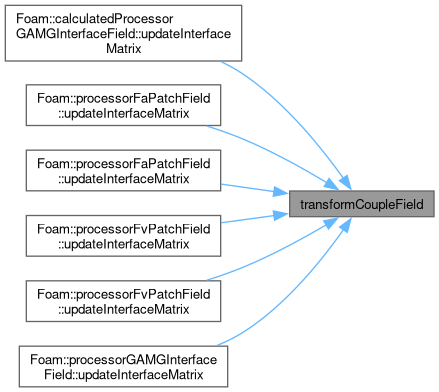

Here is the caller graph for this function:

transformCoupleField() [2/2]

void transformCoupleField	(	solveScalarField &	f,
		const direction	cmpt ) const

Transform given patch component field.

Definition at line 35 of file processorLduInterfaceField.C.

References Foam::component(), Foam::diag(), doTransform(), f(), forwardT(), Foam::pow(), and rank().

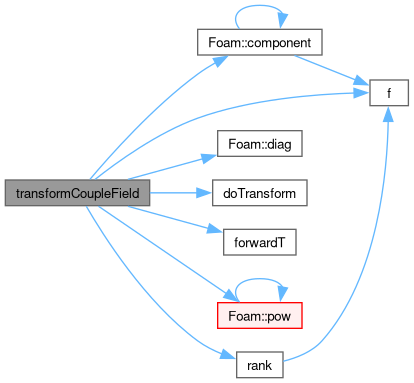

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/matrices/lduMatrix/lduAddressing/lduInterfaceFields/processorLduInterfaceField/processorLduInterfaceField.H
• src/OpenFOAM/matrices/lduMatrix/lduAddressing/lduInterfaceFields/processorLduInterfaceField/processorLduInterfaceField.C
