A lduProcessorField type bypassing coupledFvPatchField. More...

#include <lduCalculatedProcessorField.H>

Inheritance diagram for lduCalculatedProcessorField< Type >:

[legend]

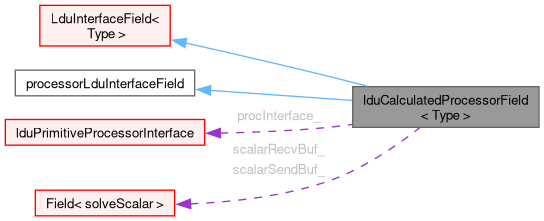

Collaboration diagram for lduCalculatedProcessorField< Type >:

[legend]

Public Member Functions
	ClassName ("lduCalculatedProcessorField")
	Runtime type information.
	lduCalculatedProcessorField (const lduInterface &interface)
	Construct from ldu interface.
	lduCalculatedProcessorField (const lduCalculatedProcessorField< Type > &)
	Copy construct.
virtual	~lduCalculatedProcessorField ()=default
	Destructor.
virtual bool	ready () const
	Are all (receive) data available?
virtual void	initInterfaceMatrixUpdate (solveScalarField &result, const bool add, const lduAddressing &lduAddr, const label patchId, const solveScalarField &psiInternal, const scalarField &coeffs, const direction cmpt, const Pstream::commsTypes commsType) const
	Initialise neighbour matrix update.
virtual void	updateInterfaceMatrix (solveScalarField &result, const bool add, const lduAddressing &lduAddr, const label patchId, const solveScalarField &psiInternal, const scalarField &coeffs, const direction cmpt, const Pstream::commsTypes commsType) const
	Update result field based on interface functionality.
virtual void	initInterfaceMatrixUpdate (Field< scalar > &result, const bool add, const lduAddressing &lduAddr, const label patchId, const Field< scalar > &psiInternal, const scalarField &coeffs, const Pstream::commsTypes commsType) const
	Initialise neighbour matrix update.
virtual void	updateInterfaceMatrix (Field< scalar > &result, const bool add, const lduAddressing &lduAddr, const label patchId, const Field< scalar > &psiInternal, const scalarField &coeffs, const Pstream::commsTypes commsType) const
	Update result field based on interface functionality.
virtual label	comm () const
	Return communicator used for communication.
virtual int	myProcNo () const
	Return processor number.
virtual int	neighbProcNo () const
	Return neighbour processor number.
virtual bool	doTransform () const
	Is the transform required.
virtual const tensorField &	forwardT () const
	Return face transformation tensor.
virtual int	rank () const
	Return rank of component for transform.
Public Member Functions inherited from LduInterfaceField< Type >
	TypeName ("LduInterfaceField")
	Runtime type information.
	LduInterfaceField (const lduInterface &patch)
	Construct given coupled patch.
virtual	~LduInterfaceField ()=default
	Destructor.
virtual void	initInterfaceMatrixUpdate (Field< Type > &, const bool add, const lduAddressing &, const label interfacei, const Field< Type > &, const scalarField &, const Pstream::commsTypes commsType) const
	Initialise neighbour matrix update.
virtual void	updateInterfaceMatrix (Field< Type > &, const bool add, const lduAddressing &, const label interfacei, const Field< Type > &, const scalarField &, const Pstream::commsTypes commsType) const =0
	Update result field based on interface functionality.
virtual void	initInterfaceMatrixUpdate (solveScalarField &result, const bool add, const lduAddressing &, const label interfacei, const solveScalarField &psiInternal, const scalarField &coeffs, const direction cmpt, const Pstream::commsTypes commsType) const
	Inherit initInterfaceMatrixUpdate from lduInterfaceField.
virtual void	updateInterfaceMatrix (solveScalarField &result, const bool add, const lduAddressing &, const label interfacei, const solveScalarField &psiInternal, const scalarField &coeffs, const direction cmpt, const Pstream::commsTypes commsType) const=0
	Inherit updateInterfaceMatrix from lduInterfaceField.
Public Member Functions inherited from lduInterfaceField
	TypeName ("lduInterfaceField")
	Runtime type information.
	lduInterfaceField (const lduInterfaceField &)=delete
	No copy construct.
void	operator= (const lduInterfaceField &)=delete
	No copy assignment.
	lduInterfaceField (const lduInterface &patch)
	Construct given coupled patch.
virtual	~lduInterfaceField ()=default
	Destructor.
const lduInterface &	interface () const noexcept
	Return the interface.
virtual const word &	interfaceFieldType () const
	Return the interface type.
bool	updatedMatrix () const noexcept
	Whether matrix has been updated.
bool	updatedMatrix (bool flag) const noexcept
	Set matrix as update-to-date, return the previous value.
template<class Type>
void	addToInternalField (Field< Type > &result, const bool add, const labelUList &faceCells, const scalarField &coeffs, const Field< Type > &vals) const
	Add/subtract weighted contributions to internal field.
bool &	updatedMatrix () noexcept
	Adjust whether matrix has been updated.
Public Member Functions inherited from processorLduInterfaceField
	TypeName ("processorLduInterfaceField")
	Runtime type information.
	processorLduInterfaceField ()=default
	Default construct.
virtual	~processorLduInterfaceField ()=default
	Destructor.
template<class Type>
void	transformCoupleField (Field< Type > &f) const
	Transform given patch field.
void	transformCoupleField (solveScalarField &f, const direction cmpt) const
	Transform given patch component field.

Protected Member Functions
void	addToInternalField (solveScalarField &result, const bool add, const scalarField &coeffs, const solveScalarField &vals) const
virtual bool	all_ready () const
	Receive and send requests have both completed.

Protected Attributes
const lduPrimitiveProcessorInterface &	procInterface_
	Local reference cast into the interface.
label	sendRequest_
	Current (non-blocking) send request.
label	recvRequest_
	Current (non-blocking) recv request.
Field< Type >	sendBuf_
	Send buffer.
Field< Type >	recvBuf_
	Receive buffer.
solveScalarField	scalarSendBuf_
	Scalar send buffer.
solveScalarField	scalarRecvBuf_
	Scalar recv buffer.

Detailed Description

template<class Type>
class Foam::lduCalculatedProcessorField< Type >

A lduProcessorField type bypassing coupledFvPatchField.

Used to add updateInterfaceMatrix capabilities to a lduMatrix which is fully uncoupled from the fvMesh.

Its functionality is purely to init and update the processor interfaces.

Source files

Definition at line 57 of file lduCalculatedProcessorField.H.

Constructor & Destructor Documentation

◆ lduCalculatedProcessorField() [1/2]

template<class Type>

lduCalculatedProcessorField ( const lduInterface & interface )

explicit

Construct from ldu interface.

Definition at line 26 of file lduCalculatedProcessorField.C.

References lduInterfaceField::interface(), procInterface_, recvRequest_, Foam::refCast(), and sendRequest_.

Referenced by ClassName(), and lduCalculatedProcessorField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lduCalculatedProcessorField() [2/2]

template<class Type>

lduCalculatedProcessorField ( const lduCalculatedProcessorField< Type > & ptf )

Copy construct.

Definition at line 39 of file lduCalculatedProcessorField.C.

References lduCalculatedProcessorField(), procInterface_, recvRequest_, Foam::refCast(), and sendRequest_.

Here is the call graph for this function:

◆ ~lduCalculatedProcessorField()

template<class Type>

virtual ~lduCalculatedProcessorField ( )

virtualdefault

Destructor.

References Foam::add(), and patchId().

Here is the call graph for this function:

Member Function Documentation

◆ addToInternalField()

template<class Type>

void addToInternalField	(	solveScalarField &	result,
		const bool	add,
		const scalarField &	coeffs,
		const solveScalarField &	vals ) const

protected

Definition at line 132 of file lduCalculatedProcessorField.C.

References Foam::add(), forAll, and procInterface_.

Referenced by updateInterfaceMatrix().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ all_ready()

template<class Type>

bool all_ready ( ) const

protectedvirtual

Receive and send requests have both completed.

Definition at line 54 of file lduCalculatedProcessorField.C.

References UPstream::finishedRequestPair(), recvRequest_, and sendRequest_.

Referenced by initInterfaceMatrixUpdate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ClassName()

template<class Type>

ClassName ( "lduCalculatedProcessorField< Type >" )

Runtime type information.

References lduInterfaceField::interface(), and lduCalculatedProcessorField().

Here is the call graph for this function:

◆ ready()

template<class Type>

bool ready ( ) const

virtual

Are all (receive) data available?

Reimplemented from lduInterfaceField.

Definition at line 61 of file lduCalculatedProcessorField.C.

References UPstream::finishedRequest(), recvRequest_, and sendRequest_.

Here is the call graph for this function:

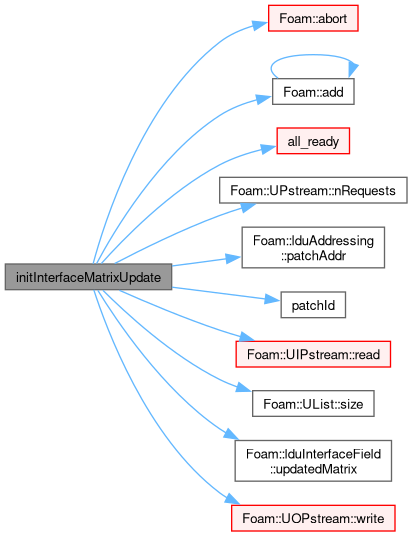

◆ initInterfaceMatrixUpdate() [1/2]

template<class Type>

void initInterfaceMatrixUpdate	(	solveScalarField &	result,
		const bool	add,
		const lduAddressing &	lduAddr,
		const label	patchId,
		const solveScalarField &	psiInternal,
		const scalarField &	coeffs,
		const direction	cmpt,
		const Pstream::commsTypes	commsType ) const

virtual

Initialise neighbour matrix update.

Reimplemented from lduInterfaceField.

Definition at line 74 of file lduCalculatedProcessorField.C.

References Foam::abort(), Foam::add(), all_ready(), Foam::FatalError, FatalErrorInFunction, forAll, UPstream::nonBlocking, UPstream::nRequests(), lduAddressing::patchAddr(), patchId(), procInterface_, UIPstream::read(), recvRequest_, scalarRecvBuf_, scalarSendBuf_, sendRequest_, UList< T >::size(), lduInterfaceField::updatedMatrix(), and UOPstream::write().

Here is the call graph for this function:

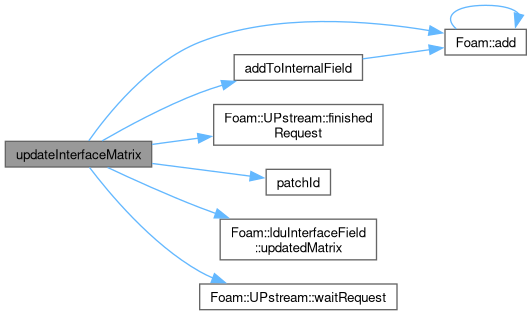

◆ updateInterfaceMatrix() [1/2]

template<class Type>

void updateInterfaceMatrix	(	solveScalarField &	result,
		const bool	add,
		const lduAddressing &	lduAddr,
		const label	patchId,
		const solveScalarField &	psiInternal,
		const scalarField &	coeffs,
		const direction	cmpt,
		const Pstream::commsTypes	commsType ) const

virtual

Update result field based on interface functionality.

Implements lduInterfaceField.

Definition at line 160 of file lduCalculatedProcessorField.C.

References Foam::add(), addToInternalField(), UPstream::finishedRequest(), patchId(), recvRequest_, scalarRecvBuf_, sendRequest_, lduInterfaceField::updatedMatrix(), and UPstream::waitRequest().

Here is the call graph for this function:

◆ initInterfaceMatrixUpdate() [2/2]

template<class Type>

virtual void initInterfaceMatrixUpdate	(	Field< scalar > &	result,
		const bool	add,
		const lduAddressing &	lduAddr,
		const label	patchId,
		const Field< scalar > &	psiInternal,
		const scalarField &	coeffs,
		const Pstream::commsTypes	commsType ) const

inlinevirtual

Initialise neighbour matrix update.

Definition at line 196 of file lduCalculatedProcessorField.H.

References Foam::add(), NotImplemented, and patchId().

Here is the call graph for this function:

◆ updateInterfaceMatrix() [2/2]

template<class Type>

virtual void updateInterfaceMatrix	(	Field< scalar > &	result,
		const bool	add,
		const lduAddressing &	lduAddr,
		const label	patchId,
		const Field< scalar > &	psiInternal,
		const scalarField &	coeffs,
		const Pstream::commsTypes	commsType ) const

inlinevirtual

Update result field based on interface functionality.

Definition at line 213 of file lduCalculatedProcessorField.H.

References Foam::add(), NotImplemented, and patchId().

Here is the call graph for this function:

◆ comm()

template<class Type>

virtual label comm ( ) const

inlinevirtual

Return communicator used for communication.

Implements processorLduInterfaceField.

Definition at line 233 of file lduCalculatedProcessorField.H.

References procInterface_.

◆ myProcNo()

template<class Type>

virtual int myProcNo ( ) const

inlinevirtual

Return processor number.

Implements processorLduInterfaceField.

Definition at line 241 of file lduCalculatedProcessorField.H.

References procInterface_.

◆ neighbProcNo()

template<class Type>

virtual int neighbProcNo ( ) const

inlinevirtual

Return neighbour processor number.

Implements processorLduInterfaceField.

Definition at line 249 of file lduCalculatedProcessorField.H.

References procInterface_.

◆ doTransform()

template<class Type>

virtual bool doTransform ( ) const

inlinevirtual

Is the transform required.

Implements processorLduInterfaceField.

Definition at line 257 of file lduCalculatedProcessorField.H.

◆ forwardT()

template<class Type>

virtual const tensorField & forwardT ( ) const

inlinevirtual

Return face transformation tensor.

Implements processorLduInterfaceField.

Definition at line 265 of file lduCalculatedProcessorField.H.

References procInterface_.

◆ rank()

template<class Type>

virtual int rank ( ) const

inlinevirtual

Return rank of component for transform.

Implements processorLduInterfaceField.

Definition at line 273 of file lduCalculatedProcessorField.H.

Member Data Documentation

◆ procInterface_

template<class Type>

const lduPrimitiveProcessorInterface& procInterface_

protected

Local reference cast into the interface.

Definition at line 69 of file lduCalculatedProcessorField.H.

Referenced by addToInternalField(), comm(), forwardT(), initInterfaceMatrixUpdate(), lduCalculatedProcessorField(), lduCalculatedProcessorField(), myProcNo(), and neighbProcNo().

◆ sendRequest_

template<class Type>

label sendRequest_

mutableprotected

Current (non-blocking) send request.

Definition at line 77 of file lduCalculatedProcessorField.H.

Referenced by all_ready(), initInterfaceMatrixUpdate(), lduCalculatedProcessorField(), lduCalculatedProcessorField(), ready(), and updateInterfaceMatrix().

◆ recvRequest_

template<class Type>

label recvRequest_

mutableprotected

Current (non-blocking) recv request.

Definition at line 82 of file lduCalculatedProcessorField.H.

Referenced by all_ready(), initInterfaceMatrixUpdate(), lduCalculatedProcessorField(), lduCalculatedProcessorField(), ready(), and updateInterfaceMatrix().

◆ sendBuf_

template<class Type>

Field<Type> sendBuf_

mutableprotected

Send buffer.

Definition at line 87 of file lduCalculatedProcessorField.H.

◆ recvBuf_

template<class Type>

Field<Type> recvBuf_

mutableprotected

Receive buffer.

Definition at line 92 of file lduCalculatedProcessorField.H.

◆ scalarSendBuf_

template<class Type>

solveScalarField scalarSendBuf_

mutableprotected

Scalar send buffer.

Definition at line 97 of file lduCalculatedProcessorField.H.

Referenced by initInterfaceMatrixUpdate().

◆ scalarRecvBuf_

template<class Type>

solveScalarField scalarRecvBuf_

mutableprotected

Scalar recv buffer.

Definition at line 102 of file lduCalculatedProcessorField.H.

Referenced by initInterfaceMatrixUpdate(), and updateInterfaceMatrix().

The documentation for this class was generated from the following files:

src/OpenFOAM/matrices/lduMatrix/lduAddressing/lduInterface/lduCalculatedProcessorField/lduCalculatedProcessorField.H
src/OpenFOAM/matrices/lduMatrix/lduAddressing/lduInterface/lduCalculatedProcessorField/lduCalculatedProcessorField.C

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ lduCalculatedProcessorField() [1/2]

◆ lduCalculatedProcessorField() [2/2]

◆ ~lduCalculatedProcessorField()

Member Function Documentation

◆ addToInternalField()

◆ all_ready()

◆ ClassName()

◆ ready()

◆ initInterfaceMatrixUpdate() [1/2]

◆ updateInterfaceMatrix() [1/2]

◆ initInterfaceMatrixUpdate() [2/2]

◆ updateInterfaceMatrix() [2/2]

◆ comm()

◆ myProcNo()

◆ neighbProcNo()

◆ doTransform()

◆ forwardT()

◆ rank()

Member Data Documentation

◆ procInterface_

◆ sendRequest_

◆ recvRequest_

◆ sendBuf_

◆ recvBuf_

◆ scalarSendBuf_

◆ scalarRecvBuf_
