Timers and values for simple (simplistic) mpi-profiling. The entire class behaves as a singleton. More...

#include <profilingPstream.H>

Public Types
enum	timingType : unsigned { ALL_TO_ALL = 0 , BROADCAST , PROBE , REDUCE , GATHER , SCATTER , REQUEST , WAIT , OTHER , nCategories }
	The enumerated timing categories (for times and counts arrays). More...
typedef FixedList< double, timingType::nCategories >	timingList
	Fixed-size container for timing values.
typedef FixedList< uint64_t, timingType::nCategories >	countList
	Fixed-size container for timing counts.

Static Public Member Functions
static bool	active () noexcept
	True if timer is active (ie, enabled and not suspended).
static void	enable ()
	Create timer for measuring communication or un-suspend existing.
static void	disable () noexcept
	Remove timer for measuring communication activity. Does not affect times/counts.
static void	reset ()
	Reset times/counts. Does not affect the timer itself.
static bool	suspend () noexcept
	Suspend use of timer. Return old status.
static void	resume () noexcept
	Resume use of timer (if previously active).
static timingList &	times () noexcept
	Access to the timing information.
static countList &	counts () noexcept
	Access to the timing counts.
static double	times (const timingType idx)
	Access to the timing information for given timing category.
static uint64_t	counts (const timingType idx)
	Access to the count for given timing category.
static double	elapsedTime ()
	The total of times.
static void	beginTiming ()
	Update timer prior to measurement.
static void	addTime (const timingType idx)
	Add time increment.
static void	addBroadcastTime ()
	Add time increment to broadcast time.
static void	addReduceTime ()
	Add time increment to reduce time.
static void	addProbeTime ()
	Add time increment to probe time.
static void	addRequestTime ()
	Add time increment to request time.
static void	addWaitTime ()
	Add time increment to wait time.
static void	addGatherTime ()
	Add time increment to gather time.
static void	addScatterTime ()
	Add time increment to scatter time.
static void	addAllToAllTime ()
	Add time increment to allToAll time.
static void	addOtherTime ()
	Add time increment to other time.
static void	report (const int reportLevel=0)
	Report current information. Uses parallel communication!

Detailed Description

Timers and values for simple (simplistic) mpi-profiling. The entire class behaves as a singleton.

Source files

Definition at line 49 of file profilingPstream.H.

Member Typedef Documentation

◆ timingList

typedef FixedList<double, timingType::nCategories> timingList

Fixed-size container for timing values.

Definition at line 75 of file profilingPstream.H.

◆ countList

typedef FixedList<uint64_t, timingType::nCategories> countList

Fixed-size container for timing counts.

Definition at line 80 of file profilingPstream.H.

Member Enumeration Documentation

◆ timingType

enum timingType : unsigned

The enumerated timing categories (for times and counts arrays).

Enumerator
ALL_TO_ALL
BROADCAST
PROBE
REDUCE
GATHER
SCATTER
REQUEST
WAIT
OTHER
nCategories

Definition at line 58 of file profilingPstream.H.

Member Function Documentation

◆ active()

bool active ( )

inlinestaticnoexcept

True if timer is active (ie, enabled and not suspended).

Definition at line 117 of file profilingPstream.H.

References Foam::noexcept.

◆ enable()

void enable ( )

static

Create timer for measuring communication or un-suspend existing.

Definition at line 38 of file profilingPstream.C.

Referenced by parProfiling::parProfiling(), and parProfilingSolver::solve().

Here is the caller graph for this function:

◆ disable()

void disable ( )

staticnoexcept

Remove timer for measuring communication activity. Does not affect times/counts.

Definition at line 50 of file profilingPstream.C.

References Foam::noexcept.

Referenced by parProfiling::end(), and parProfiling::~parProfiling().

Here is the caller graph for this function:

◆ reset()

void reset ( )

static

Reset times/counts. Does not affect the timer itself.

Definition at line 57 of file profilingPstream.C.

Referenced by parProfilingSolver::parProfilingSolver().

Here is the caller graph for this function:

◆ suspend()

bool suspend ( )

inlinestaticnoexcept

Suspend use of timer. Return old status.

Definition at line 138 of file profilingPstream.H.

References Foam::noexcept, and suspend().

Referenced by parProfilingSolver::parProfilingSolver(), report(), parProfilingSolver::solve(), and suspend().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ resume()

void resume ( )

inlinestaticnoexcept

Resume use of timer (if previously active).

Definition at line 148 of file profilingPstream.H.

References Foam::noexcept.

Referenced by report().

Here is the caller graph for this function:

◆ times() [1/2]

timingList & times ( )

inlinestaticnoexcept

Access to the timing information.

Definition at line 159 of file profilingPstream.H.

References Foam::noexcept.

◆ counts() [1/2]

countList & counts ( )

inlinestaticnoexcept

Access to the timing counts.

Definition at line 164 of file profilingPstream.H.

References Foam::noexcept.

◆ times() [2/2]

double times ( const timingType idx )

inlinestatic

Access to the timing information for given timing category.

Definition at line 169 of file profilingPstream.H.

◆ counts() [2/2]

uint64_t counts ( const timingType idx )

inlinestatic

Access to the count for given timing category.

Definition at line 177 of file profilingPstream.H.

◆ elapsedTime()

double elapsedTime ( )

static

The total of times.

Definition at line 64 of file profilingPstream.C.

◆ beginTiming()

void beginTiming ( )

inlinestatic

Update timer prior to measurement.

Definition at line 190 of file profilingPstream.H.

◆ addTime()

void addTime ( const timingType idx )

inlinestatic

Add time increment.

Definition at line 201 of file profilingPstream.H.

Referenced by addAllToAllTime(), addBroadcastTime(), addGatherTime(), addOtherTime(), addProbeTime(), addReduceTime(), addRequestTime(), addScatterTime(), and addWaitTime().

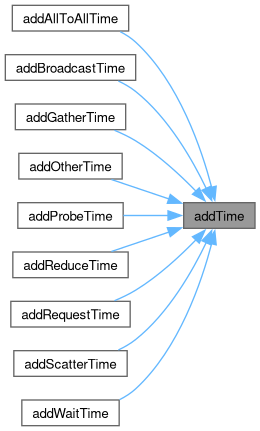

Here is the caller graph for this function:

◆ addBroadcastTime()

void addBroadcastTime ( )

inlinestatic

Add time increment to broadcast time.

Definition at line 213 of file profilingPstream.H.

References addTime(), and BROADCAST.

Here is the call graph for this function:

◆ addReduceTime()

void addReduceTime ( )

inlinestatic

Add time increment to reduce time.

Definition at line 221 of file profilingPstream.H.

References addTime(), and REDUCE.

Here is the call graph for this function:

◆ addProbeTime()

void addProbeTime ( )

inlinestatic

Add time increment to probe time.

Definition at line 229 of file profilingPstream.H.

References addTime(), and PROBE.

Here is the call graph for this function:

◆ addRequestTime()

void addRequestTime ( )

inlinestatic

Add time increment to request time.

Definition at line 237 of file profilingPstream.H.

References addTime(), and REQUEST.

Here is the call graph for this function:

◆ addWaitTime()

void addWaitTime ( )

inlinestatic

Add time increment to wait time.

Definition at line 245 of file profilingPstream.H.

References addTime(), and WAIT.

Here is the call graph for this function:

◆ addGatherTime()

void addGatherTime ( )

inlinestatic

Add time increment to gather time.

Definition at line 253 of file profilingPstream.H.

References addTime(), and GATHER.

Here is the call graph for this function:

◆ addScatterTime()

void addScatterTime ( )

inlinestatic

Add time increment to scatter time.

Definition at line 261 of file profilingPstream.H.

References addTime(), and SCATTER.

Here is the call graph for this function:

◆ addAllToAllTime()

void addAllToAllTime ( )

inlinestatic

Add time increment to allToAll time.

Definition at line 269 of file profilingPstream.H.

References addTime(), and ALL_TO_ALL.

Here is the call graph for this function:

◆ addOtherTime()

void addOtherTime ( )

inlinestatic

Add time increment to other time.

Definition at line 277 of file profilingPstream.H.

References addTime(), and OTHER.

Here is the call graph for this function:

◆ report()

void report ( const int reportLevel = 0 )

static

Report current information. Uses parallel communication!

Definition at line 191 of file profilingPstream.C.

References ALL_TO_ALL, BROADCAST, UPstream::commWorld(), UList< T >::data(), Foam::decrIndent(), Foam::extractValues(), Tuple2< T1, T2 >::first(), GATHER, Foam::incrIndent(), Foam::indent(), Foam::Info, UPstream::master(), UPstream::mpiGather(), nCategories, Foam::nl, UPstream::nProcs(), os(), UPstream::parRun(), Foam::printTimingDetail(), PROBE, REDUCE, REQUEST, List< T >::resize(), resume(), SCATTER, suspend(), and WAIT.

Referenced by parProfiling::report().

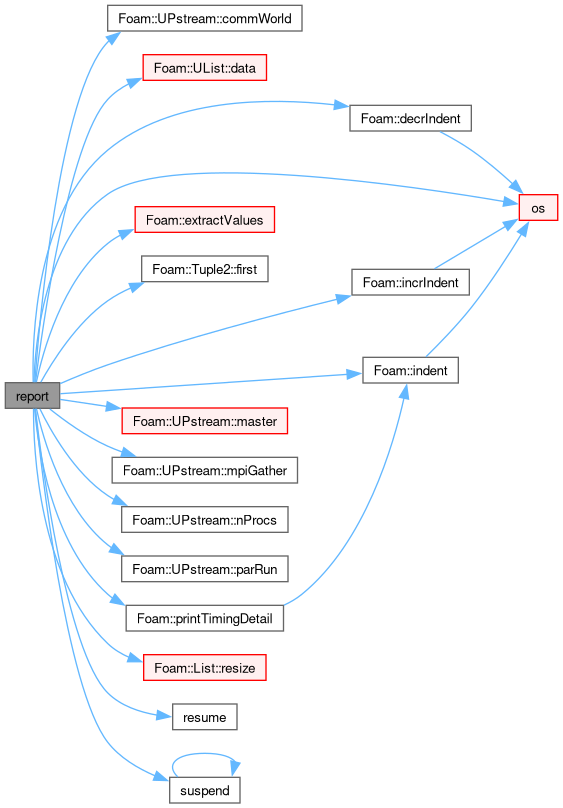

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/OpenFOAM/global/profiling/profilingPstream.H
src/OpenFOAM/global/profiling/profilingPstream.C
