reactingParcelInjectionData Class Reference

Container class to provide injection data for reacting parcels. More...

#include <reactingParcelInjectionData.H>

Inheritance diagram for reactingParcelInjectionData:

Collaboration diagram for reactingParcelInjectionData:

Public Member Functions
	TypeName ("reactingParcelInjectionData")
	Runtime type information.
	reactingParcelInjectionData ()
	Null constructor.
	reactingParcelInjectionData (const dictionary &dict)
	Construct from dictionary.
	reactingParcelInjectionData (Istream &is)
	Construct from Istream.
virtual	~reactingParcelInjectionData ()
	Destructor.
const scalarList &	Y () const
	Return const access to the list of mass fractions.
scalarList &	Y ()
	Return access to the mass fractions.
Public Member Functions inherited from thermoParcelInjectionData
	TypeName ("thermoParcelInjectionData")
	Runtime type information.
	thermoParcelInjectionData ()
	Null constructor.
	thermoParcelInjectionData (const dictionary &dict)
	Construct from dictionary.
	thermoParcelInjectionData (Istream &is)
	Construct from Istream.
virtual	~thermoParcelInjectionData ()
	Destructor.
scalar	T () const
	Return const access to the temperature.
scalar	Cp () const
	Return const access to the specific heat capacity.
scalar &	T ()
	Return access to the temperature.
scalar &	Cp ()
	Return access to the specific heat capacity.
Public Member Functions inherited from kinematicParcelInjectionData
	TypeName ("kinematicParcelInjectionData")
	Runtime type information.
	kinematicParcelInjectionData ()
	Null constructor.
	kinematicParcelInjectionData (const dictionary &dict)
	Construct from dictionary.
	kinematicParcelInjectionData (Istream &is)
	Construct from Istream.
virtual	~kinematicParcelInjectionData ()
	Destructor.
const point &	x () const
	Return const access to the position.
const vector &	U () const
	Return const access to the velocity.
scalar	d () const
	Return const access to the diameter.
scalar	rho () const
	Return const access to the density.
scalar	mDot () const
	Return const access to the mass flow rate.
point &	x ()
	Return access to the position.
vector &	U ()
	Return access to the velocity.
scalar &	d ()
	Return access to the diameter.
scalar &	rho ()
	Return access to the density.
scalar &	mDot ()
	Return access to the mass flow rate.

Protected Attributes
scalarList	Y_
	List of mass fractions.
Protected Attributes inherited from thermoParcelInjectionData
scalar	T_
	Temperature [K].
scalar	Cp_
	Specific heat capacity [J/kg/K].
Protected Attributes inherited from kinematicParcelInjectionData
point	x_
	Position [m].
vector	U_
	Velocity [m/s].
scalar	d_
	Diameter [m].
scalar	rho_
	Density [kg/m3].
scalar	mDot_
	Mass flow rate [kg/s].

Friends
Ostream &	operator<< (Ostream &os, const reactingParcelInjectionData &data)
	Ostream operator.
Istream &	operator>> (Istream &is, reactingParcelInjectionData &data)
	Istream operator.

Detailed Description

Container class to provide injection data for reacting parcels.

Source files

• reactingParcelInjectionData.H
• reactingParcelInjectionData.C

Definition at line 65 of file reactingParcelInjectionData.H.

Constructor & Destructor Documentation

reactingParcelInjectionData() [1/3]

reactingParcelInjectionData

(

)

Null constructor.

Definition at line 32 of file reactingParcelInjectionData.C.

References thermoParcelInjectionData::thermoParcelInjectionData(), and Y_.

Referenced by operator<<, operator>>, reactingMultiphaseParcelInjectionData::reactingMultiphaseParcelInjectionData(), reactingMultiphaseParcelInjectionData::reactingMultiphaseParcelInjectionData(), and reactingMultiphaseParcelInjectionData::reactingMultiphaseParcelInjectionData().

Here is the call graph for this function:

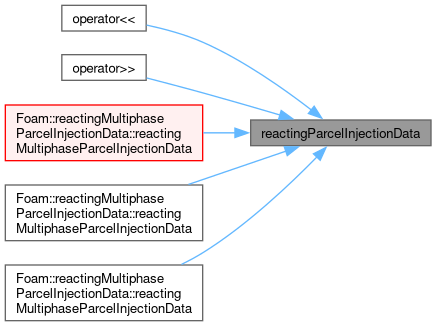

Here is the caller graph for this function:

reactingParcelInjectionData() [2/3]

reactingParcelInjectionData

(

const dictionary &

dict

)

Construct from dictionary.

Definition at line 39 of file reactingParcelInjectionData.C.

References dict, thermoParcelInjectionData::thermoParcelInjectionData(), and Y_.

Here is the call graph for this function:

reactingParcelInjectionData() [3/3]

reactingParcelInjectionData

(

Istream &

is

)

Construct from Istream.

Definition at line 25 of file reactingParcelInjectionDataIO.C.

References IOstream::check(), FUNCTION_NAME, thermoParcelInjectionData::thermoParcelInjectionData(), and Y_.

Here is the call graph for this function:

~reactingParcelInjectionData()

~reactingParcelInjectionData ( )

virtual

Destructor.

Definition at line 50 of file reactingParcelInjectionData.C.

Member Function Documentation

TypeName()

TypeName

(

"reactingParcelInjectionData"

)

Runtime type information.

References dict.

Y() [1/2]

const Foam::scalarList & Y ( ) const

inline

Return const access to the list of mass fractions.

Definition at line 25 of file reactingParcelInjectionDataI.H.

References Y_.

Y() [2/2]

Foam::scalarList & Y ( )

inline

Return access to the mass fractions.

Definition at line 31 of file reactingParcelInjectionDataI.H.

References Y_.

Friends And Related Symbol Documentation

operator<<

Ostream & operator<< ( Ostream & os, const reactingParcelInjectionData & data )

friend

Ostream operator.

References os(), and reactingParcelInjectionData().

operator>>

Istream & operator>> ( Istream & is, reactingParcelInjectionData & data )

friend

Istream operator.

References reactingParcelInjectionData().

Member Data Documentation

Y_

scalarList Y_

protected

List of mass fractions.

Definition at line 76 of file reactingParcelInjectionData.H.

Referenced by Foam::operator>>(), reactingParcelInjectionData(), reactingParcelInjectionData(), reactingParcelInjectionData(), Y(), and Y().

---

The documentation for this class was generated from the following files:

• src/lagrangian/intermediate/submodels/Reacting/InjectionModel/ReactingLookupTableInjection/reactingParcelInjectionData.H
• src/lagrangian/intermediate/submodels/Reacting/InjectionModel/ReactingLookupTableInjection/reactingParcelInjectionData.C
• src/lagrangian/intermediate/submodels/Reacting/InjectionModel/ReactingLookupTableInjection/reactingParcelInjectionDataI.H
• src/lagrangian/intermediate/submodels/Reacting/InjectionModel/ReactingLookupTableInjection/reactingParcelInjectionDataIO.C
