Base-class for film contact angle force models. More...

#include <contactAngleForce.H>

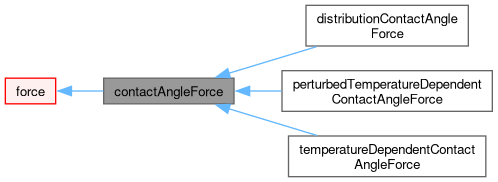

Inheritance diagram for contactAngleForce:

[legend]

Collaboration diagram for contactAngleForce:

Public Member Functions
	TypeName ("contactAngle")
	Runtime type information.
	contactAngleForce (const word &typeName, surfaceFilmRegionModel &film, const dictionary &dict)
	Construct from surface film model.
virtual	~contactAngleForce ()
	Destructor.
virtual tmp< fvVectorMatrix >	correct (volVectorField &U)
	Correct.
Public Member Functions inherited from force
	TypeName ("force")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, force, dictionary,(surfaceFilmRegionModel &film, const dictionary &dict),(film, dict))
	force (surfaceFilmRegionModel &film)
	Construct null.
	force (const word &modelType, surfaceFilmRegionModel &film, const dictionary &dict)
	Construct from type name, dictionary and surface film model.
virtual	~force ()
	Destructor.
Public Member Functions inherited from filmSubModelBase
	filmSubModelBase (surfaceFilmRegionModel &film)
	Construct null.
	filmSubModelBase (surfaceFilmRegionModel &film, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from film film without name.
	filmSubModelBase (const word &modelName, surfaceFilmRegionModel &film, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from film film with name.
virtual	~filmSubModelBase ()
	Destructor.
virtual bool	writeTime () const
	Flag to indicate when to write a property.
const surfaceFilmRegionModel &	film () const
	Return const access to the film surface film model.
surfaceFilmRegionModel &	film ()
	Return the reference to the film surface film model.
template<class FilmType>
const FilmType &	filmType () const
Public Member Functions inherited from subModelBase
	subModelBase (dictionary &properties)
	Construct null.
	subModelBase (dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from components without name.
	subModelBase (const word &modelName, dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from components with name.
	subModelBase (const subModelBase &smb)
	Construct as copy.
virtual	~subModelBase ()=default
	Destructor.
const word &	modelName () const
	Return const access to the name of the sub-model.
const dictionary &	dict () const
	Return const access to the cloud dictionary.
const word &	baseName () const
	Return const access to the base name of the sub-model.
const word &	modelType () const
	Return const access to the sub-model type.
const dictionary &	coeffDict () const
	Return const access to the coefficients dictionary.
const dictionary &	properties () const
	Return const access to the properties dictionary.
virtual bool	defaultCoeffs (const bool printMsg) const
	Returns true if defaultCoeffs is true and outputs on printMsg.
virtual bool	active () const
	Return the model 'active' status - default active = true.
virtual void	cacheFields (const bool store)
	Cache dependent sub-model fields.
virtual fileName	localPath () const
	Output directory.
template<class Type>
Type	getBaseProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the base model.
template<class Type>
void	getBaseProperty (const word &entryName, Type &value) const
	Retrieve generic property from the base model.
template<class Type>
void	setBaseProperty (const word &entryName, const Type &value)
	Add generic property to the base model.
bool	getModelDict (const word &entryName, dictionary &dict) const
	Retrieve dictionary, return true if set.
template<class Type>
bool	getModelProperty (const word &entryName, Type &value) const
	Retrieve generic property from the sub-model.
template<class Type>
Type	getModelProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the sub-model.
template<class Type>
void	setModelProperty (const word &entryName, const Type &value)
	Add generic property to the sub-model.
virtual void	write (Ostream &os) const
	Write.

Protected Member Functions
virtual tmp< volScalarField >	theta () const =0
	Return the contact angle field.
Protected Member Functions inherited from subModelBase
bool	inLine () const
	Flag to indicate whether data is/was read in-line.

Additional Inherited Members
Static Public Member Functions inherited from force
static autoPtr< force >	New (surfaceFilmRegionModel &film, const dictionary &dict, const word &modelType)
	Return a reference to the selected force model.
Public Attributes inherited from subModelBase
bool	log
	Flag to write log into Info.
Protected Attributes inherited from filmSubModelBase
surfaceFilmRegionModel &	filmModel_
	Reference to the film surface film model.
Protected Attributes inherited from subModelBase
const word	modelName_
	Name of the sub-model.
dictionary &	properties_
	Reference to properties dictionary e.g. for restart.
const dictionary	dict_
	Copy of dictionary used during construction.
const word	baseName_
	Name of the sub-model base class.
const word	modelType_
	Type of the sub-model.
const dictionary	coeffDict_
	Coefficients dictionary.

Detailed Description

Base-class for film contact angle force models.

The effect of the contact angle force can be ignored over a specified distance from patches.

Source files

Definition at line 53 of file contactAngleForce.H.

Constructor & Destructor Documentation

◆ contactAngleForce()

contactAngleForce	(	const word &	typeName,
		surfaceFilmRegionModel &	film,
		const dictionary &	dict )

Construct from surface film model.

Definition at line 90 of file contactAngleForce.C.

References subModelBase::coeffDict_, subModelBase::dict(), Foam::dimless, filmSubModelBase::film(), filmSubModelBase::filmModel_, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, and timeName.

Here is the call graph for this function:

◆ ~contactAngleForce()

~contactAngleForce ( )

virtual

Destructor.

Definition at line 120 of file contactAngleForce.C.

Member Function Documentation

◆ theta()

virtual tmp< volScalarField > theta ( ) const

protectedpure virtual

Return the contact angle field.

Implemented in distributionContactAngleForce, perturbedTemperatureDependentContactAngleForce, and temperatureDependentContactAngleForce.

Referenced by correct().

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "contactAngle" )

Runtime type information.

References subModelBase::dict(), filmSubModelBase::film(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, and U.

Here is the call graph for this function:

◆ correct()

tmp< fvVectorMatrix > correct ( volVectorField & U )

virtual

Correct.

Implements force.

Definition at line 126 of file contactAngleForce.C.

References alpha, Foam::cos(), Foam::degToRad(), fvPatch::deltaCoeffs(), Foam::dimArea, Foam::dimForce, Foam::dimVolume, fvPatch::faceCells(), filmSubModelBase::filmModel_, forAll, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, Foam::fvc::grad(), Foam::mag(), n, GeometricField< vector, fvPatchField, volMesh >::New(), tmp< T >::New(), IOobjectOption::NO_REGISTER, fvPatchFieldBase::patch(), IOobject::scopedName(), sigma(), theta(), U, and Foam::Zero.

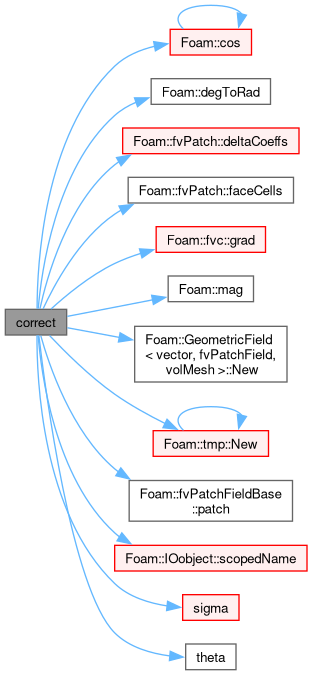

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/regionModels/surfaceFilmModels/submodels/kinematic/force/contactAngleForces/contactAngleForce/contactAngleForce.H
src/regionModels/surfaceFilmModels/submodels/kinematic/force/contactAngleForces/contactAngleForce/contactAngleForce.C
