List container for film sources. More...

#include <forceList.H>

Inheritance diagram for forceList:

Collaboration diagram for forceList:

Public Member Functions
	forceList (surfaceFilmRegionModel &film)
	Construct null.
	forceList (surfaceFilmRegionModel &film, const dictionary &dict)
	Construct from type name, dictionary and surface film model.
virtual	~forceList ()
	Destructor.
tmp< fvVectorMatrix >	correct (volVectorField &U)
	Return (net) force system.
Public Member Functions inherited from PtrList< force >
Foam::PtrList< force >	clone (Args &&... args) const
constexpr	PtrList () noexcept
	Default construct.
	~PtrList ()
	Destructor. Frees all pointers.
const force *	set (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
void	clear ()
	Clear the PtrList. Delete allocated entries and set size to zero.
void	free ()
	Free memory and nullify all entries. Does not change the list size.
void	resize (const label newLen)
	Adjust size of PtrList.
void	resize_null (const label newLen)
	Set the addressed list to the given size, deleting all existing entries. Afterwards the list contains all `nullptr` entries.
force &	emplace_back (Args &&... args)
	Construct and append an element to the end of the list, return reference to the new list element.
void	push_back (force *ptr)
	Append an element to the end of the list.
force &	emplace_set (const label i, Args &&... args)
	Construct and set a new element at given position, (discard old element at that location).
force &	emplace (const label i, Args &&... args)
	Same as emplace_set().
force &	try_emplace (const label i, Args &&... args)
	Like emplace_set() but will not overwrite an occupied (non-null) location.
autoPtr< force >	release (const label i)
	Release ownership of the pointer at the given position.
void	transfer (PtrList< force > &list)
	Transfer into this list and annul the argument list.
void	operator= (const UPtrList< force > &list)
	Copy assignment.
void	setSize (const label n)
	Same as resize().
void	append (autoPtr< force > &ptr)
	Move append an element to the end of the list.
Public Member Functions inherited from UPtrList< force >
bool	empty () const noexcept
	True if the list is empty (ie, size() is zero).
label	size () const noexcept
	The number of entries in the list.
label	capacity () const noexcept
	Size of the underlying storage.
label	count_nonnull () const noexcept
	The number of non-nullptr entries in the list.
force &	front ()
	Reference to the first element of the list.
force &	back ()
	Reference to the last element of the list.
const force *	test (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
const force *	get (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
const force *	set (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
void	clear ()
	Set list size to zero.
void	free ()
	Nullify all entries. Does not change the list size.
void	resize (const label newLen)
	Change the size of the list. Any new entries are `nullptr`.
void	resize_null (const label newLen)
	Set the list to the given size and set all entries to `nullptr`.
label	squeezeNull ()
	Squeeze out nullptr entries in the list of pointers after which any null pointers will be at the end of the list.
void	push_back (force *ptr)
	Append an element to the end of the list.
void	swap (UPtrList< force > &list) noexcept
	Swap content.
void	transfer (UPtrList< force > &list)
	Transfer contents into this list and annul the argument.
void	reorder (const labelUList &oldToNew, const bool check=false)
	Reorder elements. Reordering must be unique (ie, shuffle).
void	sortOrder (const labelUList &order, const bool check=false)
	Reorder elements according to new order mapping (newToOld). Reordering must be unique (ie, shuffle).
void	checkNonNull () const
	Check and raise FatalError if any nullptr exists in the list.
const force &	at (const label i) const
	Return const reference to the element at given position. FatalError for bounds problem or nullptr.
const force &	operator[] (const label i) const
	Return const reference to the element at given position. FatalError for bounds problem or nullptr. Same as at().
	FOAM_DEPRECATED_FOR (2022-09, "get(), set() or test() methods") const force *operator()(const label i) const
	Deprecated(2022-09) - same as get().
void	operator= (const UPtrList< force > &list)
	Copy assignment (shallow copies addresses).
Ostream &	printAddresses (Ostream &os) const
	Print pointer addresses to Ostream (debugging only).
Ostream &	writeList (Ostream &os, const bool trimNull=false) const
	Write UPtrList to Ostream, optionally ignoring null entries.
force **	begin_ptr () noexcept
	Iterator to begin of raw pointers traversal (use with caution).
force **	end_ptr () noexcept
	Iterator beyond end of raw pointers traversal (use with caution).
iterator	begin ()
	Return iterator to begin traversal of non-nullptr entries.
iterator	end () noexcept
	Return iterator beyond end of UPtrList traversal.
const_iterator	cbegin () const
	Return const_iterator to begin traversal of non-nullptr entries.
const_iterator	cend () const noexcept
	Return const_iterator beyond end of UPtrList traversal.
void	setSize (const label n)
	Alias for resize().
force &	first ()
	Reference to the first element of the list.
force &	last ()
	Return reference to the last element of the list.
void	append (force *ptr)
	Append an element to the end of the list.
label	count () const noexcept
	The number of non-nullptr entries in the list.

Additional Inherited Members
Public Types inherited from UPtrList< force >
typedef force	value_type
	Type of values the list contains.
typedef force &	reference
	A non-const reference to the value_type.
typedef const force &	const_reference
	A const reference to the value_type.
Protected Member Functions inherited from PtrList< force >
void	readIstream (Istream &is, const INew &inew)
	Read from Istream using Istream constructor class.
Protected Member Functions inherited from UPtrList< force >
void	setAddressableSize (const label n) noexcept
	Adjust addressable size.
label	find_next (label pos) const
	The next non-null entry after the specified position.
	UPtrList (Detail::PtrListDetail< force > &&ptrs) noexcept
	Low-level move construct.
Protected Attributes inherited from UPtrList< force >
Detail::PtrListDetail< force >	ptrs_
	The list of pointers.

Detailed Description

List container for film sources.

Usage

Example of the model specification:

{
    // Mandatory entries
    forces
    (
        <forceModel1>
        <forceModel2>
        ...
    );

    <forceModel1>Coeffs
    {
        ...
    }

    // Inherited entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`forces`	List of force models	list	yes	-

Source files

Definition at line 51 of file forceList.H.

Constructor & Destructor Documentation

◆ forceList() [1/2]

forceList ( surfaceFilmRegionModel & film )

Construct null.

Definition at line 34 of file forceList.C.

References PtrList< force >::PtrList().

Here is the call graph for this function:

◆ forceList() [2/2]

forceList	(	surfaceFilmRegionModel &	film,
		const dictionary &	dict )

Construct from type name, dictionary and surface film model.

Definition at line 40 of file forceList.C.

References dict, Foam::endl(), forAll, Foam::Info, force::New(), PtrList< force >::PtrList(), PtrList< force >::set(), PtrList< force >::setSize(), and UList< T >::size().

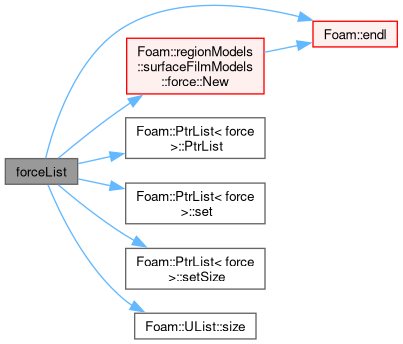

Here is the call graph for this function:

◆ ~forceList()

~forceList ( )

virtual

Destructor.

Definition at line 68 of file forceList.C.

Member Function Documentation

◆ correct()

tmp< fvVectorMatrix > correct ( volVectorField & U )

Return (net) force system.

Definition at line 73 of file forceList.C.

References Foam::dimArea, Foam::dimForce, Foam::dimVolume, forAll, tmp< T >::New(), UPtrList< force >::operator[](), and U.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/regionModels/surfaceFilmModels/submodels/kinematic/force/forceList/forceList.H
src/regionModels/surfaceFilmModels/submodels/kinematic/force/forceList/forceList.C
