Encapsulates queries for volume refinement ('refine all cells within shell'). More...

#include <shellSurfaces.H>

Public Types
enum	refineMode { INSIDE , OUTSIDE , DISTANCE }
	Volume refinement controls. More...

Public Member Functions
	shellSurfaces (const searchableSurfaces &allGeometry, const dictionary &shellsDict, const bool dryRun=false)
	Construct from geometry and dictionary.
const labelList &	shells () const
	Indices of surfaces that are shells.
const List< List< FixedList< label, 3 > > > &	extendedGapLevel () const
	Per shell, per region the small-gap level specification.
const List< List< volumeType > > &	extendedGapMode () const
	Per shell, per region the small-gap level specification.
const boolListList &	gapSelf () const
	Per shell, per region whether to test for gap with same surface.
label	maxLevel () const
	Highest shell level.
labelList	maxGapLevel () const
	Highest shell gap level.
labelPairList	directionalSelectLevel () const
	Min and max cell level for directional refinement.
void	findHigherLevel (const pointField &pt, const labelList &ptLevel, labelList &maxLevel) const
	Find shell level higher than ptLevel.
void	findHigherGapLevel (const pointField &pt, const labelList &ptLevel, labelList &gapShell, List< FixedList< label, 3 > > &gapInfo, List< volumeType > &gapMode) const
	Find a shell whose minimum gap level is >= ptLevel.
void	findHigherGapLevel (const pointField &pt, const labelList &ptLevel, List< FixedList< label, 3 > > &gapInfo, List< volumeType > &gapMode) const
	Find a shell whose minimum gap level is >= ptLevel. gapInfo.
void	findLevel (const pointField &pt, const labelList &ptLevel, labelList &shell) const
	Find first shell (or -1) with level equal or lower than ptLevel.
void	findDirectionalLevel (const pointField &pt, const labelList &ptLevel, const labelList &dirLevel, const direction dir, labelList &shell) const
	Find any shell (or -1) with higher wanted directional level.
const vectorField &	smoothDirection () const
	Per shell the smoothing direction.
const labelList &	nSmoothExpansion () const
	Per shell the directional smoothing iterations.
const labelList &	nSmoothPosition () const
	Per shell the positional smoothing iterations.

Detailed Description

Encapsulates queries for volume refinement ('refine all cells within shell').

Source files

Definition at line 53 of file shellSurfaces.H.

Member Enumeration Documentation

◆ refineMode

enum refineMode

Volume refinement controls.

Enumerator
INSIDE
OUTSIDE
DISTANCE

Definition at line 62 of file shellSurfaces.H.

Constructor & Destructor Documentation

◆ shellSurfaces()

shellSurfaces	(	const searchableSurfaces &	allGeometry,
		const dictionary &	shellsDict,
		const bool	dryRun = false )

Construct from geometry and dictionary.

Definition at line 597 of file shellSurfaces.C.

Member Function Documentation

◆ shells()

const labelList & shells ( ) const

inline

Indices of surfaces that are shells.

Definition at line 225 of file shellSurfaces.H.

◆ extendedGapLevel()

const List< List< FixedList< label, 3 > > > & extendedGapLevel ( ) const

inline

Per shell, per region the small-gap level specification.

Definition at line 233 of file shellSurfaces.H.

◆ extendedGapMode()

const List< List< volumeType > > & extendedGapMode ( ) const

inline

Per shell, per region the small-gap level specification.

Definition at line 241 of file shellSurfaces.H.

◆ gapSelf()

const boolListList & gapSelf ( ) const

inline

Per shell, per region whether to test for gap with same surface.

Definition at line 249 of file shellSurfaces.H.

◆ maxLevel()

Foam::label maxLevel ( ) const

Highest shell level.

Definition at line 831 of file shellSurfaces.C.

References forAll, and Foam::max().

Referenced by findHigherLevel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ maxGapLevel()

Foam::labelList maxGapLevel ( ) const

Highest shell gap level.

Definition at line 842 of file shellSurfaces.C.

References forAll, Foam::max(), and Foam::Zero.

Here is the call graph for this function:

◆ directionalSelectLevel()

Foam::labelPairList directionalSelectLevel ( ) const

Min and max cell level for directional refinement.

Definition at line 858 of file shellSurfaces.C.

References UList< T >::first(), and forAll.

Here is the call graph for this function:

◆ findHigherLevel()

void findHigherLevel	(	const pointField &	pt,
		const labelList &	ptLevel,
		labelList &	maxLevel ) const

Find shell level higher than ptLevel.

Definition at line 887 of file shellSurfaces.C.

References forAll, and maxLevel().

Here is the call graph for this function:

◆ findHigherGapLevel() [1/2]

void findHigherGapLevel	(	const pointField &	pt,
		const labelList &	ptLevel,
		labelList &	gapShell,
		List< FixedList< label, 3 > > &	gapInfo,
		List< volumeType > &	gapMode ) const

Find a shell whose minimum gap level is >= ptLevel.

Definition at line 904 of file shellSurfaces.C.

References forAll, volumeType::MIXED, List< T >::setSize(), and UList< T >::size().

Here is the call graph for this function:

◆ findHigherGapLevel() [2/2]

void findHigherGapLevel	(	const pointField &	pt,
		const labelList &	ptLevel,
		List< FixedList< label, 3 > > &	gapInfo,
		List< volumeType > &	gapMode ) const

Find a shell whose minimum gap level is >= ptLevel. gapInfo.

is (0 0 0) if no shell found

Definition at line 929 of file shellSurfaces.C.

◆ findLevel()

void findLevel	(	const pointField &	pt,
		const labelList &	ptLevel,
		labelList &	shell ) const

Find first shell (or -1) with level equal or lower than ptLevel.

Definition at line 942 of file shellSurfaces.C.

References forAll, List< T >::setSize(), and UList< T >::size().

Here is the call graph for this function:

◆ findDirectionalLevel()

void findDirectionalLevel	(	const pointField &	pt,
		const labelList &	ptLevel,
		const labelList &	dirLevel,
		const direction	dir,
		labelList &	shell ) const

Find any shell (or -1) with higher wanted directional level.

Definition at line 961 of file shellSurfaces.C.

References DynamicList< T, SizeMin >::append(), DynamicList< T, SizeMin >::clear(), Pair< T >::first(), forAll, INSIDE, volumeType::INSIDE, OUTSIDE, volumeType::OUTSIDE, Pair< T >::second(), List< T >::setSize(), and UList< T >::size().

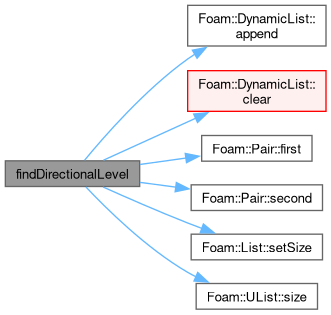

Here is the call graph for this function:

◆ smoothDirection()

const Foam::vectorField & smoothDirection ( ) const

Per shell the smoothing direction.

Definition at line 875 of file shellSurfaces.C.

◆ nSmoothExpansion()

const Foam::labelList & nSmoothExpansion ( ) const

Per shell the directional smoothing iterations.

Definition at line 869 of file shellSurfaces.C.

◆ nSmoothPosition()

const Foam::labelList & nSmoothPosition ( ) const

Per shell the positional smoothing iterations.

Definition at line 881 of file shellSurfaces.C.

The documentation for this class was generated from the following files:

src/mesh/snappyHexMesh/shellSurfaces/shellSurfaces.H
src/mesh/snappyHexMesh/shellSurfaces/shellSurfaces.C
