This constraint imposes an orientation limitation where bodies are restricted to rotate only around a fixed axis, optionally with the inclusion of maximum and minimum rotation angle constraints. More...

#include <sixDoFRigidBodyMotionAxisConstraint.H>

Inheritance diagram for axis:

[legend]

Collaboration diagram for axis:

[legend]

Public Member Functions
	TypeName ("axis")
	Runtime type information.
	axis (const word &name, const dictionary &sDoFRBMCDict, const sixDoFRigidBodyMotion &motion)
	Construct from components.
virtual autoPtr< sixDoFRigidBodyMotionConstraint >	clone () const
	Construct and return a clone.
void	operator= (const sixDoFRigidBodyMotionConstraint &)=delete
	No copy assignment.
virtual	~axis ()=default
	Destructor.
virtual void	constrainTranslation (pointConstraint &) const
	Apply and accumulate translational constraints.
virtual void	constrainRotation (pointConstraint &) const
	Apply and accumulate rotational constraints.
virtual bool	read (const dictionary &sDoFRBMCCoeff)
	Update properties from given dictionary.
virtual void	write (Ostream &) const
	Write.
Public Member Functions inherited from sixDoFRigidBodyMotionConstraint
	TypeName ("sixDoFRigidBodyMotionConstraint")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, sixDoFRigidBodyMotionConstraint, dictionary,(const word &name, const dictionary &sDoFRBMCDict, const sixDoFRigidBodyMotion &motion),(name, sDoFRBMCDict, motion))
	sixDoFRigidBodyMotionConstraint (const word &name, const dictionary &sDoFRBMCDict, const sixDoFRigidBodyMotion &motion)
	Construct from the sDoFRBMCDict dictionary and Time.
virtual	~sixDoFRigidBodyMotionConstraint ()
	Destructor.
const word &	name () const
	Return the name.
virtual void	setCentreOfRotation (point &) const
	Set the centre of rotation if not the centre of mass.
const dictionary &	coeffDict () const
const sixDoFRigidBodyMotion &	motion () const noexcept
	Return const access to motion.

Additional Inherited Members
Static Public Member Functions inherited from sixDoFRigidBodyMotionConstraint
static autoPtr< sixDoFRigidBodyMotionConstraint >	New (const word &name, const dictionary &sDoFRBMCDict, const sixDoFRigidBodyMotion &motion)
	Select constructed from the sDoFRBMCDict dictionary and Time.
Protected Attributes inherited from sixDoFRigidBodyMotionConstraint
word	name_
	Name of the constraint.
dictionary	sDoFRBMCCoeffs_
	Constraint model specific coefficient dictionary.
const sixDoFRigidBodyMotion &	motion_
	Reference to the body motion.

Detailed Description

This constraint imposes an orientation limitation where bodies are restricted to rotate only around a fixed axis, optionally with the inclusion of maximum and minimum rotation angle constraints.

Usage

Minimal example by constant/dynamicMeshDict.sixDoFRigidBodyMotionCoeffs:

constraints
{
    constrainRotation1
    {
        // Mandatory entries
        sixDoFRigidBodyMotionConstraint     axis;
        axis                                <vector>;

        // Optional entries
        maxClockwiseTheta                   <Function1<scalar>>;
        maxCounterclockwiseTheta            <Function1<scalar>>;
        thetaUnits                          <word>;
        referenceOrientation                <tensor>;
    }
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`sixDoFRigidBodyMotionConstraint`	Type name: axis	word	yes	-
`axis`	Reference rotation axis fixed in global space	vector	yes	-
`maxClockwiseTheta`	Maximum clockwise rotation angle about the rotation axis	Function1<scalar>	no	-
`maxCounterlockwiseTheta`	Maximum counterclockwise rotation angle about the rotation axis	Function1<scalar>	no	-
`thetaUnits`	Units of theta angles	word	no	radians
`referenceOrientation`	Reference orientation where there is no moment	tensor	no	I

The inherited entries are elaborated in:

Function1.H

Notes

The units for thetaUnits can be specified as either degrees or radians.
The maxClockwiseTheta and maxCounterlockwiseTheta are always non-negative.
Negative and positive theta correspond to clockwise and counterclockwise rotation sectors with respect to the reference orientation, respectively.

Source files

Definition at line 150 of file sixDoFRigidBodyMotionAxisConstraint.H.

Constructor & Destructor Documentation

◆ axis()

axis	(	const word &	name,
		const dictionary &	sDoFRBMCDict,
		const sixDoFRigidBodyMotion &	motion )

Construct from components.

Definition at line 83 of file sixDoFRigidBodyMotionAxisConstraint.C.

References sixDoFRigidBodyMotionConstraint::motion(), sixDoFRigidBodyMotionConstraint::name(), read(), and sixDoFRigidBodyMotionConstraint::sixDoFRigidBodyMotionConstraint().

Referenced by clone().

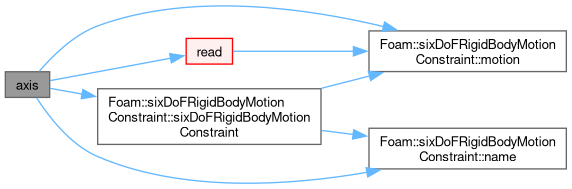

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ~axis()

virtual ~axis ( )

virtualdefault

Destructor.

Member Function Documentation

◆ TypeName()

TypeName ( "axis" )

Runtime type information.

References sixDoFRigidBodyMotionConstraint::motion(), and sixDoFRigidBodyMotionConstraint::name().

Here is the call graph for this function:

◆ clone()

virtual autoPtr< sixDoFRigidBodyMotionConstraint > clone ( ) const

inlinevirtual

Construct and return a clone.

Implements sixDoFRigidBodyMotionConstraint.

Definition at line 223 of file sixDoFRigidBodyMotionAxisConstraint.H.

References axis().

Here is the call graph for this function:

◆ operator=()

void operator= ( const sixDoFRigidBodyMotionConstraint & )

delete

No copy assignment.

References sixDoFRigidBodyMotionConstraint::sixDoFRigidBodyMotionConstraint().

Here is the call graph for this function:

◆ constrainTranslation()

void constrainTranslation ( pointConstraint & pc ) const

virtual

Apply and accumulate translational constraints.

Implements sixDoFRigidBodyMotionConstraint.

Definition at line 103 of file sixDoFRigidBodyMotionAxisConstraint.C.

◆ constrainRotation()

void constrainRotation ( pointConstraint & pc ) const

virtual

Apply and accumulate rotational constraints.

Implements sixDoFRigidBodyMotionConstraint.

Definition at line 110 of file sixDoFRigidBodyMotionAxisConstraint.C.

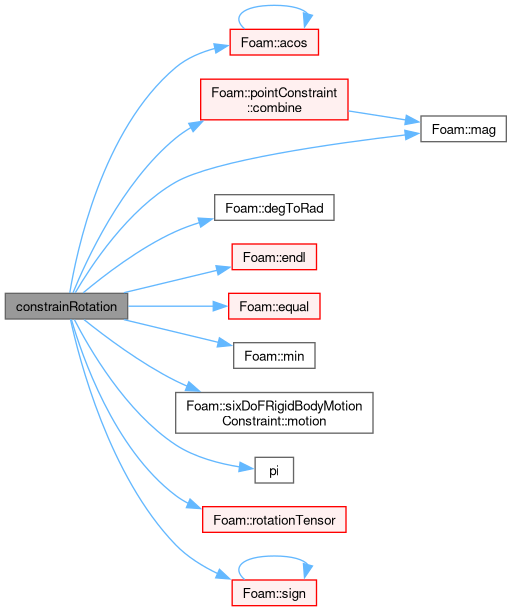

References Foam::acos(), pointConstraint::combine(), Foam::degToRad(), Foam::endl(), Foam::equal(), Foam::Info, Foam::mag(), Foam::min(), sixDoFRigidBodyMotionConstraint::motion(), Foam::nl, pi(), Foam::rotationTensor(), Foam::sign(), and Foam::Zero.

Here is the call graph for this function:

◆ read()

bool read ( const dictionary & sDoFRBMCCoeff )

virtual

Update properties from given dictionary.

Reimplemented from sixDoFRigidBodyMotionConstraint.

Definition at line 227 of file sixDoFRigidBodyMotionAxisConstraint.C.

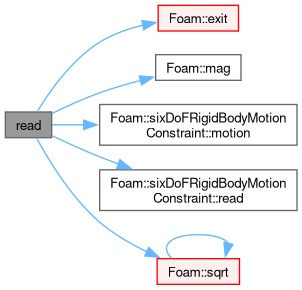

References Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, Foam::I, Foam::mag(), sixDoFRigidBodyMotionConstraint::motion(), Foam::nl, sixDoFRigidBodyMotionConstraint::read(), sixDoFRigidBodyMotionConstraint::sDoFRBMCCoeffs_, and Foam::sqrt().

Referenced by axis().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Write.

Reimplemented from sixDoFRigidBodyMotionConstraint.

Definition at line 308 of file sixDoFRigidBodyMotionAxisConstraint.C.

References os().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/sixDoFRigidBodyMotion/sixDoFRigidBodyMotion/constraints/axis/sixDoFRigidBodyMotionAxisConstraint.H
src/sixDoFRigidBodyMotion/sixDoFRigidBodyMotion/constraints/axis/sixDoFRigidBodyMotionAxisConstraint.C
