A solar calculator model providing models for the solar direction and solar loads. More...

#include <solarCalculator.H>

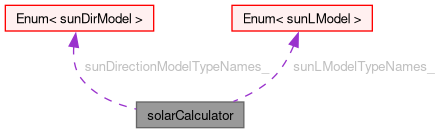

Collaboration diagram for solarCalculator:

[legend]

Public Types
enum	sunDirModel { mSunDirConstant , mSunDirTracking }
	Options for the Sun direction models. More...
enum	sunLModel { mSunLoadConstant , mSunLoadTimeDependent , mSunLoadFairWeatherConditions , mSunLoadTheoreticalMaximum }
	Options for the Sun load models. More...

Public Member Functions
	ClassName ("solarCalculator")
	solarCalculator (const dictionary &, const fvMesh &)
	Construct from dictionary.
	~solarCalculator ()=default
	Destructor.
void	correctSunDirection ()
	Correct the Sun direction.
void	correctDirectSolarRad ()
	Correct direct solar irradiation.
void	correctDiffuseSolarRad ()
	Correct diffuse solar irradiation.
tmp< scalarField >	diffuseSolarRad (const vectorField &n) const
	Return the diffusive solar irradiation for sunLoadModel = fairWeather or for sunLoadModel = theoreticalMaximum.
const sunDirModel &	sunDirectionModel () const noexcept
	Return const access to the Sun direction model.
const sunLModel &	sunLoadModel () const noexcept
	Return const access to the Sun load model.
vector &	direction ()
	Return non-const access to the Sun direction.
const vector &	direction () const noexcept
	Return const access to the Sun direction.
scalar &	directSolarRad ()
	Return non-const access to the direct solar irradiation.
const scalar &	directSolarRad () const noexcept
	Return const access to the direct solar irradiation.
scalar &	diffuseSolarRad ()
	Return non-const access to the diffuse solar irradiation.
const scalar &	diffuseSolarRad () const noexcept
	Return const access to the diffuse solar irradiation.
scalar	C () const noexcept
	Return const access to the C constant.
scalar	beta () const noexcept
	Return const access to beta.
scalar	theta () const noexcept
	Return const access to theta.
scalar	groundReflectivity () const noexcept
	Return const access to the ground reflectivity.
const coordinateSystem &	coord () const noexcept
	Return const access to the coordinate system.
scalar	sunTrackingUpdateInterval () const noexcept
	Return const access to sunTrackingUpdateInterval.
scalar	startTime () const noexcept
	Return const access to startTime.

Static Public Attributes
static const Enum< sunDirModel >	sunDirectionModelTypeNames_
	Names for sunDirModel.
static const Enum< sunLModel >	sunLModelTypeNames_
	Names for sunLModel.

Detailed Description

A solar calculator model providing models for the solar direction and solar loads.

Available models for the solar direction:

constant: Constant sunbeam direction.
tracking: Transient model calculating sunbeam direction based on a given set of parameters.

Available models for the solar load:

constant: Constant solar load.
timeDependent: Time-dependent solar load.
fairWeather: Solar fluxes are calculated following the "Fair Weather Conditions Method from the ASHRAE Handbook".
theoreticalMaximum: Theoretically maximum solar load.

Usage: Minimal examples by using constant/radiationProperties:

sunDirectionModel - Option-1:

solarLoadCoeffs
{
    sunDirectionModel           constant;
    sunDirection                (1 0 -1);
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`sunDirection`	Sunbeam direction	vector	no	calculated

sunDirectionModel - Option-2:

    solarLoadCoeffs
    {
        sunDirectionModel           tracking;
        sunTrackingUpdateInterval   800;
        localStandardMeridian       9;
        startDay                    204;
        startTime                   15;
        longitude                   139.74;
        latitude                    35.658;
        gridUp                      (0 0 1);
        gridEast                    (1 0 0);
    }

where the entries mean:

Property	Description	Type	Reqd	Deflt
`sunTrackingUpdateInterval`	Interval to update the Sun direction [decimal hours]	scalar	yes	-
`localStandardMeridian`	GMT (Local Zone Meridian) [decimal hours]	scalar	yes	-
`startDay`	Day from 1 to 365	scalar	yes	-
`startTime`	Start time for the Sun position [decimal hours]	scalar	yes	-
`longitude`	Geographic coordinate specifying the east–west position of a point on the surface of a planetary body [degree]	scalar	yes	-
`latitude`	Geographic coordinate specifying the north–south position of a point on the surface of a planetary body [degree]	scalar	yes	-
`gridUp`	Grid orientation upwards	vector	yes	-
`gridEast`	Grid orientation eastwards	vector	yes	-

sunLoadModel - Option-1:

    solarLoadCoeffs
    {
        sunLoadModel                constant;
        directSolarRad              100;
        diffuseSolarRad             0;
    }

where the entries mean:

Property	Description	Type	Reqd	Deflt
`directSolarRad`	Direct solar irradiation [W/m2]	scalar	yes	-
`diffuseSolarRad`	Diffuse solar irradiation on vertical surfaces [W/m2]	scalar	yes	-

sunLoadModel - Option-2:

    solarLoadCoeffs
    {
        sunLoadModel                timeDependent;
        directSolarRad              <Function1<scalar>>;
        diffuseSolarRad             <Function1<scalar>>;
    }

where the entries mean:

Property	Description	Type	Reqd	Deflt
`directSolarRad`	Time-series of direct solar irradiation [W/m2]	Function1<scalar>	yes	-
`diffuseSolarRad`	Time-series of diffuse solar irradiation on vertical surfaces [W/m2]	Function1<scalar>	yes	-

sunLoadModel - Option-3:

    solarLoadCoeffs
    {
        sunLoadModel                fairWeather;
        skyCloudCoverFraction       0.25;
        groundReflectivity          1.0;
        A                           0.1;
        B                           0.2;
        C                           0.058;
        beta                        0.15;
    }

where the entries mean:

Property	Description	Type	Reqd	Deflt
`A`	Apparent solar irradiation at air mass m = 0	scalar	yes	-
`B`	Atmospheric extinction coefficient	scalar	yes	-
`C`	Solar diffusivity constant	scalar	yes	-
`groundReflectivity`	Ground reflectivity	scalar	yes	-
`skyCloudCoverFraction`	Fraction of sky covered by clouds [0,1]	scalar	no	0
`beta`	Solar altitude (in degrees) above the horizontal	scalar	no	calculated

In this model the flux is calculated as:

    directSolarRad = (1 - 0.75*skyCloudCoverFraction^3)*A/exp(B/sin(beta));

sunLoadModel - Option-4:

    solarLoadCoeffs
    {
        sunLoadModel                theoreticalMaximum;
        Setrn                       1.0;
        SunPrime                    4.0;
        groundReflectivity          1.0;
        C                           0.058;
    }

where the entries mean:

Property	Description	Type	Reqd	Deflt
`Setrn`	Parameter in maximum theoretical direct solar model	scalar	yes	-
`SunPrime`	Parameter in maximum theoretical direct solar model	scalar	yes	-
`groundReflectivity`	Ground reflectivity	scalar	yes	-
`C`	Solar diffusivity constant	scalar	yes	-

In this model the flux is calculated as:

    directSolarRad = Setrn*SunPrime;

Note

The sunDirectionModel:tracking can only be used in transient calculations.
The keyword sunTrackingUpdateInterval (in hours) specifies on which interval is the Sun direction updated.
The diffuse on vertical/horizontal walls and ground-reflected radiation are calculated following the ASHRAE Handbook.
The range of skyCloudCoverFraction is [0,1].

Source files

Definition at line 440 of file solarCalculator.H.

Member Enumeration Documentation

◆ sunDirModel

enum sunDirModel

Options for the Sun direction models.

Enumerator
mSunDirConstant
mSunDirTracking

Definition at line 449 of file solarCalculator.H.

◆ sunLModel

enum sunLModel

Options for the Sun load models.

Enumerator
mSunLoadConstant
mSunLoadTimeDependent
mSunLoadFairWeatherConditions
mSunLoadTheoreticalMaximum

Definition at line 463 of file solarCalculator.H.

Constructor & Destructor Documentation

◆ solarCalculator()

solarCalculator	(	const dictionary &	dict,
		const fvMesh &	mesh )

Construct from dictionary.

Definition at line 261 of file solarCalculator.C.

References dict, mesh, sunDirectionModelTypeNames_, sunLModelTypeNames_, and Foam::Zero.

◆ ~solarCalculator()

~solarCalculator ( )

default

Destructor.

References n.

Member Function Documentation

◆ ClassName()

ClassName ( "solarCalculator" )

◆ correctSunDirection()

void correctSunDirection ( )

Correct the Sun direction.

Definition at line 300 of file solarCalculator.C.

References Foam::exp(), Foam::max(), mSunDirTracking, and Foam::sin().

Here is the call graph for this function:

◆ correctDirectSolarRad()

void correctDirectSolarRad ( )

Correct direct solar irradiation.

Definition at line 311 of file solarCalculator.C.

References mSunLoadTimeDependent.

◆ correctDiffuseSolarRad()

void correctDiffuseSolarRad ( )

Correct diffuse solar irradiation.

Definition at line 320 of file solarCalculator.C.

References mSunLoadTimeDependent.

◆ diffuseSolarRad() [1/3]

Foam::tmp< Foam::scalarField > diffuseSolarRad ( const vectorField & n ) const

Return the diffusive solar irradiation for sunLoadModel = fairWeather or for sunLoadModel = theoreticalMaximum.

Definition at line 329 of file solarCalculator.C.

References forAll, n, tmp< T >::New(), Foam::sin(), Foam::sqr(), and Y.

Here is the call graph for this function:

◆ sunDirectionModel()

const sunDirModel & sunDirectionModel ( ) const

inlinenoexcept

Return const access to the Sun direction model.

Definition at line 680 of file solarCalculator.H.

References Foam::noexcept.

◆ sunLoadModel()

const sunLModel & sunLoadModel ( ) const

inlinenoexcept

Return const access to the Sun load model.

Definition at line 688 of file solarCalculator.H.

References Foam::noexcept.

◆ direction() [1/2]

vector & direction ( )

inline

Return non-const access to the Sun direction.

Definition at line 696 of file solarCalculator.H.

◆ direction() [2/2]

const vector & direction ( ) const

inlinenoexcept

Return const access to the Sun direction.

Definition at line 704 of file solarCalculator.H.

References Foam::noexcept.

◆ directSolarRad() [1/2]

scalar & directSolarRad ( )

inline

Return non-const access to the direct solar irradiation.

Definition at line 712 of file solarCalculator.H.

◆ directSolarRad() [2/2]

const scalar & directSolarRad ( ) const

inlinenoexcept

Return const access to the direct solar irradiation.

Definition at line 720 of file solarCalculator.H.

References Foam::noexcept.

◆ diffuseSolarRad() [2/3]

scalar & diffuseSolarRad ( )

inline

Return non-const access to the diffuse solar irradiation.

Definition at line 728 of file solarCalculator.H.

◆ diffuseSolarRad() [3/3]

const scalar & diffuseSolarRad ( ) const

inlinenoexcept

Return const access to the diffuse solar irradiation.

Definition at line 736 of file solarCalculator.H.

References Foam::noexcept.

◆ C()

scalar C ( ) const

inlinenoexcept

Return const access to the C constant.

Definition at line 744 of file solarCalculator.H.

References Foam::noexcept.

◆ beta()

scalar beta ( ) const

inlinenoexcept

Return const access to beta.

Definition at line 752 of file solarCalculator.H.

References Foam::noexcept.

◆ theta()

scalar theta ( ) const

inlinenoexcept

Return const access to theta.

Definition at line 760 of file solarCalculator.H.

References Foam::noexcept.

◆ groundReflectivity()

scalar groundReflectivity ( ) const

inlinenoexcept

Return const access to the ground reflectivity.

Definition at line 768 of file solarCalculator.H.

References Foam::noexcept.

◆ coord()

const coordinateSystem & coord ( ) const

inlinenoexcept

Return const access to the coordinate system.

Definition at line 776 of file solarCalculator.H.

References Foam::noexcept.

◆ sunTrackingUpdateInterval()

scalar sunTrackingUpdateInterval ( ) const

inlinenoexcept

Return const access to sunTrackingUpdateInterval.

Definition at line 784 of file solarCalculator.H.

References Foam::noexcept.

◆ startTime()

scalar startTime ( ) const

inlinenoexcept

Return const access to startTime.

Definition at line 792 of file solarCalculator.H.

References Foam::noexcept.

Member Data Documentation

◆ sunDirectionModelTypeNames_

const Foam::Enum< Foam::solarCalculator::sunDirModel > sunDirectionModelTypeNames_

static

Names for sunDirModel.

Definition at line 458 of file solarCalculator.H.

Referenced by solarCalculator().

◆ sunLModelTypeNames_

const Foam::Enum< Foam::solarCalculator::sunLModel > sunLModelTypeNames_

static

Names for sunLModel.

Definition at line 474 of file solarCalculator.H.

Referenced by solarCalculator().

The documentation for this class was generated from the following files:

src/thermophysicalModels/radiation/submodels/solarCalculator/solarCalculator.H
src/thermophysicalModels/radiation/submodels/solarCalculator/solarCalculator.C

Public Types

Public Member Functions

Static Public Attributes

Detailed Description

Member Enumeration Documentation

◆ sunDirModel

◆ sunLModel

Constructor & Destructor Documentation

◆ solarCalculator()

◆ ~solarCalculator()

Member Function Documentation

◆ ClassName()

◆ correctSunDirection()

◆ correctDirectSolarRad()

◆ correctDiffuseSolarRad()

◆ diffuseSolarRad() [1/3]

◆ sunDirectionModel()

◆ sunLoadModel()

◆ direction() [1/2]

◆ direction() [2/2]

◆ directSolarRad() [1/2]

◆ directSolarRad() [2/2]

◆ diffuseSolarRad() [2/3]

◆ diffuseSolarRad() [3/3]

◆ C()

◆ beta()

◆ theta()

◆ groundReflectivity()

◆ coord()

◆ sunTrackingUpdateInterval()

◆ startTime()

Member Data Documentation

◆ sunDirectionModelTypeNames_

◆ sunLModelTypeNames_
