A triangular face using a FixedList of labels corresponding to mesh vertices. More...

#include <triFace.H>

Inheritance diagram for triFace:

[legend]

Collaboration diagram for triFace:

Classes
struct	hasher
	Hashing functor for triFace (commutative). More...
struct	Hash
	Deprecated(2021-04) hashing functor. Use hasher(). More...

Public Member Functions
void	front ()=delete
	The front() accessor (from FixedList) has no purpose.
void	back ()=delete
	The back() accessor (from FixedList) has no purpose.

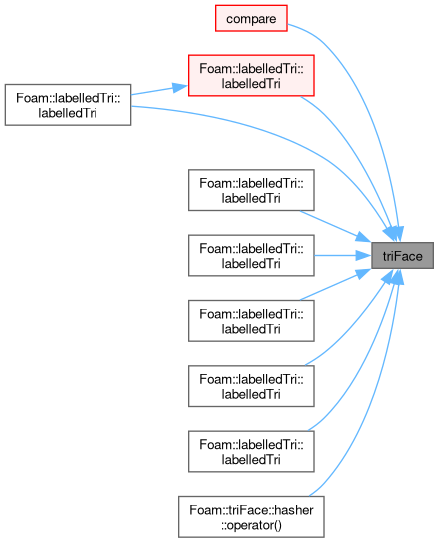

	triFace ()
	Default construct, with invalid vertex labels (-1).
	triFace (const label p0, const label p1, const label p2) noexcept
	Construct from three vertex labels.
	triFace (std::initializer_list< label > list)
	Construct from an initializer list of three vertex labels.
	triFace (const labelUList &list)
	Copy construct from a list of three vertex labels.
	triFace (const labelUList &list, const FixedList< label, 3 > &indices)
	Copy construct from a subset of vertex labels.
	triFace (Istream &is)
	Construct from Istream.

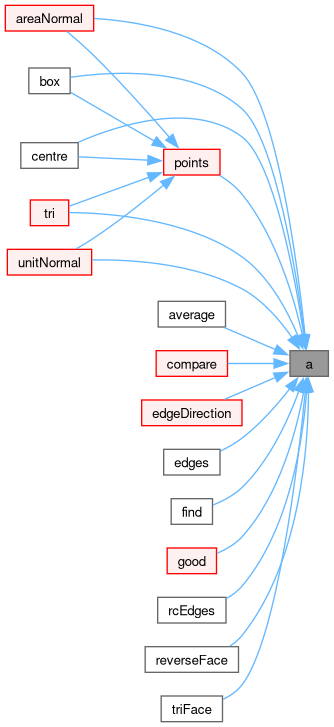

label	a () const noexcept
	The first vertex.
label	b () const noexcept
	The second vertex.

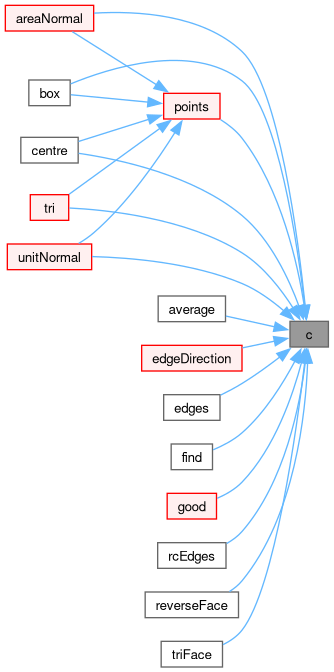

label	c () const noexcept
	The third vertex.
label &	a () noexcept
	The first vertex.
label &	b () noexcept
	The second vertex.
label &	c () noexcept
	The third vertex.
bool	good () const noexcept
	True if vertices are unique and non-negative.
label	collapse ()
	'Collapse' face by marking duplicate vertex labels.
void	flip ()
	Flip the face in-place.

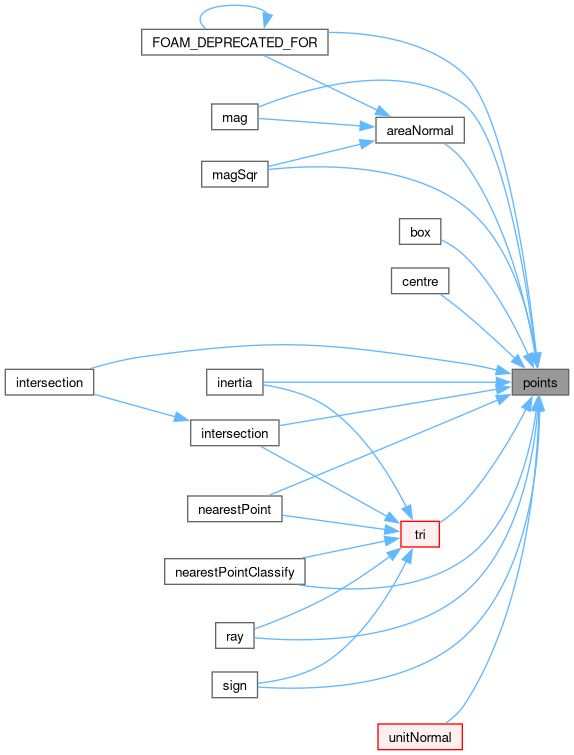

pointField	points (const UList< point > &pts) const
	Return the points corresponding to this face.
face	triFaceFace () const
	Return triangle as a face.

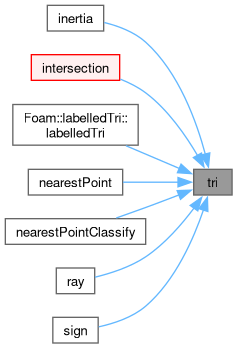

triPointRef	tri (const UList< point > &points) const
	Return the triangle.

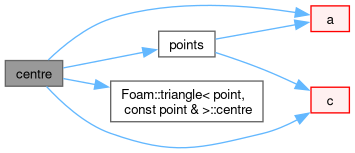

point	centre (const UList< point > &points) const
	Return centre (centroid).
template<class Type>
Type	average (const UList< point > &unused, const Field< Type > &fld) const
	Calculate average value at centroid of face.

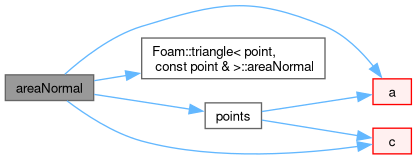

vector	areaNormal (const UList< point > &points) const
	The area normal - with magnitude equal to area of face.

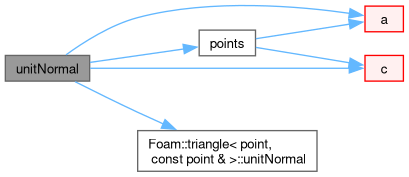

vector	unitNormal (const UList< point > &points) const
	The unit normal.
	FOAM_DEPRECATED_FOR (2018-12, "areaNormal() or unitNormal()") vector normal(const UList< point > &points) const
	Legacy name for areaNormal().
scalar	mag (const UList< point > &points) const
	Magnitude of face area.
scalar	magSqr (const UList< point > &points) const
	Magnitude squared of face area.

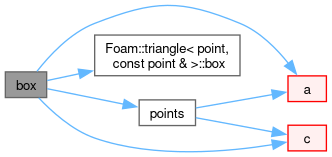

Pair< point >	box (const UList< point > &points) const
	The enclosing (bounding) box for the face.
label	nTriangles () const noexcept
	Number of triangles after splitting == 1.
triFace	reverseFace () const
	Return face with reverse direction.
label	which (const label vertex) const
	Find local vertex on face for the vertex label, same as find().
label	nextLabel (const label i) const
	Next vertex on face.
label	prevLabel (const label i) const
	Previous vertex on face.
label	thisLabel (const label i) const
	The vertex on face - identical to operator[], but with naming similar to nextLabel(), prevLabel().
scalar	sweptVol (const UList< point > &opts, const UList< point > &npts) const
	Return swept-volume from old-points to new-points.
tensor	inertia (const UList< point > &points, const point &refPt=vector::zero, scalar density=1.0) const
	Return the inertia tensor, with optional reference.
pointHit	ray (const point &p, const vector &q, const UList< point > &points, const intersection::algorithm=intersection::FULL_RAY, const intersection::direction dir=intersection::VECTOR) const
	Return point intersection with a ray starting at p, in direction q.
pointHit	intersection (const point &p, const vector &q, const UList< point > &points, const intersection::algorithm alg, const scalar tol=0.0) const
	Fast intersection with a ray.
pointHit	intersection (const point &p, const vector &q, const point &ctr, const UList< point > &points, const intersection::algorithm alg, const scalar tol=0.0) const
pointHit	nearestPoint (const point &p, const UList< point > &points) const
	Return nearest point to face.
pointHit	nearestPointClassify (const point &p, const UList< point > &points, label &nearType, label &nearLabel) const
	Return nearest point to face and classify it:
int	sign (const point &p, const UList< point > &points, const scalar tol=SMALL) const
	The sign for which side of the face plane the point is on.
label	nEdges () const noexcept
	Return number of edges == 3.
Foam::edge	edge (const label edgei) const
	Return i-th face edge (forward walk order).
vector	edge (const label edgei, const UList< point > &pts) const
	Return vector of i-th face edge (forward walk order).
Foam::edge	rcEdge (const label edgei) const
	Return i-th face edge in reverse walk order.
vector	rcEdge (const label edgei, const UList< point > &pts) const
	Return vector of i-th face edge in reverse walk order.
edgeList	edges () const
	Return list of edges in forward walk order.
edgeList	rcEdges () const
	Return list of edges in reverse walk order.
bool	contains (const Foam::edge &e) const
	True if face contains(edge).
label	find (const Foam::edge &e) const
	Find the edge within the face.
int	edgeDirection (const Foam::edge &e) const
	Test the edge direction on the face.
void	operator+= (const label vertexOffset)
	Increment (offset) vertices by given amount.
unsigned	hash_code (unsigned seed=0) const
	The (commutative) hash value for triFace.
bool	valid () const noexcept
	Same as good().
Foam::edge	faceEdge (label edgei) const
	Identical to edge().
Public Member Functions inherited from FixedList< label, 3 >
	FixedList ()=default
	Default construct.
autoPtr< FixedList< label, N > >	clone () const
	Clone.
const label *	cdata () const noexcept
	Return pointer to the underlying array serving as data storage.
label *	data () noexcept
	Return pointer to the underlying array serving as data storage.
const char *	cdata_bytes () const noexcept
	Return pointer to the underlying array serving as data storage,.
char *	data_bytes () noexcept
	Return pointer to the underlying array serving as data storage,.
label &	get () noexcept
	Element access using compile-time indexing.
label &	front () noexcept
	Access first element of the list, position [0].
label &	back () noexcept
	Access last element of the list, position [N-1].
label	fcIndex (const label i) const noexcept
	Return the forward circular index, i.e. next index which returns to the first at the end of the list.
const label &	fcValue (const label i) const
	Return forward circular value (ie, next value in the list).
label	rcIndex (const label i) const noexcept
	Return the reverse circular index, i.e. previous index which returns to the last at the beginning of the list.
const label &	rcValue (const label i) const
	Return reverse circular value (ie, previous value in the list).
void	checkStart (const label start) const
	Check start is within valid range [0,size).
void	checkSize (const label size) const
	Check size is identical to template parameter N.
void	checkIndex (const label i) const
	Check index is within valid range [0,N).
bool	uniform () const
	True if all entries have identical values, and list is non-empty.
bool	contains (const label &val) const
	True if the value is contained in the list.
label	find (const label &val) const
	Find index of the first occurrence of the value.
label	rfind (const label &val, label pos=-1) const
	Find index of the last occurrence of the value.
void	resize (const label n)
	Dummy function, to make FixedList consistent with List Any resizing is ignored (Fatal with bad sizing in full debug).
void	resize_fill (const label n, const label &val)
	Set val for all elements. Any resizing is ignored (Fatal with bad sizing in full debug).
void	resize_nocopy (const label n)
	Dummy function, to make FixedList consistent with List Any resizing is ignored (Fatal with bad sizing in full debug).
void	setSize (const label n)
	Dummy function, to make FixedList consistent with List.
void	fill (const label &val)
	Assign all entries to the given value.
void	moveFirst (const label i)
	Move element to the first position.
void	moveLast (const label i)
	Move element to the last position.
void	swapFirst (const label i)
	Swap element with the first element.
void	swapLast (const label i)
	Swap element with the last element.
void	transfer (FixedList< label, N > &list)
	Transfer by swapping using a move assignment for the content of the individual list elements.
label &	operator[] (const label i)
	Return element of FixedList.
void	operator= (const UList< label > &list)
	Assignment to UList operator. Takes linear time.
iterator	begin () noexcept
	Return an iterator to begin traversing the FixedList.
iterator	end () noexcept
	Return an iterator to end traversing the FixedList.
const_iterator	cbegin () const noexcept
	Return const_iterator to begin traversing the constant FixedList.
const_iterator	cend () const noexcept
	Return const_iterator to end traversing the constant FixedList.
reverse_iterator	rbegin ()
	Return reverse_iterator to begin reverse traversing the FixedList.
reverse_iterator	rend ()
	Return reverse_iterator to end reverse traversing the FixedList.
const_reverse_iterator	crbegin () const
	Return const_reverse_iterator to begin reverse traversing FixedList.
const_reverse_iterator	crend () const
	Return const_reverse_iterator to end reverse traversing FixedList.
void	swap (FixedList< label, N > &other)
	Swap lists by swapping the content of the individual list elements.
bool	operator== (const FixedList< label, N > &list) const
	Equality operation on FixedLists of the same type.
bool	operator!= (const FixedList< label, N > &list) const
	The opposite of the equality operation. Takes linear time.
bool	operator< (const FixedList< label, N > &list) const
	Compare two FixedLists lexicographically. Takes linear time.
bool	operator> (const FixedList< label, N > &list) const
	Compare two FixedLists lexicographically. Takes linear time.
bool	operator<= (const FixedList< label, N > &list) const
	Return true if !(a > b). Takes linear time.
bool	operator>= (const FixedList< label, N > &list) const
	Return true if !(a < b). Takes linear time.
Istream &	readList (Istream &is)
	Read from Istream, discarding contents of existing List.
Ostream &	writeList (Ostream &os, const label shortLen=0) const
	Write List, with line-breaks in ASCII when length exceeds shortLen.
label &	first () noexcept
	Access first element of the list, position [0] - front().
label &	last () noexcept
	Access last element of the list, position [N-1] - back().
bool	found (const label &val, label pos=0) const
	Same as contains().

Static Public Member Functions
static int	compare (const triFace &a, const triFace &b)
	Compare triFaces.
Static Public Member Functions inherited from FixedList< label, 3 >
static const FixedList< label, N > &	null () noexcept
	Return a null FixedList (reference to a nullObject). Read/write access is questionable.
static std::streamsize	size_bytes () noexcept
	Number of contiguous bytes for the list data,.
static std::streamsize	byteSize ()
	Number of contiguous bytes for the list data, runtime FatalError if type is not contiguous.
static constexpr bool	empty () noexcept
	Always false since zero-sized FixedList is compile-time disabled.
static constexpr label	size () noexcept
	Return the number of elements in the FixedList.
static constexpr unsigned	max_size () noexcept
	The dimensioned size (template parameter N) of the FixedList.

Additional Inherited Members
Public Types inherited from FixedList< label, 3 >
typedef label	value_type
	The value type the FixedList contains.
typedef label *	pointer
	The pointer type for non-const access to value_type items.
typedef const label *	const_pointer
	The pointer type for const access to value_type items.
typedef label &	reference
	The type used for storing into value_type objects.
typedef const label &	const_reference
	The type used for reading from constant value_type objects.
typedef label *	iterator
	Random access iterator for traversing FixedList.
typedef const label *	const_iterator
	Random access iterator for traversing FixedList.
typedef label	size_type
	The type to represent the size of a FixedList.
typedef label	difference_type
	The difference between iterator objects.
typedef std::reverse_iterator< iterator >	reverse_iterator
	Reverse iterator (non-const access).
typedef std::reverse_iterator< const_iterator >	const_reverse_iterator
	Reverse iterator (const access).
Protected Member Functions inherited from FixedList< label, 3 >
void	writeEntry (Ostream &os) const
	Write the FixedList with its compound type.

Detailed Description

A triangular face using a FixedList of labels corresponding to mesh vertices.

See also: Foam::face, Foam::triangle

Source files

Definition at line 65 of file triFace.H.

Constructor & Destructor Documentation

◆ triFace() [1/6]

triFace ( )

inline

Default construct, with invalid vertex labels (-1).

Definition at line 56 of file triFaceI.H.

References FixedList< label, 3 >::FixedList().

Referenced by compare(), labelledTri::labelledTri(), labelledTri::labelledTri(), labelledTri::labelledTri(), labelledTri::labelledTri(), labelledTri::labelledTri(), labelledTri::labelledTri(), labelledTri::labelledTri(), and triFace::hasher::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ triFace() [2/6]

triFace	(	const label	p0,
		const label	p1,
		const label	p2 )

inlinenoexcept

Construct from three vertex labels.

Definition at line 62 of file triFaceI.H.

References a(), b, c(), and p0.

Here is the call graph for this function:

◆ triFace() [3/6]

triFace ( std::initializer_list< label > list )

inlineexplicit

Construct from an initializer list of three vertex labels.

Definition at line 75 of file triFaceI.H.

References FixedList< label, 3 >::FixedList().

Here is the call graph for this function:

◆ triFace() [4/6]

triFace ( const labelUList & list )

inlineexplicit

Copy construct from a list of three vertex labels.

Definition at line 81 of file triFaceI.H.

References FixedList< label, 3 >::FixedList().

Here is the call graph for this function:

◆ triFace() [5/6]

triFace	(	const labelUList &	list,
		const FixedList< label, 3 > &	indices )

inline

Copy construct from a subset of vertex labels.

Definition at line 87 of file triFaceI.H.

References FixedList< label, 3 >::FixedList().

Here is the call graph for this function:

◆ triFace() [6/6]

triFace ( Istream & is )

inline

Construct from Istream.

Definition at line 97 of file triFaceI.H.

References FixedList< label, 3 >::FixedList().

Here is the call graph for this function:

Member Function Documentation

◆ front()

void front ( )

delete

The front() accessor (from FixedList) has no purpose.

◆ back()

void back ( )

delete

The back() accessor (from FixedList) has no purpose.

References FixedList< label, 3 >::FixedList(), and p0.

Here is the call graph for this function:

◆ a() [1/2]

label a ( ) const

inlinenoexcept

The first vertex.

Definition at line 128 of file triFace.H.

References FixedList< label, 3 >::get(), and Foam::noexcept.

Referenced by areaNormal(), average(), box(), centre(), compare(), edgeDirection(), edges(), find(), good(), points(), rcEdges(), reverseFace(), tri(), triFace(), and unitNormal().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ b() [1/2]

label b ( ) const

inlinenoexcept

The second vertex.

Definition at line 133 of file triFace.H.

References FixedList< label, 3 >::get(), and Foam::noexcept.

Referenced by average(), compare(), edgeDirection(), and find().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ c() [1/2]

label c ( ) const

inlinenoexcept

The third vertex.

Definition at line 138 of file triFace.H.

References FixedList< label, 3 >::get(), and Foam::noexcept.

Referenced by areaNormal(), average(), box(), centre(), edgeDirection(), edges(), find(), good(), points(), rcEdges(), reverseFace(), tri(), triFace(), and unitNormal().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ a() [2/2]

label & a ( )

inlinenoexcept

The first vertex.

Definition at line 143 of file triFace.H.

References FixedList< label, 3 >::get(), and Foam::noexcept.

Here is the call graph for this function:

◆ b() [2/2]

label & b ( )

inlinenoexcept

The second vertex.

Definition at line 148 of file triFace.H.

References FixedList< label, 3 >::get(), and Foam::noexcept.

Here is the call graph for this function:

◆ c() [2/2]

label & c ( )

inlinenoexcept

The third vertex.

Definition at line 153 of file triFace.H.

References FixedList< label, 3 >::get(), and Foam::noexcept.

Here is the call graph for this function:

◆ good()

bool good ( ) const

inlinenoexcept

True if vertices are unique and non-negative.

Definition at line 105 of file triFaceI.H.

References a(), b, c(), and Foam::noexcept.

Referenced by valid().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ collapse()

Foam::label collapse ( )

inline

'Collapse' face by marking duplicate vertex labels.

Duplicates vertex labels are marked with '-1' (the lower vertex is retained). Return the collapsed size.

Definition at line 116 of file triFaceI.H.

References n, and FixedList< label, 3 >::operator[]().

Here is the call graph for this function:

◆ flip()

void flip ( )

inline

Flip the face in-place.

The starting vertex of the original and flipped face are identical.

Definition at line 143 of file triFaceI.H.

References FixedList< label, 3 >::get().

Here is the call graph for this function:

◆ points()

Foam::pointField points ( const UList< point > & pts ) const

inline

Return the points corresponding to this face.

Definition at line 149 of file triFaceI.H.

References a(), b, c(), p, and pts.

Referenced by areaNormal(), box(), centre(), FOAM_DEPRECATED_FOR(), inertia(), intersection(), intersection(), mag(), magSqr(), nearestPoint(), nearestPointClassify(), ray(), sign(), tri(), and unitNormal().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ triFaceFace()

Foam::face triFaceFace ( ) const

inline

Return triangle as a face.

Definition at line 161 of file triFaceI.H.

◆ tri()

Foam::triPointRef tri ( const UList< point > & points ) const

inline

Return the triangle.

Definition at line 167 of file triFaceI.H.

References a(), b, c(), and points().

Referenced by inertia(), intersection(), labelledTri::labelledTri(), nearestPoint(), nearestPointClassify(), ray(), and sign().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ centre()

Foam::point centre ( const UList< point > & points ) const

inline

Return centre (centroid).

Definition at line 173 of file triFaceI.H.

References a(), b, c(), triangle< point, const point & >::centre(), and points().

Here is the call graph for this function:

◆ average()

template<class Type>

Type average	(	const UList< point > &	unused,
		const Field< Type > &	fld ) const

Calculate average value at centroid of face.

Definition at line 26 of file triFaceTemplates.C.

References a(), b(), c(), and fld().

Here is the call graph for this function:

◆ areaNormal()

Foam::vector areaNormal ( const UList< point > & points ) const

inline

The area normal - with magnitude equal to area of face.

Definition at line 179 of file triFaceI.H.

References a(), triangle< point, const point & >::areaNormal(), b, c(), and points().

Referenced by FOAM_DEPRECATED_FOR(), mag(), and magSqr().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ unitNormal()

Foam::vector unitNormal ( const UList< point > & points ) const

inline

The unit normal.

Definition at line 185 of file triFaceI.H.

References a(), b, c(), points(), and triangle< point, const point & >::unitNormal().

Referenced by wallBoundedParticle::trackToEdge().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FOAM_DEPRECATED_FOR()

FOAM_DEPRECATED_FOR	(	2018-	12,
		"areaNormal() or unitNormal()"	) const &

inline

Legacy name for areaNormal().

Deprecated: (2018-06) Deprecated for new use

Definition at line 223 of file triFace.H.

References areaNormal(), FOAM_DEPRECATED_FOR(), and points().

Referenced by FOAM_DEPRECATED_FOR().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mag()

Foam::scalar mag ( const UList< point > & points ) const

inline

Magnitude of face area.

Definition at line 191 of file triFaceI.H.

References areaNormal(), and points().

Here is the call graph for this function:

◆ magSqr()

Foam::scalar magSqr ( const UList< point > & points ) const

inline

Magnitude squared of face area.

Definition at line 197 of file triFaceI.H.

References areaNormal(), and points().

Here is the call graph for this function:

◆ box()

Foam::Pair< Foam::point > box ( const UList< point > & points ) const

inline

The enclosing (bounding) box for the face.

Definition at line 204 of file triFaceI.H.

References a(), b, triangle< point, const point & >::box(), c(), and points().

Here is the call graph for this function:

◆ nTriangles()

Foam::label nTriangles ( ) const

inlinenoexcept

Number of triangles after splitting == 1.

Definition at line 210 of file triFaceI.H.

References Foam::noexcept.

◆ reverseFace()

Foam::triFace reverseFace ( ) const

inline

Return face with reverse direction.

The starting vertex of the original and reverse face are identical.

Definition at line 216 of file triFaceI.H.

References a(), b, c(), and triFace().

Here is the call graph for this function:

◆ which()

Foam::label which ( const label vertex ) const

inline

Find local vertex on face for the vertex label, same as find().

Returns: position in face (0,1,2) or -1 if not found.

Definition at line 223 of file triFaceI.H.

References FixedList< T, N >::find().

Here is the call graph for this function:

◆ nextLabel()

Foam::label nextLabel ( const label i ) const

inline

Next vertex on face.

Definition at line 235 of file triFaceI.H.

References FixedList< label, 3 >::operator[]().

Referenced by edge(), and edge().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ prevLabel()

Foam::label prevLabel ( const label i ) const

inline

Previous vertex on face.

Definition at line 241 of file triFaceI.H.

References FixedList< label, 3 >::operator[]().

Referenced by rcEdge(), and rcEdge().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ thisLabel()

Foam::label thisLabel ( const label i ) const

inline

The vertex on face - identical to operator[], but with naming similar to nextLabel(), prevLabel().

Definition at line 229 of file triFaceI.H.

References FixedList< label, 3 >::operator[]().

Referenced by edge(), edge(), rcEdge(), and rcEdge().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sweptVol()

Foam::scalar sweptVol	(	const UList< point > &	opts,
		const UList< point > &	npts ) const

inline

Return swept-volume from old-points to new-points.

Definition at line 247 of file triFaceI.H.

References FixedList< label, 3 >::operator[]().

Here is the call graph for this function:

◆ inertia()

Foam::tensor inertia	(	const UList< point > &	points,
		const point &	refPt = vector::zero,
		scalar	density = 1.0 ) const

inline

Return the inertia tensor, with optional reference.

point and density specification

Definition at line 280 of file triFaceI.H.

References points(), and tri().

Here is the call graph for this function:

◆ ray()

Foam::pointHit ray	(	const point &	p,
		const vector &	q,
		const UList< point > &	points,
		const intersection::algorithm	alg = intersection::FULL_RAY,
		const intersection::direction	dir = intersection::VECTOR ) const

inline

Return point intersection with a ray starting at p, in direction q.

Definition at line 292 of file triFaceI.H.

References p, points(), and tri().

Here is the call graph for this function:

◆ intersection() [1/2]

Foam::pointHit intersection	(	const point &	p,
		const vector &	q,
		const UList< point > &	points,
		const intersection::algorithm	alg,
		const scalar	tol = 0.0 ) const

inline

Fast intersection with a ray.

Definition at line 306 of file triFaceI.H.

References p, points(), and tri().

Referenced by intersection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ intersection() [2/2]

Foam::pointHit intersection	(	const point &	p,
		const vector &	q,
		const point &	ctr,
		const UList< point > &	points,
		const intersection::algorithm	alg,
		const scalar	tol = 0.0 ) const

inline

Definition at line 319 of file triFaceI.H.

References intersection(), p, and points().

Here is the call graph for this function:

◆ nearestPoint()

Foam::pointHit nearestPoint	(	const point &	p,
		const UList< point > &	points ) const

inline

Return nearest point to face.

Definition at line 333 of file triFaceI.H.

References p, points(), and tri().

Here is the call graph for this function:

◆ nearestPointClassify()

Foam::pointHit nearestPointClassify	(	const point &	p,
		const UList< point > &	points,
		label &	nearType,
		label &	nearLabel ) const

inline

Return nearest point to face and classify it:

+ near point (nearType=POINT, nearLabel=0, 1, 2) + near edge (nearType=EDGE, nearLabel=0, 1, 2) Note: edges are counted from starting vertex so e.g. edge n is from f[n] to f[0], where the face has n + 1 points

Definition at line 343 of file triFaceI.H.

References p, points(), and tri().

Here is the call graph for this function:

◆ sign()

int sign	(	const point &	p,
		const UList< point > &	points,
		const scalar	tol = SMALL ) const

inline

The sign for which side of the face plane the point is on.

Uses the supplied tolerance for rounding around zero.

Returns

0: on plane
+1: front-side
-1: back-side

Definition at line 355 of file triFaceI.H.

References p, points(), and tri().

Here is the call graph for this function:

◆ nEdges()

Foam::label nEdges ( ) const

inlinenoexcept

Return number of edges == 3.

Definition at line 366 of file triFaceI.H.

References Foam::noexcept.

◆ edge() [1/2]

Foam::edge edge ( const label edgei ) const

inline

Return i-th face edge (forward walk order).

The edge 0 is from [0] to [1] and edge 1 is from [1] to [2]

Definition at line 372 of file triFaceI.H.

References nextLabel(), and thisLabel().

Referenced by faceEdge().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ edge() [2/2]

Foam::vector edge	(	const label	edgei,
		const UList< point > &	pts ) const

inline

Return vector of i-th face edge (forward walk order).

The edge 0 is from [0] to [1] and edge 1 is from [1] to [2]

Definition at line 378 of file triFaceI.H.

References nextLabel(), pts, and thisLabel().

Here is the call graph for this function:

◆ rcEdge() [1/2]

Foam::edge rcEdge ( const label edgei ) const

inline

Return i-th face edge in reverse walk order.

The rcEdge 0 is from [0] to [n-1] and rcEdge 1 is from [n-1] to [n-2]

Definition at line 388 of file triFaceI.H.

References prevLabel(), and thisLabel().

Here is the call graph for this function:

◆ rcEdge() [2/2]

Foam::vector rcEdge	(	const label	edgei,
		const UList< point > &	pts ) const

inline

Return vector of i-th face edge in reverse walk order.

The rcEdge 0 is from [0] to [n-1] and rcEdge 1 is from [n-1] to [n-2]

Definition at line 397 of file triFaceI.H.

References prevLabel(), pts, and thisLabel().

Here is the call graph for this function:

◆ edges()

Foam::edgeList edges ( ) const

inline

Return list of edges in forward walk order.

The edge 0 is from [0] to [1] and edge 1 is from [1] to [2]

Definition at line 410 of file triFaceI.H.

References a(), b, c(), and UList< T >::first().

Here is the call graph for this function:

◆ rcEdges()

Foam::edgeList rcEdges ( ) const

inline

Return list of edges in reverse walk order.

The rcEdge 0 is from [0] to [n-1] and rcEdge 1 is from [n-1] to [n-2]

Definition at line 427 of file triFaceI.H.

References a(), b, c(), and UList< T >::first().

Here is the call graph for this function:

◆ contains()

bool contains ( const Foam::edge & e ) const

inline

True if face contains(edge).

Definition at line 488 of file triFaceI.H.

References e, and edgeDirection().

Here is the call graph for this function:

◆ find()

Foam::label find ( const Foam::edge & e ) const

inline

Find the edge within the face.

Returns: the edge index or -1 if not found

Definition at line 466 of file triFaceI.H.

References a(), b(), c(), and e.

Here is the call graph for this function:

◆ edgeDirection()

int edgeDirection ( const Foam::edge & e ) const

inline

Test the edge direction on the face.

Returns

+1: forward (counter-clockwise) on the face
-1: reverse (clockwise) on the face
0: edge not found on the face

Definition at line 444 of file triFaceI.H.

References a(), b(), c(), and e.

Referenced by contains().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ compare()

int compare	(	const triFace &	a,
		const triFace &	b )

inlinestatic

Compare triFaces.

Returns

:

0: different
+1: identical
-1: same face, but different orientation

Definition at line 27 of file triFaceI.H.

References a(), b(), and triFace().

Referenced by Foam::operator!=(), and Foam::operator==().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator+=()

void operator+= ( const label vertexOffset )

inline

Increment (offset) vertices by given amount.

Definition at line 497 of file triFaceI.H.

◆ hash_code()

unsigned hash_code ( unsigned seed = 0 ) const

inline

The (commutative) hash value for triFace.

Definition at line 489 of file triFace.H.

References hash_code().

Referenced by hash_code(), and triFace::hasher::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ valid()

bool valid ( ) const

inlinenoexcept

Same as good().

Definition at line 529 of file triFace.H.

References good(), and Foam::noexcept.

Here is the call graph for this function:

◆ faceEdge()

Foam::edge faceEdge ( label edgei ) const

inline

Identical to edge().

Definition at line 534 of file triFace.H.

References edge().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/OpenFOAM/meshes/meshShapes/triFace/triFace.H
src/OpenFOAM/meshes/meshShapes/triFace/triFaceI.H
src/OpenFOAM/meshes/meshShapes/triFace/triFaceTemplates.C

Classes

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ triFace() [1/6]

◆ triFace() [2/6]

◆ triFace() [3/6]

◆ triFace() [4/6]

◆ triFace() [5/6]

◆ triFace() [6/6]

Member Function Documentation

◆ front()

◆ back()

◆ a() [1/2]

◆ b() [1/2]

◆ c() [1/2]

◆ a() [2/2]

◆ b() [2/2]

◆ c() [2/2]

◆ good()

◆ collapse()

◆ flip()

◆ points()

◆ triFaceFace()

◆ tri()

◆ centre()

◆ average()

◆ areaNormal()

◆ unitNormal()

◆ FOAM_DEPRECATED_FOR()

◆ mag()

◆ magSqr()

◆ box()

◆ nTriangles()

◆ reverseFace()

◆ which()

◆ nextLabel()

◆ prevLabel()

◆ thisLabel()

◆ sweptVol()

◆ inertia()

◆ ray()

◆ intersection() [1/2]

◆ intersection() [2/2]

◆ nearestPoint()

◆ nearestPointClassify()

◆ sign()

◆ nEdges()

◆ edge() [1/2]

◆ edge() [2/2]

◆ rcEdge() [1/2]

◆ rcEdge() [2/2]

◆ edges()

◆ rcEdges()

◆ contains()

◆ find()

◆ edgeDirection()

◆ compare()

◆ operator+=()

◆ hash_code()

◆ valid()

◆ faceEdge()
