Kutadeladze Class Reference

Nucleate flux sub-cooling correlation. More...

#include <Kutadeladze.H>

Inheritance diagram for Kutadeladze:

Collaboration diagram for Kutadeladze:

Public Member Functions
	TypeName ("Kutadeladze")
	Runtime type information.
	Kutadeladze (const dictionary &dict)
	Construct from a dictionary.
virtual	~Kutadeladze ()=default
	Destructor.
virtual tmp< scalarField >	qNucleate (const phaseModel &liquid, const phaseModel &vapor, const label patchi, const scalarField &Tl, const scalarField &Tsatw, const scalarField &L) const
	Calculate and return the nucleation-site density.
virtual void	write (Ostream &os) const
	Write.
Public Member Functions inherited from nucleateFluxModel
	TypeName ("nucleateFluxModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, nucleateFluxModel, dictionary,(const dictionary &dict),(dict))
	Declare runtime construction.
	nucleateFluxModel ()=default
	Default construct.
virtual	~nucleateFluxModel ()=default
	Destructor.

Additional Inherited Members
Static Public Member Functions inherited from nucleateFluxModel
static autoPtr< nucleateFluxModel >	New (const dictionary &dict)
	Select default constructed.

Detailed Description

Nucleate flux sub-cooling correlation.

References:

    Wang, L., Li, Y., Zhang, F., Xie, F., & Ma, Y. (2016).
    Correlations for calculating heat transfer of hydrogen pool boiling.
    International Journal of Hydrogen Energy, 41(38), 17118-17131.

Usage

Example of the model specification:

nucleateFluxModel
{
    // Mandatory entries
    type            Kutadeladze;

    // Optional entries
    Cn              <scalar>;
    an              <scalar>;
    bn              <scalar>;
    n               <scalar>;
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
type	Type name: Kutadeladze	word	yes	-
Cn	Model coefficient	scalar	no	5.66e-10
an	Coefficient for deltaT sub-cooling	scalar	no	2.5
bn	Exponent for n	scalar	no	1
n	Nucleating boiling paramemeter	scalar	no	1

Source files

• Kutadeladze.H
• Kutadeladze.C

Definition at line 119 of file Kutadeladze.H.

Constructor & Destructor Documentation

Kutadeladze()

Kutadeladze

(

const dictionary &

dict

)

Construct from a dictionary.

Definition at line 48 of file Kutadeladze.C.

References dict, and nucleateFluxModel::nucleateFluxModel().

Here is the call graph for this function:

~Kutadeladze()

virtual ~Kutadeladze ( )

virtualdefault

Destructor.

References L, and os().

Here is the call graph for this function:

Member Function Documentation

TypeName()

TypeName

(

"Kutadeladze"

)

Runtime type information.

References dict.

qNucleate()

Foam::tmp< Foam::scalarField > qNucleate ( const phaseModel & liquid, const phaseModel & vapor, const label patchi, const scalarField & Tl, const scalarField & Tsatw, const scalarField & L ) const

virtual

Calculate and return the nucleation-site density.

Implements nucleateFluxModel.

Definition at line 64 of file Kutadeladze.C.

References cells, liquid::Cp(), liquid::kappa(), L, Foam::max(), liquid::mu(), phaseModel::name(), p, Foam::pow(), tmp< T >::ref(), basicThermo::rhoEoS(), liquid::sigma(), sigma(), and phaseModel::thermo().

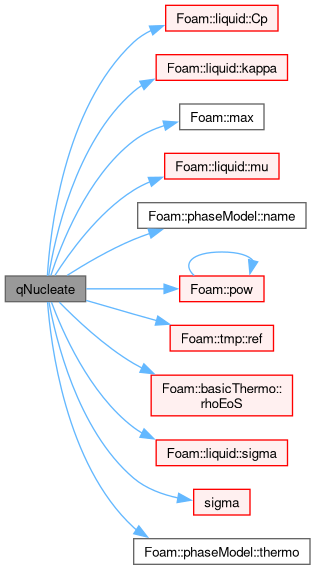

Here is the call graph for this function:

write()

void write ( Ostream & os ) const

virtual

Write.

Reimplemented from nucleateFluxModel.

Definition at line 114 of file Kutadeladze.C.

References os(), and nucleateFluxModel::write().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/reactingEuler/multiphaseSystem/derivedFvPatchFields/wallBoilingSubModels/nucleateFluxModels/Kutadeladze/Kutadeladze.H
• src/phaseSystemModels/reactingEuler/multiphaseSystem/derivedFvPatchFields/wallBoilingSubModels/nucleateFluxModels/Kutadeladze/Kutadeladze.C
