A base class for heat-flux models. More...

#include <wallHeatFluxModel.H>

Inheritance diagram for wallHeatFluxModel:

[legend]

Collaboration diagram for wallHeatFluxModel:

Public Member Functions
	TypeName ("wallHeatFluxModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, wallHeatFluxModel, dictionary,(const dictionary &dict, const fvMesh &mesh, const word &name, const word objName, functionObjects::stateFunctionObject &state),(dict, mesh, name, objName, state))
	wallHeatFluxModel (const wallHeatFluxModel &)=delete
	No copy construct.
void	operator= (const wallHeatFluxModel &)=delete
	No copy assignment.
	wallHeatFluxModel (const dictionary &dict, const fvMesh &mesh, const word &name, const word objName, functionObjects::stateFunctionObject &state)
	Construct from components.
virtual	~wallHeatFluxModel ()
	Destructor.
const fvMesh &	mesh () const noexcept
	Return const reference to the mesh.
functionObjects::stateFunctionObject &	state () const noexcept
	Return const reference to the state function object.
const word &	objName () const noexcept
	Return const reference to the function-object name.
virtual bool	read (const dictionary &dict)=0
	Read the settings.
virtual bool	execute ()=0
	Calculate the heat-flux data.
virtual bool	write ()=0
	Write the heat-flux data.
Public Member Functions inherited from writeFile
	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name="undefined", const bool writeToFile=true, const string &ext=".dat")
	Construct from objectRegistry, prefix, fileName.
	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name, const dictionary &dict, const bool writeToFile=true, const string &ext=".dat")
	Construct from objectRegistry, prefix, fileName and read options from dictionary.
	writeFile (const writeFile &wf)
	Construct copy.
virtual	~writeFile ()=default
	Destructor.
virtual const string &	setExt (const string &ext)
	Set extension.
virtual OFstream &	file ()
	Return access to the file (if only 1).
virtual bool	writeToFile () const
	Flag to allow writing to file.
virtual bool	canWriteToFile () const
	Flag to allow writing to the file.
virtual bool	canResetFile () const
	Flag to allow resetting the file.
virtual bool	canWriteHeader () const
	Flag to allow writing the header.
virtual label	charWidth () const
	Return width of character stream output.
virtual void	writeCommented (Ostream &os, const string &str) const
	Write a commented string to stream.
virtual void	writeTabbed (Ostream &os, const string &str) const
	Write a tabbed string to stream.
virtual void	writeHeader (Ostream &os, const string &str) const
	Write a commented header to stream.
virtual void	writeCurrentTime (Ostream &os) const
	Write the current time to stream.
virtual void	writeBreak (Ostream &os) const
	Write a break marker to the stream.
template<class Type>
void	writeHeaderValue (Ostream &os, const string &property, const Type &value) const
	Write a (commented) header property and value pair.
template<class Type>
void	writeValue (Ostream &os, const Type &val) const
	Write a given value to stream with the space delimiter.

Static Public Member Functions
static autoPtr< wallHeatFluxModel >	New (const dictionary &dict, const fvMesh &mesh, const word &name, const word objName, functionObjects::stateFunctionObject &state)
	Return a reference to the selected heat-flux model.

Additional Inherited Members
Static Public Attributes inherited from writeFile
static label	addChars = 8
	Additional characters for writing.
Protected Member Functions inherited from writeFile
void	initStream (Ostream &os) const
	Initialise the output stream for writing.
fileName	baseFileDir () const
	Return the base directory for output.
fileName	baseTimeDir () const
	Return the base directory for the current time value.
fileName	filePath (const fileName &fName) const
	Return the full path for the supplied file name.
virtual autoPtr< OFstream >	newFile (const fileName &fName) const
	Return autoPtr to a new file using file name.
virtual autoPtr< OFstream >	newFileAtTime (const word &name, scalar timeValue) const
	Return autoPtr to a new file for a given time.
virtual autoPtr< OFstream >	newFileAtStartTime (const word &name) const
	Return autoPtr to a new file using the simulation start time.
virtual void	resetFile (const word &name)
	Reset internal file pointer to new file with new name.
Omanip< int >	valueWidth (const label offset=0) const
	Return the value width when writing to stream with optional offset.
void	operator= (const writeFile &)=delete
	No copy assignment.
virtual autoPtr< OFstream >	createFile (const word &name, scalar timeValue) const
	Deprecated(2022-09) Return autoPtr to a new file for a given time.
virtual autoPtr< OFstream >	createFile (const word &name) const
	Deprecated(2022-09) Return autoPtr to a new file using the simulation start time.
Protected Attributes inherited from writeFile
const objectRegistry &	fileObr_
	Reference to the region objectRegistry.
const fileName	prefix_
	Prefix.
word	fileName_
	Name of file.
autoPtr< OFstream >	filePtr_
	File pointer.
label	writePrecision_
	Write precision.
bool	writeToFile_
	Flag to enable/disable writing to file.
bool	updateHeader_
	Flag to update the header, e.g. on mesh changes. Default is true.
bool	writtenHeader_
	Flag to identify whether the header has been written.
bool	useUserTime_
	Flag to use the specified user time, e.g. CA deg instead of seconds. Default = true.
scalar	startTime_
	Start time value.
string	ext_
	File extension; default = .dat.

Detailed Description

A base class for heat-flux models.

Source files

Definition at line 60 of file wallHeatFluxModel.H.

Constructor & Destructor Documentation

◆ wallHeatFluxModel() [1/2]

wallHeatFluxModel ( const wallHeatFluxModel & )

delete

No copy construct.

References wallHeatFluxModel().

Referenced by declareRunTimeSelectionTable(), operator=(), and wallHeatFluxModel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ wallHeatFluxModel() [2/2]

wallHeatFluxModel	(	const dictionary &	dict,
		const fvMesh &	mesh,
		const word &	name,
		const word	objName,
		functionObjects::stateFunctionObject &	state )

Construct from components.

References dict, mesh(), Foam::name(), objName(), and state().

Here is the call graph for this function:

◆ ~wallHeatFluxModel()

virtual ~wallHeatFluxModel ( )

virtual

Destructor.

Member Function Documentation

◆ TypeName()

TypeName ( "wallHeatFluxModel" )

Runtime type information.

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		wallHeatFluxModel	,
		dictionary	,
		(const dictionary &dict, const fvMesh &mesh, const word &name, const word objName, functionObjects::stateFunctionObject &state)	,
		(dict, mesh, name, objName, state)	)

References dict, mesh(), Foam::name(), objName(), state(), and wallHeatFluxModel().

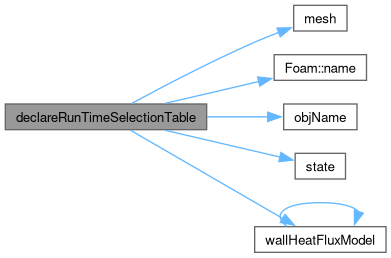

Here is the call graph for this function:

◆ New()

autoPtr< wallHeatFluxModel > New	(	const dictionary &	dict,
		const fvMesh &	mesh,
		const word &	name,
		const word	objName,
		functionObjects::stateFunctionObject &	state )
