wallLubricationModel Class Reference

#include <wallLubricationModel.H>

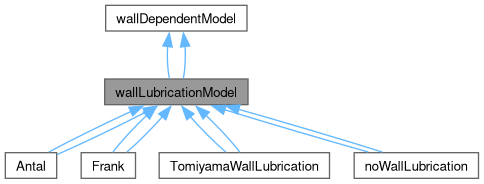

Inheritance diagram for wallLubricationModel:

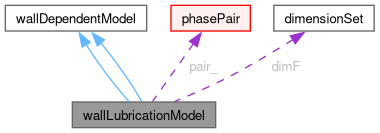

Collaboration diagram for wallLubricationModel:

Public Member Functions
	TypeName ("wallLubricationModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, wallLubricationModel, dictionary,(const dictionary &dict, const phasePair &pair),(dict, pair))
	wallLubricationModel (const dictionary &dict, const phasePair &pair)
	Construct from components.
virtual	~wallLubricationModel ()=default
	Destructor.
virtual tmp< volVectorField >	Fi () const =0
	Return phase-intensive wall lubrication force.
virtual tmp< volVectorField >	F () const
	Return wall lubrication force.
virtual tmp< surfaceScalarField >	Ff () const
	Return face wall lubrication force.
	TypeName ("wallLubricationModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, wallLubricationModel, dictionary,(const dictionary &dict, const phasePair &pair),(dict, pair))
	wallLubricationModel (const dictionary &dict, const phasePair &pair)
	Construct from components.
virtual	~wallLubricationModel ()=default
	Destructor.
virtual tmp< volVectorField >	Fi () const =0
	Return phase-intensive wall lubrication force.
virtual tmp< volVectorField >	F () const
	Return wall lubrication force.
virtual tmp< surfaceScalarField >	Ff () const
	Return face wall lubrication force.
Public Member Functions inherited from wallDependentModel
	wallDependentModel (const fvMesh &mesh)
	Construct from a mesh.
virtual	~wallDependentModel ()
	Destructor.
const volScalarField &	yWall () const
const volVectorField &	nWall () const
	wallDependentModel (const fvMesh &mesh)
	Construct from a mesh.
virtual	~wallDependentModel ()
	Destructor.
const volScalarField &	yWall () const
const volVectorField &	nWall () const

Static Public Member Functions
static autoPtr< wallLubricationModel >	New (const dictionary &dict, const phasePair &pair)
static autoPtr< wallLubricationModel >	New (const dictionary &dict, const phasePair &pair)

Static Public Attributes
static const dimensionSet	dimF
	Coefficient dimensions.

Protected Member Functions
tmp< volVectorField >	zeroGradWalls (tmp< volVectorField >) const
	Zero-gradient wall-lubrication force at walls.

Protected Attributes
const phasePair &	pair_
	Phase pair.

Detailed Description

Source files

• wallLubricationModel.H
• wallLubricationModel.C

Source files

• wallLubricationModel.H
• wallLubricationModel.C

Definition at line 52 of file wallLubricationModel.H.

Constructor & Destructor Documentation

wallLubricationModel() [1/2]

wallLubricationModel	(	const dictionary &	dict,
		const phasePair &	pair )

Construct from components.

Definition at line 68 of file wallLubricationModel.C.

References dict, mesh, pair_, and phase1.

Referenced by Antal::Antal(), declareRunTimeSelectionTable(), Frank::Frank(), noWallLubrication::noWallLubrication(), and TomiyamaWallLubrication::TomiyamaWallLubrication().

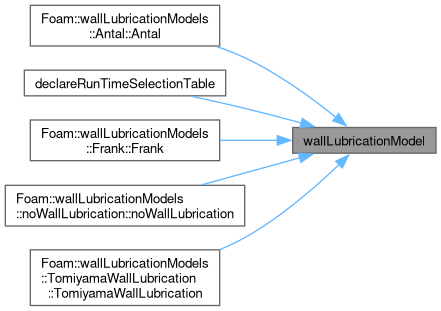

Here is the caller graph for this function:

~wallLubricationModel() [1/2]

virtual ~wallLubricationModel ( )

virtualdefault

Destructor.

References dict.

wallLubricationModel() [2/2]

wallLubricationModel	(	const dictionary &	dict,
		const phasePair &	pair )

Construct from components.

References dict.

~wallLubricationModel() [2/2]

virtual ~wallLubricationModel ( )

virtualdefault

Destructor.

Member Function Documentation

zeroGradWalls()

Foam::tmp< Foam::volVectorField > zeroGradWalls ( tmp< volVectorField > tFi ) const

protected

Zero-gradient wall-lubrication force at walls.

Definition at line 43 of file wallLubricationModel.C.

References Fi(), forAll, Foam::isA(), patches, fvPatchField< Type >::patchInternalField(), and tmp< T >::ref().

Referenced by Antal::Fi(), Frank::Fi(), and TomiyamaWallLubrication::Fi().

Here is the call graph for this function:

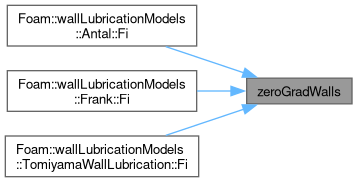

Here is the caller graph for this function:

TypeName() [1/2]

TypeName

(

"wallLubricationModel"

)

Runtime type information.

declareRunTimeSelectionTable() [1/2]

declareRunTimeSelectionTable	(	autoPtr	,
		wallLubricationModel	,
		dictionary	,
		(const dictionary &dict, const phasePair &pair)	,
		(dict, pair)	)

References dict, and wallLubricationModel().

Here is the call graph for this function:

New() [1/2]

Foam::autoPtr< Foam::wallLubricationModel > New ( const dictionary & dict, const phasePair & pair )

static

Definition at line 82 of file wallLubricationModel.C.

References Foam::abort(), dict, Foam::endl(), Foam::FatalIOError, FatalIOErrorInLookup, and Foam::Info.

Here is the call graph for this function:

Fi() [1/2]

virtual tmp< volVectorField > Fi ( ) const

pure virtual

Return phase-intensive wall lubrication force.

Implemented in Antal, Antal, Frank, Frank, noWallLubrication, noWallLubrication, TomiyamaWallLubrication, and TomiyamaWallLubrication.

Referenced by F(), Ff(), and zeroGradWalls().

Here is the caller graph for this function:

F() [1/2]

Foam::tmp< Foam::volVectorField > F ( ) const

virtual

Return wall lubrication force.

Reimplemented in noWallLubrication, and noWallLubrication.

Definition at line 112 of file wallLubricationModel.C.

References Fi(), and pair_.

Here is the call graph for this function:

Ff() [1/2]

Foam::tmp< Foam::surfaceScalarField > Ff ( ) const

virtual

Return face wall lubrication force.

Definition at line 118 of file wallLubricationModel.C.

References Fi(), Foam::fvc::flux(), Foam::fvc::interpolate(), and pair_.

Here is the call graph for this function:

TypeName() [2/2]

TypeName

(

"wallLubricationModel"

)

Runtime type information.

declareRunTimeSelectionTable() [2/2]

declareRunTimeSelectionTable	(	autoPtr	,
		wallLubricationModel	,
		dictionary	,
		(const dictionary &dict, const phasePair &pair)	,
		(dict, pair)	)

References dict, dimF, and wallLubricationModel().

Here is the call graph for this function:

New() [2/2]

autoPtr< wallLubricationModel > New ( const dictionary & dict, const phasePair & pair )

static

References dict.

Fi() [2/2]

virtual tmp< volVectorField > Fi ( ) const

pure virtual

Return phase-intensive wall lubrication force.

Implemented in Antal, Antal, Frank, Frank, noWallLubrication, noWallLubrication, TomiyamaWallLubrication, and TomiyamaWallLubrication.

F() [2/2]

virtual tmp< volVectorField > F ( ) const

virtual

Return wall lubrication force.

Reimplemented in noWallLubrication, and noWallLubrication.

Ff() [2/2]

virtual tmp< surfaceScalarField > Ff ( ) const

virtual

Return face wall lubrication force.

Member Data Documentation

pair_

const phasePair & pair_

protected

Phase pair.

Definition at line 63 of file wallLubricationModel.H.

Referenced by F(), noWallLubrication::F(), Ff(), Antal::Fi(), Frank::Fi(), noWallLubrication::Fi(), TomiyamaWallLubrication::Fi(), and wallLubricationModel().

dimF

const dimensionSet dimF

static

Coefficient dimensions.

Definition at line 102 of file wallLubricationModel.H.

Referenced by declareRunTimeSelectionTable(), noWallLubrication::F(), and noWallLubrication::Fi().

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/reactingEuler/multiphaseSystem/interfacialModels/wallLubricationModels/wallLubricationModel/wallLubricationModel.H
• src/phaseSystemModels/twoPhaseEuler/twoPhaseSystem/interfacialModels/wallLubricationModels/wallLubricationModel/wallLubricationModel.H
• src/phaseSystemModels/reactingEuler/multiphaseSystem/interfacialModels/wallLubricationModels/wallLubricationModel/wallLubricationModel.C
• src/phaseSystemModels/twoPhaseEuler/twoPhaseSystem/interfacialModels/wallLubricationModels/wallLubricationModel/wallLubricationModel.C
