Holds information regarding nearest wall point. Used in wall refinement. More...

#include <wallNormalInfo.H>

Public Member Functions
	wallNormalInfo ()
	Default construct.
	wallNormalInfo (const vector &normal)
	Construct from normal.
const vector &	normal () const
vector &	normal ()
template<class TrackingData>
bool	valid (TrackingData &td) const
	Changed or contains original (invalid) value.
template<class TrackingData>
bool	sameGeometry (const polyMesh &, const wallNormalInfo &, const scalar, TrackingData &td) const
	Check for identical geometrical data (eg, cyclics checking).
template<class TrackingData>
void	leaveDomain (const polyMesh &, const polyPatch &, const label patchFacei, const point &faceCentre, TrackingData &td)
	Convert any absolute coordinates into relative to (patch)face.
template<class TrackingData>
void	enterDomain (const polyMesh &, const polyPatch &, const label patchFacei, const point &faceCentre, TrackingData &td)
	Reverse of leaveDomain.
template<class TrackingData>
void	transform (const polyMesh &, const tensor &, TrackingData &td)
	Apply rotation matrix to any coordinates.
template<class TrackingData>
bool	updateCell (const polyMesh &, const label thisCelli, const label neighbourFacei, const wallNormalInfo &neighbourInfo, const scalar tol, TrackingData &td)
	Influence of neighbouring face.
template<class TrackingData>
bool	updateFace (const polyMesh &, const label thisFacei, const label neighbourCelli, const wallNormalInfo &neighbourInfo, const scalar tol, TrackingData &td)
	Influence of neighbouring cell.
template<class TrackingData>
bool	updateFace (const polyMesh &, const label thisFacei, const wallNormalInfo &neighbourInfo, const scalar tol, TrackingData &td)
	Influence of different value on same face.
template<class TrackingData>
bool	interpolate (const polyMesh &, const point &pt, const label i0, const wallNormalInfo &f0, const label i1, const wallNormalInfo &f1, const scalar weight, const scalar tol, TrackingData &td)
	Interpolate between two values (lerp). Returns true if causes changes. Not sure if needs to be specialised between face and cell and what index is needed...
template<class TrackingData>
bool	equal (const wallNormalInfo &, TrackingData &td) const
	Test for equality, with TrackingData.
bool	operator== (const wallNormalInfo &) const
	Test for equality.
bool	operator!= (const wallNormalInfo &) const
	Test for inequality.

Friends
Ostream &	operator<< (Ostream &, const wallNormalInfo &)
Istream &	operator>> (Istream &, wallNormalInfo &)

Detailed Description

Holds information regarding nearest wall point. Used in wall refinement.

Source files

Definition at line 60 of file wallNormalInfo.H.

Constructor & Destructor Documentation

◆ wallNormalInfo() [1/2]

wallNormalInfo ( )

inline

Default construct.

Definition at line 57 of file wallNormalInfoI.H.

References Foam::max().

Referenced by equal(), interpolate(), operator!=(), operator<<, operator==(), operator>>, sameGeometry(), updateCell(), updateFace(), and updateFace().

Here is the call graph for this function:

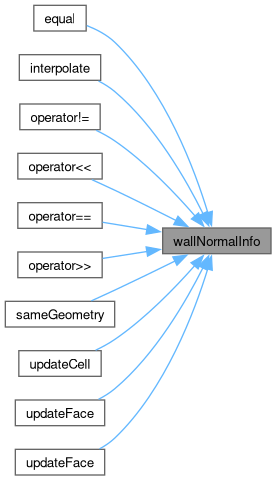

Here is the caller graph for this function:

◆ wallNormalInfo() [2/2]

wallNormalInfo ( const vector & normal )

inline

Construct from normal.

Definition at line 63 of file wallNormalInfoI.H.

References normal().

Here is the call graph for this function:

Member Function Documentation

◆ normal() [1/2]

const vector & normal ( ) const

inline

Definition at line 99 of file wallNormalInfo.H.

Referenced by wallLayerCells::wallLayerCells(), and wallNormalInfo().

Here is the caller graph for this function:

◆ normal() [2/2]

vector & normal ( )

inline

Definition at line 103 of file wallNormalInfo.H.

◆ valid()

template<class TrackingData>

bool valid ( TrackingData & td ) const

inline

Changed or contains original (invalid) value.

Definition at line 72 of file wallNormalInfoI.H.

References VectorSpace< Form, Cmpt, Ncmpts >::max, and td().

Referenced by interpolate(), and wallLayerCells::wallLayerCells().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sameGeometry()

template<class TrackingData>

bool sameGeometry	(	const polyMesh &	,
		const wallNormalInfo &	w2,
		const scalar	tol,
		TrackingData &	td ) const

inline

Check for identical geometrical data (eg, cyclics checking).

Definition at line 80 of file wallNormalInfoI.H.

References td(), w2, and wallNormalInfo().

Here is the call graph for this function:

◆ leaveDomain()

template<class TrackingData>

void leaveDomain	(	const polyMesh &	,
		const polyPatch &	patch,
		const label	patchFacei,
		const point &	faceCentre,
		TrackingData &	td )

inline

Convert any absolute coordinates into relative to (patch)face.

centre

Definition at line 94 of file wallNormalInfoI.H.

References td().

Here is the call graph for this function:

◆ enterDomain()

template<class TrackingData>

void enterDomain	(	const polyMesh &	,
		const polyPatch &	patch,
		const label	patchFacei,
		const point &	faceCentre,
		TrackingData &	td )

inline

Reverse of leaveDomain.

Definition at line 118 of file wallNormalInfoI.H.

References td().

Here is the call graph for this function:

◆ transform()

template<class TrackingData>

void transform	(	const polyMesh &	,
		const tensor &	rotTensor,
		TrackingData &	td )

inline

Apply rotation matrix to any coordinates.

Definition at line 107 of file wallNormalInfoI.H.

References td().

Here is the call graph for this function:

◆ updateCell()

template<class TrackingData>

bool updateCell	(	const polyMesh &	,
		const label	thisCelli,
		const label	neighbourFacei,
		const wallNormalInfo &	neighbourInfo,
		const scalar	tol,
		TrackingData &	td )

inline

Influence of neighbouring face.

Definition at line 131 of file wallNormalInfoI.H.

References td(), update(), and wallNormalInfo().

Here is the call graph for this function:

◆ updateFace() [1/2]

template<class TrackingData>

bool updateFace	(	const polyMesh &	,
		const label	thisFacei,
		const label	neighbourCelli,
		const wallNormalInfo &	neighbourInfo,
		const scalar	tol,
		TrackingData &	td )

inline

Influence of neighbouring cell.

Definition at line 147 of file wallNormalInfoI.H.

References td(), update(), and wallNormalInfo().

Here is the call graph for this function:

◆ updateFace() [2/2]

template<class TrackingData>

bool updateFace	(	const polyMesh &	,
		const label	thisFacei,
		const wallNormalInfo &	neighbourInfo,
		const scalar	tol,
		TrackingData &	td )

inline

Influence of different value on same face.

Definition at line 163 of file wallNormalInfoI.H.

References td(), update(), and wallNormalInfo().

Here is the call graph for this function:

◆ interpolate()

template<class TrackingData>

bool interpolate	(	const polyMesh &	,
		const point &	pt,
		const label	i0,
		const wallNormalInfo &	f0,
		const label	i1,
		const wallNormalInfo &	f1,
		const scalar	weight,
		const scalar	tol,
		TrackingData &	td )

inline

Interpolate between two values (lerp). Returns true if causes changes. Not sure if needs to be specialised between face and cell and what index is needed...

Definition at line 188 of file wallNormalInfoI.H.

References td(), update(), valid(), and wallNormalInfo().

Here is the call graph for this function:
