Holds information (coordinate and origin) regarding nearest wall point. More...

#include <wallPointAddressing.H>

Inheritance diagram for wallPointAddressing:

Collaboration diagram for wallPointAddressing:

Public Member Functions
	wallPointAddressing ()
	Default construct.
	wallPointAddressing (const point &origin, const labelPair &data, const scalar distSqr)
	Construct from origin, transforms, distance.
const labelPair &	data () const
labelPair &	data ()
template<class TrackingData>
void	leaveDomain (const polyMesh &, const polyPatch &, const label patchFacei, const point &faceCentre, TrackingData &td)
	Convert any absolute coordinates into relative to (patch)face centre.
template<class TrackingData>
bool	updateCell (const polyMesh &mesh, const label thisCelli, const label neighbourFacei, const wallPointAddressing &neighbourWallInfo, const scalar tol, TrackingData &td)
	Influence of neighbouring face.
template<class TrackingData>
bool	updateFace (const polyMesh &mesh, const label thisFacei, const label neighbourCelli, const wallPointAddressing &neighbourWallInfo, const scalar tol, TrackingData &td)
	Influence of neighbouring cell.
template<class TrackingData>
bool	updateFace (const polyMesh &mesh, const label thisFacei, const wallPointAddressing &neighbourWallInfo, const scalar tol, TrackingData &td)
	Influence of different value on same face.
Public Member Functions inherited from wallPoint
	wallPoint ()
	Default construct.
	wallPoint (const point &origin, const scalar distSqr)
	Construct from origin, distance-squared.
const point &	origin () const
point &	origin ()
scalar	distSqr () const
scalar &	distSqr ()
template<class TrackingData>
bool	valid (TrackingData &td) const
	Changed or contains original (invalid) value.
template<class TrackingData>
bool	sameGeometry (const polyMesh &, const wallPoint &, const scalar, TrackingData &td) const
	Check for identical geometrical data (eg, cyclics checking).
template<class TrackingData>
void	leaveDomain (const polyMesh &, const polyPatch &, const label patchFacei, const point &faceCentre, TrackingData &td)
	Convert any absolute coordinates into relative to (patch)face centre.
template<class TrackingData>
void	enterDomain (const polyMesh &, const polyPatch &, const label patchFacei, const point &faceCentre, TrackingData &td)
	Reverse of leaveDomain.
template<class TrackingData>
void	transform (const polyMesh &, const tensor &, TrackingData &td)
	Apply rotation matrix to any coordinates.
template<class TrackingData>
bool	updateCell (const polyMesh &, const label thisCelli, const label neighbourFacei, const wallPoint &neighbourInfo, const scalar tol, TrackingData &td)
	Influence of neighbouring face.
template<class TrackingData>
bool	updateFace (const polyMesh &, const label thisFacei, const label neighbourCelli, const wallPoint &neighbourInfo, const scalar tol, TrackingData &td)
	Influence of neighbouring cell.
template<class TrackingData>
bool	updateFace (const polyMesh &, const label thisFacei, const wallPoint &neighbourInfo, const scalar tol, TrackingData &td)
	Influence of different value on same face.
template<class TrackingData>
	wallPoint (const polyMesh &, const scalar weight, const label face0, const wallPoint &info0, const label face1, const wallPoint &info1, const scalar tol, TrackingData &td)
	Interpolate different values.
template<class TrackingData>
bool	equal (const wallPoint &, TrackingData &td) const
	Test for equality, with TrackingData.
template<class TrackingData>
bool	interpolate (const polyMesh &, const point &pt, const label i0, const wallPoint &f0, const label i1, const wallPoint &f1, const scalar weight, const scalar tol, TrackingData &td)
	Interpolate between two values (lerp). Returns true if causes changes. Not sure if needs to be specialised between face and cell and what index is needed...
bool	operator== (const wallPoint &) const
	Test for equality.
bool	operator!= (const wallPoint &) const
	Test for inequality.

Friends
Ostream &	operator<< (Ostream &, const wallPointAddressing &)
Istream &	operator>> (Istream &, wallPointAddressing &)

Detailed Description

Holds information (coordinate and origin) regarding nearest wall point.

Is like wallPoint but transfer extra (passive) data. Used e.g. in wall distance calculation with wall reflection vectors.

Source files

Definition at line 58 of file wallPointAddressing.H.

Constructor & Destructor Documentation

◆ wallPointAddressing() [1/2]

wallPointAddressing ( )

inline

Default construct.

Definition at line 85 of file wallPointAddressingI.H.

References wallPoint::wallPoint().

Referenced by operator<<, operator>>, updateCell(), updateFace(), and updateFace().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ wallPointAddressing() [2/2]

wallPointAddressing	(	const point &	origin,
		const labelPair &	data,
		const scalar	distSqr )

inline

Construct from origin, transforms, distance.

Definition at line 92 of file wallPointAddressingI.H.

References data(), wallPoint::distSqr(), wallPoint::origin(), and wallPoint::wallPoint().

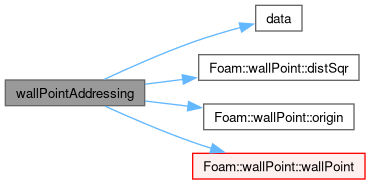

Here is the call graph for this function:

Member Function Documentation

◆ data() [1/2]

const labelPair & data ( ) const

inline

Definition at line 117 of file wallPointAddressing.H.

Referenced by wallPointAddressing().

Here is the caller graph for this function:

◆ data() [2/2]

labelPair & data ( )

inline

Definition at line 121 of file wallPointAddressing.H.

◆ leaveDomain()

template<class TrackingData>

void leaveDomain	(	const polyMesh &	mesh,
		const polyPatch &	pp,
		const label	patchFacei,
		const point &	faceCentre,
		TrackingData &	td )

inline

Convert any absolute coordinates into relative to (patch)face centre.

Definition at line 107 of file wallPointAddressingI.H.

References wallPoint::leaveDomain(), mesh, pp(), and td().

Here is the call graph for this function:

◆ updateCell()

template<class TrackingData>

bool updateCell	(	const polyMesh &	mesh,
		const label	thisCelli,
		const label	neighbourFacei,
		const wallPointAddressing &	neighbourWallInfo,
		const scalar	tol,
		TrackingData &	td )

inline

Influence of neighbouring face.

Calls update(...) with cellCentre of celli

Definition at line 157 of file wallPointAddressingI.H.

References mesh, td(), update(), and wallPointAddressing().

Here is the call graph for this function:

◆ updateFace() [1/2]

template<class TrackingData>

bool updateFace	(	const polyMesh &	mesh,
		const label	thisFacei,
		const label	neighbourCelli,
		const wallPointAddressing &	neighbourWallInfo,
		const scalar	tol,
		TrackingData &	td )

inline

Influence of neighbouring cell.

Calls update(...) with faceCentre of facei

Definition at line 183 of file wallPointAddressingI.H.

References mesh, td(), update(), and wallPointAddressing().

Here is the call graph for this function:

◆ updateFace() [2/2]

template<class TrackingData>

bool updateFace	(	const polyMesh &	mesh,
		const label	thisFacei,
		const wallPointAddressing &	neighbourWallInfo,
		const scalar	tol,
		TrackingData &	td )

inline

Influence of different value on same face.

Merge new and old info. Calls update(...) with faceCentre of facei

Definition at line 209 of file wallPointAddressingI.H.

References mesh, td(), update(), and wallPointAddressing().

Here is the call graph for this function:

◆ operator<<

Ostream & operator<<	(	Ostream &	,
		const wallPointAddressing &	)

friend

References wallPointAddressing().

◆ operator>>

Istream & operator>>	(	Istream &	,
		wallPointAddressing &	)

friend

References wallPointAddressing().

The documentation for this class was generated from the following files:

src/finiteVolume/fvMesh/wallDist/wallDistAddressing/wallPointAddressing.H
src/finiteVolume/fvMesh/wallDist/wallDistAddressing/wallPointAddressingI.H
